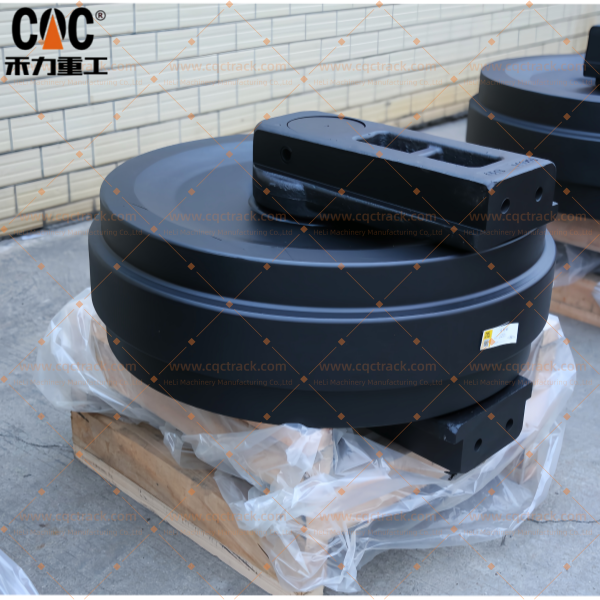

LIUGONG 14C0197 CLG970/CLG975 Track Guide Wheel / Track Front Idler Assembly

OEM-Quality Undercarriage Component for Heavy-Duty Excavator Applications

Professional Source Manufacturer: CQC TRACK (HELI)

1. Technical Overview: Engineering Excellence for 70-Ton Class Excavators

The LIUGONG CLG970 and CLG975 represent the pinnacle of Chinese heavy excavator engineering, operating in the 65–75 metric ton class across the world’s most demanding mining and construction environments. These machines are deployed extensively in surface mining operations, large-scale infrastructure projects, quarry production, and heavy earthmoving applications across South America, Africa, Russia, Australia, Korea, and other global markets .

The Track Front Idler Assembly (Guide Wheel) , identified by LIUGONG OEM part number 14C0197, is a mission-critical undercarriage component that serves as the forward guidance and tension management system for the excavator’s track chain. As the counterpart to the rear drive sprocket, the idler assembly must withstand extreme loads, continuous abrasion, and severe impact forces while maintaining precise track alignment .

This document provides comprehensive technical specifications for the LIUGONG 14C0197 Track Front Idler Assembly, compatible with CLG970 and CLG975 excavator models. As a professional source manufacturer, CQC TRACK (HELI) delivers OEM-quality undercarriage components engineered to meet or exceed original equipment specifications for heavy-duty mining and construction applications.

2. Functional Definition: The Critical Role of the Front Idler

2.1 Primary Functions

The Track Front Idler Assembly serves four interconnected functions critical to excavator performance and undercarriage longevity :

2.2 Component Identification

3. Detailed Component Breakdown & Technical Specifications

3.1 Idler Wheel (Rim) Engineering

The idler wheel is the visible rotating component that directly contacts the track chain. Its engineering determines wear life and operational reliability .

3.2 Idler Shaft (Spindle) Specifications

The idler shaft serves as the central load-bearing axle, transmitting all operational loads from the idler wheel to the support brackets and mainframe .

3.3 Bearing System Configuration

The bearing system is the heart of the idler assembly, determining rotational smoothness and service life .

3.4 Sealing System Engineering

The sealing system is paramount for service life in mining and construction environments where dust, mud, and abrasive particles are prevalent .

3.5 Track Tensioning Interface

The idler assembly incorporates a precision-engineered interface for connection to the track tensioning system .

4. Source Manufacturer: CQC TRACK (HELI) – Professional Undercarriage Component Manufacturer

4.1 Manufacturer Profile

CQC TRACK (operating under HELI Group affiliation) is a specialized manufacturer and supplier of heavy-duty tracked chassis components, headquartered in Quanzhou, China. The company maintains full vertical integration across the manufacturing process, from raw material selection through final assembly and quality testing .

Core Manufacturing Capabilities:

4.2 Quality Assurance Protocols for Mining-Grade Components

4.3 Metallurgical Foundation for Heavy-Duty Applications

CQC TRACK employs advanced metallurgical engineering to achieve the optimal balance of hardness, toughness, and fatigue resistance required for 70-ton class excavator idlers :

Dual-Property Heat Treatment Engineering :

1. Quenching and Tempering (Q&T): Entire forged body austenitized at 840–880°C, quenched, then tempered at 500–650°C. Core hardness: 280–350 HB (29–38 HRC) —providing optimal toughness for impact absorption.
2. Induction Surface Hardening: Following finish machining, the critical wear surface undergoes localized induction hardening. Surface hardness: HRC 52–58 with case depth 5–12 mm —providing exceptional wear resistance while maintaining core toughness.
3. Hardness Profile Verification: Microhardness traverses verify controlled transition from hard surface to tough core, preventing spalling or case-core separation under impact loading.

5. Associated Undercarriage Components for CLG970/CLG975

For comprehensive undercarriage maintenance—critical for mining operations where downtime directly impacts production revenue—the front idler should be evaluated alongside complementary components. CQC TRACK manufactures the complete chassis component portfolio for LIUGONG CLG series excavators.

5.1 Idler and Track Chain Matching Principle

For CLG970/CLG975 mining excavators, the front idler and track chain must be assessed as a matched system. Operating a new idler with a severely worn chain (or vice versa) creates :

• Accelerated Tread Wear: Mismatched contact geometry destroys the idler running surface
• Bushing Damage: Premature failure of track chain bushings
• De-tracking Risk: Improper engagement increases lateral slippage potential
• Reduced Service Life: 40–60% reduction in overall undercarriage life

6. Global Market Applications & Regional Adaptations

The LIUGONG CLG970/CLG975 series is deployed in mining and heavy construction operations worldwide. CQC TRACK components are engineered with specific regional adaptations to meet local operational conditions and procurement preferences.

6.1 South America

6.2 Africa

6.3 Russia & CIS

6.4 Australia

6.5 Korea

6.6 Mining Industry Best Practices

For mining operations across all regions, the following procurement practices are recommended:

7. Procurement & Compatibility Verification

7.1 Pre-Purchase Verification Steps

1. Machine Model Confirmation: Verify exact model designation (CLG970, CLG970E, CLG975, CLG975E) and serial number
2. OEM Part Number Verification: Confirm idler part number 14C0197 against machine documentation
3. Undercarriage Configuration: Verify number of bottom rollers per side (typically 7–9); confirm track shoe width
4. Track Chain Pitch Verification: Confirm existing track chain pitch (260 mm standard for 70-ton class)
5. Tensioning System Compatibility: Verify track adjuster cylinder compatibility with idler interface

7.2 Sourcing Channels

8. Maintenance Recommendations & Failure Prevention

8.1 Regular Inspection Protocol for Mining Operations

8.2 Common Failure Modes – Mining Applications

8.3 Replacement Recommendations

9. Technical Specifications Summary Table

10. Conclusion

The LIUGONG CLG970 and CLG975 excavators represent significant capital investments for mining companies, quarry operators, and heavy construction contractors worldwide. The Track Front Idler Assembly (14C0197) is a mission-critical component that works in concert with the track tensioning system to ensure proper track alignment, tension management, and shock absorption .

CQC TRACK (HELI) stands as a professional source manufacturer with full vertical integration, advanced metallurgical engineering, rigorous quality assurance protocols, and comprehensive global supply chain infrastructure. Our components are engineered to meet or exceed LIUGONG OEM specifications, featuring:

• Closed-die forging for superior grain structure and fatigue resistance
• Dual-property heat treatment combining tough core with hard wear surface
• Precision machining with ±0.02 mm tolerances on critical interfaces
• Multi-barrier sealing systems for contaminant exclusion in extreme environments
• Full material traceability with Mill Test Reports and certification

These engineering investments ensure reliable performance across the world’s most demanding operational environments—from the iron ore mines of Australia and South America to the diamond and gold operations of Africa, from the permafrost regions of Russia to the quarry sites of Korea, and from the infrastructure projects of Southeast Asia to the mining operations of North America.

For technical specifications, pricing inquiries, or to place orders for LIUGONG CLG970/CLG975 undercarriage components, contact CQC TRACK’s international sales department with your machine serial number and specific requirements.

Author:
CQC International Sales Department – Jack
Professional Source Manufacturer of Heavy-Duty Tracked Undercarriage Components
Specializing in LIUGONG, SANY, KOMATSU, HITACHI, KOBELCO, and LIEBHERR Excavator Solutions
Certified Manufacturer: HELI (CQC TRACK)

Disclaimer: All part numbers and machine models referenced are for identification and compatibility purposes only. CQC TRACK is an independent manufacturer of aftermarket and OEM-quality components. All trademarks (including LIUGONG, CLG, and associated model designations) remain the property of their respective owners.
