DAEWOO 27000049 27000059C DH500 DH550 DX480 DX520 Track Front Idler Assembly – Heavy Duty Crawler Excavator Undercarriage Part

Source Manufacturer and Factory – CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) – Made in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for two mission-critical Daewoo/Doosan front idler assemblies—OEM cross-reference part numbers 27000049 and 27000059C—engineered specifically for the Daewoo DH500, DH550, Doosan DX480, and DX520 series hydraulic crawler excavators. These idler wheel assemblies, alternatively designated as front idler groups, idler assemblies, or guide wheels, represent foundational undercarriage components for the 50-ton heavy excavator class deployed in large-scale mining, quarrying, heavy infrastructure, and mass earthmoving operations worldwide.

Within the heavy-duty undercarriage architecture, the front idler performs four essential functions: guiding the track chain around the undercarriage frame with precision lateral alignment, maintaining proper track tension in conjunction with the track adjuster recoil spring assembly, supporting the frontal weight of the 50-ton machine during travel, excavation, and dozing operations, and absorbing shock loads encountered when traversing uneven mining terrain. For Daewoo DH500/DH550 and Doosan DX480/DX520 excavators—machines widely deployed in open-pit mining, aggregate quarrying, large-scale infrastructure projects, and heavy material handling across South America, Australia, Europe, Russia, and Central Asia—the engineering integrity of the front idler assembly is fundamental to track system reliability, machine mobility, and operational productivity.

This analysis examines these idler assemblies through multiple technical lenses: functional engineering principles of track guidance and tension management for 50-ton class machines, metallurgical composition with detailed material grade specifications for heavy mining applications including 40Mn2 and 42CrMo alloy steels, advanced manufacturing process engineering featuring closed-die hot forging, precision CNC machining, and computer-controlled medium-frequency induction heat treatment, rigorous quality assurance protocols including ISO 9001:2015 certification, dimensional specifications and installation parameters for DX480/DX520 undercarriage fitment, comprehensive installation and track tensioning procedures for heavy excavator track systems, wear diagnosis and replacement criteria for mining operations, regional market analysis for major mining regions, and strategic sourcing considerations for procurement professionals managing Daewoo/Doosan heavy excavator fleets worldwide.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components, recognized among the premier undercarriage component manufacturers in the Quanzhou region, Fujian Province—China‘s premier industrial cluster for heavy machinery manufacturing. The company’s strategic position in Quanzhou provides exceptional access to major international ports including Xiamen and Fuzhou, enabling efficient export logistics to global mining and construction markets.

The function of an idler is to guide the track links into running smoothly and to prevent dislocation; idlers also carry some weight and therefore influence ground pressure. The guide wheel ensures the track rotates correctly to prevent deviation and derailment, while also acting as a supporting wheel to increase the contact area between the track and the ground.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A front idler assembly—technically designated as a track idler, guide wheel, idler group, or front idler wheel—is a critical passive undercarriage component mounted at the front of the excavator‘s track frame, opposite the rear-mounted drive sprocket. Unlike the drive sprocket, which is an active component that propels the machine, the front idler is a passive component that rotates freely around a stationary shaft as the track chain moves. For 50-ton class heavy excavators deployed in mining operations, the functional importance of the front idler equals or exceeds that of the drive sprocket for several reasons:

Track Chain Guidance: The front idler is the primary component responsible for maintaining proper track chain alignment as the chain travels around the front of the undercarriage. The idler’s precision-machined flanges prevent lateral chain movement, ensuring that the track remains centered on the undercarriage frame during forward travel, reverse travel, and turning operations. In heavy mining applications where machines operate on uneven, rocky terrain, precise track guidance is critical for preventing derailment and reducing edge wear on both the chain links and the idler tread surfaces.

Track Tension Management: The idler assembly interfaces directly with the track tensioning system—typically a grease-filled recoil spring and tension cylinder assembly—to maintain optimal track chain tension across varying operating conditions. Proper tension is essential for preventing chain derailment, minimizing vibration, maximizing component service life in heavy-duty undercarriage configurations, and ensuring consistent track contact for machine stability during high-production excavation cycles.

Frontal Load Support: The idler wheel supports the front portion of the excavator‘s operating weight, transferring loads from the track frame through the idler shaft and bearing system to the track chain and ultimately to the ground surface. For the 50-ton excavator class, the idler must accommodate the machine’s full frontal weight—approximately 25 tons or more—during dozing, grading, and traversing uneven terrain while maintaining structural integrity under continuous cyclic loading.

Shock Load Absorption: When the excavator encounters obstacles such as large rocks, mine debris, or uneven ground, the front idler—working in conjunction with the recoil spring assembly—absorbs impact loads that would otherwise be transmitted directly to the undercarriage frame and upper structure. This shock absorption function is particularly important in open-pit mining applications where operators frequently traverse mixed terrain conditions with abrupt elevation changes, blast rock, and overburden materials.

Influence on Ground Pressure: Idlers also carry some weight and therefore influence ground pressure. The guide wheel is used to guide the track to rotate correctly to prevent its deviation and derailment, while also acting as a supporting wheel to increase the contact area between the track and the ground.

1.2 OEM Part Numbers and Compatible Excavator Models

The two front idler assemblies documented in this analysis correspond to precise Daewoo/Doosan OEM engineering specifications, offering direct interchangeability without requiring modifications to the track frame, track adjuster assembly, or track chain components. The table below provides comprehensive cross-reference data:

These idler assemblies are specifically engineered for the 50-ton class hydraulic excavator product line, which includes the Daewoo DH500 and DH550 series as well as the Doosan DX480 and DX520 series. Following Daewoo Heavy Industries’ acquisition by Doosan Infracore, many Daewoo excavator models were rebranded under the Doosan name while maintaining the same undercarriage architecture and component specifications. Consequently, the 27000049 and 27000059C idler assemblies are fully compatible with both Daewoo-branded and Doosan-branded machines in the 48–52 ton class.

The 27000059C designation is specifically referenced for Daewoo DH500 applications. Industry sources confirm that Daewoo/Doosan front idler assemblies are applicable to a wide range of heavy excavator models including DH55, DH220, DH280-2/3, DH320, DH500, and other similar-sized machines.

1.3 Daewoo DH500 / Doosan DX480 Specifications

The Daewoo DH500 and Doosan DX480 represent the 48–52 ton class in the Daewoo/Doosan product line, offering substantial digging and lifting performance for large-scale mining and construction projects.

Doosan DH500 (Daewoo DH500) Specifications:

The DH500 operating class is 50-ton class with a gross weight of 46,900 kg and counterweight of 11,100 kg. The engine output power is 232 kW/2,000 rpm with auxiliary hydraulic flow of 2×359 L/min. Alternative engine configuration with DC13 engine provides 294 kW @ 1,800 rpm with operating weight of 50,500 kg and bucket capacity of 2.4–3.2 m³.

Doosan DX480 Specifications:

The DX480/520LCA-K is designed to deliver Doosan’s industry-leading productivity and stability, with remarkably high lifting capacity made possible by the heaviest counterweight in its class and the exceptionally long and wide undercarriage. The heavy-duty X-shaped undercarriage features integrated H track spring and idler plus durable box section track frame and self-lubricating sealed links. The undercarriage includes 3 upper rollers, 9 lower rollers, and 3 track guards per track frame.

DX480 Undercarriage Component Configuration:

These undercarriage component quantities confirm the heavy-duty configuration of the DX480, with 18 track rollers and 4 top rollers supporting the machine across the full undercarriage length.

1.4 Doosan DX520 Specifications

The Doosan DX520 represents the upper range of the 50-ton class, offering enhanced power and capacity for large-scale mining and earthmoving operations.

Doosan DX520 Specifications:

The DX520 is a heavy-duty hydraulic excavator built for large earthmoving, quarry and mining applications, with robust structural components, advanced hydraulic systems, and optional long-reach configurations. The DL08 engine is a 6-cylinder, turbocharged, water-cooled diesel engine with common rail direct injection system for improved efficiency and reduced emissions, with displacement of 7.6 liters.

DX520 Undercarriage Component Configuration:

The DX520 undercarriage configuration includes 22 track rollers per machine, reflecting the longer undercarriage frame and heavier duty requirements of this model.

1.5 Component Architecture and Assembly Composition

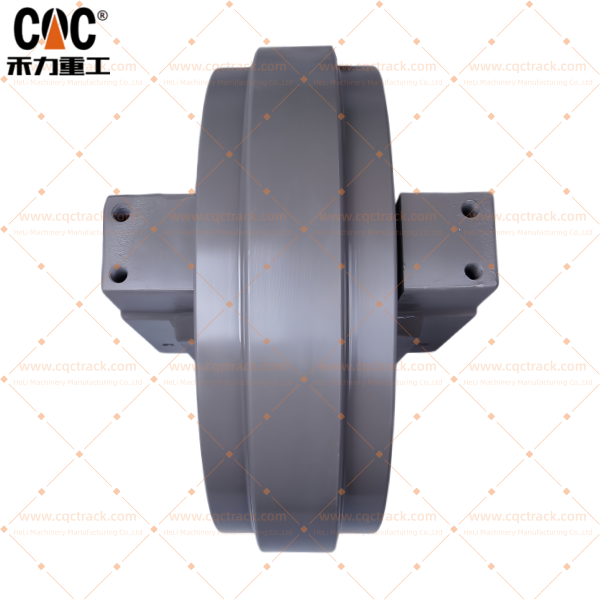

A complete Daewoo/Doosan 27000049/27000059C front idler assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the 50-ton heavy excavator undercarriage format:

Idler Wheel Body (Shell): The outer wheel component that contacts the track chain link rails. The idler wheel features precision-machined flanges that maintain lateral track alignment and a hardened tread surface that engages with the chain bushings. For 50-ton excavator applications, the wheel body diameter is significantly larger than smaller excavator classes, requiring precise dimensional control for proper track engagement and load distribution. The idler shell is cast or forged from special steel to ensure optimal wear characteristics.

Shaft (Axle): The stationary central component that mounts to the track frame via the idler bracket or yoke. The shaft incorporates precision-ground bearing journals and sealing surfaces. Made from high-strength alloy steel (40Mn2 or 42CrMo), the idler main pin shaft is hardened by medium-frequency induction hardening heat treatment to ensure its hardness and resist bending under heavy loads.

Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the idler wheel body around the stationary shaft while supporting the machine‘s frontal loads. For 50-ton class applications, the bearing system must accommodate higher load per contact area while maintaining smooth rotation under continuous heavy-duty cycles. Industry sources indicate that bimetal bushings of the front idler are based on steel plate with special alloy sintered on it. Brackets of idler roller are made by ductile iron, showing exceptional resistance to shock.

Sealing System: High-durability floating seals incorporating premium rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress from mud, dust, water, and abrasive particles. The sealing system must resist ingress of fine silica dust and coarse abrasive materials common in open-pit mining environments.

Lubrication Charge: Grease-based lubricant that maintains the bearing system under proper lubrication conditions throughout the service life. The sealed system is designed for extended service intervals, reducing maintenance requirements for mining fleet operators.

Idler Bracket/Yoke: The mounting structure that connects the idler shaft to the track frame and interfaces with the track adjuster recoil spring assembly. For 50-ton heavy excavator chassis, the bracket is manufactured from ductile iron and is designed with exceptional resistance to shock loading to withstand the high impact forces encountered in mining applications. The DX480/520LCA-K features an integrated H track spring and idler with durable box section track frame.

2. Metallurgical Composition and Heat Treatment Engineering

2.1 Material Grade Specifications for Heavy-Duty Applications

CQC TRACK manufactures Daewoo/Doosan cross-reference front idlers using premium alloy steel grades selected for their specific mechanical properties in 50-ton heavy excavator undercarriage applications. The primary material grades employed include:

40Mn2 Alloy Steel: A chromium-manganese alloy offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for 50-ton class excavator applications. 40Mn2 steel is widely used in manufacturing crawler machine parts that work under heavy loads, such as excavator and bulldozer undercarriage parts, crankshafts, and similar high-stress components. It is a medium carbon manganese steel with high strength, plasticity, and wear resistance, and its machinability and heat treatment process performance are also good. This material responds well to induction heat treatment, achieving uniform case hardness profiles with minimal distortion.

42CrMo Alloy Steel (Premium Grade): A chromium-molybdenum forged alloy steel offering exceptional strength, deep hardenability, and superior impact resistance. 42CrMo is a medium carbon alloy structural steel with high strength, high toughness, good hardenability, and excellent fatigue resistance, widely applied in mechanical manufacturing for shafts, gears, connecting rods, bolts, and other critical components. For demanding mining applications where extended service life is critical, forged 42CrMo provides the highest level of performance. After quenching and tempering, 42CrMo achieves hardness of HRC 48–52, and with induction quenching and tempering, hardness reaches HRC 54–60.

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. Industry sources confirm that 50Mn material is commonly used for 50-ton class excavator idlers, achieving HRC 48–54 surface hardness with case depth of 4–10 mm.

The material grade selection directly determines the idler‘s service life in high-abrasion mining environments. For steel parts like idlers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

2.2 Forging vs. Casting: Engineering Considerations for 50-Ton Class

The manufacturing method—forging versus casting—significantly influences idler performance and service life in heavy mining applications:

Forged Idlers: The forging process refines the steel’s internal grain structure, eliminates porosity, and aligns the grain flow with the component‘s primary stress paths. The result is superior mechanical properties including higher impact strength, better fatigue resistance, and greater resistance to catastrophic failure under shock loads. For premium-grade 50-ton excavator idlers, forged construction is the preferred specification. Closed-die hot forging processes ensure optimal grain flow and material density in component blanks, which is fundamental for impact strength and fatigue life under the heavy cyclic loads experienced in mining operations.

Cast Idlers: Casting allows for complex geometries and is generally more cost-effective for production volumes. The idler shell can be cast from special steel, with the lathing process ensuring precise boundary dimensions. For standard-duty applications where cost optimization is prioritized, cast construction provides acceptable performance with proper material selection and heat treatment. Brackets of idler roller are typically made by ductile iron, which shows exceptional resistance to shock.

Industry sources indicate that premium front idler assemblies for heavy excavators in the 50-ton class are manufactured using forged steel 50Mn or equivalent grades, achieving surface hardness of HRC 48–54 with case depth of 4–10 mm.

2.3 Heat Treatment Parameters and Hardness Profiles

Heat treatment is the single most critical manufacturing operation determining front idler service life in heavy mining applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components in 50-ton excavators, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel’s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for idler treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for idlers that must withstand dynamic loads and shocks from boulder impacts, blast rock, and uneven mine haul roads.

The specific heat treatment parameters for Daewoo/Doosan front idlers in the 50-ton class are as follows:

Industry sources report that premium excavator front idlers achieve surface hardness of HRC 52–58 with case depth of 8–12 mm. For 42CrMo material, induction quenching and tempering achieves hardness of HRC 54–60. The rail surface is hardened through medium-frequency induction to achieve a surface hardness between HRC 48 and HRC 58, with a hardening depth of at least 4–6 mm (reaching HRC 45 at this depth).

The idler main pin shaft is hardened by medium-frequency induction hardening heat treatment to ensure its hardness. The heavy profiles of idler roller rims are carefully heat-treated in depth for extra service life, ensuring that the hardened surface layer remains intact even after significant wear has occurred.

2.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. After assembly, there is a testing process under water to prove the sealing property of the idlers. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

3. Sealing System and Bearing Technology

3.1 Floating Seal Configuration for Heavy Mining Applications

Front idlers for 50-ton heavy excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the severe impact and contamination exposure encountered in open-pit mining operations:

Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress. High-hardness wear-resistant alloy chrome and molybdenum floating seals are employed for superior sealing performance.

Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments caused by shock loading.

Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and idler wheel body, ensuring optimal seal compression and alignment.

The sealing system must resist ingress of abrasive materials common in mining environments—including silica dust, slurry, mud, blast rock fines, and other abrasive particles—which would otherwise accelerate bearing wear and cause premature failure. Heavy-duty rock guards protect against damage from dirt and debris.

3.2 Bearing System Design for 50-Ton Class

Each front idler incorporates a bearing system designed for low-friction rotation and extended service life under continuous heavy-duty operation. Two primary bearing configurations are employed depending on the specific part number and application:

Hardened Steel Bushing Configuration with Bimetal Technology: The idler wheel rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. Bimetal bushings of the front idler are based on steel plate with special alloy sintered on it, providing excellent wear resistance and low friction characteristics. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions—all critical for mining applications.

Bracket Material: Brackets of idler roller are made by ductile iron, showing exceptional resistance to shock. This material choice ensures the mounting structure can withstand the high impact forces encountered when the excavator traverses uneven terrain with large rocks and boulders.

Anti-Friction Bearing Configuration: Some premium front idler assemblies utilize anti-friction bearings (tapered roller bearings) for reduced rotational friction and extended service intervals, particularly for the heavier DX520 configuration.

The bearing surfaces are finished to precise surface roughness specifications that promote lubricant film retention while minimizing friction during rotation. Proper bearing clearance is maintained to accommodate thermal expansion and deflection under load while preventing excessive radial play that would cause seal damage or idler misalignment.

3.3 Lubrication Retention

Front idlers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. The sealed system is designed for extended service intervals, reducing maintenance requirements for mining fleet operators. Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based or polyurea-based grease with extreme pressure (EP) additives
• Lubricant Volume: Optimized for the specific bearing configuration and seal design for 50-ton class load requirements
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling experienced in extreme temperature mining environments

The DX480/520LCA-K features self-lubricating sealed links as part of the heavy-duty X-shaped undercarriage, complementing the sealed idler assembly for comprehensive undercarriage reliability.

4. Dimensional Specifications and Installation Parameters

4.1 Undercarriage Fitment Dimensions

The 27000049 and 27000059C front idler assemblies are engineered to precise dimensional specifications for direct fitment to the Daewoo DH500/DH550 and Doosan DX480/DX520 track frames. While exact dimensional specifications should be verified against OEM documentation, industry sources confirm the following undercarriage parameters for these models:

• Track Shoe Width: 600 mm (standard configuration for both DX480 and DX520)
• Track Width (Configurable): 600–900 mm for DX520 depending on configuration
• Track Link Assembly: 53 links per side for both DX480 and DX520
• Track Chain Pitch: Industry standard pitch sizes for 50-ton class excavators include 171.5 mm and 203 mm; verification required for specific model
• Track Rollers per Side: 9 for DX480, 11 for DX520 (22 total per machine for DX520)
• Top Rollers per Side: 2 for DX480, 2 for DX520 (4 total per machine)
• Idler Mounting: Bracket-mounted with integrated H track spring interface

4.2 Idler Mounting Configuration

The DX480/520LCA-K features a heavy-duty X-shaped undercarriage with integrated H track spring and idler plus durable box section track frame. This design incorporates:

• Idler with Brackets: The idler assembly mounts to the track frame via robust brackets made of ductile iron, showing exceptional resistance to shock
• Track Adjuster Interface: The idler bracket interfaces directly with the grease-filled track adjuster recoil spring assembly for proper track tension management
• Bimetal Bushings: The idler incorporates bimetal bushings based on steel plate with special alloy sintered on it for enhanced wear resistance

4.3 Installation Torque Considerations

Proper installation of a front idler assembly on a Daewoo DH500/DH550 or Doosan DX480/DX520 excavator requires adherence to manufacturer torque specifications. Industry sources indicate that torque specifications for heavy excavator undercarriage components are detailed in the “General Specifications” section of the OEM service manuals. For 50-ton class excavators, idler mounting bolts typically require high-grade hardware (Class 10.9 or higher) with torque values ranging from 600–900 Nm depending on bolt size and configuration. Always consult the OEM service manual for model-specific torque specifications.

Brackets of idler roller are made by ductile iron, showing exceptional resistance to shock, which requires proper torque application to prevent bracket damage or bolt loosening under dynamic loading.

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 40Mn2, 42CrMo, and 50Mn steels
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment, including CMM (Coordinate Measuring Machine) and precision gauging
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge
• Final Testing: Dynamic rotation testing and water immersion seal integrity verification

5.2 Dynamic Rotation Testing

Each finished front idler is subjected to a dynamic rotation test that verifies:

• Concentricity: The idler wheel rotates without radial runout that would cause uneven track chain contact or vibration
• Smoothness: The bearing system rotates freely without binding, noise, or resistance
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load
• Balance: The idler assembly exhibits balanced rotation without vibration at operational speeds

Any noise, resistance, or oil leakage is identified and corrected before approval for shipment. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty.

5.3 Seal Integrity Testing (Water Immersion Test)

After assembly, there is a testing process under water to prove the sealing property of the idlers. This water immersion test verifies that the floating seal system maintains proper lubricant retention and prevents water ingress under static and dynamic conditions—a critical quality assurance step for components destined for mining operations in wet environments.

5.4 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket front idlers typically ranges from 12 to 24 months depending on the manufacturer and application. Industry sources report warranty periods of 1,900 hours for premium undercarriage components. For Daewoo/Doosan front idlers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity.

Expected service life for 50-ton excavator front idlers in mining applications typically ranges from 5,000 to 10,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules. For severely abrasive environments—such as iron ore mining in the Pilbara or copper mining in the Atacama Desert—service life may be reduced accordingly.

5.5 Anti-Corrosion Protection and Packaging

The idler surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the idler from rust and harsh environmental exposure during storage and field operations.

Finished idlers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports (Xiamen, Fuzhou) to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations. Fast delivery is available within 30 days after contract confirmation.

6. Installation and Track Tensioning Procedures

6.1 Pre-Installation Preparation

Proper installation of a front idler assembly on a Daewoo DH500/DH550 or Doosan DX480/DX520 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder relief valve to allow removal of the track chain.
2. Component Inspection: Before installation, inspect the idler bracket and track frame for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Idler Assembly Inspection: Inspect the new idler assembly for any shipping damage. Verify that the idler rotates freely by hand. Check seal integrity.

6.2 Idler Bracket and Tensioner Interface

The front idler mounts to the track frame via the idler bracket or yoke, which interfaces directly with the track adjuster assembly (recoil spring and grease cylinder). Key installation considerations include:

• Ensure that the idler bracket is properly aligned with the track frame guide surfaces
• Verify that the recoil spring is properly seated and functioning correctly
• Lubricate all sliding surfaces with appropriate grease before assembly
• For idlers with bimetal bushing configurations, ensure proper shaft-to-bushing clearance
• Install the idler shaft retaining hardware to specified torque values
• Brackets of idler roller are made by ductile iron and require proper torque to avoid damage

The DX480/520LCA-K features an integrated H track spring and idler plus durable box section track frame, requiring careful alignment during installation.

6.3 Track Tension Adjustment Procedure

After idler installation, proper track tension must be established according to Daewoo/Doosan DH500/DX480/DX520 specifications. The general procedure for heavy excavators is as follows:

1. Chain Installation: Install the track chain around the undercarriage components (front idler, bottom rollers, carrier rollers, drive sprocket).
2. Tension Application: Apply grease to the track adjuster grease fitting using a manual grease gun (not pneumatic) until the track chain begins to tension. For 50-ton excavators, significant grease volume is required; use appropriate equipment.
3. Sag Measurement: The proper track sag for 50-ton excavators is typically measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Standard range: approximately 30–60 mm sag for heavy excavator applications.
4. Final Adjustment: Adjust grease volume as needed to achieve proper sag. Over-tensioning will accelerate wear on all undercarriage components including idlers, rollers, sprockets, and chain bushings. Under-tensioning may cause chain derailment.
5. Test Operation: Slowly rotate the track chain through at least one full revolution while listening for unusual noises and observing chain-to-idler engagement.

6.4 Critical Tensioning Considerations

The following operational considerations are essential for maximizing undercarriage component life:

• Underfoot Conditions: Adjust track tension based on the underfoot conditions in which the machine is working. Added track tension increases both the load and the wear on all mating components of the undercarriage.
• Wear Consequences: Improperly adjusted track can result in problems and wear on other components. Tight track increases loads, which advances wear on rollers, idlers, sprockets, and chain bushings.
• Regular Monitoring: The wear of pins and bushings of the undercarriage depends on the working condition and soil condition. Check the track tension occasionally and keep it in the standard range.
• Post-Installation Verification: After 2–4 hours of operation, re-check track tension and re-torque any idler mounting hardware as specified in the Doosan service manual to account for initial seating and thermal expansion.

7. Wear Diagnosis and Replacement Criteria

7.1 Primary Wear Indicators

For mining operations managing fleets of Daewoo/Doosan 50-ton excavators, early identification of front idler wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The idler tread surface (the rolling contact area) wears progressively over time. When the tread surface exhibits significant flat spots or wear beyond approximately 3–5 mm below the original diameter, replacement is recommended. The guide wheel showcases an innovative integrated design, combined with precise heat treatment specifications, resulting in a notably hard tread surface with substantial hardening layer depth.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required. In mining operations where machines frequently turn on abrasive surfaces, flange wear accelerates significantly.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress from silica dust and abrasive fines.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage. In heavy excavators, such noise often precedes catastrophic failure.

Uneven Wear Pattern: If one side of the idler shows significantly more wear than the other, this may indicate misalignment between the idler and the track chain or issues with the track frame alignment—conditions often caused by impact damage from boulder strikes.

Track Tension Irregularities: If track tension cannot be maintained within the standard range even after proper adjustment, idler wear, track adjuster failure, or excessive chain pitch elongation may be the cause.

7.2 Replacement Interval Planning

A well-maintained idler directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn idler will accelerate wear on the new chain‘s bushings and link rails, significantly reducing overall system life. Conversely, installing a new idler on a worn chain will cause accelerated tread and flange wear and premature idler failure.

For mining operations, the recommended replacement strategy is to replace the idler and track chain as a matched set whenever either component reaches the end of its service life. Industry best practices recommend replacing wear parts in sets to ensure even wear and prevent premature failure. For 50-ton excavators in heavy mining applications, planned undercarriage replacement intervals typically range from 4,000 to 8,000 operating hours depending on ground conditions and maintenance practices.

7.3 Wear Analysis and Condition Monitoring

Undercarriage Wear Analysis should inspect the entire undercarriage as a system. Check the track chain for excessive pitch elongation, the rollers for wear, and the sprocket for “hooking”. For front idlers specifically, measure tread depth, flange thickness, and check for any signs of cracking at the flange-to-wheel body transition radii—a critical stress concentration point in heavy-duty applications.

8. Regional Market Applications: Mining-Focused Engineering

8.1 South America: Brazilian Iron Ore, Chilean Copper, and Peruvian Polymetallic Operations

The South American mining market presents unique demands for undercarriage components, with operations concentrated in Brazilian iron ore mines (Vale‘s Carajás complex, Minas Gerais operations), Chilean copper mines (Codelco’s Chuquicamata and El Teniente mines, BHP‘s Escondida mine), and Peruvian polymetallic operations (Antamina, Cerro Verde, Las Bambas). The region’s heavy machinery market is characterized by high demand for 50-ton class excavators for overburden removal, ore handling, and bench preparation. Daewoo/Doosan DH500 and DX480/DX520 excavators are extensively deployed across these mining operations.

Industry sources confirm that undercarriage components for Daewoo DH500 excavators are exported to Europe and the Americas, with both standard and nonstandard products available. For South American mining customers, CQC TRACK‘s Daewoo/Doosan cross-reference front idlers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports).

8.2 Australia: Pilbara Iron Ore, Queensland Coal, and Goldfields Operations

The Australian mining industry demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability and industry-standard warranty coverage. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Pilbara region of Western Australia—home to the world’s largest iron ore mining operations (Rio Tinto, BHP, Fortescue)—represents a primary deployment zone for 50-ton class excavators. Queensland‘s Bowen Basin coal mines, the Hunter Valley in New South Wales, and the Western Australian goldfields also utilize Daewoo/Doosan DH500 and DX480/DX520 excavators for overburden removal, coal extraction, and ore handling.

CQC TRACK’s manufacturing processes align with Australian requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability. For Australian customers operating Daewoo DH500, DH550, Doosan DX480, and DX520 excavators in iron ore, coal, gold, and base metal mining operations, these idlers provide reliable performance in the high-impact, high-abrasion conditions characteristic of Australian mine sites.

8.3 Europe: German Quarrying, French Infrastructure, and Scandinavian Mining

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s quarrying industry, particularly in the Rhineland and Bavarian regions, utilizes 50-ton class excavators for limestone, basalt, and other aggregate extraction. France‘s infrastructure development sector and the Scandinavian mining industry (LKAB’s iron ore mines in Sweden, the Pyhäsalmi mine in Finland) represent additional major application zones.

CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers. For parts distributors, equipment dealers, and mining service centers throughout Germany, France, Scandinavia, and Eastern Europe, the company provides comprehensive technical data packages including dimensional specifications, material certifications, and heat treatment records.

8.4 Russia and Central Asia: Siberian Mining, Kazakhstanean Copper, and Mongolian Operations

Following the realignment of global supply chains, Russian and Central Asian mining operators increasingly source heavy equipment components from Chinese manufacturers. Recent data indicates nearly 70% of Russian enterprises have selected Chinese manufacturing alternatives for Western equipment replacement, with Kazakhstan representing a growing market for Chinese mining equipment exports. Russia‘s vast mining industry—including Norilsk Nickel’s operations in Siberia, the Kuzbass coal basin, and various gold mining operations in the Russian Far East—utilizes 50-ton class excavators for heavy-duty applications. Kazakhstan‘s copper mining operations (Kazakhmys, KAZ Minerals) and the Oyu Tolgoi copper-gold mine in Mongolia represent additional major deployment zones.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company’s manufacturing capacity supports volume orders for mining operations requiring regular undercarriage replacement schedules.

8.5 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of Mining Service Centres in the major mining areas around the world that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. With a full range of Daewoo/Doosan-compatible excavator spare parts including track rollers, idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the Daewoo/Doosan parts catalog. The part numbers documented in this analysis—27000049 and 27000059C—serve as primary OEM references for direct cross-reference ordering.

These idler assemblies are applicable to Daewoo DH500 and DH550 excavators as well as Doosan DX480 and DX520 models. Industry sources list DH55, DH220, DH280-2/3, DH320, DH500, and other similar-sized machines as compatible with Daewoo undercarriage components.

9.2 Quality Documentation Requirements

When sourcing front idlers for mining applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 40Mn2, 42CrMo, or 50Mn)
• Heat treatment records (hardness profiles: HRC 48–58, case depth: 4–12 mm)
• Mill test certificates for raw material
• Seal system specifications and type
• Bearing type and configuration details (bimetal bushing specifications)
• Bracket material certification (ductile iron)
• Warranty documentation (12–24 months typical)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

9.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the 27000049 and 27000059C idler assemblies, with lead times of 7–30 days depending on order volume and destination. Supply ability for undercarriage components is substantial, with manufacturing capacity of up to 25,000 pieces per month for track rollers and proportional capacity for idler assemblies. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Payment terms include T/T and L/C. Fast delivery is available within 30 days after contract confirmation.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For mining operations managing large fleets of Daewoo/Doosan 50-ton excavators, sourcing OEM-equivalent aftermarket idlers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

9.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Daewoo, Doosan, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking. The company can produce as per customer drawing or sample.

10. Frequently Asked Questions for Mining Operations

Q1: What is the function of a front idler on a Daewoo DH500 or Doosan DX480 excavator?

A front idler (also called a guide wheel or track idler) guides the track chain, maintains proper track tension in conjunction with the track adjuster assembly, supports the front portion of the 50-ton machine’s weight, and absorbs shock loads from uneven terrain. The function of an idler is to guide the track links into running smoothly and to prevent dislocation; idlers also carry some weight and therefore influence ground pressure.

Q2: How do I verify which idler part number my Daewoo/Doosan excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the Daewoo/Doosan parts catalog. The part numbers covered in this analysis—27000049 and 27000059C—cover the DH500, DH550, DX480, and DX520 model range.

Q3: What materials are used in CQC TRACK front idlers for Daewoo/Doosan excavators?

CQC TRACK uses premium 40Mn2 and 42CrMo alloy steel, induction-hardened to HRC 48–58 with case depth of 4–12 mm for optimal wear resistance. Brackets of idler roller are made by ductile iron, showing exceptional resistance to shock. Bimetal bushings based on steel plate with special alloy sintered on it are used for bearing surfaces.

Q4: Are these idlers direct replacements for Daewoo/Doosan OEM parts?

Yes, all front idlers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Daewoo/Doosan‘s original engineering specifications for dimensional accuracy and mechanical properties. Original spare part numbers are for comparison purposes only.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly. After-sales service including video technical support is available.

Q6: What is the typical service life of a front idler in 50-ton excavator mining applications?

Front idler service life in DH500/DX480/DX520 mining applications typically ranges from 5,000 to 10,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules. Industry sources report warranty periods of 1,900 hours for premium undercarriage components.

Q7: When should I replace my excavator’s front idler?

Replace the idler when the tread surface is worn more than 3–5 mm below original diameter, when flange thickness is reduced beyond 30% of original, when seal leakage is observed, or when abnormal noise is detected during operation.

Q8: Should I replace the idler when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. Installing a new chain on a worn idler will rapidly accelerate chain bushing and link rail wear. Replace wear parts in sets to ensure even wear and prevent premature failure.

Q9: What is the correct track sag specification for Daewoo/Doosan 50-ton excavators?

Proper track sag for 50-ton excavators is typically 30–60 mm measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Always consult the Doosan service manual for model-specific specifications.

Q10: What is the lead time for volume orders of Daewoo/Doosan idlers?

Lead times for volume orders of Daewoo/Doosan front idlers typically range from 7–30 days depending on order volume and destination, with fast delivery within 30 days after contract confirmation. Supply ability is up to 25,000 pieces per month for undercarriage components.

Q11: What warranty coverage is provided?

Industry-standard warranty coverage for aftermarket front idlers typically ranges from 12 to 24 months depending on the manufacturer and application. Industry sources report warranty periods of 1,900 hours for premium undercarriage components.

Q12: Can these idlers be used on both Daewoo and Doosan branded machines?

Yes. Following Daewoo Heavy Industries’ acquisition by Doosan Infracore, many Daewoo excavator models were rebranded under the Doosan name while maintaining the same undercarriage architecture and component specifications. The 27000049 and 27000059C idler assemblies are fully compatible with both Daewoo-branded and Doosan-branded machines in the 48–52 ton class.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM and ODM manufacturing partner.

The Quanzhou region hosts multiple specialized undercarriage manufacturers, creating a robust industrial ecosystem. CQC TRACK manufactures a full range of Daewoo/Doosan-compatible undercarriage parts, including track rollers, idlers, sprockets, track chains, track shoes, and complete undercarriage systems. The company’s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

11.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Daewoo, Doosan, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. The company can produce as per customer drawing or sample.

11.3 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 40Mn2, 42CrMo, and 50Mn alloy steels through strategic supply partnerships, with full material certification and traceability
• Casting and Forging Capabilities: Both casting and forging processes employed depending on application requirements and quality grade; premium-grade idlers produced through closed-die forging
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 48–58 with 4–12 mm case depth
• Bimetal Bushing Technology: Bimetal bushings based on steel plate with special alloy sintered on it for enhanced wear resistance
• Ductile Iron Brackets: Idler brackets made from ductile iron showing exceptional resistance to shock
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing, water immersion sealing tests, and rolling fluency testing on every finished idler
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

11.4 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms including T/T and L/C, and fast delivery within 30 days after contract confirmation. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

12. Conclusion

The two Daewoo/Doosan OEM cross-reference front idler assemblies documented in this analysis—27000049 and 27000059C—represent essential undercarriage components for DH500, DH550, DX480, and DX520 series hydraulic crawler excavators deployed in large-scale mining, quarrying, heavy infrastructure, and mass earthmoving operations worldwide. As the primary track guidance and tension management component at the front of the undercarriage, the idler assembly plays a critical role in track chain alignment, load distribution, shock absorption, and overall undercarriage system longevity for 50-ton heavy excavators.

The Daewoo DH500 and Doosan DX480/DX520 excavators, with operating weights of approximately 46,900–52,200 kg, track shoe widths of 600 mm, and heavy-duty undercarriage configurations with 9–11 track rollers per side, represent a significant segment of the global heavy mining excavator market. For these machines, the front idler must provide reliable service under extreme conditions—including impact from boulders, abrasion from blast rock, and continuous cyclic loading—while accommodating the heavy-duty undercarriage configuration.

The function of an idler is to guide the track links into running smoothly and to prevent dislocation; idlers also carry some weight and therefore influence ground pressure. The guide wheel ensures the track rotates correctly to prevent deviation and derailment, while also acting as a supporting wheel to increase the contact area between the track and the ground.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these idlers to meet or exceed OEM specifications through advanced forging technology, precision CNC machining, computer-controlled medium-frequency induction heat treatment achieving HRC 48–58 surface hardness with 4–12 mm case depth, bimetal bushing technology for enhanced wear resistance, ductile iron brackets for exceptional shock resistance, and rigorous quality assurance protocols including water immersion sealing tests and rolling fluency testing. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global mining markets.

For mining operators, equipment dealers, and parts distributors throughout South America (Brazil, Chile, Peru), Australia (Pilbara, Queensland, New South Wales), Europe (Germany, France, Scandinavia), and Russia/Central Asia (Siberia, Kazakhstan, Mongolia), these front idlers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

For fleet managers and maintenance supervisors, implementing a proactive idler inspection and replacement schedule—including regular tread wear measurement, flange geometry verification, seal integrity checks, proper track tension adjustment to 30–60 mm sag, and coordinated idler-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime in heavy mining operations.

The idler is vital for ensuring the smooth operation of the track links and preventing their displacement. CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the mining and heavy construction industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
