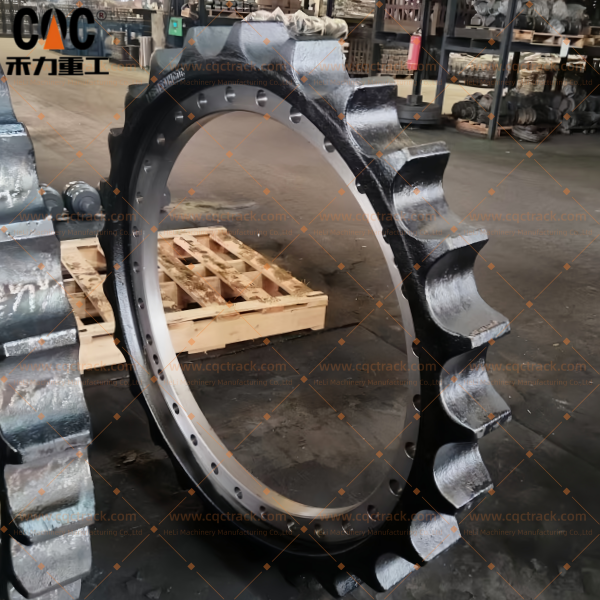

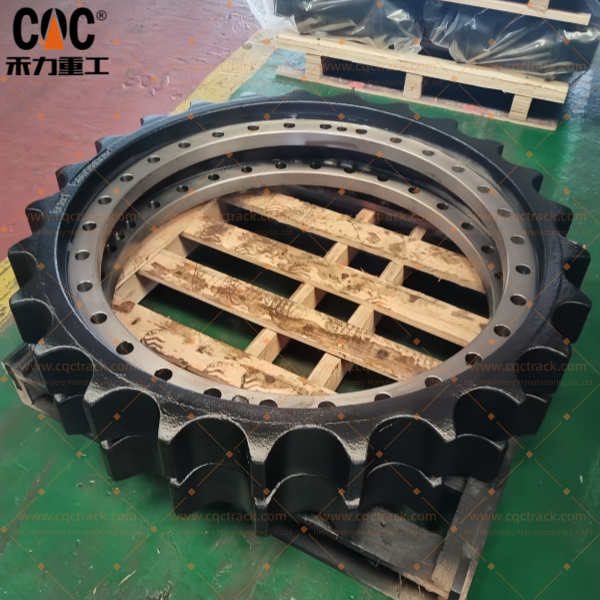

Hitachi EX1200-6 4661591 Track Sprocket Wheel Assembly / Heavy duty Mining EXC equipment Spare Parts manufacturing expert / OEM Factory / CQCTRACK

# Hitachi EX1200-6 4661591 Track Sprocket Wheel Assembly: Heavy-Duty Mining Excavator Spare Parts Manufactured by CQCTRACK

**Meta Description:** Discover the OEM-grade Hitachi EX1200-6 track sprocket assembly (P/N 4661591) from CQCTRACK. An expert mining undercarriage manufacturer delivering proven material toughness, on-spec hardness, and global supply capability for the world’s toughest digging conditions.

## Engineered for Extreme Excavation: The EX1200-6 Final Drive Interface
The Hitachi EX1200-6 hydraulic excavator is a backbone of large-scale earthmoving and open-pit mining operations. Its travel system relies on a perfectly matched track sprocket assembly to convert final drive torque into powerful, reliable drawbar pull. The **4661591 sprocket wheel assembly** is not simply a wear part—it is the critical engagement point where machine power meets the ground. In heavily abrasive bench loading or tight-shovel production cycles, any compromise in sprocket material, tooth profile, or hub integrity directly results in accelerated track chain wear, excessive vibration, and costly unplanned downtime.

## CQCTRACK: Specialized OEM-Level Undercarriage Manufacturing
CQCTRACK, produced under the parent brand of Quanzhou Heli Machinery Manufacturing Co., Ltd. (HELI), is an independent **heavy-duty mining equipment spare parts manufacturing expert**. Rather than representing a trading network, CQCTRACK operates its own integrated foundry, heat-treating, and CNC machining complex. The factory applies original equipment manufacturing discipline to every Hitachi EX1200-6 sprocket produced, ensuring dimensional interchangeability and lifetime performance parity with the genuine assembly.

## Technical Anatomy of the 4661591 Sprocket Wheel Assembly
Each assembly is built to withstand the combined stresses of high-torque propulsion and repetitive shock loading encountered in hard rock mining.

| Parameter | Specification & Benefit |
| :— | :— |
| **Sprocket Rim Material** | High-grade **50Mn** alloy structural steel, selected for its exceptional hardenability and fatigue resistance under cyclic bending loads. |
| **Tooth Surface Hardness** | **45~55 HRC** after induction quenching and tempering. This window optimally resists sliding wear against the track bushings while avoiding brittle tooth fracture. |
| **Tooth Core Impact Toughness** | **8~25 J** (Charpy), guaranteeing crack propagation resistance when the assembly encounters rocks, steel, or frozen ground. |
| **Hub/Hub Adapter Hardness** | **25~35 HRC**, intentionally softer to absorb torsional peaks from the travel motor and protect the final drive planetary gears. |
| **Casting Process** | Lost-foam precision casting, resin sand casting, and film-covering sand mold technologies selected according to order volume and structural complexity to eliminate internal shrinkage defects. |
| **Heat Treatment Route** | Normalising → Quenching → Tempering, followed by surface induction hardening of tooth flanks. This cycle refines the grain structure uniformly through the thick cross-section. |

## CQCTRACK’s Manufacturing Engine: Capability That Delivers Consistency
CQCTRACK’s production workflow is structured to turn metallurgy into predictable mine-site reliability. **Manufacturing capability** extends from in-house pattern making and smelting to multi-axis CNC turning centers and hardness-testing cells. All teeth are profile-machined to match the Hitachi link pitch circle, ensuring smooth roller-sprocket load transfer. This vertical integration is the reason the factory can hold ±0.5 mm positional tolerances on sprocket bolt patterns, making installation bolt-on straightforward for maintenance technicians worldwide.

## Product Diversity Across All Major Equipment Brands
While the 4661591 assembly is a core item, CQCTRACK’s **product diversity** covers the full undercarriage system for mining and construction equipment. The same production line manufactures:
- Forged and sealed track chains, track shoes (single-grouser, triple-grouser, swamp shoes)
- Track idler assemblies, support rollers, bottom rollers, and carrier rollers
- Drive sprockets and rim segments for **Komatsu, Caterpillar, Liebherr, Volvo, Doosan, SANY, and XCMG** machines
This breadth means a single, audited source can supply uniform-quality components for mixed fleets operated by global contractors.

## Proven Quality Stability and Management Compliance
**Quality stability** is anchored to a certified **ISO 9001:2015** Quality Management System, which governs everything from incoming steel mill certificates to final dimensional reports. CQCTRACK maintains:
- Ultrasonic testing protocols for internal casting integrity
- Brinell/Rockwell hardness verification on every batch
- Magnetic particle inspection for critical mounting flange areas
- Controlled heat treatment records traceable to work order numbers

This **management compliance** framework eliminates variability, meaning the sprocket shipped today performs identically to the one shipped six months ago. Audited processes and transparent production planning also underpin the company’s **sound corporate operation**, enabling reliable contract performance, on-time container loading, and flexible production slotting for urgent mine-site orders.

## Brand Recognition Built on Field Proven Results
The CQCTRACK / HELI brand has earned **strong recognition** through years of uninterrupted supply to aftermarket distributors, mining contractors, and equipment rebuild centers. The brand is known not for overpromised marketing, but for sending sprockets into the world’s harshest copper, gold, coal, and iron ore operations and consistently outlasting capital-cost expectations. When a mine manager specifies CQCTRACK, they are choosing a factory-direct partner where quality is the cost control strategy.

## The Human Expertise Behind Every Component

### Professional Technical Team
CQCTRACK’s **professional technical team** includes metallurgists, senior casting engineers, and application specialists who understand undercarriage wear mechanisms. They reverse-engineer OEM samples to exact profile geometry, perform finite-element analysis on high-stress areas, and propose material grade upgrades when operating conditions demand thicker case depths or enhanced impact toughness. This engineering backbone ensures technical inquiries are answered with data, not sales scripts.

### International Affairs Support Team
A dedicated **international affairs team** manages the complexity of transcontinental logistics. From preparing fumigated seaworthy wooden pallets that comply with ISPM 15, to handling Letters of Credit, certificates of origin, Form E/FTA documentation, and multilingual packing lists, the team ensures smooth customs clearance at destination ports across all continents. Communication is delivered in English, Spanish, Russian, and French, matching the operational reality of global mining.

## Serving Every Major Mining Basin and Construction Market
CQCTRACK’s **business reaches across global mining and heavy construction** sectors. Sprocket assemblies and complete track groups are deployed in:
- Chilean copper mines and Peruvian high-altitude pits
- Australian iron ore and coal operations in the Pilbara and Bowen Basin
- Copperbelt excavations in Zambia and the DRC
- Southeast Asian nickel laterite mines and Indonesian coal projects
- Heavy civil engineering, dam construction, and large-scale quarrying throughout the Middle East, Europe, and CIS nations

This geographic coverage is supported by a supply capacity of 10,000 units per month and standard delivery windows of 7–30 days based on order size, giving fleet owners predictable parts planning.

**Commitment and Contact:**
CQCTRACK ensures the Hitachi EX1200-6 4661591 track sprocket wheel assembly moves from casting to mine site with full material traceability, competitive FOB or CIF pricing, and a minimum order quantity of just one unit. For technical datasheets, inventory updates, or a quote tailored to your fleet schedule, connect with the undercarriage specialists who understand that reliability is excavator productivity.

*CQCTRACK – Precision Undercarriage, Powering Mining Worldwide.*
