Engineering the SANY SY870H Drive Sprocket Assembly (SSY004997367) – CQCTRACK’s End- to- End Manufacturing Blueprint for Mining Undercarriage Excellence

A detailed technical deep-dive into the SANY SY870H drive wheel SSY004997367. Jack from CQCTRACK reveals how integrated undercarriage synergy, full-process manufacturing from casting to assembly, and global mining site-proven quality deliver OEM and custom heavy-duty drive sprocket solutions.

1. Undercarriage Synergy: Why the Drive Sprocket Must Be Engineered as a System Component

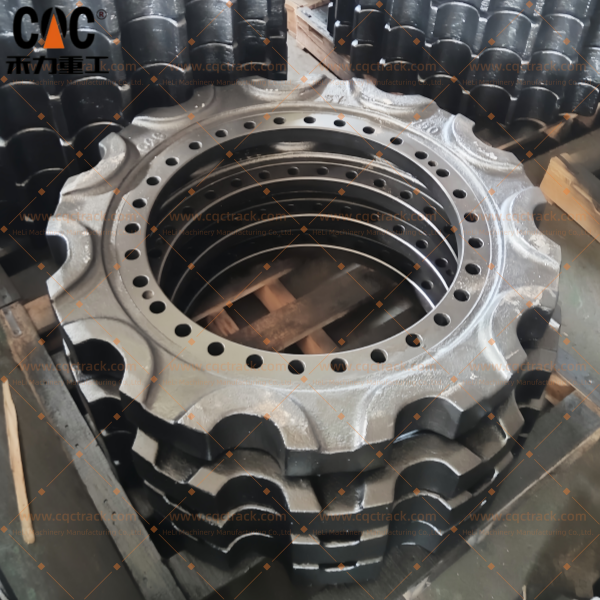

A single point of failure on a 87-tonne mining excavator can halt an entire production cycle. The drive sprocket, part number SSY004997367 for the SANY SY870H, does not operate in isolation. It is the final torque-transfer junction where the travel motor’s power meets the track chain, and its design geometry must be perfectly harmonized with the full undercarriage ecosystem.

On the SY870H, the sprocket’s segmented teeth simultaneously engage the track bushings while the inner hub aligns with the travel gearbox flange. Any mismatch in pitch diameter, tooth profile, or lateral alignment cascades into accelerated wear on adjacent components — specifically the front idler and track link bushings. CQCTRACK’s approach begins with an integrated data model: we map the complete SY870H track frame geometry, carrier roller placements, and bottom roller cluster loads before finalizing sprocket specifications. This ensures that when our drive wheel is fitted, the track tension window remains optimal, the link-to-bushing articulation angle is preserved, and the side-frame wear strips interface without abnormal scuffing. In mining conditions where underfoot ground is jagged rock, this parts-system harmony prevents unscheduled downtime caused by premature track chain elongation or idler flange failure.

It is this holistic view — linking the drive sprocket inseparably to the carrier rollers(13727050), bottom rollers(13727745), front idler assembly(61021657), and track chain group — that defines CQCTRACK’s product philosophy. You are not buying a standalone wheel; you are securing the synchronized heart of your excavator’s mobility.

2. Author & Company: Jack, CQCTRACK – A Professional Hub of Heavy-Duty Chassis Parts

Author: Jack, Senior Product Specialist, CQCTRACK

I represent CQCTRACK, a dedicated manufacturer of chassis parts for heavy-duty mining tracked excavators. Our facility exists for one purpose: to produce undercarriage components that survive the world’s harshest mineral extraction environments. We support both OEM production programs and non-standard customization requests, bridging the gap between factory-fitted specifications and field-proven enhancements. The SANY SY870H drive sprocket SSY004997367 exemplifies our core competency — deep metallurgical knowledge, geometric precision, and an uncompromising quality culture.

3. Full-Process Manufacturing: From Raw Blank to Final Assembly

The durability of a mining-class drive sprocket is forged long before it touches rock. Our control over the entire manufacturing chain eliminates dependency on external quality variables.

3.1 Blank Engineering: Casting vs. Forging Decision Matrix

For the SY870H sprocket, CQCTRACK offers two engineered base routes depending on client application severity:

• Forged Blank (Standard for Severe Mining): We utilize a 40CrMnMo alloy steel ingot, heated to 1,200–1,250°C and progressively shaped on a high-tonnage closed-die forging press. The forging process refines the grain structure into a continuous flow that follows the hub-to-rim contour, eliminating internal porosity and significantly raising impact toughness in the rim section. For truck-shovel operations where track shoe side-loading is extreme, this is the default specification.
• Cast Blank (Advanced Sand Casting with CAE Simulation): In certain scenarios requiring reduced lead time or complex hub geometries for a custom bolt pattern, we deploy low-sulphur refined steel casting with solidification simulation. Post-cast normalizing homogenizes the dendritic structure, and every casting undergoes a mandatory rough-machining stress-relief cycle prior to heat treatment.

3.2 Precision Machining & Gear Forming

Blank turning and the critical tooth-forming operations reside in our climate-controlled CNC machining cell. The sprocket hub bore, pilot diameter, and bolt circle are established in a single clamping on a large-capacity vertical turning lathe to guarantee a T.I.R. (Total Indicator Runout) of ≤0.05 mm between the centering bore and the rim tooth root circle. Tooth profiles are then generated using dedicated CNC gear hobbing machines with formed carbide cutters, ensuring the involute profile deviation stays within ISO 8 grade or tighter. The segment interface (where two semi-sprocket halves bolt together) is ground flat after hobbing to eliminate micro-gaps that could fret under cyclic loading.

3.3 Heat Treatment: The Core of Wear Life

Thermal processing defines the gradient of properties that a mining sprocket needs — a ductile core and a fatigue-resistant, hard case. Our recipe includes:

• Furnace Quench & Temper: Through-hardening to a core hardness of 285–331 HBW, achieving an optimal balance of tensile strength and elongation.
• Tooth Flank Induction Hardening: A multi-axis induction coil follows the precise contour of each tooth flank and root fillet. Rapid surface heating followed by a polymer-quench spray creates a martensitic case with 52–56 HRC hardness, reaching an effective case depth (E.C.D.) of 6–9 mm at the root. This ensures deep wear volume before any softening occurs.
• Mandatory Post-Induction Temper: We perform a low-temperature temper in a continuous belt furnace within two hours of hardening to eliminate retained austenite instability and prevent quench cracking.

3.4 Assembly & Quality Assurance – The Stability Gate

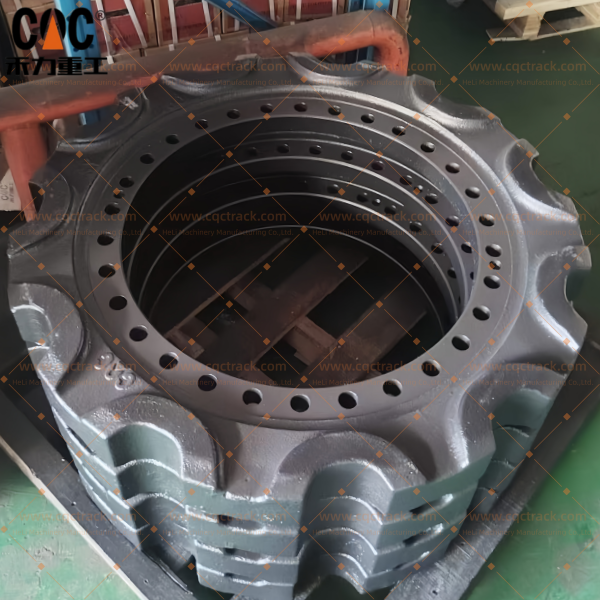

A drive sprocket in our factory is never shipped as a loose ring. The Drive Sprocket Wheel Assembly includes the hub, segmented rings, high-grade 10.9 or 12.9 fasteners with bespoke hardened flat washers, and the floating seal counterface, all fitted and runout-checked.

Quality Control (QC) – Non-negotiable Checkpoints:

1. Molten Batch Spectroscopy – Full chemical composition trace for every heat number.
2. Forging/Casting Ultrasonic (UT) & Magnetic Particle (MT) Inspection – 100% verification of internal integrity and absence of surface cracks before machining.
3. Post-Machining Dimensional Audit on CMM – Tooth-to-tooth spacing error, bore-to-rim concentricity, and bolt hole positional tolerance measured on a bridge-type coordinate measuring machine.
4. Hardness Traverse & Microstructure Microscopy – Sectioned coupon from same material batch undergoes Knoop hardness traverse and grain size assessment. Martensite structure is graded against ASTM reference charts.
5. Assembled Runout & Fitment Testing – The final assembly is rotated on an inspection bench; rim face and radial runout are recorded digitally. The sealing counterface roughness is verified to Ra 0.4 µm max to preserve floating seal life.

Stable Quality: This layered defense system, embedded in our ISO 9001:2015 certified operations, delivers a product defect rate measured in parts per million, even under batch production. Each SSY004997367 assembly ships with a digital quality dossier linking back to every process step.

4. Global Mining & Aftermarket Reach

CQCTRACK’s heavy-duty chassis parts operate in over 20 countries, deployed in some of the most recognizable large-scale mining contexts. Our drive sprockets are actively working in:

• Pilbara iron ore operations (Australia) – dragging Hitachi EX8000-class excavators and SANY large-frame models over abrasive hematite.
• Chilean copper porphyry mines – enduring high-altitude, highly corrosive water conditions with special surface preservation packages.
• Central African copper-cobalt and South African coal sites – where logistically robust supply lines and durable packaging are as critical as the part itself.
• Global Aftermarket Networks: We maintain strategic inventory in hubs in Dubai, Singapore, and Rotterdam, allowing us to serve independent heavy-equipment repair centers and mine-site rebuild workshops with lead times measured in days, not months. Our packaging is engineered for containerized sea freight, with anti-corrosion sealing valid for 12-month outdoor storage.

5. OEM and Non-Standard Customization

Beyond the exact SANY SSY004997367 specification, our engineering team excels in adaptive solutions:

• OEM Programs: We manufacture under strict confidential manufacturing agreements to print for several equipment brands and their first-tier assembly partners. Our process stability ensures zero-hour field issues.
• Non-Standard Customization: For mines running modified track frames, we adjust bolt circle PCD, add extra bolt holes, or modify the sprocket pilot bore diameter. We can also design a special rim profile with a wear band overlay (hardfacing) or an alternate induction hardening pattern to combat one-sided wear on bench-loaded machines.

No request is too extreme if it solves a production-critical wear problem. Our engineering service involves FEA stress verification for any modified profile to guarantee the custom part does not create a new failure mode elsewhere in the drive train.

Conclusion
The SANY SY870H drive sprocket SSY004997367 is a concentrated node of engineering, metallurgy, and geometric precision. At CQCTRACK, we treat every wheel assembly as a system-critical component — integrating it backward into a compatible undercarriage framework and forward into a global support chain that keeps mine production rolling. When you choose our drive sprocket assembly, you are purchasing the stability of in-house manufacturing, repeatable quality, and real-world mining validation, engineered from the blank up by a team that understands what a 24/7 dig cycle demands.

Author: Jack, CQCTRACK – Professional manufacturer of chassis parts for heavy-duty mining tracked excavators.
