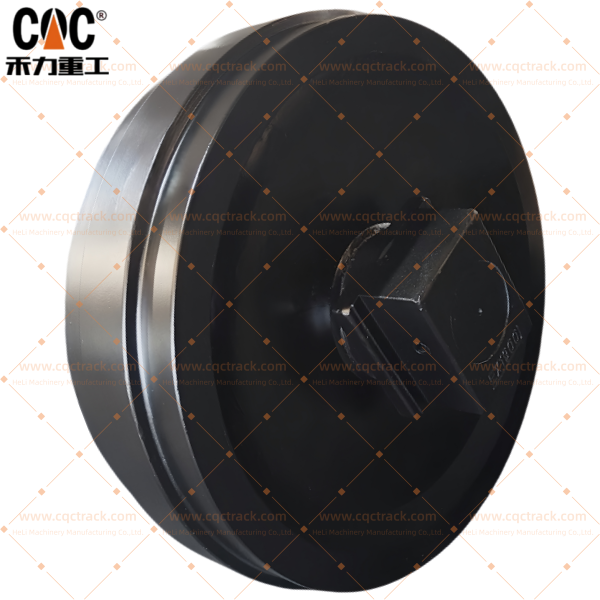

HITACHI EX1800/EX1900 Track Idler Assembly (9064301/9064302/9195028): CQC TRACK’s Definitive Forged-Engineered Front Idler for 180-Tonne Mining Shovels

Author: Jack | Senior Undercarriage Systems Engineer, CQC TRACK

The front idler on a 180-tonne class excavator does more than guide the track chain—it is the structural anchor that absorbs full machine-weight shock loads, maintains track tension, and sets the wear tempo for the entire undercarriage. For the Hitachi EX1800 and EX1900 series, the OEM part numbers 9064301, 9064302, and 9195028 identify the complete track idler assemblies that must survive in the most brutal mining conditions on earth.

CQC TRACK, a professional manufacturer of heavy-duty tracked chassis parts specifically engineered for harsh mining and industrial environments, supplies a fully interchangeable, OEM-plus aftermarket idler covering all three of these Hitachi reference numbers. This article details how CQC TRACK builds this massive forged assembly, why its manufacturing capability matters for mine uptime, and how it connects into a complete undercarriage ecosystem for global distributors and mining operators.

1. The Extreme Load Case on the EX1800/EX1900 Front Idler

With an operating weight of 180 to 195 tonnes, the EX1800/EX1900 front idler faces a unique combination of static tension and violent dynamic overloads:

• Vertical Impact Overloading: When the excavator reverses into a rock pile or traverses a blasted muck surface, the idler can momentarily see impact forces exceeding 200 tonnes. The idler rim and shaft must not fracture under this shock.
• High-Cycle Bending: Continuous tramming on uneven pit floors subjects the idler shaft and yoke to millions of bending cycles. Any metallurgical flaw triggers fatigue cracking.
• Abrasive Rim Wear: Massive track links weighing hundreds of kilograms each grind against the idler tread with the abrasive grit of iron ore, copper, and granite. The wear case depth must be exceptionally deep to prevent early “dishing.”
• Bearing Isolation: If slurry enters the hub, the entire idler seizes. The seal system must be absolutely uncompromising.

CQC TRACK engineers the 9064301/9064302/9195028 idler backwards from these failure points, applying two decades of mining-class undercarriage specialization.

2. CQC TRACK Manufacturing Capability: Forging the Big Idler

To manufacture an idler weighing over 1,300 kg for the EX1800 class, CQC TRACK (cqctrack.com) relies on a vertically integrated, heavy-forging-centric production philosophy. This is not a simple machining exercise; it is a full metallurgical process.

A. Monobloc Forged Idler Body

The idler rim, spokes, and hub are hot-forged in a single piece from a vacuum-refined, high-hardenability Cr-Mo alloy steel (modified 42CrMo4/4145 grade). Using a 6,300-ton press, CQC TRACK achieves a 5:1 forging ratio that refines the grain structure and eliminates internal porosity. This cqctrack manufacturing capability produces a one-piece body with zero weld seams—completely eliminating the weld-zone fatigue failures that plague multi-piece fabricated idlers in cold-weather iron mines.

B. Contour Induction Hardening for Deep Wear Life

The idler tread and flange surfaces are contour-hardened using CNC-controlled dual-frequency induction. The result:

• Surface Hardness: 48–55 HRC, uniformly distributed across the tread width.
• Effective Case Depth: 12–18 mm. The hardness stays above 45 HRC deep into the material, ensuring that even after thousands of hours of heavy rock abrasion, the case is not worn through. This deep case is a critical cqctrack quality signature.
• Tough Core: The hub bore and spoke cross-sections remain at 28–34 HRC, providing elastic toughness to absorb rock strikes without cracking.

C. Ultra-Precision Shaft and Bearing Assembly

The idler shaft is turned from a through-hardened EN24/AISI 4340 grade alloy bar and ground to IT4 tolerance on bearing seats with surface finish Ra ≤ 0.2 µm. CQC TRACK assembles paired, extra-large-capacity spherical roller bearings from a world-leading bearing manufacturer. End-play and preload are set in a temperature-controlled cleanroom to eliminate the early-life inner-race creeping that destroys inferior aftermarket idlers.

D. Lifetime Sealing: CQC TRACK Heavy-Duty Floating Seal

No idler survives long without a perfect seal. CQC TRACK fits an oversized proprietary double-cone floating seal system. The metal rings are lapped to 1–2 light bands flatness and energized by high-temperature FKM elastomer O-rings. This cqctrack floating seal is tested under 0.6 MPa external pressure and 100% water-mud slurry exposure, guaranteeing a 10,000-hour leakage-free design life.

3. Technical Specifications and Multi-Part-Number Coverage

CQC TRACK consolidates the three Hitachi OEM references 9064301, 9064302, and 9195028 into a single, robust aftermarket assembly. These numbers often denote left-hand/right-hand configurations or minor tensioner bracket revisions; CQC TRACK’s unit is precision-manufactured on a master fixture that replicates the exact mounting envelope for all variations.

Direct Bolt-On Interchange: Every CQC TRACK 9064301/9064302/9195028 idler assembly undergoes a full coordinate measuring machine (CMM) inspection on a certified OEM-dimension master fixture. Mounting pad flatness, bolt-hole positions, and shaft axial runout are documented. Distributors and mines receive a unit that installs without field modification.

4. Connected Heavy-Duty Chassis Components for the EX1800/EX1900

Replacing the front idler is the ideal time to inspect and refresh the entire track frame wear set. CQC TRACK, as a professional manufacturer of heavy-duty tracked chassis parts, provides every associated component from one source, ensuring metallurgical and dimensional compatibility:

• Track Bottom Roller Assembly (Single/Double Flange): Forged and deep-hardened shells, using the same floating seal system and bearing technology as the idler. Engineered to carry the full EX1800 weight over shattered rock.
• Top Carrier Roller Assembly: Support for the upper track span, induction-hardened tread, lifetime-lubricated and sealed for zero maintenance.
• Drive Sprocket Segments (Bolt-On Rims): Induction-hardened tooth flanks, precision bolt pattern. Enable rapid on-machine rim rotation without track removal.
• Track Link Assembly with Master Pin: Heavy-wall bushings and hardened, stamped links. Compatible with sprocket and idler tread profile.
• Track Tensioner Cylinder Assembly: Grease-type, nitride-hardened rod, high-pressure polyurethane seals. Works directly with the idler yoke.

Consolidating these CQC TRACK associated undercarriage parts on a single order reduces total landed cost for distributors and ensures a synchronized wear lifecycle for mine maintenance planners.

5. Value Proposition for Global Mining Operations and Spare Parts Partners

For Mine Fleet Owners

• Production Certainty: The forged monobloc idler design and deep induction hardening eliminate the two primary sources of catastrophic idler failure: cracked welds and rapid tread wear-through. This translates directly to fewer unplanned excavator breakdowns.
• Zero Daily Lubrication: The CQC TRACK floating seal system is a sealed-for-life design. In remote mining sites, removing the daily grease-top-up labor for idlers is a significant operational cost saving and safety improvement.
• Safety Integrity: A one-piece forged idler cannot suffer a structural separation on a ramp. This eliminates a known fatality risk associated with welded idler wheels.

For International Distributors and Traders

CQC TRACK offers a partnership model built for the mining aftermarket:

• Single Part, Multiple OEM Numbers: Your stock covers 9064301, 9064302, and 9195028 with one SKU, simplifying inventory and reducing shelf complexity.
• Full Technical Backing: We provide dimensional inspection reports, material certifications, 3D CAD files, and even remote installation support from our engineering team.
• Brand Flexibility: Ship under the CQC TRACK brand, in neutral boxes, or with your private label and part numbering system—complete with protective foam cradles.
• Container Consolidation: Mix front idlers with bottom rollers, sprocket rims, and track links in a single container. This maximizes logistics efficiency and gives you a full chassis line from one manufacturer.

6. Installation & Commissioning Best Practices – By Jack

From my direct experience supervising EX1800 undercarriage rebuilds in South American copper pits and African gold mines, I recommend three critical checks when mounting a new front idler assembly:

1. Frame Pad Preparation: Clean the idler yoke mounting surface on the track frame to bare, flat metal using a needle gun. Any rust, scale, or old paint will compress in service, leading to loose mounting bolts and yoke fretting. Apply anti-seize compound to bolt threads and torque strictly to Hitachi specifications using a calibrated hydraulic torque wrench.
2. Track Sag Adjustment: After assembly, adjust track tension using the grease cylinder to achieve the sag value specified in the EX1800/EX1900 manual (typically measured as 250–300 mm deflection between upper rollers). Do not over-tension. Excessive track tension multiplies the radial load on the new idler bearings and can reduce life by up to 50%.
3. Yoke Alignment Verification: Stretch a piano wire or align a laser from the front idler center to the first bottom roller. The idler rim must sit perfectly centered in the track link cavity. Any lateral offset points to a bent yoke or frame twist—correct this immediately. Running a misaligned idler will destroy the flange and track link sides within hundreds of hours.

In conclusion, the Hitachi EX1800/EX1900 Track Idler Assembly, referenced by OEM numbers 9064301, 9064302, and 9195028, is a high-stakes component that demands metallurgical excellence, precision machining, and a lifetime sealing solution. CQC TRACK, as a focused manufacturer of heavy-duty tracked chassis parts for harsh mining environments, delivers exactly that. By choosing CQC TRACK’s forged-engineered idler and its integrated family of undercarriage components, mining operations and global parts distributors gain technical reliability, supply-chain efficiency, and the assurance of two decades of specialized engineering experience.

*About the Author: Jack is a Senior Undercarriage Systems Engineer at CQC TRACK, a professional manufacturer devoted exclusively to heavy-duty tracked chassis parts for mining and industrial applications. With over 20 years of field experience in failure analysis, metallurgy, and aftermarket design for 100- to 200-tonne excavators, Jack leads the technical support team that ensures every CQC TRACK component is mine-ready from day one. For technical datasheets, 3D models, sample orders, or distributor partnership inquiries on the 9064301/9064302/9195028 idler assembly, please reach out via the official CQC TRACK web platform.*
