ZOOMLION ZE700/ZE750 Front Idler Assembly (1031400872): 20 Years of Mining-Grade Track Chassis Engineering

Author: Jack | Senior Undercarriage Engineer, Heli CQCTrack

In the harsh, unrelenting environment of a large open-pit mine, the front idler (guide wheel) is not merely a positioning wheel — it is the critical tensioning and shock-absorbing node of the entire tracked undercarriage. On the ZOOMLION ZE700 and ZE750 hydraulic excavators, the Track Front Idler Assembly, OEM part number 1031400872, takes the full frontal impact from blasted rock ledges and uneven tramming paths, while simultaneously maintaining precise track sag under varying tension loads. A failure here doesn’t just stop the machine; it often destroys the track chain and adjacent carrier rollers.

Heli CQCTrack, a heavy-duty tracked chassis parts manufacturer with 20 years of specialization in mining equipment spare parts, delivers an aftermarket 1031400872 guide wheel assembly engineered to OEM-plus standards. This article dissects the assembly’s engineering, explains how Heli CQCTrack’s vertically integrated manufacturing ensures consistent mine-site endurance, and maps the complete front idler to a connected undercarriage component ecosystem.

1. Demands Placed on the ZE700/ZE750 Front Idler

The front idler on the ZE700/ZE750 series operates under a combination of static and high dynamic loads that few other undercarriage components experience:

• Cyclic bending loads: The idler shaft and bearing assembly are constantly subjected to fluctuating vertical and horizontal forces as the machine climbs gradients and turns.
• Extreme abrasive wear: The idler rim periphery runs in direct, continuous contact with the track link tread. In iron ore or copper mine conditions, silica fines act as a lapping compound, accelerating rim wear.
• Impact fracture risk: When the idler strikes large boulders, the rim must resist cracking while the shaft flexes within its elastic limit.
• Seal integrity under slurry submersion: The idler hub cavity, filled with lubricant, must remain absolutely sealed against water and abrasive paste ingress during fording or deep mud operations.

The OEM 1031400872 front idler assembly is robust, but aftermarket quality varies enormously. Heli CQCTrack’s version is built on two decades of reverse-engineering and metallurgical process control specifically for mining-class idler wheels.

2. Heli CQCTrack: Two Decades of Specialized Manufacturing Excellence

As a dedicated large-chassis-component manufacturer, Heli CQCTrack (cqctrack.com) operates a dedicated production line for front idler assemblies in the 50–120 ton class. The 20-year specialization means every process parameter — from forging reduction ratio to seal groove geometry — has been validated across millions of field service hours on six continents.

A. One-Piece Rim and Hub Forging

The idler body for the 1031400872 is hot-forged as a monobloc structure from a high-toughness alloy steel (similar to 40CrMnMo or modified 4140 grade). Heli CQCTrack uses a precise 5:1 forging reduction ratio to eliminate any internal ingot defects. This monobloc design avoids the weld weaknesses common in fabricated idlers, making the rim resistant to crack propagation under repeated rock strikes.

B. Differential Heat Treatment: Hard Rim, Tough Core

• Deep induction hardening: The rim tread and the guide flanges are scanned by a CNC-controlled induction coil, producing a hardened case of 48–55 HRC to a depth of 10–15 mm. This deep case ensures wear life can exceed 6,000 operating hours in moderately abrasive materials.
• Core resilience: The hub bore and spoke area are left at 28–33 HRC to absorb impact energy, preventing the kind of sudden brittle fracture that can separate an idler wheel from its shaft.

C. Precision Shaft and Bearing System

The idler shaft is CNC-ground from a through-hardened alloy steel billet. Bearing journals are finished to IT5 tolerance with a surface roughness of Ra 0.2 µm. Heli CQCTrack presses in double-row tapered roller bearings from globally recognized bearing suppliers, then sets the end-play clearance in a controlled environment. This exacting bearing fit eliminates the axial preload drift that causes early race spalling in poorly made aftermarket idlers.

D. Heli CQCTrack Floating Seal Technology

The seal is the lifeline of any idler assembly. We equip our 1031400872 front idler with the same proprietary double-cone floating seal system used across all cqctrack large chassis components. The metal seal rings are lapped to a flatness of 1–2 helium light bands, paired with low-temperature-resistant O-rings. This design retains lubricant and blocks 0.5 MPa external slurry pressure, achieving zero-leakage records even in tropical bauxite mines with near-constant water exposure.

3. Technical Specifications and Direct Interchangeability

Plug-and-Play Interchange: Heli CQCTrack manufactures this front idler on a dedicated fixture that replicates the OEM mounting centerline and tensioner cylinder interface. No field modifications, shims, or adjustments are required beyond standard track tensioning. Distributors can supply it with confidence as a true direct replacement.

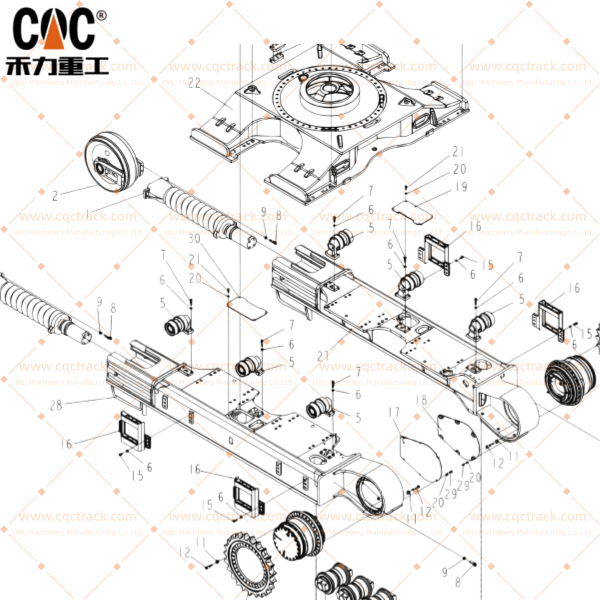

4. Connected Undercarriage Ecosystem for ZE700/ZE750

Replacing the front idler is the ideal service window to inspect and bundle related heavy-duty tracked chassis parts. Heli CQCTrack offers every connected component from a single 20-year-specialized source, enabling dealers to provide a consolidated order:

• Track Carrier Roller Upper Group (1031400167): Fully floating seal design, induction-hardened tread, direct interchange with the same OEM mounting footprint.
• Track Bottom Roller Assembly (Single/Double Flange): Matched material and heat treatment philosophy to the idler rim, ensuring synchronized wear rates across the track frame.
• Drive Sprocket Segments: Precision tooth profile hardened to 50–55 HRC, bolted rims for fast on-machine rotation without breaking the track.
• Track Tensioner Cylinder Assembly: Grease-type or hydraulic-type, with nitride-hardened rod and polyurethane seals, directly controlling the idler’s position.
• Track Link Assemblies with Master Pin: Available in both standard and Heavy Wall (HW) bushing thickness, compatible with the idler tread form.

Purchasing this complete cqctrack undercarriage suite ensures metallurgical compatibility and gives mining fleet managers the advantage of a single-source warranty.

5. Value for Global Mining Operations and Spare Parts Partners

For Mine Maintenance Teams

• Predictable service life: Deep hardening and true-forged rims remove the uncertainty of early rim dishing or flange peeling.
• Safety enhancement: The monobloc forging eliminates weld-failure modes that can separate an idler wheel on a grade, a critical risk in open-pit operations.
• Reduced grease consumption: The lifetime sealed design cuts daily manual lubrication needs — a significant cost saving in remote, high-latitude mining sites.

For International Distributors and Traders

Partnering with Heli CQCTrack means leveraging 20 years of specialized supply know-how:

• Full Technical Dossiers: We provide dimension inspection reports, hardness mapping charts, and 3D CAD models on demand, helping you win technical bids.
• Private Label and Branding: Each 1031400872 idler can be shipped neutral, with your company’s logo, or under the Heli CQCTrack brand as per your sales strategy.
• Efficient Logistics: Because we manufacture the entire chassis line, you can fill a container with idlers, rollers, sprockets, and links — minimizing freight cost per kilogram and making your inventory immediately comprehensive.
• 20-Year Field Support Legacy: Our warranty claim process is fast, and our engineering team (led by me, Jack) is available for on-site failure analysis to support your customer relationships.

6. Field Installation Best Practices (By Jack)

Drawing from two decades of mine-site visits, I recommend three vital checks when installing the 1031400872 front idler:

1. Frame Pad Alignment: Before fitting the idler yoke, clean the mounting surface on the track frame and check for any distortion or welding deformation. A misaligned yoke forces the idler to run off-plane, causing one-sided flange wear and shaft bending.
2. Tensioner Synchronization: Set track sag to the ZE700/ZE750 manual specification with the machine on level ground. Over-tensioning places immense radial load on the new idler bearings, dramatically shortening life.
3. Parallelism with Bottom Rollers: After installation, measure the gap between the idler rim and the track link on both sides. Unequal gaps indicate a misaligned frame or incorrect yoke shimming — correct this before returning the machine to production.

To conclude, the ZOOMLION ZE700/ZE750 Front Idler Assembly (1031400872) is a high-stakes undercarriage cornerstone. Heli CQCTrack, with two decades of unwavering specialization in mining equipment spare parts, injects this component with the right metallurgy, precision machining, and sealing technology to deliver OEM-durability at a competitive aftermarket price. For mining fleets aiming for maximum uptime and for distribution partners building a trusted track parts program, the Heli CQCTrack front idler and its connected undercarriage family represent a technically superior, long-term choice.

About the Author: Jack is a Senior Undercarriage Engineer at Heli CQCTrack, with 20 years of direct involvement in the design, testing, and failure analysis of large excavator track chassis components. For detailed data books, sample orders of the 1031400872 Front Idler Assembly, or to discuss a dealership partnership, reach out via the official Heli CQCTrack global platform.
