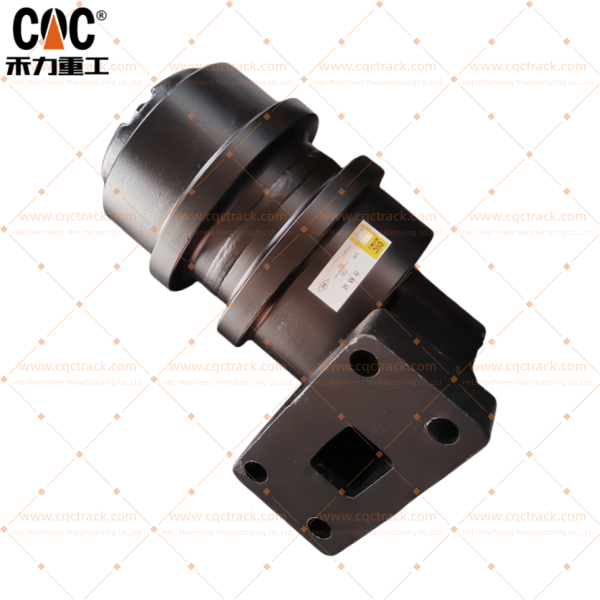

ZOOMLION ZE700/ZE750 Upper Carrier Roller Assembly (1031400167): Engineered Endurance for Extreme Mining Environments

Author: Jack | Senior Undercarriage Systems Engineer, CQC Track

In large-scale mining and heavy earthmoving operations, the performance of an excavator’s undercarriage is a direct multiplier of productivity and total cost of ownership. For fleet managers maintaining the ZOOMLION ZE700 and ZE750 series—70- to 75-tonne class mining excavators—the Top Carrier Roller (also designated as the Roller Upper Group, OEM part number 1031400167) is a strategically critical wear component. A failure in this assembly not only halts the machine but often cascades into accelerated track link and shoe damage.

This article provides a comprehensive technical breakdown of the 1031400167 upper roller assembly, details the precision manufacturing philosophy behind CQC Track’s aftermarket solution, and connects this single component to a complete, mine-ready undercarriage ecosystem.

1. The Critical Role of the Upper Carrier Roller in the ZE700/ZE750 Excavator

On the ZE700 and ZE750, the upper carrier roller supports the track chain as it rotates back from the drive sprocket to the front idler. This component prevents dynamic sagging of the track chain assembly at high travel speeds and during swing maneuvers on uneven benches.

Functional Stress Factors

• High-cycle contact fatigue: The roller shell bears continuous rolling contact pressure from the track links under full machine weight distribution.
• Side-load thrust: During uphill tramming and slewing, lateral forces act on the roller flange, demanding high resistance to flange wear and structural cracking.
• Contamination ingress: Coal dust, iron ore fines, and abrasive silica slurry constantly attack the sealing system. A seal failure results in lubricant loss and catastrophic bearing seizure.

A premium carrier roller upper group must therefore be designed as a system, not just a rotating steel wheel. CQC Track has reverse-engineered the 1031400167 assembly to meet and exceed these specific mine-duty challenges.

2. CQC Track Manufacturing Capability: From Billet to Assembly

As a professional manufacturer of large chassis components, CQC Track (accessible globally at cqctrack.com) controls the entire manufacturing chain for the ZE700/ZE750 carrier roller. Unlike general parts consolidators, CQC Track employs dedicated forging, heat treatment, and CNC finishing lines specifically for rollers in the 50- to 120-tonne excavator class.

A. Material & Forging Integrity

The roller shell for the 1031400167 is hot-forged from vacuum-degassed, high-carbon alloy steel (typically 40Mn2 or equivalent AISI 1541 modified). CQC Track utilizes a 4,000-ton electric screw press for grain flow alignment. This cqctrack manufacturing capability ensures the flange and tread surfaces achieve a compact metallurgical structure with no internal porosity—crucial for sub-zero mining from Canada to high-altitude copper pits in Chile.

B. Advanced Heat Treatment Process

• Hardening: The roller tread and flange are surface-induction hardened to a depth of 8–12 mm, achieving a uniform surface hardness of 52–58 HRC.
• Core toughness: The inner bore and flange root retain a hardness of 30–35 HRC to absorb impact shock without brittle fracture.
• Tempering: Automated conveyor furnaces run controlled low-temperature tempering to eliminate residual stress, a vital step that cheap imports typically skip.

C. Precision Machining & Bearing Fit

CNC vertical turning centers machine the bearing seats to IT6 tolerance, ensuring perfect interference fit for the heavy-duty tapered roller bearings. CQC Track’s facility measures roundness within 0.01 mm using in-line air gauging. This meticulous bearing housing geometry is the silent guardian against inner race spinning and premature shaft wear.

D. Proprietary Seal Architecture

CQC Track equips the 1031400167 upper roller assembly with a double-cone floating seal, manufactured in-house. The seal ring faces are lapped to a flatness of 1–2 light bands and paired with a specially formulated nitrile/PTFE composite O-ring. This cqctrack floating seal technology maintains a lifetime lubricant film even under 0.5 MPa of external slurry pressure, easily meeting the 5,000-hour service target in abrasive mining conditions.

3. Technical Specifications and Interchange Guide

Direct Interchange Note: This assembly is produced on a dedicated CQC Track production cell that mirrors OEM mounting interfaces. Mounting bolt torque and axial alignment are 100% verified on a CMM (Coordinate Measuring Machine) before shipment. Distributors can confidently use this as a direct replacement without modifications.

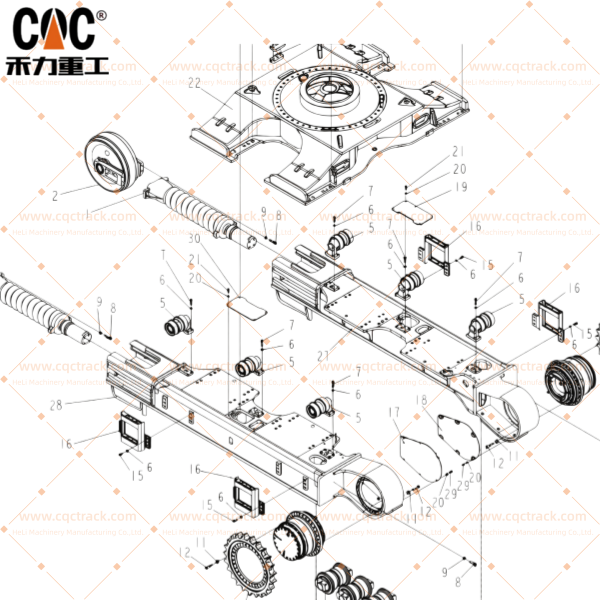

4. Connected Undercarriage Components: The Full CQC Ecosystem

While the 1031400167 upper roller is a high-demand service part, maximum undercarriage life comes from component harmony. Jack, CQC Track’s Senior Engineer, always recommends evaluating the entire track frame ecosystem during carrier roller replacement. CQC Track manufactures and inventories a complete suite of connected components for the ZE700/ZE750:

• Track Roller / Bottom Roller Assembly (Single and Double Flange): Forged, deep-hardened shells with the same floating seal technology, designed to absorb vertical impact from fragmented hard rock.
• Front Idler Group (with Tensioner Cylinder Mounts): Investment-cast idler spoke hubs and hardened rim shells that prevent harmonic vibration transfer to the carrier roller.
• Drive Sprocket Rim Segments: Induction-hardened tooth profile, bolt-on segmented design for fast rotation in the field without track removal.
• Track Link Master Pins and Bushings: Press-fit and precision-broached, available in standard and heavy-wall (HW) bushing options for extended internal wear life.

Stocking these associated undercarriage parts from a single manufacturer (CQC Track) ensures full metallurgical compatibility and gives dealerships a competitive technical bundling advantage.

5. Value Proposition for Mining Operations and Distribution Partners

For Mining Fleets

Choosing the CQC Track 1031400167 translates into operational reliability. The roller’s optimized heat treatment eliminates the two most common failure modes: spalling on the tread surface and catastrophic flange breakage. Furthermore, the factory-filled oil and lifetime seal concept reduce daily lubrication labor in remote mine sites.

For International Distributors and Traders

CQC Track offers a partner-oriented supply model with distinctive advantages:

• OEM-Equivalent Design Files: Full 3D CAD models and dimension reports available for technical bidding.
• Brand Customization: Neutral, unbranded, or private-label packaging with your company’s logo and part numbering system.
• Consolidated Container Loads: Because CQC Track manufactures all major chassis components, you can combine upper rollers, bottom rollers, idlers, and sprockets in a single shipment—optimizing logistics costs.
• Smart Inventory Alerts: CQC Track’s global hotline provides lead-time forecasting for ZE700/ZE750 high-wear parts, helping you avoid stockout during peak mining season.

6. Installation and Maintenance Insights (By Jack)

From my field visits to copper and gold mines in Southeast Asia and Africa, I want to emphasize three practical points for the 1031400167 upper roller:

1. Preload Verification: Always clean the mounting pad on the track frame to bare metal. Uneven mounting surfaces cause micro-rocking of the roller bracket, which leads to premature bolt loosening and shaft breakage.
2. Height Alignment: When replacing one upper roller, check the wear status of the adjacent roller. A mismatched tread height shifts the entire track load onto the new component, drastically reducing its life.
3. Seal Visual Check: While our cqctrack carrier rollers are shipped with seal protectors, inspect the floating seal end play before installation. Any deformation from severe shipping impact should be reported immediately via our quality claim system.

In summary, the ZOOMLION ZE700/ZE750 Track Carrier Roller Assembly (1031400167) is far more than a simple rotating part; it is a safety-critical, productivity-defining element. CQC Track, as a dedicated large-chassis-component manufacturer, embeds more than 15 years of heat treatment, sealing, and precision forging expertise into every unit. By integrating this carrier roller with a full line of cqctrack-manufactured undercarriage solutions, mining operators and global parts traders obtain a durable, reliable, and cost-optimized supply chain.

*About the Author: Jack is a Senior Undercarriage Systems Engineer at CQC Track, specializing in the failure analysis and reverse-engineering design of large excavator chassis components for the global mining and heavy construction industries. For technical data sheets, 3D models, or distributor partnership inquiries, please contact CQC Track through the official web platform.*
