Precision Undercarriage Solutions for Doosan DX480, DX500, and DX520 Excavators: A Comprehensive Technical Analysis of Track Carrier Roller Assemblies (Part Numbers 20010500002C and 20010500028) and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 3, 2026

1. Technical Overview: The Critical Role of Track Carrier Rollers in Large Doosan Excavators

The track carrier roller—also referred to as the top roller or upper roller assembly—is an essential but often overlooked component in the undercarriage system of large crawler excavators. While bottom track rollers bear the machine‘s full operating weight against the ground, carrier rollers perform a distinctly different yet equally vital function: they guide and support the upper (return) section of the track chain as it travels from the drive sprocket back to the front idler. Without properly functioning carrier rollers, the track chain would sag excessively, whip violently during high-speed travel, and risk catastrophic derailment—particularly during sharp turns or when traversing uneven terrain at mining sites.

For operators of Doosan DX480, DX500, and DX520 excavators—49–52 ton class heavy machines widely deployed in large-scale mining, quarrying, heavy construction, infrastructure development, and mass excavation—the reliability of the carrier roller assembly directly affects track alignment, undercarriage component life, and overall machine uptime. Industry data suggests that undercarriage parts can represent over 30% of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

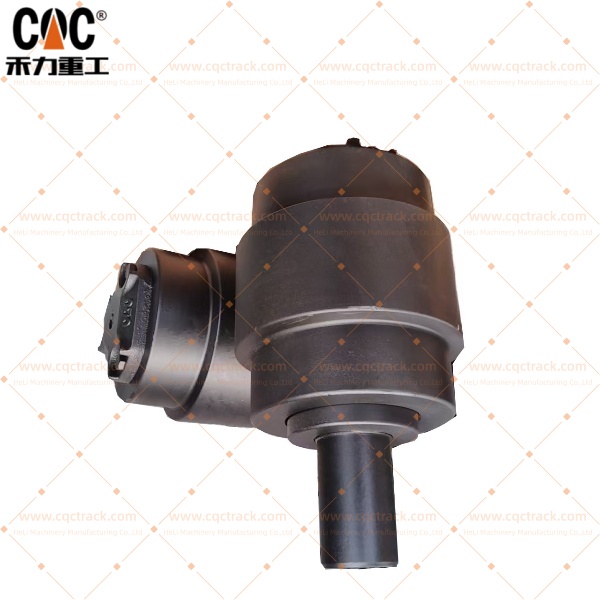

This publication delivers a comprehensive technical examination of two Doosan OEM part numbers—20010500002C and 20010500028—which represent critical track carrier roller assemblies for the DX480, DX500, and DX520 heavy excavator platforms. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.), a vertically integrated manufacturer with over 20 years of specialization in heavy-duty undercarriage components, and why its position as a source factory matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. Part Number Identification and Machine Compatibility

Understanding the relationship between Doosan’s OEM part numbers and their corresponding machine applications is essential for accurate sourcing. The numbers referenced in this analysis require careful interpretation based on available technical literature, parts catalogs, and cross-reference documentation.

2.1 Primary Part Numbers and Their Applications

A closely related variant, 200105-00002B, has been documented as a carrier roller assembly compatible with the DX420 and DX520 platforms, confirming that the 200105xxxx family of part numbers spans multiple large Doosan excavator models. This cross-reference is particularly valuable for procurement professionals managing mixed fleets across the 40–52 ton range.

For the Doosan DX500LCA/520LCA-HD models, documented specifications confirm an extra durable undercarriage configuration with 3 upper rollers (carrier rollers), 9 lower rollers, and 3 track guards per track frame. This heavy-duty undercarriage design features a robust X-shaped structure with integrated track spring and idler, durable box section track frame, and self-lubricating sealed links.

2.2 Machine Platform Specifications

The target machines for these carrier roller assemblies operate in the 49–52 ton heavy class, with the following verified specifications:

The Doosan DX480/520LCA-K series is equipped with the heaviest counterweight in its class and an exceptionally long and wide undercarriage, allowing operators to perform tough and heavy workloads with maximum stability. The DX520LCA-K crawler excavator series, with an operational weight of 52,200 kg, has been developed with advanced features for higher productivity, greater stability on site, and lower operational costs.

2.3 Undercarriage Component Count Verification

For fleet operators and procurement professionals, accurate component counts are essential for ordering the correct quantities. Verified data from multiple sources confirms the following undercarriage component quantities for the Doosan DX480 and DX520:

The documented quantity of four top rollers (carrier rollers) per machine confirms that DX480 and DX520 excavators utilize two carrier rollers per track side. For the DX500LCA/520LCA-HD configuration, three upper rollers per side are specified, making a total of six per machine. This variation underscores the importance of verifying the specific undercarriage configuration before ordering.

3. Engineering Function and Mechanical Design of Carrier Rollers

3.1 Functional Responsibilities

The track carrier roller assembly performs three mission-critical functions that directly impact undercarriage longevity:

1. Upper Track Guidance: Carrier rollers guide the track chain‘s return (upper) section as it travels from the drive sprocket back to the front idler. The dual-flange design securely guides the track chain link, preventing lateral slippage and excessive whip during high-speed travel. Proper guidance maintains track alignment, prevents lateral sway, and reduces wear on both the track chain and the sprocket teeth.

2. Dynamic Tension Management: While the front idler and track adjuster control static track tension, carrier rollers help manage dynamic tension fluctuations that occur as the machine accelerates, decelerates, or turns. This function is particularly important during sharp turns on mining sites, where the upper track experiences significant lateral forces that can cause derailment if not properly guided.

3. Track Chain Support and Sag Prevention: The primary function of carrier rollers is to support the track and prevent the track chain from sagging excessively, reducing vibration during movement and preventing the track from sliding sideways. Excessive track sag can cause the chain to contact the track frame, leading to accelerated wear and potential derailment.

4. Contamination Barrier: Carrier rollers incorporate advanced sealing systems to create a robust barrier against mud, sand, and moisture—common contaminants in mining and quarry environments. This protects internal bearings and extends service life.

3.2 Component Architecture

A complete Doosan carrier roller assembly consists of the following subcomponents:

Track rollers follow a “welding → vertical CNC lathe precision machining“ process, eliminating concentricity errors caused by post-welding machining and significantly enhancing geometric accuracy and operational stability.

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Quality carrier rollers for Doosan excavators are manufactured from high-grade alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The most commonly specified material for excavator track rollers is 50Mn alloy steel (AISI 1050 equivalent), a high carbon-manganese alloy known for excellent hardenability and wear resistance.

The wheel body is forged from 50Mn round steel with good hardenability, ensuring uniform grain structure and elimination of internal voids that could lead to premature failure.

4.2 Heat Treatment Specifications

The performance of a track carrier roller depends critically on its heat treatment profile:

The heat treatment automation line adopts advanced whole quenching techniques to manufacture the roller, meeting the stringent technical requirements for mining-grade components. For the roller body, the quenching and tempering process combined with medium-frequency surface quenching ensures strength and wear resistance, while the shaft undergoes the same treatment to achieve surface hardness of HRC 52–60 with a hardened layer depth of 3–6 mm.

4.3 Load Capacity and Performance Metrics

High-quality components manufactured from high-quality materials can last 20–30% longer than cheaper alternatives, translating into significant long-term savings.

5. CQC TRACK: A Specialized Manufacturer of Doosan Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. With over 20 years of manufacturing experience, HELI has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region.

The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

5.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered certification umbrella, holding both ISO 9001:2015 quality system recognition and multiple, specific CQC product certification certificates. This dual certification ensures that every component—from raw material selection through final inspection—meets internationally recognized quality management standards. The ISO 9001:2015 certification provides documented evidence of consistent quality control across all manufacturing processes, giving global procurement professionals confidence in product reliability.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK‘s manufacturing strength rests on complete vertical integration and controlled sequential processes:

CQC TRACK‘s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in mining and construction worldwide. CQC TRACK has documented cross-reference compatibility for its undercarriage components across multiple brands, including Doosan, Komatsu, Caterpillar, Hitachi, Sumitomo, Hyundai, and Volvo, confirming the broad applicability of their manufacturing standards.

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

5.5 Quality Assurance and Warranty

CQC TRACK‘s undercarriage components are manufactured to meet or exceed OEM specifications. The combination of design and engineering expertise with advanced manufacturing technologies ensures innovative, reliable, and competitive products that meet the highest quality standards. Warranty coverage typically extends to 12 months or 2,000 operating hours, depending on component grade and application severity. Research indicates that high-quality undercarriage parts manufactured to rigorous standards can achieve service life 20–30% longer than cheaper alternatives.

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing Doosan DX480, DX500, and DX520 carrier roller assemblies directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

6.2 Lead Times and Logistics

For Doosan carrier roller assemblies, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

6.3 Cost Comparison (Estimated)

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new track carrier roller assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing and diameter match the track frame bracket
2. Roller width and diameter — Verify dimensions match the track chain link spacing and upper track clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede roller installation

7.2 Installation Procedure Summary

1. Securely support the machine on a firm, level surface with the track chain relieved of tension
2. Remove the existing carrier roller mounting bolts using appropriate torque tools
3. Clean the mounting bracket surface and inspect for damage
4. Position the new carrier roller assembly and install new high-tensile mounting bolts (reusing old bolts is a safety risk)
5. Torque bolts to specification (consult machine workshop manual for exact values; typically 300–450 N·m for the 49–52 ton class)
6. Re-tension the track chain to manufacturer-specified sag (typically 35–40 mm between the track and track frame at the midpoint)
7. Operate the machine at low speed and inspect for proper roller rotation and seal integrity

7.3 Maintenance Schedule

Regular inspection is crucial for maximizing the life of the undercarriage, which is one of the most expensive parts of an excavator to replace.

7.4 Failure Modes and Troubleshooting

8. The Importance of Proper Carrier Roller Selection for Heavy Mining

Carrier rollers are often the most neglected components in an excavator undercarriage system. Unlike bottom rollers, which show obvious signs of wear through reduced ground clearance or visible flat spots, carrier rollers can fail gradually without immediate operational symptoms. However, a failed carrier roller can cause catastrophic track derailment, particularly during high-speed travel or sharp turns on mining sites, leading to extensive undercarriage damage and costly downtime.

For Doosan DX480, DX500, and DX520 excavators operating in mining and heavy construction—machines with operating weights exceeding 50 tons and daily production demands—selecting high-quality carrier rollers with proper heat treatment, robust sealing systems, and precision machining is essential. CQC TRACK‘s carrier rollers incorporate advanced sealing technology, providing a robust barrier against contamination and significantly extending service life in abrasive mining environments.

Superior rail wear resistance, capacity to bear high radial loads, large bearing area for bushings, sizable oil capacity, and a perfect seal are the essential features of quality rollers. These features ensure that properly maintained carrier rollers will deliver reliable service throughout their design life.

9. Conclusion

For operators of Doosan DX480, DX500, and DX520 excavators deployed in mining, quarrying, heavy construction, and infrastructure projects—49–52 ton class heavy machines with daily production demands—the track carrier roller assembly represented by part numbers 20010500002C and 20010500028 is a mission-critical component whose reliability directly affects track alignment, undercarriage component life, and machine uptime.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over 20 years of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. With material options including premium 50Mn and 40MnB alloy steels, heat treatment achieving HRC 52–58 surface hardness with 8–12 mm case depth, ISO 9001:2015 quality certification, and advanced multi-labyrinth sealing systems, CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing Doosan carrier roller assemblies directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world‘s toughest operating environments.
