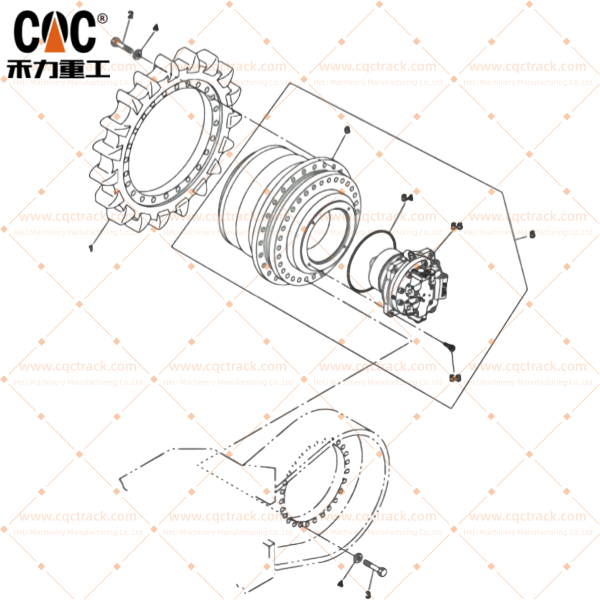

CASE CX800 Crawler Excavator Track Sprocket Group / Final Drive Sprocket Wheel Assembly (P/N: KUA10170) – Heavy- Duty Tracked Chassis Solution by CQC Track

On an 80-tonne class mining excavator, the final drive sprocket is the ultimate torque-to-ground interface. It must transfer massive hydraulic motor power into tracked motion while enduring constant abrasive contact with the track chain, shock loads from bucket breakout forces, and the relentless ingress of rock fines and moisture. For the CASE CX800 crawler excavator — a machine engineered for large-scale earthmoving, quarry face loading, and mining overburden removal — sprocket integrity is a direct determinant of track chain life, traction efficiency, and overall machine productivity. CQC Track, a specialized manufacturer of heavy-duty tracked chassis solutions, delivers a superior, OEM-caliber replacement Track Sprocket Group / Final Drive Sprocket Wheel Assembly that precisely cross-references to CASE genuine part number KUA10170. Manufactured inside the same facility that actively supplies leading global OEMs and refined through two decades of intensive field validation, this sprocket assembly represents the engineering discipline and material integrity of a genuine factory component. Authored by Jack, with dedicated international support from Philip and Haily, this technical overview demonstrates why CQC Track is the trusted chassis partner for owners of large CASE excavators worldwide.

1. Manufacturer Strength: An Active OEM Production Base for Global Brands

CQC Track sprocket assemblies are not produced in a generic aftermarket workshop. Our manufacturing facility operates as a certified, high-volume OEM production base for the worldwide heavy equipment industry. Currently, our production lines supply complete undercarriage assemblies, rollers, idlers, and sprockets to Hitachi, Kobelco, LiuGong, XCMG, and SDLG, strictly adhering to the quality management systems, material traceability protocols, and dimensional accuracy standards mandated by these global leaders. This means the CASE CX800 KUA10170 Track Sprocket Group benefits from the identical forging presses, heat-treatment furnaces, CNC machining centers, and quality gating systems that serve Japanese, Korean, and Chinese OEM assembly lines. There is no secondary production standard; every sprocket we ship carries the exact same manufacturing DNA as components fitted to new excavators rolling off global factories. This embedded OEM reality ensures dimensional precision, metallurgical integrity, and process repeatability that generic aftermarket alternatives simply cannot replicate.

2. Technical Anatomy: Precision-Engineered for Extreme Duty Cycles

A sprocket wheel operating at the final drive interface must simultaneously resist tooth flank abrasive wear, root bending fatigue, and internal bearing contamination. The CQC Track KUA10170 Sprocket Wheel Assembly is constructed through a meticulously sequenced, high-integrity manufacturing process:

• Forged Alloy Steel Sprocket Rim: The toothed drive rim originates as a solid billet of high-grade alloy round steel, which is hot-forged to align the internal grain flow precisely with each tooth contour. This forging process eliminates the internal voids, porosity, and microstructural inconsistencies inherent in cast or flame-cut alternatives, delivering a monolithic structure with exceptional resistance to bending fatigue, tooth root cracking, and impact-induced fracture under severe shock loading.
• Spheroidal Graphite (Ductile) Iron Side Covers: The side covers are manufactured using a spheroidal graphite iron casting process, also known as ductile iron casting. This material is deliberately selected for its excellent machinability, dimensional stability, and ability to provide a flawlessly smooth, hard mating surface for the sealing system, ensuring lifetime seal integrity and consistent seal compression.
• Dual-Seal-Groove Shaft and Elite Floating Seal System: The stationary shaft is precision CNC-ground with a dual seal groove profile, forming a labyrinth that accommodates a top-tier duo-cone floating seal set. This metal-face-to-metal-face sealing technology is universally recognized as the most reliable barrier against the ingress of water, mud, fine silica dust, and abrasive mining slurry. The fully sealed internal bearing cavity is factory-filled with a specially formulated low-temperature-resistant anti-freeze grease, guaranteeing immediate full-film lubrication at every startup and uninterrupted corrosion protection across a temperature range from Arctic deep-freeze to equatorial humidity.
• Integral Quench and Temper Treatment: Prior to any finish machining, the entire forged sprocket body undergoes a rigorous through-quenching and tempering cycle. This foundational heat treatment refines the core microstructure into uniform tempered martensite, providing an optimal combination of high tensile strength and ductile toughness that prevents permanent tooth deformation or brittle failure under extreme torque loads.
• Precision CNC Machining and Induction-Hardened Tooth Profiles (55-62 HRC): After rough machining and precision CNC finishing to exact OEM dimensional tolerances, the tooth flanks and engagement surfaces are selectively hardened via a controlled medium-frequency induction hardening process. The surface hardness is consistently maintained between 55 and 62 HRC, creating a deep, wear-resistant case that dramatically reduces abrasive tooth wear, “hooking” deformation, and pitch-line spalling. Critically, the ductile, tempered core beneath this hard case absorbs dynamic shock without crack propagation, delivering a sprocket that is both wear-resistant and impact-tolerant.

3. Twenty Years of Iterative Process Perfection, Validated in the World’s Harshest Environments

The CQC Track KUA10170 Sprocket Group is not a theoretical design — it is the direct product of a 20-year continuous engineering evolution, driven by real-world failure mode analysis and wear data harvested from the planet’s most aggressive mining and quarrying environments. Our sprockets have been repeatedly tested, analyzed, and refined through sustained operation in the deep-level gold and platinum mines of South Africa, the high-altitude copper and silver pits of Peru and Ecuador, the frozen iron ore basins of Russia, the hard-rock quarry and demolition sites of South Korea, the large-scale infrastructure and mining projects of India, and the tropical foundation and earthmoving operations of Vietnam. Every design refinement — from optimizing the tempering curve to eliminate residual stress concentrations, to precisely calibrating the induction hardening scan parameters for a flawless hardness gradient, to verifying the long-term cold-flow characteristics of the anti-freeze grease — has been engineered directly back into our production standard. The quality stability and operational reliability of this sprocket assembly are not catalog promises; they are hard-won, field-verified attributes documented over millions of machine operating hours across every continent.

4. A Complete Tracked Chassis System: Integrated Component Supply

A final drive sprocket operates as one element within a wear-interdependent undercarriage system. Installing a premium-grade sprocket alongside worn track chains or marginal rollers creates a costly misalignment of component life that accelerates system-wide wear. As a specialized manufacturer of complete tracked chassis solutions, CQC Track eliminates this risk by offering a fully synchronized range of related undercarriage parts for the CASE CX800 and other heavy excavators. Our in-house production program includes matched track link assemblies with induction-hardened pins and bushings, bottom track roller groups(KUA0283,KUA0048), front idler wheel assemblies(KUA10110), and upper carrier rollers(KUA10150), all produced within a unified metallurgical and thermal processing envelope. The CQC International business team — comprising Philip, Jack, and Haily — is structured to deliver these components as coordinated, kit-based shipments, ensuring your maintenance operation receives a fully harmonized set of chassis parts that wear at a predictable, engineered rate.

5. Global Export Reach into Quality-Conscious Markets

CQC Track heavy-duty tracked chassis components are trusted and exported with full confidence into markets that enforce the most stringent import quality and performance standards. Our CASE CX800 KUA10170 Sprocket Assemblies and complete undercarriage kits are actively supporting mining and heavy construction fleets across South America (Ecuador, Peru), Southern Africa, the Russian Federation, South Korea, and high-end application segments in India. Our international distribution network further extends to the South Pacific island nations, Vietnam, Kazakhstan and the broader Central Asian corridor, Turkey, and North America. This broad and sustained global acceptance — spanning equatorial heat, arid desert dust, and continental deep-freeze — demonstrates that CQC Track’s heat-treatment repeatability, dimensional precision, anti-corrosion packaging, and logistical reliability meet the universal requirements of 80-tonne class excavator fleets worldwide.

When you install a CQC Track KUA10170 Final Drive Sprocket Wheel Assembly on your CASE CX800, you are engaging a drivetrain component forged with the same manufacturing discipline that serves the world’s leading OEMs. Part number KUA10170 represents more than a direct replacement part; it represents a 20-year engineering partnership with the global mining and heavy construction industries, delivered by a team that understands that every hour of sprocket reliability translates directly into productive bench hours.

This article was authored by Jack of the CQC International Business Team, with sincere appreciation to Philip and Haily for their unwavering commitment to supplying premium tracked chassis solutions to our worldwide CASE heavy equipment customers.
