1. Executive Summary: The Load-Bearing Foundation of the ZOOMLION ZE750

The ZOOMLION ZE750 is a 75-ton class large hydraulic mining excavator with an operating weight of approximately 74,000–76,500 kg, powered by a 373 kW Cummins X15 engine. In this ultra-heavy-duty machine, the track lower roller assembly (OEM Part Number: 1031400871) serves as the primary load-bearing interface between the machine‘s substantial weight and the ground. Each roller assembly must withstand immense static and dynamic loads during digging, lifting, and travel operations across the harshest mining terrains.

CQCTRACK, the global industrial brand of Quanzhou Heli Machinery Manufacturing Co., Ltd. (HELI), manufactures the ZE750 1031400871 Track Lower Roller Assembly as a precision-engineered replacement component that meets and exceeds rigorous OEM specifications. As a vertically integrated source factory — not a trading intermediary — CQCTRACK controls every stage of production, from alloy steel selection and closed-die forging through CNC machining, thermal processing, and final assembly.

2. Component Identification & Functional Definition

2.1 Part Identification

2.2 Primary Operational Role

In the closed-loop undercarriage architecture of the ZOOMLION ZE750 mining excavator, the lower roller assembly is positioned along the bottom side of the track frame, riding directly on the track chain links. These components perform four critical mechanical functions:

• Primary Load-Bearing & Weight Distribution: The lower rollers support the total static and dynamic weight of the excavator (~75 tons), distributing immense loads from the mainframe through the track chain to the ground. Each roller assembly must withstand radial loads that fluctuate constantly during digging, lifting, and travel operations.
• Track Chain Guidance & Derailment Prevention: The integrally forged flanges on each roller serve as continuous rails that interface precisely with the inner surfaces of the track links, providing positive lateral control and preventing de-tracking during counter-rotation turns or operations on sloped terrain.
• Shock & Impact Absorption: Acts as the first line of defense in absorbing impact loads from uneven ground, rock benches, and mining bench floors, protecting the entire undercarriage and upper structure from shock-induced damage.
• Contaminant Exclusion: The sealing system must aggressively exclude abrasive particulates (silica, metallic dust, slurry) and moisture — the primary agents of premature bearing failure in mining environments.

3. Engineering Architecture & Material Specifications

3.1 Roller Body & Housing

The roller body is manufactured from a high-grade, boron-added alloy steel forging (e.g., 50B or 50Mn equivalent), selected for its exceptional combination of hardenability, toughness, and wear resistance. The forging process — as opposed to casting — ensures superior grain structure and directional strength, offering exceptional resistance to impact and fatigue failure under cyclic heavy loading conditions.

Heat Treatment Protocol:

• Core Treatment: The entire forging undergoes Quenching and Tempering (Q&T) to achieve a uniform, tough core structure with high impact resistance (core hardness HRC 28–35).
• Surface Hardening: The outer running surface and flange areas undergo deep-frequency induction hardening or carburizing, creating a deep, uniform hardened case of HRC 55–63 on the tread and flange surfaces. This maximizes resistance to abrasive wear from direct contact with track chain links while maintaining a ductile, shock-absorbing core.

3.2 Shaft & Bearing System

• Shaft Material: Fabricated from quenched and tempered high-tensile alloy steel (42CrMo/42CrMo4 grade), precision-ground on bearing journals and surface-treated through induction hardening or plasma nitriding to resist fretting corrosion and wear.
• Bearing Configuration: Utilizes oversized, double-row tapered roller bearings with enhanced dynamic load ratings, pre-loaded and configured to handle the extreme multi-directional forces characteristic of 75-ton mining excavator operations.
• Mounting Design: Press-fit or bolted flange design, securely fixed within the roller body to prevent rotation and ensure all operational torque is transferred through the bearing system.

3.3 Advanced Multi-Barrier Sealing Technology

A critical engineering feature is the multi-layered, cartridge-type floating seal system. This typically integrates:

• Heavy-duty floating radial metal face seals
• Multi-labyrinth grease chamber
• External dust guard

Filled with high-adhesion, extreme-pressure (EP) lithium-complex grease, this system forms an impermeable barrier against fine abrasive dust, slurry, and water ingress — the primary causes of premature bearing seizure and failure in mining applications. CQCTRACK warrants seals for extended operational life, with leakage-free performance verified through 100% seal integrity testing.

4. Technical Specifications Summary

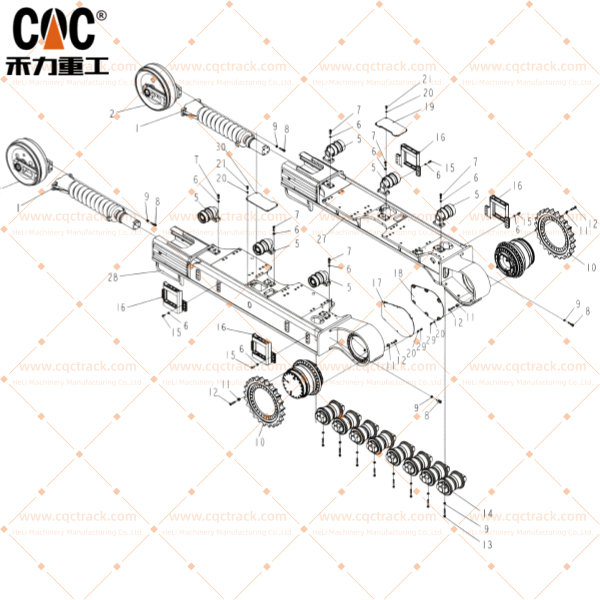

5. Associated Undercarriage Components for ZOOMLION ZE750

CQCTRACK supplies the complete range of ZOOMLION ZE750 undercarriage components as a single-source solution:

All components are manufactured to the same OEM-spec engineering standards, ensuring system-level compatibility and synchronized wear life across the entire undercarriage.

6. CQCTRACK Manufacturing Capability: From Molten Steel to Finished Component

CQCTRACK, operating under the parent company Quanzhou Heli Machinery Manufacturing Co., Ltd. (HELI), is a specialized heavy-duty undercarriage parts source manufacturer — not a trading company sourcing from anonymous workshops. The factory‘s manufacturing capability represents a continuous, vertically integrated production chain:

6.1 Process Vertical Integration

• Raw Material Control: Direct sourcing and vetting of alloy steel forgings and specialty seal materials, with incoming inspection against certified metallurgical specifications.
• Forging: Closed-die forging of roller bodies, ensuring superior grain structure and directional strength compared to cast alternatives.
• CNC Machining: Precision turning, milling, drilling, and boring on CNC machining centers to achieve exact OEM dimensional tolerances for outer diameter, total width, flange profile, bore size, and mounting interface.
• Thermal Processing: In-house heat treatment including quenching, tempering, and deep-frequency induction hardening with precisely controlled parameters for consistent batch-to-batch quality.
• Assembly & Quality Control: 100% dimensional inspection, sampling for dynamic load testing, seal integrity validation, and comprehensive record-keeping spanning at least 24 months per unit.

6.2 Quality Assurance Framework

CQCTRACK operates under a multi-layered certification umbrella, holding both ISO 9001:2015 quality management system recognition and multiple specific CQC product certification certificates. This dual foundation mandates a factory quality assurance system encompassing:

• Supplier selection and management programs
• Key component and material inspection and verification
• Regular confirmation testing for material hardness, microstructure, and chemical composition
• Scheduled preventive maintenance for all production equipment
• 100% dimensional inspection with sampling for dynamic load and seal integrity testing

6.3 Production Capacity & Global Supply

With substantial monthly production capacity and standard lead times ranging from 7 to 25 days depending on order volume and specification complexity, CQCTRACK serves the global heavy equipment market across North America, Europe, Africa, Southeast Asia, Australia, and the Middle East.

MOQ: 1 Piece (Sample orders accepted)
Payment Terms: T/T, L/C, Western Union
Trade Terms: EXW, FOB, CFR, CIF
Port of Loading: Shanghai, Xiamen

7. Why Source the ZOOMLION ZE750 1031400871 Track Roller from CQCTRACK

7.1 True Source Factory — Not a Trading Intermediary

CQCTRACK is the industrial brand of Quanzhou Heli Machinery Manufacturing Co., Ltd., operating its own integrated foundry, heat-treating, and CNC machining complex. Purchasing directly from the source manufacturer eliminates intermediary markups and ensures full traceability.

7.2 OEM-Spec Engineering Without OEM Pricing

Each 1031400871 track roller assembly is manufactured to meet or exceed ZOOMLION‘s original dimensional, material, and performance specifications, ensuring direct interchangeability and lifetime performance parity — at a significantly more competitive price point.

7.3 Proven Heavy-Duty Expertise

CQCTRACK specializes exclusively in undercarriage components for heavy-duty crawler excavators, bulldozers, and drilling rigs, with proven manufacturing programs for brands including Caterpillar, Komatsu, Hitachi, Hyundai, SANY, XCMG, VOLVO, SDLG, and ZOOMLION. Each product page is backed by a comprehensive technical white paper documenting engineering philosophy, manufacturing rigor, and performance specifications.

7.4 Custom ODM/OEM Capabilities

Beyond standard catalog parts, CQCTRACK provides custom ODM and OEM manufacturing services. Customers can supply drawings or samples, and CQCTRACK‘s engineering team will develop tailor-made undercarriage solutions to exact specifications.

8. Installation & Maintenance Guidelines

8.1 Installation

The 1031400871 Track Lower Roller Assembly is designed for direct bolt-on replacement. Ensure proper torque specifications are followed for all mounting hardware. Verify alignment with the track frame and confirm smooth rotation before final tensioning of the track chain.

8.2 Maintenance

1. Lubrication Condition Monitoring: Maintain good lubrication state. As track rollers support the entire machine weight plus dynamic loads, any oil leakage should be addressed immediately — dismantle, replace the oil seal, and replenish oil.
2. Wear Monitoring: When the roller tread or flange surfaces wear to the limit dimension, promptly weld-repair or replace with new track rollers to prevent accelerated wear on mating track chain components.
3. Regular Inspection: Inspect all undercarriage components at regular service intervals for signs of abnormal wear, oil leakage, or seal compromise, particularly in abrasive mining environments.

9. Contact CQCTRACK — International Sales & Technical Inquiry

Author & Technical Contact:
Jack — Senior Undercarriage Technical Specialist & International Affairs
CQCTRACK (Quanzhou Heli Machinery Manufacturing Co., Ltd.)

International Sales Contact:

• Email: cqc@cqctrack.com; j_sales@cqctrack.com; h_sales@cqctrack.com
• WhatsApp: +86 13906095209; +86 13505004082

Factory Address:
Quanzhou, Fujian Province, China

Website: www.cqctrack.com

Inquiry Information Needed:

• Machine Model: ZOOMLION ZE750
• Part Number: 1031400871
• Quantity Required
• Target Delivery Schedule

For technical specifications, dimensional drawings, material certifications, or custom ODM/OEM inquiries, please contact Jack directly via email or WhatsApp. Sample orders are welcomed for quality evaluation.

10. Frequently Asked Questions

Q1: How can I confirm the 1031400871 track roller will fit my ZOOMLION ZE750?
Provide your machine model (ZE750/ZE750G/ZE750GK) and OEM part number (1031400871). CQCTRACK manufactures to exact OEM dimensional tolerances for guaranteed fit and interchangeability.

Q2: What is the minimum order quantity?
MOQ is 1 piece. Sample orders are welcomed and encouraged for first-time quality verification.

Q3: What is the standard delivery time?
Standard lead time is 7–25 days depending on order volume and current production scheduling. Expedited options may be available upon request.

Q4: Do you provide warranty?
Yes. All CQCTRACK track roller assemblies are covered by a comprehensive warranty against manufacturing defects and premature failure under normal operating conditions. Specific warranty terms are provided with each quotation.

Q5: Can you manufacture custom or non-standard undercarriage parts?
Yes. CQCTRACK offers full ODM/OEM capabilities. Provide drawings, samples, or specifications, and our engineering team will develop a custom manufacturing solution.
