# XCMG XR400 Drive Sprocket Wheel: Heavy-Duty Drilling Rig Undercarriage Parts from HELI CQC TRACK, the Source Manufacturer

 Get the OEM-class XCMG XR400 drive sprocket wheel from HELI CQC TRACK, a direct factory producing drilling rig undercarriages. Expert metallurgy, precision machining, and global logistics for pile foundation contractors.

## The Undercarriage Backbone of the XCMG XR400 Rotary Drilling Rig
The XCMG XR400 (and its XR400E/XR400II variants) operates at the high end of cast-in-place pile construction. These 118-tonne rotary drilling rigs, powered by 373 kW Cummins QSX15 engines and delivering a maximum output torque of 400 kN·m, depend on their H-style hydraulic telescopic crawler chassis for stability, mobility, and precise job-to-job relocation[reference:0][reference:1]. Deep foundation work—highway bridges, railway viaducts, port infrastructure, and high-rise buildings—demands uninterrupted site operation. The drive sprocket wheel is the point where that massive rotary torque meets the ground: a worn, profile-distorted sprocket cascades into track chain elongation, roller misalignment, and final drive stress, inevitably causing project-costing downtime.

## HELI CQC TRACK: The Direct Factory Behind the Sprocket
HELI CQC TRACK (Quanzhou Heli Machinery Manufacturing Co., Ltd.) is not a trading intermediary or a supply-chain aggregator. For more than 20 years, the company has operated its own integrated manufacturing campus, merging precision engineering, advanced material science, in-house welding technology, and high-precision CNC machining under one ISO 9001:2015-certified quality management system[reference:2]. The workshop that machines the XCMG XR400 sprocket is the same one that manufactures final drive assemblies for excavators across the Komatsu, Caterpillar, Hitachi, Volvo, and SANY model ranges. This consolidation of capability means every geometric tolerance, every heat-treat cycle, and every outgoing inspection is traceable to a single accountable entity.

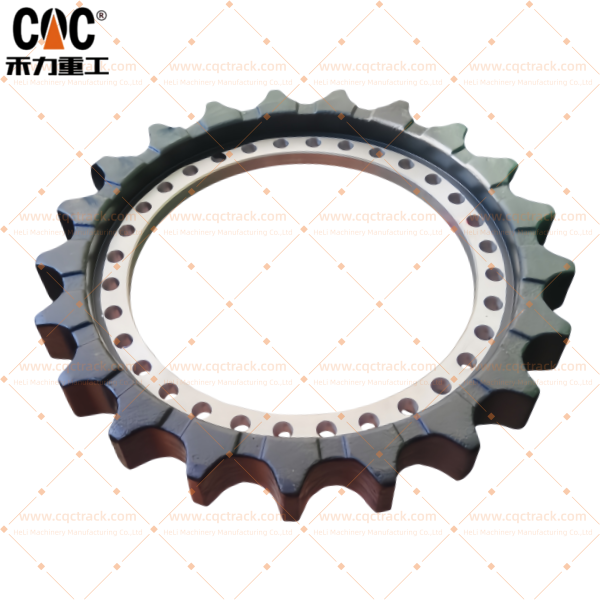

## Technical Anatomy of the XCMG XR400 Drive Sprocket Wheel
The sprocket wheel for the XR400-series drilling rig is engineered specifically for the low-speed, high-torque travel characteristics of a piling machine. Unlike an excavator that tracks frequently under load, a drilling rig makes fewer but more intensely loaded crawler movements—often while carrying the full mast and rotary head assembly across unprepared, abrasive ground.

| Parameter | Specification & Operational Benefit |
| :— | :— |
| **Sprocket Body Material** | High-grade alloy cast or forged steel with manganese, chromium, and molybdenum additions. This chemistry achieves deep hardenability throughout the thick tooth cross-section[reference:3][reference:4][reference:5]. |
| **Tooth Surface Hardness** | Induction-hardened to a controlled depth, achieving a surface hardness of 55—60 HRC for maximum abrasive wear resistance against track bushings[reference:6]. |
| **Tooth Core Toughness** | The substrate beneath the case retains a refined, tough microstructure—hard enough to resist deformation, tough enough to absorb shock loads without brittle fracture when the crawler negotiates rocky ground. |
| **Casting & Forging Process** | Depending on production volume and structural complexity, HELI CQC TRACK applies closed-die forging, lost-foam casting, or film-covering sand mold technology. All methods eliminate internal porosity and ensure isotropic grain structure[reference:7]. |
| **Heat Treatment Route** | Normalising → Quenching → Tempering, followed by tooth flank induction hardening. This multi-step cycle guarantees consistent through-hardness in the hub and a precisely graded case depth in the teeth. |
| **Tooth Profile Geometry** | Milled to the exact OEM pitch circle diameter and involute profile, ensuring smooth bushing engagement, even load sharing across all engaged teeth, and zero accelerated chain wear. |
| **Mounting Interface** | Bolt circle, pilot bore, and face run-out machined to final drive output flange specifications. Torque transmission is positive, backlash-free, and sealed against dust and moisture ingress. |

## Manufacturing Capability: Where Metallurgy Meets Precision
HELI CQC TRACK’s **manufacturing capability** is rooted in vertical integration. The factory controls the process from pattern design and ladle metallurgy through multi-axis CNC turning, gear hobbing (as applicable), and final dimensional inspection. Unlike supply-chain managers who quality-check incoming batches, HELI CQC TRACK quality-stamps its own production. This vertical ownership enables the factory to hold positioning tolerances that make every XR400 sprocket a bolt-on match to the OEM final drive hub, removing field-fitting delays for maintenance crews on-site[reference:8].

## Product Diversity Across the Entire Undercarriage Spectrum
While the XR400 drive sprocket wheel is a core line item, HELI CQC TRACK’s **product diversity** covers the complete crawler chassis system. On the same factory floor, the manufacturer produces:

- **Track chains** (sealed and unsealed links, induction-hardened pins and bushings)
- **Track shoes** (single-grouser, triple-grouser, swamp pads)
- **Bottom rollers, top carrier rollers, and front idler assemblies** for drilling rigs and excavators
- **Sprocket rims, sprocket segments, and complete final drive sprocket assemblies**
- **Recoil spring assemblies and tensioning cylinders**

This breadth serves mixed-equipment fleets: a contractor who runs XCMG piling rigs alongside Komatsu, Caterpillar, SANY, Liebherr, and Bauer foundation equipment can consolidate all undercarriage procurement through one audited, direct manufacturer—a significant supply-chain simplification[reference:9].

## Quality Stability and Management Compliance: The ISO 9001:2015 Framework
**Quality stability** is not a goal—it is a documented, audited process. HELI CQC TRACK operates under a fully implemented **ISO 9001:2015** Quality Management System[reference:10]. The compliance framework governs:

- Incoming steel mill certificates and spectrometer verification of alloy chemistry
- Ultrasonic and magnetic particle inspection of sprocket castings/forgings
- 3D scanning and tooth-profile verification against OEM reference geometry[reference:11]
- Batch-level Brinell/Rockwell hardness mapping and case-depth metallography
- Final run-out and face-squareness testing on every completed assembly

This **management compliance** is the mechanism that makes each XCMG XR400 sprocket perform identically—whether it is delivered to a bridge project in Southeast Asia today or a port foundation in the Middle East six months later. The disciplined operation, transparent production planning, and on-time container loading that result from this system define the company’s **sound corporate operation**.

## Brand Recognition: Built Where It Matters
HELI CQC TRACK’s **brand recognition** has been earned through performance in the field, not through marketing expenditure. Foundation contractors and drilling rig rebuild centers in multiple geographies recognize HELI CQC TRACK as the manufacturer that ships sprockets which match or outlast the OEM component’s lifecycle, at a commercially rational price. This track record—built over two decades—is the reason repeat orders flow from established undercarriage distributors and fleet owners who have already tested the alternative[reference:12].

## The Human Expertise That Delivers Every Sprocket

### Professional Technical Team
The **professional technical team** at HELI CQC TRACK includes metallurgists, casting and forging process engineers, CNC programming specialists, and application experts who understand the unique wear patterns of drilling rigs. These rigs move infrequently, but every movement can be a full-load, high-traction crawl across abrasive spoil. The technical team analyzes OEM samples, digitally reconstructs sprocket profiles, and tunes induction hardening parameters to produce the optimal combination of case depth and core toughness. Technical inquiries are answered with material data sheets and heat-treatment records—not guesswork.

### International Affairs Support Team
A dedicated **international affairs team** removes the friction from cross-border procurement. They manage:
- ISPM 15-compliant fumigated seaworthy packaging
- Certificates of origin, Form E / Free Trade Agreement documentation
- Letter of Credit negotiation, T/T settlement, and multi-currency invoicing
- Multilingual communication (English, Spanish, Russian, French, and others)
- Coordinated sea, air, rail, and express freight forwarding to any destination port

This team ensures that a foundation contractor in Chile or a piling specialist in Australia receives their XR400 sprocket with customs-clear, accurate paperwork—every time.

## Serving the World’s Piling, Foundation, and Heavy Construction Markets
HELI CQC TRACK’s **business reaches across global mining, piling, and heavy civil engineering markets**. Sprockets and complete track groups are deployed on foundation rigs and excavators working in:

- **Asia-Pacific highways, high-speed rail bridges, and metro foundation projects**
- **Middle Eastern port expansions, high-rise piling, and oil & gas infrastructure**
- **European deep foundation and retaining wall construction**
- **North American bridge and wind-turbine foundation projects**
- **Latin American and African mining, dam, and heavy civil works**

The supply capability—thousands of units per month—combined with delivery windows as short as 7 days for stock items and 15–25 days for manufactured-to-order components, gives project managers the lead-time certainty that keeps drill rigs productive[reference:13][reference:14].

—

**Commitment and Contact:**
HELI CQC TRACK ships the XCMG XR400 drive sprocket wheel with full material traceability, competitive FOB/CIF pricing, and a minimum order quantity of just one unit. For technical datasheets, live inventory availability, or a quotation aligned to your project delivery schedule, speak directly with the manufacturer who understands that a foundation rig’s productivity starts at the undercarriage.
