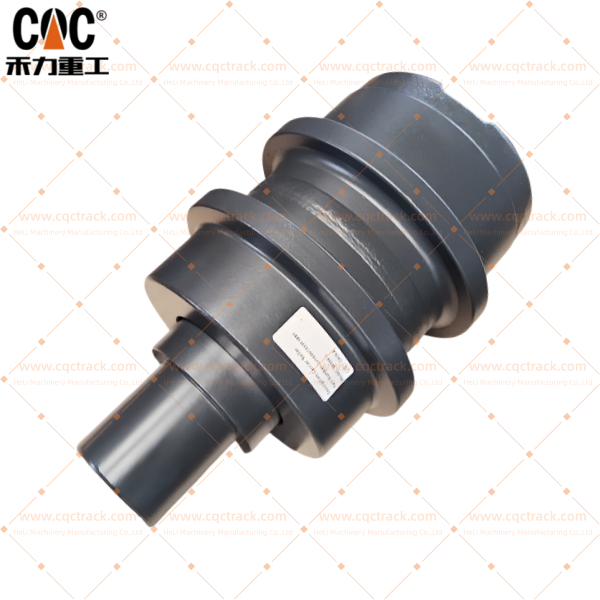

Kobelco SK330 / SK350 24100N7035F3 Track Upper Roller Assembly: Heavy – Duty Excavator Carrier Rollers from CQCTRACK Factory

Kobelco SK330/SK350 24100N7035F3 Track Upper Roller Assembly: Heavy-Duty Carrier Rollers Direct from CQCTRACK Factory

**Meta Description:** Source the 24100N7035F3 track upper roller (carrier roller) for Kobelco SK330 & SK350 from CQCTRACK, an OEM-level undercarriage manufacturer. Real forged shells, lifetime-lubricated seals, and exact fit for global mining and heavy construction fleets.

## The Critical Guide Roller on the Kobelco SK330 and SK350 Excavators
The Kobelco SK330 and SK350 models are 35-tonne class excavators widely deployed in hard digging, quarrying, and infrastructure earthworks. Their X-frame undercarriage relies on a carefully engineered track guidance system in which the upper roller assembly (often called the carrier roller or top roller) plays a structurally vital role. Positioned at the highest point of the track frame, this roller supports the return path of the track chain between the drive sprocket and the front idler. On a heavy excavator working across uneven benches or aggressive demolition sites, the upper roller continuously absorbs vertical shock loads and lateral side forces while rotating at speeds that generate considerable heat. Any failure here—whether from loss of lubrication, tread flaking, or bearing collapse—drops the track chain, damages adjacent components, and immobilizes the machine. The OEM part number **24100N7035F3** defines the exact specification for this assembly, and it is one that CQCTRACK replicates to a performance level that matches or exceeds factory-fit components.

## CQCTRACK: The Manufacturing Source Behind the Roller
CQCTRACK is the international brand of Quanzhou Heli Machinery Manufacturing Co., Ltd., an independent **heavy-duty excavator chassis components factory** with over twenty years of dedicated undercarriage engineering. Unlike resellers who source parts from multiple workshops, CQCTRACK controls its entire production sequence under one quality-managed roof. The same engineering group that designs the SK330/SK350 upper roller also produces drive sprockets, track chains, idlers, bottom rollers, and track shoes for virtually every major excavator line operating in mines and construction sites today. This direct-factory model guarantees that the part you receive is fabricated from verified materials, machined on calibrated CNC equipment, assembled with premium seals, and inspected before dispatch—not simply visually checked against an incoming pallet.

## Technical Architecture of the 24100N7035F3 Carrier Roller Assembly
CQCTRACK builds this upper roller as a robust, pre-lubricated assembly that installs onto the track frame with minimal adjustment. The technical parameters reflect the OEM specification with targeted enhancements born from field feedback in high-wear environments.

| Parameter | Specification & Engineering Rationale |
| :— | :— |
| **Roller Shell Material** | Forged or fine-cast alloy steel (typically 40Mn2 or equivalent), chosen for its deep-hardenability and compressive fatigue strength under cyclic rolling contact. |
| **Tread Surface Hardness** | Induction-hardened to **55–60 HRC** with a case depth of 5–8 mm. This provides a long-wearing tread that resists abrasive grooving from the track chain links without becoming brittle. |
| **Shaft Material & Design** | Forged medium-carbon alloy steel, precision-ground journal diameters for an exact bearing fit, and induction-hardened on critical load-bearing surfaces. |
| **Bearing and Seal System** | Matched deep-groove ball or taper roller bearings in a permanent-lubrication cavity, sealed by a **lifetime floating seal (metal face seal)** arrangement. The dual-cone floating seal creates a dynamic barrier against dirt, water, and fine sand, while retaining internal grease indefinitely. |
| **Working Clearance** | Axial and radial internal clearances set to OEM blueprint values, allowing free rotation without wobble even as temperatures rise from continuous high-speed track travel. |
| **Mounting Bracket** | Precision-bored bolt slots or through-holes, machined flat and parallel to the shaft axis for bolt-on installation onto the excavator track frame without shimming. |
| **Lubrication** | Pre-filled with high-grade lithium-complex extreme-pressure grease, calculated to last the full service interval of the roller under normal operating conditions. |

## CQCTRACK’s Manufacturing Core: How Each Roller Is Made
**CQCTRACK’s manufacturing capability** is built on vertical integration. The process begins with in-house pattern making and molten steel refining, followed by shell forging or precision casting depending on the required grain structure. The as-forged blank then moves through a sequence of CNC turning, milling of the mounting holes, and induction hardening of the tread and shaft journals. Automated welding cells join bracket components to the main body under strictly controlled parameters, while a sealed assembly cleanroom ensures that no foreign particles contaminate the bearings or the floating seal interfaces. Every roller undergoes:
- Dimensional verification on coordinate measuring machines
- Hardness traverse testing across the tread face and shaft
- Run-out and rotational smoothness checks under a pre-load simulating service conditions
- Oil-leakage and vacuum-decay tests on the floating seal assembly

This total-process ownership is what enables CQCTRACK to deliver a component that is dimensionally interchangeable with the Kobelco genuine part and functionally consistent across serial production.

## Product Diversity: A Single Source for the Entire Undercarriage
While the **24100N7035F3 upper roller** is a high-demand product, it represents just one element within CQCTRACK’s **product diversity**. The factory produces the complete undercarriage system for 2-tonne mini excavators through 120-tonne mining machines. This portfolio includes:
- **Bottom rollers (track rollers)** : single-flange and double-flange designs
- **Front idlers** with heavy-duty tensioning yoke assemblies
- **Drive sprockets and sprocket rim segments**
- **Sealed and greased track chains** with induction-hardened pins and bushings
- **Track shoes** in single-grouser, triple-grouser, and flat-pad configurations
- **Recoil spring assemblies and hydraulic track adjusters**

Brand coverage extends far beyond Kobelco to include Komatsu, Caterpillar, Hitachi, Volvo, Hyundai, Doosan, SANY, XCMG, Liebherr, and others. For fleet owners who operate mixed machinery, CQCTRACK becomes a consolidated, auditable supply chain.

## Quality Stability and Management Compliance
**Quality stability** is institutionalized through the company’s long-held **ISO 9001:2015** certification. This management framework governs:
- Full material traceability from steel mill certificates to finished serial numbers
- Spectrometer verification of alloy chemistry for every melt
- Ultrasonic and magnetic particle inspection of forged or cast shells
- Dimensional audit using calibrated CMMs and custom functional gauges
- Accelerated life-cycle testing on seal and bearing assemblies
- Retention of heat treatment records and batch hardness data

This **management compliance** produces a roller that not only passes incoming inspection at a distributor’s warehouse but performs identically on an excavator in a wet tropical quarry or a dry, dusty gold mine. The discipline behind this repeatability is also a clear indicator of the company’s **sound corporate operation**—financial and production stability to honor multi-year supply agreements, accommodate emergency orders, and consistently meet promised delivery dates.

## Brand Recognition Gained Through Field Performance
CQCTRACK’s **brand recognition** is the result of more than two decades of direct supply to aftermarket distributors, mining contractors, and machinery rebuild centers. The brand is associated with undercarriage components that arrive in ready-to-install condition and outlast the expectations set by their price point. When an excavator owner spots the CQCTRACK casting mark on a roller assembly, it is understood that the part was manufactured with OEM-grade metallurgy and assembly standards—not simply copied from a sample. This perception has grown organically through repeat business across all continents.

## The Expert Teams Behind Every Shipment

### Dedicated Technical Engineering Group
CQCTRACK maintains a **professional technical team** of metallurgists, mechanical design engineers, and application specialists. For the SK330/SK350 upper roller, this team analyzed the original OEM geometry, studied common failure modes in the field (tread pitting, seal blow-out, shaft fracture), and tuned the induction hardening pattern and seal pre-load to address those weaknesses. They are available to discuss application-specific requirements—such as rollers operating in highly abrasive silica sand or corrosive marine environments—and to recommend material or coating adjustments where needed.

### International Affairs and Logistics Department
A full-time **international affairs support team** handles the complexity of exporting heavy machinery components across multiple time zones and regulatory environments. Their responsibilities include:
- Preparation of fumigated, ISPM 15-compliant wooden pallets and seaworthy packaging
- Issuance of certificates of origin, HS code classification, and free trade agreement documentation (Form E, etc.)
- Management of payment instruments including T/T, L/C at sight, and multi-currency settlements
- Real-time shipment track-and-trace, from factory gate to destination port or job site
- Multilingual communication in English, Spanish, Russian, French, and others

This team removes the administrative burden from procurement, ensuring that customs clearance is fast and the rollers arrive when the site schedule needs them.

## A Worldwide Footprint in Mining and Heavy Construction
CQCTRACK’s **business reaches across global mining and construction markets**. The Kobelco SK330/SK350 upper roller assemblies—together with complete track groups—are currently operating in:
- **Southeast Asian infrastructure projects** where Kobelco excavators are a staple of earthworks fleets
- **Latin American copper and gold mines** running high-hour fleets under extreme altitude and abrasive conditions
- **Middle Eastern quarry and marine construction operations** subject to salt spray and high ambient temperatures
- **African mining and road-building projects** demanding parts that can survive long supply lines
- **Eastern European and CIS heavy civil engineering** including pipeline and railway corridors

A monthly supply capacity running into tens of thousands of units and a typical dispatch window of 7–25 days (depending on order volume and product complexity) give fleet managers the predictability they need for planned component replacement and emergency repairs alike.

—

**Commitment and Contact:**
CQCTRACK ships the Kobelco SK330/SK350 24100N7035F3 track upper roller assembly with full metallurgical traceability, competitive FOB or CIF pricing, and a minimum order quantity designed for both end users and wholesale distributors. For a detailed technical drawing, current stock availability, or a tailored quotation, contact the factory that understands how a reliable upper roller keeps excavator productivity on track.

*CQCTRACK – The Factory Behind the Track. Heavy-Duty Undercarriage Solutions for Mining & Construction Worldwide.*
