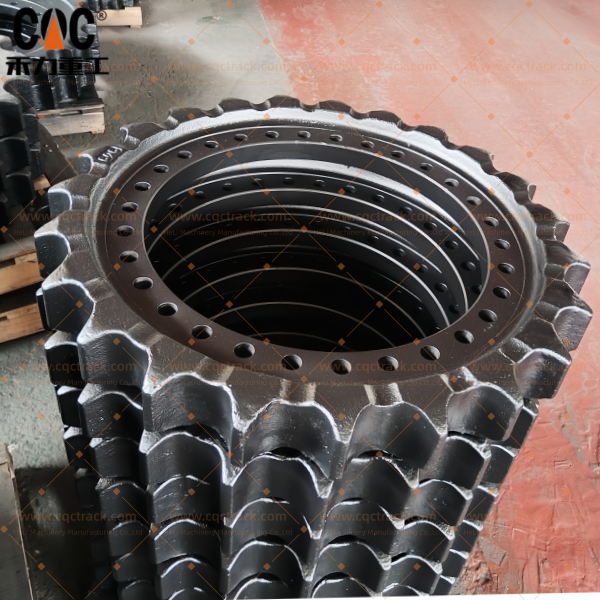

LOVOL FR700F Undercarriage Track Sprocket Wheel Assembly / Heavy duty Construction Equipments Spare Part Manufactured By cqctrack Factory

# LOVOL FR700F Undercarriage Track Sprocket Wheel Assembly: Precision-Powered Spare Parts Direct from CQCTRACK Factory

**Meta Description:** Source the heavy-duty track sprocket wheel assembly for the LOVOL FR700F excavator from CQCTRACK, the OEM-level undercarriage manufacturer. Forged alloy steel, induction-hardened teeth, and bolt-on precision for global construction and mining fleets.

## Powering the LOVOL FR700F: The Sprocket at the Heart of the Travel Drive
The LOVOL FR700F is a 70-tonne class hydraulic crawler excavator built to move massive volumes of earth in mining, quarrying, and large-scale infrastructure projects. Whether loading blasted rock or trenching through abrasive ground, its travel system depends absolutely on the integrity of the track sprocket wheel assembly. This component converts the final drive’s hydraulic torque into the tractive force that pulls the machine up grades and across loose surfaces. A sprocket with worn teeth, an incorrect tooth profile, or insufficient core toughness will not only degrade itself rapidly—it will accelerate track chain pin and bushing wear, strain the travel motor, and cause misalignment that spreads damage across the entire undercarriage. Replacing this critical part with a precision-manufactured, metallurgically optimized assembly is the single most effective way to protect a heavy excavator’s mobility and uptime.

## CQCTRACK: The Direct-Factory Source for LOVOL Undercarriage Parts
CQCTRACK, the global brand of Quanzhou Heli Machinery Manufacturing Co., Ltd., is not a trading company sourcing parts from anonymous workshops. The company operates its own fully integrated foundry, forging, heat-treating, and CNC machining facility, all certified under an ISO 9001:2015 quality management system. Every LOVOL FR700F sprocket assembly is designed, poured or forged, machined, induction-hardened, and quality-inspected within this single, accountable manufacturing campus. There is no subcontracting, no batch-level quality gamble. When a site manager orders from CQCTRACK, they are ordering directly from the factory that made the component—with full material traceability and repeatable dimensional accuracy built into the process.

## Technical Definition of the LOVOL FR700F Sprocket Wheel Assembly
CQCTRACK engineers the FR700F sprocket to withstand the brutal combination of high torque, abrasive media, and shock impacts that define 70-tonne excavator service. Every design parameter is tuned to replicate and, where metallurgy allows, enhance the original equipment specification.

| Parameter | Specification and Engineering Purpose |
| :— | :— |
| **Sprocket Body Material** | Premium-grade alloy steel (typically 40Mn2 or 50Mn), processed through forging or fine casting. This steel grade is selected for its optimal combination of surface hardenability and bulk toughness. |
| **Tooth Surface Hardness** | Induction-hardened to **50–55 HRC** with a precisely controlled case depth. The hard layer resists gouging and abrasion from track bushings, while the softer core absorbs impact energy without cracking. |
| **Tooth Core Impact Toughness** | Achieves a Charpy impact value that prevents brittle failure even when the sprocket encounters unyielding rock edges or frozen ground during tight turns. |
| **Tooth Profile Accuracy** | CNC-machined to match the OEM pitch circle diameter and involute profile exactly. This guarantees a smooth rolling engagement with the track chain links, eliminating the localized high-stress points that cause rapid wear. |
| **Mounting Hub Interface** | Bolt circle, pilot bore diameter, and face flatness machined to final drive output flange tolerances. Mounting is bolt-on without field reaming, and the zero-backlash fit protects the travel gearbox from vibration-induced fatigue. |
| **Heat Treatment Pathway** | Normalising and quenching followed by tempering to refine the grain structure throughout the entire part. Subsequent tooth-flank induction hardening creates a graduated hardness profile from surface to core. |
| **Casting Process Control** | Lost-foam or resin-sand casting with computer-simulated solidification modeling to eliminate shrinkage porosity in thick hub sections, ensuring homogeneous strength in every direction. |

## Manufacturing Capability: From Molten Steel to Finished Component
**CQCTRACK’s manufacturing capability** is not a set of isolated machines—it is a continuous, vertically integrated production chain. The process includes in-house pattern making, spectrometer-verified alloy melting, forging or precision casting, multi-axis CNC turning and milling, induction hardening under digital power control, and 100% dimensional inspection on calibrated coordinate measuring machines. Because every step occurs under one quality system, traceability is absolute: the melt number stamped on the sprocket body can be linked to its corresponding hardness traverse, heat-treat chart, and CMM report. This depth of control is what enables the factory to deliver sprockets that are dimensionally interchangeable with the LOVOL genuine part, time after time.

## Product Diversity That Covers the Entire Undercarriage
The FR700F sprocket wheel is part of a much wider product family. CQCTRACK’s **product diversity** means the same factory that machines this assembly also manufactures every other undercarriage component required to rebuild a LOVOL excavator’s chassis completely. The catalog includes:
- Forged and sealed track chains with induction-hardened pins and bushings
- Bottom rollers (single-flange and double-flange) with lifetime-lubricated floating seals
- Front idler assemblies complete with forged yokes and tensioning systems
- Track upper carrier rollers
- Track shoes in single-grouser, triple-grouser, and swamp-pad configurations
- Recoil spring assemblies and hydraulic track adjusters

Beyond LOVOL, the production lines cover excavator and drilling rig undercarriages for Komatsu, Caterpillar, Hitachi, SANY, XCMG, Volvo, and numerous other brands. For a contractor managing a mixed fleet, CQCTRACK becomes a single, audited procurement channel for all chassis components.

## Quality Stability and Management Compliance Under ISO 9001:2015
Stable quality does not happen by accident; it is engineered through systems. CQCTRACK’s **quality stability** is anchored to its long-held ISO 9001:2015 certification, which enforces a discipline covering:
- Incoming raw material verification via optical emission spectrometry
- Casting integrity assessment with ultrasonic testing and magnetic particle inspection
- Dimensional audits using calibrated CMM and contour tracing instruments
- Batch-level heat treatment documentation with furnace charts preserved for every work order
- Assembly run-out and rotational accuracy checks before final preservation and packing

This **management compliance** framework ensures that the sprocket delivered to a project in one hemisphere performs identically to the one shipped to another six months prior. It is also the structural reason behind the company’s **sound corporate operation**: predictable production scheduling, on-time container dispatch, and the capacity to execute multi-year supply agreements without disruption.

## Brand Recognition Rooted in On-Machine Endurance
CQCTRACK has built its **brand recognition** over more than two decades not through promotional campaigns, but through sprockets and rollers that survive in the field. Excavator fleet owners, undercarriage refurbishment centers, and international aftermarket distributors associate the CQCTRACK name with metallurgical honesty and dimensional precision. When a LOVOL FR700F sprocket arrives with the CQCTRACK marking, the receiving mechanic knows it will bolt up without modification and deliver a service life that respects the machine’s productivity demands.

## Teams That Turn Engineering into Global Support

### Professional Technical Team
A dedicated **professional technical team** underlies every specification. For the LOVOL FR700F sprocket, the group includes forging process engineers, heat-treatment specialists, and application engineers who have studied the failure patterns of sprockets working in hard-rock quarries and open-pit mines. They are available to consult on extreme-service upgrades (such as modified induction patterns for abrasive silica-rich ground) and to supply full material certificates with each shipment.

### International Affairs and Logistics Team
An embedded **international affairs support team** ensures that physical parts move through complex cross-border logistics seamlessly. This group handles every export detail, including:
- ISPM 15-compliant fumigated wooden packaging and seaworthy crating
- Certificate of origin issuance, HS code classification, and preferential trade documentation
- Secure payment processing via T/T, L/C, and multi-currency instruments
- Door-to-port and door-to-site freight orchestration with real-time tracking
- Multilingual commercial correspondence in English, Spanish, Russian, French, and other languages

The result is a frictionless procurement experience, from technical confirmation to customs clearance at the destination.

## A Worldwide Operational Footprint in Construction and Mining
CQCTRACK’s **business reaches across the entire global construction equipment and mining spectrum**. LOVOL FR700F sprocket assemblies, along with complete undercarriage packages, are actively working on excavators in:
- African hard-rock mines and infrastructure corridors where uptime is non-negotiable
- Southeast Asian earthmoving and plantation development projects
- Middle Eastern quarrying, port, and urban construction sites
- Latin American copper and gold operations running high daily hours at altitude
- South Asian and Central Asian heavy civil engineering and energy sector projects

With a massive monthly production capacity and standard lead times ranging from 7 to 25 days depending on order volume, CQCTRACK gives fleet managers the inventory predictability needed to stage planned component replacements and respond to unexpected breakdowns.

—

**Commitment and Contact:**
CQCTRACK supplies the LOVOL FR700F undercarriage track sprocket wheel assembly with complete metallurgical traceability, competitive FOB or CIF pricing, and no minimum order quantity that excludes end-user purchases. For a technical drawing, a current stock availability check, or a customized quotation that reflects your delivery timeline, contact the factory directly. Put the power back into your excavator’s travel system with sprockets manufactured where quality is the production plan.

*CQCTRACK – Built at the Source, Proven on the Ground. Heavy-Duty Undercarriage Engineering for a World in Motion.*
