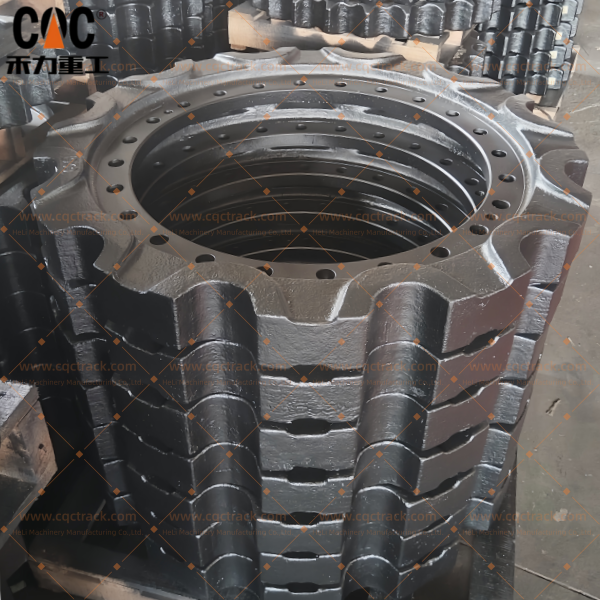

Hitachi YA00001980 / 4430291 / 1017812 Rock Sprocket Wheel Assy for ZAX870/ ZX890/ ZX900-5A: OEM-Quality Undercarriage Parts by CQCTRACK— The Mining Operation’s Top Choice

When a Hitachi ZAX870, ZX890, or ZX900-5A is working a hard-rock bench, the drive sprocket wheel assembly is the final rotational element that transforms massive hydraulic torque into raw propulsive force. In these super-large-class mining excavators, any weakness in the sprocket translates directly into reduced breakout efficiency, accelerated track chain wear, and unplanned downtime that cripples production targets. At CQCTRACK, we deliver OEM-quality undercarriage parts for Hitachi crawler excavators—most critically, the rock sprocket wheel assembly cross-referenced as YA00001980, 4430291, and 1017812—engineered and manufactured on the very same production backbone that supplies Tier-One excavator OEMs. This is not an aftermarket replica; it is a factory-direct, mine-proven power transmission component built to keep your ZAX/ZX fleet operating at peak availability.

OEM-Quality Manufacturing: Forged and Cast in the Same Facilities That Serve Hitachi, Kobelco, LiuGong, XCMG, and SDLG

CQCTRACK occupies a genuinely rare position in the global undercarriage supply landscape. We are an accredited OEM manufacturing partner for industry leaders including Hitachi, Kobelco, LiuGong, XCMG, and SDLG. Daily production in our plant includes complete undercarriage assemblies destined directly for the final assembly lines of these heavyweights. This means that the Hitachi YA00001980/4430291/1017812 rock sprocket wheel assembly is produced in a manufacturing ecosystem governed by exactly the same metallurgical standards, CNC machining tolerances, robotic welding protocols, and quality assurance gates that govern genuine Hitachi line-fit components. Our multi-axis machining cells, dedicated induction hardening stations, and clean-room sealing assembly lines operate under certified process controls refined through continuous collaboration with Japanese engineering teams. The result is a component that mirrors genuine OEM specifications not through guesswork, but through shared manufacturing discipline.

Product Engineering Breakdown: The Rock Sprocket Wheel Assembly for ZAX870/ZX890/ZX900-5A

The rock sprocket designated for these large-frame Hitachi excavators must endure extraordinary tooth-root bending moments, severe abrasive wear from fractured rock fines, and constant exposure to shock loading. CQCTRACK’s engineering response leaves nothing to chance.

Integrally Forged Wheel Body: The sprocket wheel body starts as a premium alloy round steel billet that is heated and forged in a closed-die press. This forging operation realigns the material’s grain structure to flow continuously along each tooth profile and into the hub, eliminating the directional weakness and potential porosity inherent in cast or flame-cut plate alternatives. The result is exceptional fatigue resistance right where tooth-bending stress concentrates.

Spheroidal Graphite Side Cover: The lateral retaining cover is manufactured through a rigorously controlled spheroidal graphite (ductile) iron casting process. This delivers high tensile strength combined with enough ductility to absorb assembly preload and in-service structural flex without cracking, ensuring the wheel package remains rigidly clamped to the final drive hub over thousands of operating hours.

Dual-Seal Groove Shaft and Premium Sealing System: The central shaft is precision-ground with a dual-labyrinth seal groove configuration, creating a convoluted path that dramatically impedes external contaminant ingress. We install matched top-tier floating seals—high-chromium cast alloy wear rings energized by chemically stable elastomer torics—that maintain a perfect running face contact even under angular deflection. Internally, the assembly is packed with an anti-freeze extreme-pressure grease specifically formulated to remain pumpable and adhesive from Arctic morning cold starts to continuous tropical operation, effectively eliminating the risk of dry-scuffing of the pin-bushing interface.

Complete Heat Treatment Architecture: The wheel body undergoes a comprehensive through-quench-and-temper (Q&T) treatment first. This transforms the entire cross-section into a fine-grained, high-toughness martensitic structure that serves as a crack-resistant, energy-absorbing core. After Q&T, the part is rough-machined to liberate residual stresses, then precision finish-machined to achieve exact involute tooth geometry and hub registration. Only as the ultimate wear-protection step do we apply a precision-controlled medium-frequency induction hardening cycle to the tooth flanks, root fillets, and tread contact bands. This creates a clean surface hardness envelope of 55 to 62 HRC with a gradual case-to-core transition that resists spalling and micro-chipping under the extreme contact pressures typical of hard-rock mining.

Twenty Years of Continuous Process Refinement, Validated in the World’s Most Extreme Mines

The YA00001980/4430291/1017812 rock sprocket you install today is not a static design. It embodies twenty years of iterative improvement in forging die geometry, induction coil profiling, quench media concentration, and post-heat-treatment surface conditioning. CQCTRACK sprocket assemblies have been subjected to relentless field validation across the most severe mining environments globally: the high-silica copper benches of Peru and Ecuador, the deep gold and platinum operations of South Africa, the frozen overburden removal in Russia and Kazakhstan, and the abrasive volcanic terrains of South Pacific islands. In every case, our components have demonstrated the stability of mechanical properties and wear rate predictability that professional mining fleet managers demand for accurate cost-per-hour forecasting.

Complete Matched Undercarriage Solution

A sprocket is one element in a tribological system. To maximize overall undercarriage life, CQCTRACK designs and manufactures the full set of mating components for the Hitachi ZAX870/ZX890/ZX900-5A, including sealed and lubricated track chains with matched bushings, heavy-wall track rollers, carrier rollers, front idlers with forged yokes, and bolt-on sprocket rim options. Every component is engineered with a stepped hardness strategy—the sprocket tooth hardness, track bushing case depth, and roller tread hardness are deliberately coordinated to ensure uniform system wear and eliminate premature single-point failures.

Global Distribution and High-End Market Penetration

Our Hitachi rock sprocket assemblies are regularly container-shipped and air-freighted to mining operations and equipment distributors in an established global network that includes South America (Ecuador, Peru), South Africa, Russia, South Korea, the premium-quality replacement segment in India, South Pacific nations, Vietnam, Kazakhstan and neighboring Central Asian republics, North America, and Turkey. Our consistent success in markets with stringent import inspection regimes—such as North America and South Korea—validates the production and quality documentation integrity of every part number we ship.

Your CQC International Business Team

Every inquiry receives direct support from our experienced international team members: Philip, Jack, and Haily. Whether your need is technical dimensional verification, consolidation of complete undercarriage kit orders, or logistics coordination for remote mine-site delivery, our team ensures precision communication and execution.
(Author’s note: This technical product overview has been personally researched and authored by Jack, a core member of the CQC international team, grounded in direct engineering liaison and extensive global field support.)

When your Hitachi ZAX870, ZX890, or ZX900-5A demands a rock sprocket wheel assembly that matches or exceeds genuine OEM endurance, specify CQCTRACK part numbers YA00001980, 4430291, and 1017812. Install the OEM-quality undercarriage parts that the world’s toughest mining operations already trust.
