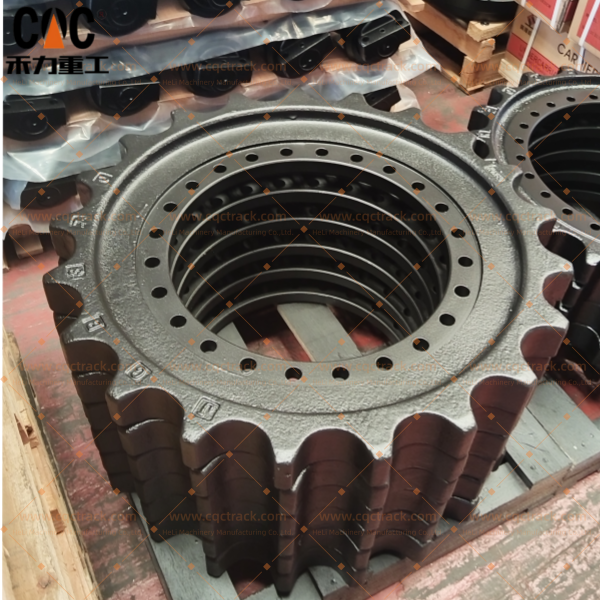

JCB JS360/ JS370 Drive Sprocket Wheel Assembly (P/N 331/55577): The OEM -Backed Undercarriage Powerhouse by CQCTRACK

On a JCB JS360 or JS370 crawler excavator, the drive sprocket wheel assembly is the final gear in the powertrain that converts hydraulic muscle into ground-shredding traction. When you are benching in hard rock, handling demolition debris, or trenching through abrasive overburden, a single compromised sprocket tooth can cascade into track chain failure and catastrophic downtime. That is why CQCTRACK, as a true OEM manufacturer and heavy-duty undercarriage components specialist, engineers every JCB P/N 331/55577 drive sprocket to exceed the physical demands of the most unforgiving job sites. We do not simply reverse-engineer samples; we manufacture from a foundation of genuine Tier-One supply partnerships, advanced metallurgy, and two decades of mine-validated process refinement.

OEM Manufacturing Firepower: Built on the Same Lines as Hitachi, Kobelco, LiuGong, XCMG, and SDLG

CQCTRACK occupies a unique position in the global undercarriage supply chain. We are an active OEM production partner for several of the world’s leading excavator brands, including Hitachi, Kobelco, LiuGong, XCMG, and SDLG. This means that the daily production rhythm in our factory involves running batches of track rollers, idlers, and sprockets that ship directly to the assembly lines of these major manufacturers. The JCB JS360/JS370 drive sprocket wheel assembly benefits from exactly the same manufacturing DNA: the same CNC turning centers that achieve concentricity within microns, the same robotic hard-facing capabilities, and the same statistical process control gates that reject any dimensional drift before it leaves the cell. When you source from CQCTRACK, you are essentially tapping into an OEM-caliber production backbone without the multi-layered brand margin.

Product Engineering Deep-Dive: The Anatomy of P/N 331/55577

The JCB JS360/JS370 sprocket assembly is not a simple iron casting; it is an engineered system of interacting precision components, each optimized for extreme wear life and structural integrity.

Forged Wheel Body: The sprocket wheel itself is integrally forged from a specially selected high-grade alloy round steel billet. Forging under immense pressure refines the grain structure and forces it to flow continuously around each tooth profile. This eliminates the porosity and random grain orientation inherent in cast wheels, granting our sprocket a fatigue endurance limit that is substantially higher in the critical tooth-root bending zone.

Spheroidal Graphite Side Cover: The retaining side cover is produced via a carefully controlled spheroidal graphite (ductile) iron casting process. This material choice delivers the optimal balance of high tensile strength and controlled elongation, allowing the cover to act as a tough, shock-absorbing clamp that maintains bolt preload even after thousands of hours of cyclical loading.

Shaft and Sealing Architecture: The central shaft is precision-ground and features a dual-labyrinth seal groove design. Into these grooves we fit a matched pair of top-tier floating seals fabricated from high-chromium wear-resistant cast alloy faces and energised by resilient, temperature-stable elastomer torics. Internally, the assembly is charged with a synthetic-based anti-freeze extreme-pressure grease. This lubricant remains channel-stable and pumpable from Arctic overnight freezes down to -40°C through to sustained operating temperatures exceeding +50°C, ensuring the pin-bushing interface is never exposed to dry-start galling.

Proprietary Heat Treatment Protocol: Metallurgy is where CQCTRACK makes an indelible mark of distinction. The entire forged wheel body first undergoes a complete quench-and-temper (Q&T) cycle. This transforms the core into a uniform, fine-grain martensitic structure that is tough enough to absorb high-magnitude impact without crack propagation. Following Q&T, the blank is rough-machined to relieve locked-in stresses, then precision finish-machined to achieve the exact bolt-circle registration and tooth flank involute geometry. Only as the final step do we apply computer-controlled medium-frequency induction hardening to the tooth working surfaces and the root radii. The process delivers a clean, precise hardness envelope of 55 to 62 HRC with a deep, gradual case transition that will not spall or flake under the extreme Hertzian contact pressures of heavy digging.

Twenty Years of Process Evolution, Proven in the World’s Harshest Mines

The P/N 331/55577 sprocket assembly you receive today is not an experimental product; it is the consolidated output of twenty years of continuous production process improvement. Every year, our engineering teams refine the induction coil geometries, the polymer quench concentration, and the post-grinding superfinishing parameters based on telemetry from machines working in the most severe real-world conditions. These sprockets have been proven through millions of cumulative excavator hours in the frozen goldfields of Russia and Kazakhstan, the high-altitude copper pits of Peru and South America, the abrasive iron-ore benches of South Africa, and the tropical demolition sites of Vietnam and the South Pacific. This field-accumulated validation confirms a quality stability that allows fleet owners to budget their undercarriage costs with absolute confidence.

Complete Undercarriage Ecosystem: More Than Just a Sprocket

Wear is a system problem, not a part problem. CQCTRACK manufactures the entire mating suite of heavy-duty excavator undercarriage components to match the JCB JS360/JS370: sealed and lubricated track chains, heavy-wall track rollers, top carrier rollers, front idlers with integrated tensioning yokes, and bolt-on rim segments. All of these components are designed with a coordinated hardness cascade—the sprocket tooth, track bushing, and roller tread are engineered as a matched-wear system so that you achieve the maximum possible working life out of your entire undercarriage frame, reducing the frequency and cost of partial rebuilds.

Global Logistics Footprint and High-End Market Access

CQCTRACK undercarriage parts, including these JCB JS360/JS370 drive sprocket assemblies, flow through a well-established global distribution corridor. We maintain strong, continuous export relationships into South America (Ecuador, Peru), South Africa, Russia, South Korea, India’s premium quality replacement sector, the South Pacific island nations, Vietnam, Kazakhstan and wider Central Asian republics, North America, Turkey, and beyond. Our long-standing presence in markets with exceptionally strict import quality and traceability requirements—such as North America and South Korea—is a direct reflection of the consistent production standards we hold.

Your CQC International Business Team

Every technical enquiry and commercial order is supported by our dedicated international team. With deep on-the-ground knowledge of local operating conditions and equipment configurations, Philip, Jack, and Haily are ready to assist with cross-referencing, logistics planning, and custom packing specifications.
(Author’s note: This in-depth product and capability overview has been personally researched, verified, and authored by Jack, drawing on direct engineering liaison and extensive global field support experience.)

For the JCB JS360/JS370, do not compromise with a sprocket that was merely copied from a sample. Install the OEM-grade, fully-forged, mine-proven P/N 331/55577 drive sprocket wheel assembly from CQCTRACK—the heavy-duty undercarriage solution expert that the world’s top equipment fleets rely on.
