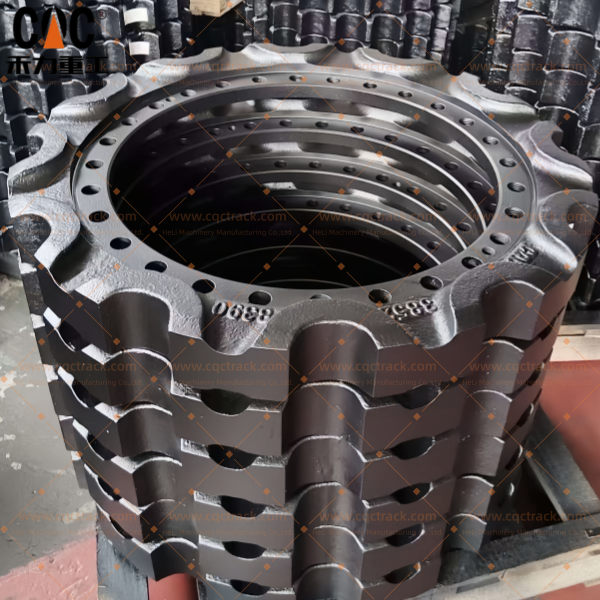

CAT385/E385 Mining Drive Sprocket Wheel Assembly (6397792/2604584/2011704/1453014): The OEM-Grade Undercarriage Solution by CQCTRACK

When a Caterpillar CAT385 or E385 excavator is working deep in an open-pit mine, the drive sprocket wheel assembly is not simply a replaceable part—it is the primary torque transfer point that turns engine power into relentless crawling traction. At CQCTRACK, we understand this responsibility deeply because we have spent two decades not only manufacturing undercarriage components but actually designing and producing complete drive solutions as a strategic OEM partner for some of the world’s most demanding heavy equipment brands. If you are searching for a mining crawler drive wheel that equals or exceeds genuine performance while offering true OEM-manufacturer direct value, you have found your solution expert.

OEM Manufacturing Pedigree: Where Tier-One Expertise Meets Aftermarket Agility

CQCTRACK is not a generic copy-parts shop. We are a fully integrated OEM manufacturer that currently serves as a qualified production base for industry giants such as Hitachi, Kobelco, LiuGong, XCMG, and SDLG. This means the same engineering disciplines, metallurgical labs, precision machining centers, and quality gates that govern an OEM track roller destined for a brand-new 50-ton excavator also govern every CAT385/E385 drive sprocket wheel assembly that leaves our plant. Our factory operates advanced multi-axis CNC turning and milling cells, robotic welding stations, and dedicated heat-treatment lines that were set up and refined in collaboration with Japanese and European engineering teams over the last twenty years. This cross-pollination of OEM best practices ensures that our part numbers 6397792, 2604584, 2011704, and 1453014 are produced to dimensional tolerances and material specifications that are absolutely repeatable, batch after batch.

Product Deep Dive: Engineering the Ultimate Drive Sprocket Wheel Assembly

For the Caterpillar 385-class excavator, the drive sprocket assembly must absorb brutal impact loads, resist abrasive slurry ingress, and maintain structural integrity through thousands of hours of slewing and counter-rotational stress. Our design and production protocol for these specific part numbers is uncompromising.

Raw Material & Forging: The sprocket wheel body is not cast; it is integrally forged from vacuum-degassed, high-tensile alloy round steel. This forging process aligns the grain flow to follow the tooth profile, dramatically increasing fatigue resistance compared to a cast or flame-cut blank. The side cover is manufactured using a spheroidal graphite (ductile) iron casting process, which provides the optimal combination of shock absorption and clamping rigidity. The shaft is precision-ground with a dual seal groove design, creating a labyrinth-like barrier that is the first line of defense against fine-particle contamination.

Sealing System & Lubrication: Even the most robust metal can fail if the internal lubricant is lost or contaminated. We equip every assembly with top-tier, heavy-duty floating seals manufactured from high-chromium cast alloy faces paired with resilient elastomer torics. The lubricant charge is a specially formulated anti-freeze extreme-pressure grease that maintains its channeling and film-strength properties in temperatures ranging from minus-40°C Arctic freezes to plus-50°C desert heat, ensuring the roller path and internal bushings are never starved for lubrication during cold startups or peak summer operations.

Heat Treatment Architecture: This is where CQCTRACK’s metallurgical dominance truly separates us from the market. The entire wheel body first undergoes a complete quench-and-temper (Q&T) treatment. This normalizes the core structure, achieving a uniformly tough, fine-grain martensitic matrix that can absorb impact without brittle fracture. After Q&T, the blank undergoes rough machining, allowing internal stresses to relax, and then precision finish machining to bring all mating diameters and bolt patterns into absolute concentricity. Only then do we apply medium-frequency induction hardening to the tooth flanks, root fillets, and the tread contact zone. The precisely controlled electromagnetic field rapidly heats the wear surfaces before a polymer-quench that delivers a surface hardness strictly within 55 to 62 HRC at a case depth of 4–8 mm, depending on the section. This results in a component with a ductile, crack-arresting core and a glass-hard, wear-proof exterior—an engineering combination that excels in harsh mine-site muck.

Twenty Years of Constant Refinement and Global Mine-Site Validation

The CAT385 drive sprocket you receive today is the culmination of a 20-year iterative manufacturing journey. We have continuously upgraded our induction hardening frequencies, our tempering curve algorithms, and even the root-radius finish honing based on feedback from field service teams. Our components have been repeatedly trialed and proven in some of the most punishing mining environments on the planet, where equipment availability is non-negotiable. From the copper pits of Peru and the gold mines of South Africa to the frozen coal fields of Russia and Kazakhstan, CQCTRACK sprocket assemblies have clocked millions of cumulative operational hours. This deep data lake of real-world performance allows us to guarantee a quality stability and reliability that generic replacement part vendors simply cannot replicate.

One-Stop, System-Thinking: Complete Matching Undercarriage Parts

A drive sprocket does not operate in isolation. Worn or mismatched track chains, rollers, and idlers will accelerate sprocket wear and vice versa. As a true heavy-duty excavator undercarriage components solution expert, CQCTRACK designs and manufactures the entire mating ecosystem: track rollers, top carrier rollers, front idlers, track chains, master links, and bolt-on sprocket rim segments. Every product is engineered as a coordinated system—our metallurgists ensure that the hardness gradient from the sprocket tooth to the track bushing is correctly stepped so that wear is distributed, predictable, and maximized for total life. We hold ample stock of these matching parts, allowing our customers to obtain a complete undercarriage rebuild kit from a single, quality-assured source, reducing supplier complexity and freight costs.

Global Distribution Footprint and High-End Market Penetration

CQCTRACK undercarriage components, including these premium CAT385/E385 drive sprocket assemblies, are exported across a mapped global network. We consistently serve distributors and end-users in South America (Ecuador, Peru), South Africa, Russia, South Korea, high-end aftermarket channels in India, the South Pacific island nations, Vietnam, Kazakhstan and the broader Central Asian republics, North America, Turkey, and beyond. Our ability to penetrate markets with stringent import quality inspections—such as North America and South Korea—is a testament to the engineering integrity of every part number we ship.

Meet Your Dedicated CQC International Team

Our global customers are supported by an agile, deeply knowledgeable international business team ready to assist with technical cross-referencing, logistics documentation, and tailored packaging for container or break-bulk shipment. Your direct points of contact are Philip, Jack, and Haily.
(Author’s note: This detailed product and capability overview has been personally researched and authored by Jack, a core member of the CQC international team, drawing on his hands-on engineering liaison experience and field support knowledge across multiple continents.)

When you specify CQCTRACK drive sprocket wheel assembly part numbers 6397792, 2604584, 2011704, or 1453014, you are not just buying a metal ring with teeth—you are installing two decades of OEM manufacturing heritage, world-class metallurgy, and mine-proven reliability into your Caterpillar CAT385/E385 excavator. Partner with the solution expert that global heavy equipment fleets trust.
