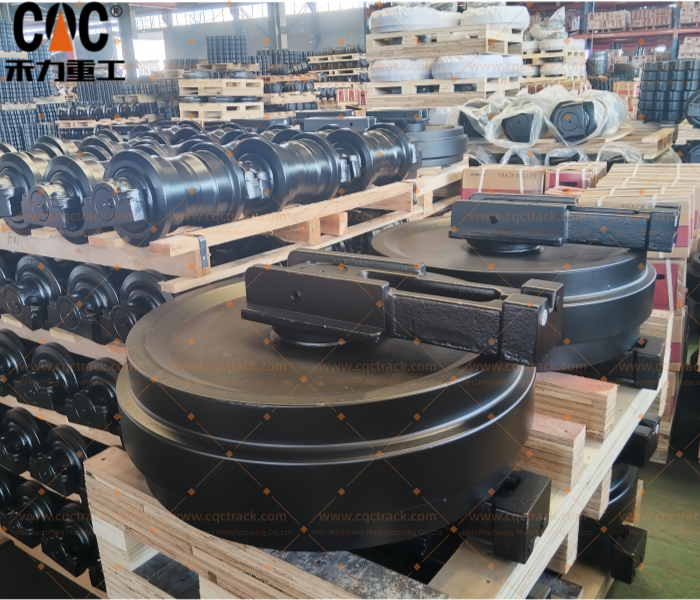

CATERPILLAR CAT336GC / CAT335 / CAT340 1362422 / 4492293 / 6258218 / 4651559 Front Idler Assembly / Track Guide Wheel Assy. cqctrack – Specialized manufacturer of heavy- duty crawler undercarriage parts

When a Caterpillar excavator is working a hard-rock bench or tearing through abrasive overburden, the front idler assembly absorbs every impact transmitted from the track chain. On a CAT336GC, CAT335 or CAT340, a fatigued or substandard idler does not just wear out—it accelerates link wear, destabilizes track tension and can trigger a cascading failure across the entire undercarriage. That is why cqctrack delivers idlers built from molten steel to finished component under a single quality roof, backed by two decades of OEM manufacturing discipline and global field validation. When you see the cqctrack name on a front idler assembly, you are buying the same engineering depth that powers the assembly lines of some of the most respected excavator brands in the world.

1. OEM-calibre manufacturing that defines component life
cqctrack is not a reseller. Our factory compound has earned its place as a long‑standing original equipment manufacturing partner for leading excavator producers. Day after day, production cells running under the same roof supply front idlers, track rollers and complete undercarriage sets for Hitachi, Kobelco, Liugong, XCMG, SDLG and other OEMs. This relationship imposes a level of discipline—dimensional tolerances measured in microns, full melt-to-assembly traceability, and metallurgical repeatability—that simply cannot be replicated by generalist workshops. Every CAT336GC/335/340 front idler assembly we ship inherits exactly that OEM-line DNA, from the very first pour of liquid steel to the final torque marking on the hub cap.

2. Total in‑house control: foundry, heat treatment and precision machining
The blank for your CAT336GC/335/340 front idler starts life in our own steel foundry, where alloy chemistries are tailored specifically for high‑impact, high‑abrasion duty. Because we own the foundry, we can hold non‑metallic inclusions and gas porosity to exceptionally low levels—defects that often seed premature cracking in outsourced castings. Immediately after shakeout, the rough castings move into our in‑house heat treatment plant for normalizing, quenching and tempering cycles that build deep core toughness and refine the grain structure to withstand relentless shock loads.

Only when the metallurgical lab certifies hardness and microstructure do the blanks progress to rough machining, where the bulk material is removed and critical reference surfaces are established. The tread and flange zones then undergo precise medium‑frequency induction hardening, with the penetration pattern engineered to achieve 52–60 HRC surface hardness while preserving a tough, ductile core. After induction hardening, finish machining and grinding bring every bore, shoulder, seal‑groove and bolt face to final OEM‑equivalent accuracy. Because every step—casting, heat treating, roughing, induction hardening and finishing—is completed within our own walls, there is no gap in accountability, no risk of outsourced deviation, and a quality record that stays consistent batch after batch.

The outcome is a front idler assembly that resists abrasive wear and impact spalling far longer than generic aftermarket alternatives, maintaining track tension integrity and protecting the entire link group even under extreme digging and tramming conditions.

3. Twenty years of evolution, proven on the world’s toughest mine sites
Over two decades, cqctrack has progressively refined idler geometry, alloy recipes and heat treatment curves using data that only sustained field exposure can generate. Our front idler assemblies for Caterpillar excavators have been pushed to failure—and beyond—in the iron ore pits of Western Australia, the volcanic highlands of Peru, the frozen goldfields of Russia’s Far East, the abrasive chromite benches of South Africa, and the humidity‑saturated jungles of Indonesia and the South Pacific. In every environment, we collected wear maps, fatigue data and operator feedback, feeding it back into production to strengthen radii, optimize induction coil profiles and refine core hardness gradients.

This accumulated field intelligence means that the CAT336GC/335/340 idler you receive today is not a one‑off prototype but the product of countless iterative improvements that translate directly into longer component life and lower hourly undercarriage cost.

4. Full undercarriage companion components from one source
An idler never operates in isolation. The track chain, track rollers, carrier rollers, sprocket segments and full final drive wheel group all wear interdependently. cqctrack therefore manufactures the complete undercarriage kit for the CAT336GC, CAT335 and CAT340 family: sealed‑and‑lubricated track chains with induction‑hardened bushings, heavy‑wall single‑flange and double‑flange track rollers, carrier rollers with long‑service greased bearings, drive sprockets with precisely machined tooth profiles, and all related recoil springs, tension cylinders and hardware. Sourcing every component from a single manufacturing stream eliminates the matching guesswork, reduces inventory complexity and ensures that every wear‑interface is engineered to work as a system.

5. Global supply footprint with direct factory support
cqctrack undercarriage products are currently exported and supported in South America (Ecuador, Peru and wider mining regions), South Africa and neighbouring territories, Russia and the CIS, South Korea, the demanding premium aftermarket segment in India, Vietnam, Kazakhstan and Central Asian markets, South Pacific nations, Turkey, and North America. In each country, the components are backed by technical documentation, dimension‑inspection certificates and rapid reorder capability from factory stock.

CQC International Business Team – engineered knowledge, direct access
Every technical statement, specification and field example in this product description has been personally compiled by Jack, a senior undercarriage specialist within the CQC international business unit. Alongside Philip and Haily, Jack forms the dedicated team that supports distributors and fleet owners with application engineering, cross‑reference verification, installation guidance and after‑sales service. When you contact cqctrack, you are dealing not with a generic call centre but with engineers who can discuss core hardness profiles, induction hardening penetration depth and the precise interchange between Caterpillar part numbers 1362422, 4492293, 6258218 and 4651559.

For inquiries, a quotation or technical support on the CAT336GC/CAT335/CAT340 front idler assembly and complete heavy‑duty crawler undercarriage components, reach out directly to Jack, Philip or Haily at CQC. Let two decades of in‑house manufacturing, OEM‑calibre quality and worldwide mine‑site validation underwrite the dependability of your fleet.
