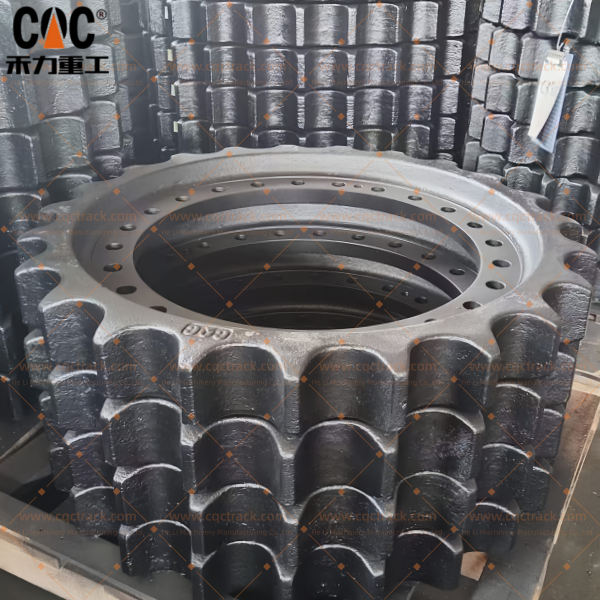

LGMG Mining Excavator ME105/ ME106 – 4110702586 Drive Sprocket Wheel Assembly: CQCTRACK – Original Manufacturer of Heavy- Duty Crawler Excavator Undercarriage Parts for Mining Applications

The drive sprocket is the heart of a crawler excavator’s propulsion system. It converts hydraulic torque into powerful tractive motion by engaging the track chain bushings, and on a 100-tonne mining excavator like the LGMG ME105 and ME106, it faces a punishing combination of sliding wear, rolling contact fatigue, and high-impact loading. The original part number 4110702586 drive sprocket wheel assembly must deliver not just longevity, but a precise, harmonious engagement with the track chain that protects both components from accelerated degradation. CQCTRACK, an entrenched OEM undercarriage manufacturer, produces this sprocket assembly to specifications that meet and often exceed original equipment expectations. With production lines actively serving Hitachi, Kobelco, LiuGong, XCMG, and SDLG undercarriage programs, our engineering culture is built into every casting, every heat treatment cycle, and every final dimensional check. We supply mining groups, heavy equipment distributors, and wholesale parts suppliers directly from our factory, offering an OEM-grade sprocket that keeps LGMG excavators tramming productively in the world’s most severe mines.

1. OEM Manufacturing Heritage and Core Competence
CQCTRACK’s position as an original manufacturing source for multiple global equipment leaders is the foundation of our technical authority. Our foundry, machine shops, and heat-treatment facilities concurrently produce undercarriage components for Hitachi, Kobelco, LiuGong, XCMG, and SDLG. This dual role as both a proprietary OEM producer and a direct wholesale supplier ensures that the LGMG 4110702586 sprocket assembly is born from a quality system that already satisfies Japanese and Chinese OEM inspection protocols. The same pattern-making expertise that creates near-net-shape sprocket castings for a Hitachi mining excavator program is directly applied to the LGMG ME105 sprocket. The same metallurgists who control the modification and heat treatment cycles for XCMG large-class crawler drive sprockets manage the exact hardening parameters for our 4110702586 assembly. This convergence of parallel OEM programs infuses our production with a depth of cross-brand knowledge that generic reverse-engineering shops cannot accumulate, guaranteeing that every sprocket shipped to an LGMG mine fleet will deliver precise pitch circle diameter, true tooth profile, and flawless bushing contact.

2. Product Engineering Details: The 4110702586 Sprocket Assembly Built for Mining
The CQCTRACK drive sprocket wheel assembly for the LGMG ME105/ME106 is not a welded fabrication or a soft iron substitute. It is a metallurgically engineered, induction-hardened casting produced through a strict multi-phase manufacturing sequence:

• Sprocket Body Material: The toothed sprocket rim and body are integrally cast from a specifically formulated alloy manganese steel. This material chemistry is selected to provide a refined as-cast grain structure with an optimal balance of hardenability, toughness, and resistance to sliding-wear fatigue. The manganese and complementary alloying elements ensure deep hardenability during the subsequent heat treatment, producing a wear-resistant case without a brittle transition zone that could spell catastrophic tooth fracture under shock loading.
• Integral Quenching & Tempering (Whole Ring Conditioning): Following casting, the entire sprocket ring undergoes a complete quench-and-temper cycle. This through-hardening preliminary heat treatment homogenizes the microstructure around the full circumference, removing casting stresses and creating a uniformly tough, fine-grained matrix from root to tip. This process is fundamental; a sprocket that is surface-hardened without prior tempering will suffer from a weak subsurface that spalls and deforms under the crushing roller path of a mining excavator.
• Precision Machining after Conditioning: The stabilized, tempered ring is then set up on heavy-duty CNC turning and hobbing or profile milling centers. The central mounting bore, bolt hole pattern, pilot diameter, and every sprocket tooth flank are machined to exact profile. By performing all precision material removal after the initial through-tempering, CQCTRACK eliminates the dimensional drift that would otherwise be locked in during final heat treatment. The result is a sprocket that mounts to the final drive hub with zero runout and engages the track chain bushings with full-face contact from the very first revolution.
• Final Overall Induction Hardening: The fully machined sprocket assembly then enters the medium-frequency induction hardening station. Here, the entire tooth profile—including the working flanks, root radii, and tip surfaces—is rapidly and uniformly austenitized and quenched in a controlled process. This produces a deep, continuous hardened case precisely where wear and contact stress occur, while the previously tempered core remains ductile and impact resistant. The surface hardness is stringently maintained within the range of 52 to 58 HRC. This hardness window is a deliberate engineering choice. It is high enough to dramatically resist the abrasive grooving caused by compacted mine fines and the rolling-contact fatigue that pits tooth flanks, yet it is correctly balanced to be marginally softer than the fully carburized track chain bushings. This critical hardness differential ensures that normal wear is sacrificially absorbed by the sprocket rather than the far more labor-intensive track chain, preserving bushing life and maintaining perfect chain pitch without inflicting premature damage to the track links.
• Perfect Chain Harmony: The combination of precise cast tooth geometry, full induction hardened profile, and optimal hardness matching means the CQCTRACK 4110702586 sprocket achieves a near-silent, low-friction mesh with the LGMG track chain. It will not climb, skip, or gouge the bushings, extending the service life of the complete undercarriage system.

3. Two Decades of Sprocket Process Refinement, Forged in Global Mine Sites
The CQCTRACK drive sprocket for the LGMG ME105/ME106 is the product of a 20-year-long engineering feedback loop. Our process technology has been continuously expanded and perfected through direct data harvesting from end-user sites. Subtle yet impactful enhancements—such as micro-alloying adjustments to the manganese steel melt, optimized pre-heat cycles before induction quenching to avoid thermal shock, and refined tooth root radii to reduce stress concentration—have been permanently embedded in our manufacturing protocols.
This sprocket’s performance stability has been mercilessly confirmed across a spectrum of the world’s most brutal mining conditions. CQCTRACK drive sprockets are currently rotating under constant load in the high-silica copper overburden of Ecuador and Peru, in the deep hard-rock benches of South African platinum and gold mines, in the ice-locked overburden of Russian and Kazakhstani open pits, and in the salt-crusted, high-humidity conditions of South Pacific island mining projects. In each of these environments, the CQCTRACK sprocket has delivered predictable tooth wear and structural integrity, allowing maintenance planners to schedule component swaps in concert with track chain replacement intervals rather than reacting to unexpected sprocket tooth breakage or rapid hook wear that destroys bushing life.

4. System-Matched Undercarriage Parts for Total Fleet Support
A drive sprocket does not operate in isolation, and CQCTRACK does not supply it as an isolated part. Our manufacturing lines operate as a fully integrated undercarriage system provider for the LGMG ME105/ME106 platform. In addition to the 4110702586 sprocket wheel assembly, we concurrently produce the direct mating components: the 4110702589 track lower roller assembly (featuring forged alloy shells and 55–62 HRC induction hardened treads), the top carrier roller groups(4110702590) with identical floating seal technology, the front idler assemblies(4110702587) with forged rims and heavy-section shafts, and the complete track chains assembled (4110702591)with heat-treated pins and carburized, induction-hardened bushings. By sourcing all rolling and drive wear components from one OEM-aligned manufacturer, fleet managers guarantee full metallurgical and dimensional compatibility, eliminating the premature failures caused by mixing parts from fractured supply chains.

5. Direct Global Factory Wholesale Distribution
CQCTRACK’s international export model brings the factory gate directly to wholesale buyers and mining operations across every major extractive continent. Our 4110702586 sprocket assemblies and associated undercarriage parts are routinely containerized and dispatched to:

• South America: Ecuador, Peru, and neighboring mining territories.
• Africa: South Africa’s rigorous deep-mining and open-cast sectors.
• Russia & Central Asia: Russia, Kazakhstan, and broader CIS mining operations.
• Premium Asia-Pacific Markets: High-tolerance product lines supplied to South Korea, the Indian premium mining segment, Vietnam, and the South Pacific island nations.
• North America & Beyond: Direct factory shipments to North American distributors and to quarry and mining contractors in Turkey.
  This global footprint is managed by an experienced international business team that understands urgent pit-stop logistics, correct part number cross-referencing, and the documentation requirements of cross-border trade.

CQC International Business Team: Philip | Jack | Haily
This product introduction has been personally authored and technically reviewed by Jack from the CQCTRACK Global Business Division, ensuring complete accuracy against our internal manufacturing specifications and field performance data for the LGMG ME105/ME106 drive sprocket wheel assembly.
