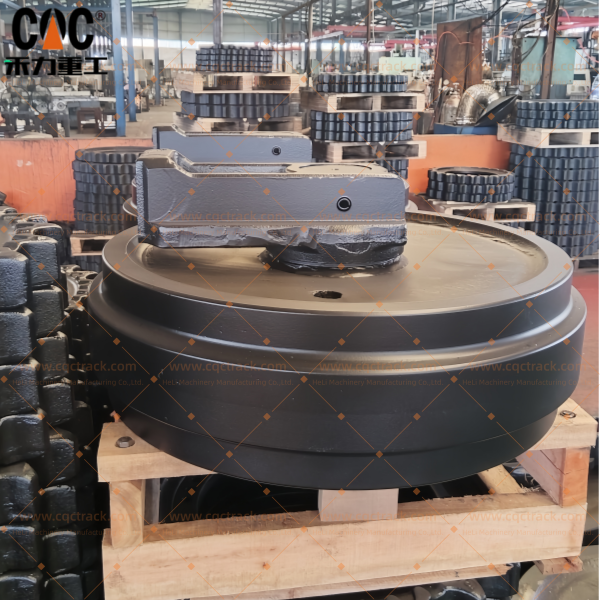

CQC Premium Track Front Idler Assembly for ZOOMLION ZE490EK-10 / ZE500-10 / ZE520-10 / ZE550EK-10 (P/N 1031400720) – Engineered by a Tier- 1 Undercarriage Parts Manufacturer

When you operate a ZOOMLION ZE490EK-10, ZE500-10, ZE520-10, or ZE550EK-10 crawler excavator in the world’s toughest mining and earthmoving environments, the front idler assembly is not just a wear component—it is the critical interface that governs track stability, tension control, and overall undercarriage longevity. At CQC, we design, manufacture, and globally distribute a full spectrum of undercarriage components for ZOOMLION crawler excavators from 6 tonnes to 200 tonnes, with this specific guide wheel assembly (P/N 1031400720) standing as a hallmark of our engineering competence.

1. Manufacturer Strength: OEM DNA and Cross-Brand Manufacturing Excellence
CQC is not a catalog reseller; we are a high-capacity manufacturing plant whose core business is OEM undercarriage production. Our factory is currently the trusted manufacturing partner for industry giants including Hitachi, Kobelco, LiuGong, XCMG, and SDLG. This OEM integration means our ZOOMLION replacement idler assemblies are produced on the very same manufacturing lines, governed by the same process controls, quality gates, and material specifications that serve new machine assembly lines. With two decades of dedicated undercarriage engineering behind us, we bring tier-1 metallurgical know-how, precision machining discipline, and integrated heat-treatment capabilities directly to the aftermarket.

2. Product Description: Engineered Component by Component
Every element of the ZE490EK-10/500/520/550EK-10 front idler assembly is purpose-built for extreme-cycle fatigue resistance and abrasive wear environments:

• Wheel Body (Idler Rim & Hub): Investment-grade alloy manganese steel casting, formulated to offer an optimal balance of impact toughness and work-hardening capacity. The entire wheel body undergoes a rigorous integral quenching and tempering cycle prior to any machining, establishing a refined, high-strength core structure. Only after this does the body move through rough machining and precision finish machining to guarantee dimensional accuracy and perfect concentricity.
• Bracket (Yoke): Precision-cast using high-strength nodular cast iron (spheroidal graphite iron) , engineered to absorb cyclic bending loads and severe shock without fracture. The casting design has been iteratively topology-optimized to eliminate stress risers common in heavy track deflection.
• Shaft: Crafted from dedicated shaft-grade alloy steel featuring a double seal groove profile. This dual-groove geometry creates a labyrinth-type barrier combined with a robust lip-contact zone, ensuring that even during high-pressure washdowns or submergence, contaminants are kept completely out of the lubrication cavity.
• Seal System: We utilize exclusively top-tier floating oil seals (often termed lifetime seals) sourced from globally recognized sealing technology leaders. These seals are assembled under clean-room protocols to eliminate any initial contamination.
• Lubricant Charge: The assembly is factory-filled with a high-performance synthetic anti-freeze extreme-pressure grease, specifically chosen to maintain channeling properties and pumpability from arctic conditions down to -40°C, up to desert ambient temperatures without separation or hardening.
• Crucial Final Heat Treatment: After final machining, the idler tread and flange surfaces receive a precision-controlled medium-frequency induction hardening process. This delivers a surface hardness of 55–62 HRC to a precisely engineered case depth, creating an extraordinarily wear-resistant skin while the toughened, tempered core absorbs high-stress contact fatigue. This combination dramatically strengthens wear life in aggressive quartzite, granite, and iron ore mining benches.

3. Twenty Years of Process Evolution, Validated on the World’s Toughest Mine Sites
Our manufacturing blueprint for this idler assembly is not static; it is the cumulative result of over 20 years of continuous improvement. Every process parameter—from pouring temperature and inoculation of the alloy manganese steel, to the ramp rates of our tempering furnaces and the frequency modulation of our induction hardening coils—has been progressively refined based on failure mode analysis and telemetry from the field. The current-generation idler has been repeatedly validated for structural stability and reliability in brutal environments: high-altitude copper mines in the Andes, permafrost gold fields in Siberia, abrasive coal overburden in Australia and South Africa, and high-humidity tropical logging operations across Southeast Asia. This is not laboratory reliability; it is decades-proven field reliability.

4. Complete Ecosystem of Compatible Undercarriage Parts
Understanding that a single component is only as effective as the link it joins, CQC provides a fully synchronized supply of associated undercarriage parts. Alongside this front idler assembly, we directly manufacture and stock its companion components, including track adjuster cylinder assemblies with matching hydraulic seals, bottom rollers, top carrier rollers, sprocket segments, full track link assemblies, and pin-and-bushing kits, all specific to this model series. This vertical integration ensures that hardness gradients, metallurgical compatibilities, and dimensional stack-ups are harmonized, preventing the accelerated wear that mismatched aftermarket parts can cause.

5. Global Footprint and Dedicated International Support
Our undercarriage solutions are exported and well-proven in markets demanding premium-quality components: across South America from high-Andes Ecuador to copper-rich Peru; through mining-centric nations in Southern Africa; across Eurasia from Russia and Kazakhstan to India’s discerning premium contractor segment; into South Korea’s competitive equipment market; across the South Pacific islands; throughout Southeast Asia including Vietnam; into North American heavy civil and forestry applications; and into Turkey’s busy construction and quarrying sector.

You are supported directly by the CQC International Business Team: Philip, Jack, and Haily. Every technical detail and application insight in this document has been authored and verified by Jack, who personally compiles our product engineering communication to ensure the equipment owner receives technically precise, unfiltered information.

For inquiries on the ZOOMLION ZE490EK-10/ZE500-10/ZE520-10/ZE550EK-10 Track Front Idler Assembly (Guide Wheel Assy, P/N 1031400720) or any undercarriage requirement from 6 to 200 tonnes, we welcome you to connect with our global team and experience OEM-grade endurance forged from 20 years of focused manufacturing evolution.

ZE500 Idler 20260706-1 (1)
