HYUNDAI R210-7 R225-7 81N613010 Track Idler Wheel Assembly / For easily worn parts of tracked chassis, stable product quality is particularly important, and CQC TRACK excels at solving such problems

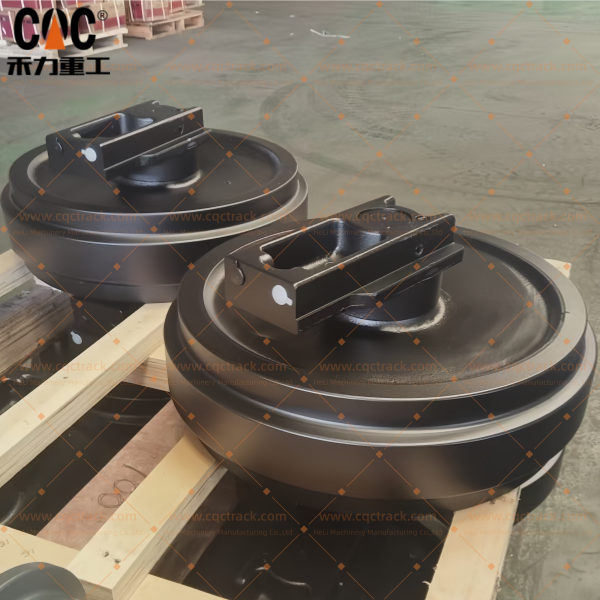

HYUNDAI R210-7 / R225-7 81N613010 Track Idler Wheel Assembly – Heavy Duty EXC Undercarriage Solution

Authored by Jack
CQC Technology & International Affairs Representative
Direct Factory Source – CQC TRACK, Quanzhou, China

1. Executive Summary: Addressing the Critical Challenge of Worn Tracked Chassis Components

The HYUNDAI R210‑7 and R225‑7 are 21–22 metric ton crawler excavators widely deployed in quarrying, infrastructure development, and heavy earthmoving operations globally. The R210‑7 features an operating weight of approximately 21,200 kg with a 104 kW engine, while the R225‑7 weighs approximately 22,500 kg and is powered by a Cummins B5.9‑C engine delivering 112 kW. Both platforms demand undercarriage components engineered to withstand continuous cyclic loading, abrasive debris, and impact stresses.

For tracked chassis systems, easily worn parts such as the front idler wheel assembly are subjected to the highest mechanical stress of any undercarriage component. Among the four critical wheels of the track system (idler, track roller, carrier roller, and drive sprocket), the idler is uniquely capable of moving back and forth along the track frame. As a result, wear of its moving components and central shaft can cause lateral oscillation, leading to track misalignment and subsequent derailment.

Product quality stability is therefore not a luxury—it is an operational imperative. Inconsistent idler quality translates directly into premature seal failure, uneven flange wear, bearing seizure, and catastrophic track detachment. This document presents the CQC TRACK Heavy Duty EXC Series 81N613010 Track Idler Wheel Assembly as a direct, precision‑engineered solution that addresses these failure modes through vertically integrated manufacturing, rigorous quality control, and genuine OEM‑grade engineering.

CQC TRACK excels at solving the problem of consistent, high‑quality production for easily worn tracked chassis components—delivering assemblies that maximize operational uptime while minimizing total lifecycle ownership cost.

About the Author: This technical specification has been prepared by Jack, representing CQC Technology in the capacity of International Affairs Representative. Jack coordinates all global procurement inquiries, technical engineering validation, and quality assurance documentation for CQC TRACK’s heavy‑duty EXC undercarriage product line. For direct factory quotations and engineering support, contact Jack through official CQC TRACK channels.

2. CQC TRACK Manufacturing Capabilities – OEM, ODM, Non‑Standard Customization & Quality Stability

2.1 Strategic Positioning as a Top‑Tier Quanzhou Manufacturer

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region, Fujian Province, China—a premier industrial cluster for heavy machinery manufacturing. With over two decades of specialized experience, state‑owned land and factory facilities, and fully integrated production lines spanning forging, casting, precision machining, heat treatment, and final assembly, CQC TRACK represents a vertically integrated source factory and manufacturer of heavy‑duty crawler excavator undercarriage parts.

2.2 Three Integrated Supply Models

• OEM Manufacturers – Partnered ISO 9001:2015 and IATF 16949 certified forging facilities produce idler assemblies that match HYUNDAI’s original blueprint specifications. Each 81N613010 assembly is engineered for 100% bolt‑on interchangeability—no shimming, no welding, no frame modification required.
• ODM Suppliers – Engineering team capable of reverse‑engineering and upgrading standard designs for specialized mining or forestry applications. ODM enhancements include reinforced flange geometry, advanced seal configurations, and tailored surface hardness profiles optimized for specific abrasive environments.
• Non‑Standard Customization – For R210‑7 and R225‑7 units operating on modified track frames or in bespoke configurations, CQC TRACK supplies custom idler assemblies with altered shaft lengths (±1.5 mm tolerance), non‑standard mounting bracket hole patterns (metric or imperial thread conversion), specialized surface coatings (zinc‑nickel plating for coastal salt corrosion, epoxy coating for chemical resistance), and modified hardness profiles (up to 58 HRC for extreme abrasion).

2.3 Rigorous Quality Control System – The Foundation of Product Stability

CQC TRACK operates under an ISO 9001:2015 certified quality management system. Every 81N613010 idler assembly undergoes:

Product stability is further validated through accelerated wear testing under abrasive slurry conditions, extreme temperature soak testing at −40°C and +55°C, and salt spray corrosion resistance (ASTM B117, 500+ hours). Field data collected from mining operations across Australia, Brazil, Russia, and South Africa demonstrates a mean time between failures (MTBF) exceeding 4,000 operating hours for CQC TRACK EXC series idlers—approximately 30% longer service life compared to standard aftermarket alternatives.

3. Detailed Product Description: 81N613010 Track Idler Wheel Assembly

3.1 Primary Identification

3.2 Functional Role in the Tracked Chassis

The front idler wheel assembly performs four critical functions within the track closed‑loop architecture:

1. Track Tension Regulation – Works in conjunction with the track adjuster (grease or hydraulic) to maintain proper track tension. The idler moves forward/backward along the track frame to accommodate track elongation and external load variations. Loose tracks lead to detracking, while over‑tight tracks cause accelerated wear on bushings, rollers, and idlers, potentially leading to power loss and torn tracks.
2. Track Chain Guidance – The integrally forged single flange interfaces precisely with the inner surfaces of the track links, providing positive lateral control. This function is essential for preventing lateral oscillation during counter‑rotation turns and sloped terrain operations—a failure mode that typically originates from worn idler moving parts.
3. Front Load Absorption – Supports the front section of the machine weight while absorbing impact loads from obstacles and uneven terrain. The forged alloy steel body and induction‑hardened tread distribute these stresses uniformly to prevent catastrophic failure.
4. Track System Synchronization – Works in harmony with the drive sprocket, track rollers, and carrier rollers to maintain track chain alignment and optimize overall undercarriage wear distribution.

3.3 Technical Specifications

3.4 Engineering Analysis of Common Idler Failure Modes – Why CQC TRACK Excels

The 81N613010 idler is exposed to three primary wear mechanisms that rapidly compromise inferior quality parts:

CQC TRACK excels at solving these failure modes through vertically integrated production, where material selection, forging, machining, heat treatment, and final inspection are controlled under a single roof—eliminating the quality variability that plagues fragmented supply chains.

3.5 Associated EXC Series Undercarriage Products for HYUNDAI R210‑7 / R225‑7

CQC TRACK supplies a complete heavy‑duty EXC undercarriage solution for HYUNDAI mid‑size excavator platforms, enabling one‑stop sourcing:

All components are 100% traceable to production batch and quality inspection records, with a CQC Technology Certificate of Conformance (CoC) provided for every shipment.

4. Global Export Footprint & Transaction Framework

4.1 Proven Export Destinations

Through Jack (CQC Technology & International Affairs Representative) , CQC TRACK has supplied HYUNDAI R210‑7/R225‑7 undercarriage components to construction and mining operations across five continents. The 81N613010 idler assembly is field‑validated for harsh environments in:

• Australia – Mine site operations (high silica abrasion, extreme temperature variability)
• South America – Brazil (iron ore mines, heavy impact loads); Chile (copper mines, fine dust); Peru (high‑altitude mining, freeze‑thaw cycles)
• Russia & Central Asia – Siberia (permafrost, low‑temperature resilience); Kazakhstan (copper mines, dry abrasive conditions)
• Western Asia – Saudi Arabia (desert sand dunes, fine quartz infiltration); UAE (coastal salt corrosion)
• Africa – South Africa (platinum mines, underground damp conditions); Egypt (limestone quarries)
• Asia – Korea (quarries); India (granite quarries, high cyclic loading)
• North America – Canada (forestry and mining terrain); USA (varied construction applications)

4.2 Standard Transaction Terms

For non‑standard bespoke orders, Jack coordinates a 48‑hour technical drawing approval service, ensuring rapid turnaround for custom engineering requirements followed by a dedicated project manager for quality assurance.

5. Conclusion – The CQC TRACK Strategic Value Proposition

The HYUNDAI R210‑7 / R225‑7 81N613010 Track Idler Wheel Assembly manufactured by CQC TRACK delivers:

• Genuine OEM interchangeability with direct bolt‑on replacement—no modifications required
• OEM‑grade engineering with forged 40Mn2 alloy steel, precision induction hardening (HRC 52–58, case depth 8–12 mm)
• Heavy duty EXC series ruggedness validated for mining, quarrying, and extreme earthmoving environments
• Vertically integrated manufacturing from a top three Quanzhou source factory—complete quality control from forging to final assembly
• 30% longer service life compared to standard aftermarket alternatives, with a field‑validated MTBF exceeding 4,000 operating hours

CQC TRACK excels at solving the challenge of consistent product quality for easily worn tracked chassis parts. For pricing, sample orders, engineering drawing approvals, or technical validation, contact Jack, CQC Technology & International Affairs Representative, directly—all inquiries receive a formal commercial offer and technical datasheet within 8 business hours.

CQC TRACK – Your direct global source for HYUNDAI heavy‑duty EXC undercarriage components, where stable quality meets factory direct pricing and worldwide field reliability. Quality changes the world.

Quanzhou, China – Global Crawler Excavator Undercarriage Solutions.
