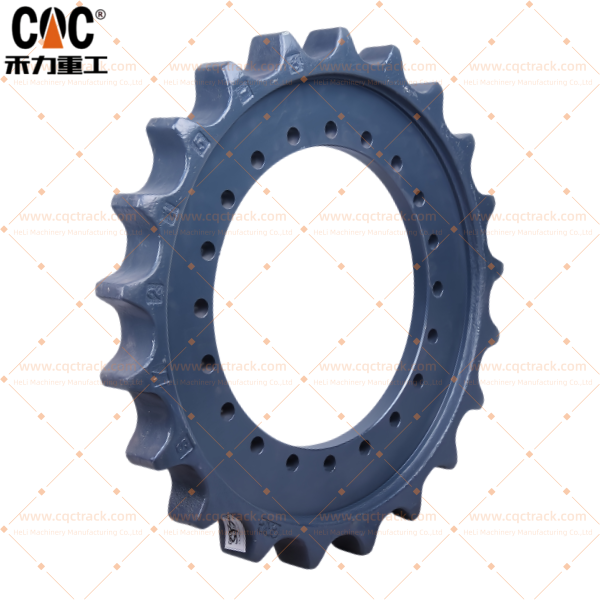

SANY 11221884 SY215-9 Track Excavator Sprocket Wheel Assembly – China EXC Undercarriage Parts Source Manufacturer and Factory

Manufactured by CQC TRACK – OEM-Quality Undercarriage Component Manufacturer Based in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for the SANY front drive sprocket assembly—OEM part number 11221884—engineered specifically for the SANY SY215-9 series hydraulic crawler excavator. This sprocket wheel assembly, alternatively designated as a final drive sprocket rim, drive sprocket, or track drive wheel assembly, represents the primary power transmission component within the undercarriage track system of the 21-ton medium excavator class.

Within the undercarriage architecture of the SY215-9, the drive sprocket serves as the active propulsion component, converting hydraulic motor torque into linear pulling force that moves the track chain and propels the entire machine. For SANY SY215-9 excavators—machines widely deployed in construction sites, mining operations, road infrastructure projects, and large-scale land development across South America, Australia, Europe, Russia, and Central Asia—the engineering integrity of the sprocket assembly is fundamental to machine mobility, operational productivity, and total cost of ownership.

This analysis examines the 11221884 sprocket assembly through multiple technical lenses: functional engineering principles of torque transmission and track engagement, metallurgical composition with detailed material grade specifications including 50Mn and 42CrMo alloy steels, advanced manufacturing process engineering featuring closed-die hot forging and precision CNC machining, comprehensive heat treatment protocols including induction hardening achieving HRC 52–58 surface hardness, rigorous quality assurance protocols including ISO 9001:2015 certification, dimensional specifications and installation parameters for SY215-9 undercarriage fitment, comprehensive installation and track tensioning procedures, wear diagnosis and replacement criteria for mining and heavy construction operations, regional market analysis for key global markets, and strategic sourcing considerations for procurement professionals managing SANY excavator fleets worldwide.

The SANY SY215-9 is a state-of-the-art hydraulic excavator engineered for high efficiency, durability, and performance across demanding environments. Designed with an optimized hydraulic system and intelligent control technology, this 21-ton class machine delivers exceptional fuel economy without compromising on power, making it ideal for heavy-duty excavation, lifting, and earthmoving tasks. The SY215-9 is widely recognized as the classic traditional model in the SY215 series, specifically designed as a low-fuel-consumption, high-cost-performance, high-stability excavator for rental and contractor customers, representing the most affordable option in the four-model SY215 lineup.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components. The company has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region, a premier industrial cluster for global earthmoving equipment manufacturing located in Fujian Province, China. With state-owned land and factory facilities, and fully integrated production lines encompassing forging, casting, and complete undercarriage component production, CQC TRACK represents a vertically integrated source factory and manufacturer of OEM-quality heavy-duty crawler excavator undercarriage parts. The company’s strategic position in Quanzhou provides exceptional access to major international ports including Xiamen and Fuzhou, enabling efficient export logistics to global construction equipment markets.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. The company manufactures a full range of SANY-compatible undercarriage parts spanning the entire spectrum from 5-ton mini excavators to 300-ton ultra-class machines, including track sprockets, idlers, track rollers, carrier rollers, track chains, and track shoes—all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A drive sprocket assembly—technically designated as a final drive sprocket rim, track drive wheel, or sprocket wheel assembly—is the primary active propulsion component of the excavator‘s undercarriage system, mounted at the rear of the track frame and connected directly to the output shaft of the final drive travel gearbox. Unlike passive components such as idlers or rollers, which rotate freely, the drive sprocket is an active, driven component that engages directly with the track chain’s bushings to propel the machine. The gearbox works by transferring power from the hydraulic motor to the track drive sprocket, which propels the excavator forward or backward.

The Sprocket (Part #11221884) is a high-strength, durable drive component designed for the SY215C excavator. It ensures smooth operation, excellent wear resistance, and seamless compatibility for reliable performance in demanding conditions.

The primary functional responsibilities of the drive sprocket include:

• Torque-to-Traction Conversion: Converting the rotational torque generated by the hydraulic travel motor via the final drive gearbox into linear pulling force that moves the track chain and, consequently, the entire 21-ton machine. The travel gearbox receives torque from the hydraulic motor and transmits it to the excavator‘s tracks through the sprocket and chain assembly.
• Precision Chain Engagement: Engaging with the track chain bushings with exact tooth geometry to ensure smooth, consistent power transmission without skipping, binding, or excessive friction. Sprocket & Track Roller assemblies drive and support the undercarriage system, ensuring smooth movement and load distribution across uneven terrains.
• Load Distribution: Distributing the driving load evenly across multiple teeth and bushings to prevent concentrated stress points that would cause premature wear or failure.
• Directional Control: Working in concert with the front idler and track rollers to maintain proper track chain alignment during forward travel, reverse travel, and turning operations.

The travel gearbox is located within the undercarriage of the excavator and is responsible for the machine’s movement. When the hydraulic motor rotates, it transfers power to the gearbox, which then converts the power into torque and drives the track drive sprockets, which in turn move the tracks and propel the excavator forward or backward.

1.2 OEM Part Number and Compatible Excavator Models

The 11221884 drive sprocket assembly documented in this analysis corresponds to precise SANY OEM engineering specifications, offering direct interchangeability without requiring modifications to the final drive hub, travel gearbox, or track chain components.

The Sprocket (Part #11221884) is a high-strength, durable drive component designed for the SY215C excavator, ensuring smooth operation, excellent wear resistance, and seamless compatibility for reliable performance in demanding conditions. Industry sources list the 11221884 sprocket as applicable to SANY excavator models including the SY205C-9, SY210C6M, and SY215C-8, with primary compatibility focused on the SY215C series.

1.3 SANY SY215-9 Excavator Specifications and Undercarriage Parameters

The SANY SY215-9 represents the 21-ton class in the SANY product line, offering a powerful combination of efficiency, durability, and performance for heavy-duty construction and mining applications. The SY215C-9 is a medium-sized hydraulic excavator produced by SANY Heavy Industry, with an operating weight of 20,900 kg, positioned as a high-efficiency and energy-saving engineering machine.

The table below provides comprehensive technical specifications for the SY215-9 series based on multiple authoritative sources:

Data sources:

The SY215C-9 is equipped with a 114 kW (153 HP) engine at 2,050 rpm, with a main pump maximum flow of 2 × 210 L/min and a main relief pressure setting of 34.3 MPa. The machine features a 600 mm track shoe width and a ground contact pressure of 45 kPa, with a climbing capability of 70%. The transport dimensions are 9,397 mm in length, 2,980 mm in width, and 2,956 mm in height. The structure design optimizes maintenance convenience and is suitable for earth and stone excavation, mining operations, and construction applications.

The SY215C-9LC/S is a medium-sized excavator designed for heavy-duty construction tasks. Powered by a SANY Mitsubishi D08SZ 6-cylinder engine with 156 HP, it provides excellent performance and durability. With advanced hydraulic systems and a user-friendly control system, the SY215C-9LCS is engineered to deliver high productivity while maintaining fuel efficiency. Its versatile design and strong lifting and digging capabilities make it ideal for construction, roadwork, and mining applications. The reinforced undercarriage includes options for HD tracks.

The SY215C-9LC SPARC is a 21-ton hydraulic excavator built for road construction, canal work, and heavy earthmoving projects, equipped with a Cummins 6BT5.9-C140 engine delivering 140 HP.

1.4 Component Architecture and Assembly Composition

A complete SANY 11221884 drive sprocket assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the 21-ton excavator undercarriage format:

• Sprocket Rim (Tooth Ring): The toothed outer component that directly engages with the track chain bushings. The teeth feature precise involute geometry designed to mesh with the chain‘s cylindrical bushings without causing excessive friction or wear. Precision-machined sprocket teeth ensure smooth track engagement and minimal wear during continuous use.
• Hub (Mounting Interface): The central portion of the sprocket that bolts directly to the final drive motor‘s output hub flange or mounts via splined connection to the output planetary carrier. The hub incorporates precisely drilled bolt holes with hardened seating surfaces. Splined or bolted mounting to the output planetary carrier provides solid, non-slip torque transmission.
• Mounting Hardware: High-strength bolts, hardened washers, and lock nuts (typically grade 10.9 or higher) that secure the sprocket rim to the final drive hub. For the 21-ton class, bolt torque specifications typically range from 500–700 Nm depending on the specific fastener size.
• Final Drive Interface: The sprocket interfaces with the multi-stage planetary gear reduction final drive, which houses 2 or 3 stages of planetary gear reduction that dramatically increase output torque for propulsion. The coaxial planetary design achieves high reduction ratios while distributing loads evenly across multiple planet gears.

The gearbox works by transferring power from the hydraulic motor to the track drive sprocket, which propels the excavator forward or backward. The gearbox then converts the power into torque and drives the track drive sprockets, which in turn move the tracks and propel the excavator.

2. Metallurgical Composition and Forging Engineering

2.1 Material Grade Specifications

CQC TRACK manufactures SANY cross-reference drive sprockets using premium alloy steel grades selected for their specific mechanical properties in 21-ton medium excavator undercarriage applications. The primary material grades employed include:

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. 50Mn steel is widely used in manufacturing crawler machine parts that work under heavy loads, providing excellent wear resistance and impact toughness. After undergoing heat treatment, 50Mn achieves a surface hardness of HRC 48–58 with a hardened depth of 4–6 mm (reaching HRC 45 at this depth), enabling it to deliver exceptional impact resistance and wear resistance even under harsh working conditions.

42CrMo Alloy Steel (Premium Grade): A chromium-molybdenum forged alloy steel offering exceptional strength, deep hardenability, and superior impact resistance. 42CrMo is a medium carbon alloy structural steel with high strength, high toughness, good hardenability, and excellent fatigue resistance. For demanding mining applications where extended service life is critical, forged 42CrMo provides the highest level of performance. After quenching and tempering, 42CrMo achieves hardness of HRC 48–52, and with induction quenching and tempering, hardness reaches HRC 54–60.

40Mn2 Alloy Steel: A chromium-manganese alloy offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for 21-ton class excavator applications. This material responds well to induction heat treatment, achieving uniform case hardness profiles with minimal distortion.

High-Strength Alloy Steel: Sprockets are manufactured using high-strength alloy steel construction, with corrosion-resistant steel alloy construction enabling components to withstand extreme stress and harsh environmental conditions common in heavy machinery operations. With corrosion-resistant steel alloy construction, these components withstand extreme stress and harsh environmental conditions common in heavy machinery operations.

The material grade selection directly determines the sprocket‘s service life in high-abrasion environments. For steel parts like sprockets, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis. SANY undercarriage parts are engineered for heavy-duty performance in construction machinery, designed to enhance durability and operational efficiency.

2.2 Forging Technology: The Manufacturing Foundation

The 11221884 drive sprocket assembly is manufactured using advanced closed-die hot forging techniques. Forging is a manufacturing process that shapes metal using localized compressive forces, typically delivered by a hammer or press. The forging process provides several critical advantages over cast alternatives:

Grain Flow Alignment: The forging process aligns the material grain structure with the sprocket geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation. This grain flow orientation is particularly important at the tooth root radii where stress concentrations are highest. The forging process creates superior grain structure essential for handling shock loads.

Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading. Cast components may contain internal porosity or inclusions that can serve as crack initiation sites under repeated loading cycles.

Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition. The dense, uniform microstructure of forged steel provides consistent performance across the entire component cross-section.

Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

Closed-Die Hot Forging Process: The sprocket undergoes a multi-stage hot forging process that includes primary hot forging for initial volume distribution, secondary hot forging for establishing core structural geometry, tertiary hot forging for achieving final dimensional accuracy, and trimming-piercing for eliminating flash and forming any necessary through-holes. Forged high-carbon, high-manganese alloy steel (50Mn or 42CrMo) is the standard material specification for premium sprocket components.

2.3 Precision CNC Machining

All critical surfaces of SANY cross-reference drive sprockets are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. Precision-machined sprocket teeth and load-distribution components ensure smooth track engagement and minimal wear during continuous use. Precision machining of tooth profiles and mounting surfaces ensures exact fitment and optimal performance.

Key machining operations include:

• Tooth Profile Machining: Precision machining of the sprocket tooth profile to ensure exact pressure angle and pitch for non-slip engagement with track bushings
• Bore Machining: Precision boring of the central mounting bore to achieve exact hub interface specifications
• Bolt Hole Drilling: Precision drilling and tapping of mounting bolt holes with exact positional tolerances
• Mounting Surface Machining: Precision surfacing of the hub mounting interface for optimal load transfer
• Balancing: Dynamic balancing of the sprocket assembly to prevent vibration at operational speeds

Utilizing specialized hardening and tempering techniques ensures products possess outstanding mechanical characteristics, exceptional durability, and enhanced resistance to deformation and fracture.

2.4 Integrated Production Workflow

CQC TRACK‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 42CrMo, and 40Mn2 alloy steels through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density, with forging process creating superior grain structure essential for handling shock loads
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined tooth profiles and mounting surfaces
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles
• Assembly and Testing: Dust-free assembly environments with dynamic testing on every finished sprocket
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Sprocket Applications

Heat treatment is the single most critical manufacturing operation determining drive sprocket service life in heavy construction and mining applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for sprocket teeth.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for sprockets that must withstand dynamic loads and shocks.

3.2 Induction Hardening Specifications

The 11221884 drive sprocket employs induction hardening heat treatment to achieve the required hardness profile on the tooth surfaces. The sprocket teeth are induction hardened to create a wear-resistant surface while maintaining a tough, ductile core.

The specific heat treatment parameters for SANY 11221884 drive sprockets are as follows:

Premium sprockets achieve induction hardened tooth profiles with 58–63 HRC surface hardness and 7–10 mm case depth. The heavy profiles of sprocket rims are carefully heat-treated in depth for extra service life, ensuring that the hardened surface layer remains intact even after significant wear has occurred.

3.3 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Dimensional Specifications and Installation Parameters

4.1 Undercarriage Fitment Dimensions

The 11221884 drive sprocket assembly is engineered to precise dimensional specifications for direct fitment to the SANY SY215-9 track frame and final drive system. While exact dimensional specifications should be verified against SANY OEM documentation, industry sources confirm the following undercarriage parameters for the SY215-9:

• Track Chain Pitch: Industry standard pitch sizes for 21-ton class excavators typically range from 171 mm to 203 mm depending on configuration
• Track Shoe Width: 470–600 mm (standard 600 mm, HD options available)
• Track Gauge: 2,380 mm
• Number of Track Rollers per Side: Typically 8 per side
• Sprocket Mounting: Bolted or splined connection to final drive output planetary carrier
• Final Drive Type: Multi-stage planetary gear reduction (2 or 3 stages)

4.2 Sprocket Mounting Configuration

The SANY SY215-9 undercarriage features a robust final drive system that incorporates:

• Final Drive Travel Gearbox: Located within the undercarriage of the excavator, connected to the hydraulic motor and the track drive sprockets. The gearbox then converts the power into torque and drives the track drive sprockets, which in turn move the tracks and propel the excavator.
• Sprocket Mounting Interface: The sprocket mounts to the output planetary carrier via splined or bolted connection, providing solid, non-slip torque transmission. Splined or bolted mounting to the output planetary carrier provides solid, non-slip torque transmission.
• Bearing System: Large-diameter tapered roller bearings and cylindrical roller bearings support the final drive output shaft.
• Sealing System: Floating face seal (Duo-Cone type) with labyrinth pre-seals and dust scrapers prevents contamination ingress and lubricant leakage.

4.3 Installation Torque Considerations

Proper installation of a drive sprocket assembly on a SANY SY215-9 excavator requires adherence to manufacturer torque specifications. The following general guidelines apply:

• Mounting Hardware Grade: Class 10.9 or higher for heavy-duty applications
• Bolt Torque Range: 500–700 Nm depending on bolt size and configuration (consult SANY service manual for model-specific specifications)
• Torque Pattern: Staggered (criss-cross) pattern applied in three progressive stages
• Anti-Seize Compound: Apply high-quality anti-seize compound to bolt threads before installation to prevent galling and ensure accurate torque readings
• Re-Torque Requirement: After 2–4 hours of operation, re-torque the sprocket mounting bolts to the specified value to account for initial seating and thermal expansion

The travel gearbox is designed for easy installation, with accessible oil fill and drain plugs and easy-to-replace components. It is recommended to seek the assistance of a qualified technician for installation.

4.4 Pre-Installation Preparation

Proper installation of a drive sprocket assembly on a SANY SY215-9 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement.
2. Component Inspection: Before installation, inspect the final drive output hub for spline wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Sprocket Assembly Inspection: Inspect the new sprocket assembly for any shipping damage. Verify that the mounting holes are clean and free of debris.
4. Hardware Inspection: Inspect all mounting bolts for thread damage or stretching. For heavy-duty applications, use new bolts and washers of grade 10.9 or higher specification.
5. Final Drive Interface: Ensure that the sprocket mounting interface is properly aligned with the final drive output planetary carrier. Install the sprocket mounting hardware to specified torque values using a calibrated torque wrench.
6. Track Chain Engagement: After sprocket installation, ensure proper track chain engagement with the sprocket teeth before operating the machine.

5. Track Tensioning and Undercarriage Maintenance

5.1 Track Tension Adjustment Procedure

After sprocket installation or as part of regular undercarriage maintenance, proper track tension must be established according to SANY SY215-9 specifications. The general procedure for 21-ton excavators is as follows:

Step 1: Preparation – Perform check and adjustment on level and firm ground. Run the engine at low idle, then move the machine forward for a distance equal to the track length on ground, and slowly stop the machine.

Step 2: Measurement – Measure the track sag as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first track roller.

Step 3: Standard Range Verification – For 21-ton class excavators, the proper track sag is typically 20–40 mm. If the deflection is out of the standard range, adjust it accordingly.

Step 4: Adjusting Track Tension – To increase track tension, pump grease through the track adjuster grease fitting using a manual grease pump. Grease can be pumped in until the idler support contacts the track frame.

Step 5: Verification – After adjustment, run the engine at low idle, move the machine slowly forward by an amount equal to the length of track on ground, then check the track tension again. If the tension is not correct, adjust it again.

5.2 Critical Tensioning Considerations

The following operational considerations are essential for maximizing undercarriage component life:

• Underfoot Conditions: Adjust track tension based on the underfoot conditions in which the machine is working. Added track tension increases both the load and the wear on all mating components of the undercarriage.
• Wear Consequences: Improperly adjusted track can result in problems and wear on other components. Tight track increases loads, which advances wear on rollers, idlers, sprockets, and chain bushings.
• Regular Monitoring: The wear of pins and bushings of the undercarriage depends on the working condition and soil condition. Check the track tension occasionally and keep it in the standard range.
• Post-Installation Verification: After 2–4 hours of operation, re-check track tension and re-torque any mounting hardware as specified in the SANY service manual to account for initial seating and thermal expansion.

5.3 Regular Undercarriage Inspections

Industry best practices recommend regular undercarriage inspections to identify wear before it leads to component failure:

• Track Wear and Tension: Uneven wear or loose tracks can cause problems; inspect tracks frequently
• Sprocket Inspection: Check for tooth wear, “hooking” of the driving face, and root cracks
• Roller and Idler Inspection: Check for seal leakage, flange wear, and smooth rotation
• Track Chain Inspection: Measure pitch elongation and bushing wear
• Lubrication: Lubricate all moving parts as recommended by the manufacturer

6. Quality Assurance and Testing Protocols

6.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 50Mn, 42CrMo, and 40Mn2 steels
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment, including CMM (Coordinate Measuring Machine) and precision gauging
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation (where applicable) and lubricant charge
• Final Testing: Dynamic testing and quality verification

6.2 SANY Undercarriage Parts Quality Standards

SANY excavator undercarriage parts are engineered for heavy-duty performance in construction machinery. Designed to enhance durability and operational efficiency, these components comply with European environmental regulations and are tailored for SANY excavator models. Key quality features include:

• High-Strength Material Technology: Components utilize high-strength alloy steel construction
• Precision-Engineered Design: Precision-machined sprocket teeth ensure smooth track engagement
• Heavy-Duty Performance: Robust load-bearing capacity handles up to 20+ tons of continuous operation in rugged terrains
• EPR Compliance & Sustainability: Certified with EPR France and Germany packing standards, meeting stringent environmental regulations for waste management and recycling
• Shelf Life: 1 year (storage) maintains structural integrity during storage

6.3 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket drive sprockets typically ranges from 12 to 24 months depending on the manufacturer and application. For SANY 11221884 sprockets manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Expected service life for SY215-9 sprockets in heavy construction applications typically ranges from 4,000 to 8,000 operating hours depending on ground conditions, operator practices, and maintenance schedules.

6.4 Anti-Corrosion Protection and Packaging

The sprocket surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the sprocket from rust and harsh environmental exposure during storage and field operations. Finished sprockets are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports (Xiamen, Fuzhou) to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations. Fast delivery is available within 7–30 days depending on order volume and destination.

7. Wear Diagnosis and Replacement Criteria

7.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing SANY SY215-9 excavators, early identification of drive sprocket wear is essential to prevent secondary damage to track chains, rollers, and final drive systems. The following wear indicators should be monitored:

Tooth Thickness Reduction: Teeth worn to less than 70% of original thickness indicates immediate replacement is required. Measurable using calibrated calipers or dedicated tooth wear gauges.

Hook Formation: When the driving face of the sprocket tooth develops a characteristic “hook” or undercut shape, this indicates significant wear has progressed beyond acceptable limits. Hook formation reduces driving efficiency and accelerates chain bushing wear.

Cracked Root Areas: Visual inspection of the tooth root radii should be performed regularly. Cracks in the root area indicate stress fatigue and can lead to catastrophic tooth failure if not addressed promptly.

Bolt Hole Elongation: Elongation or deformation of the mounting bolt holes indicates that the sprocket has been operating with loose bolts or that excessive torque has been applied. This condition compromises the sprocket’s secure mounting to the final drive hub.

Uneven Tooth Wear Pattern: If some teeth show significantly more wear than others, this may indicate misalignment between the sprocket and the track chain or issues with the final drive output shaft concentricity.

Signs That Your Travel Gearbox Needs Replacement: Unusual noises coming from the gearbox, reduced speed or power of the excavator, leaking oil from the gearbox, the excavator tracks are not moving evenly, or the gearbox is damaged or worn beyond repair.

7.2 Replacement Interval Planning

A well-maintained sprocket directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the sprockets for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn sprocket will accelerate wear on the new chain’s bushings, significantly reducing overall system life. Conversely, installing a new sprocket on a worn chain will cause accelerated tooth wear and premature sprocket failure.

For fleet operators, the recommended replacement strategy is to replace the sprocket and track chain as a matched set whenever either component reaches the end of its service life. Industry best practices recommend replacing wear parts in sets to ensure even wear and prevent premature failure.

7.3 Travel Gearbox Maintenance

To extend the lifespan of the travel gearbox (final drive), industry best practices recommend:

• Regular Lubrication and Oil Changes: Proper lubrication is essential for gearbox function
• Avoid Overloading: Do not overload the excavator or expose it to extreme temperatures beyond design limits
• Regular Inspections and Maintenance: Conduct periodic inspections to identify issues early
• Replace Damaged Components Promptly: Address worn or damaged components immediately
• Use High-Quality Lubricants and Replacement Parts: Use API GL-5 Extreme Pressure (EP) hypoid gear oil

8. Regional Market Applications: Mining and Construction Focused

8.1 South America: Brazilian Infrastructure, Chilean Mining, and Peruvian Development

The South American construction and mining market presents significant demand for 21-ton class excavator components, with operations concentrated in Brazilian infrastructure projects (São Paulo, Rio de Janeiro, Belo Horizonte), Chilean copper mining operations (Codelco‘s Chuquicamata and El Teniente mines, BHP’s Escondida mine), Peruvian polymetallic operations (Antamina, Cerro Verde, Las Bambas), and Argentinean infrastructure development (Buenos Aires, Córdoba). The region‘s heavy machinery market is characterized by high demand for 21-ton excavators for utility work, residential construction, mining support, and site preparation. SANY SY215-9 excavators are extensively deployed across these operations.

The SANY SY215C-9 excavator excels in diverse applications including construction sites, mining operations, road infrastructure projects, and large-scale land development. For South American customers, CQC TRACK’s SANY cross-reference drive sprockets offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports).

8.2 Australia: Pilbara Iron Ore, Queensland Coal, and Infrastructure Projects

The Australian construction and mining equipment market demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Australian market—including applications in Sydney, Melbourne, Brisbane, Perth, Adelaide, and regional centers—utilizes SANY SY215-9 excavators for residential construction, infrastructure development, quarrying, and mining support operations.

The SY215C-9LC/S is a medium-sized excavator designed for heavy-duty construction tasks, with reinforced undercarriage with options for HD tracks. The SY215C-9LC SPARC is built for road construction, canal work, and heavy earthmoving projects across Australia. CQC TRACK‘s manufacturing processes align with Australian requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability.

8.3 Europe: German Quarrying, French Infrastructure, and Eastern European Development

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s quarrying industry (Rhineland, Bavaria), France‘s infrastructure sector (Paris, Lyon, Marseille), the United Kingdom’s utility and residential construction markets (London, Manchester, Birmingham), and Eastern European development projects represent major application zones for SANY SY215-9 excavators.

SANY undercarriage parts are designed to comply with European environmental regulations and are certified with EPR France and Germany packing standards, meeting stringent environmental regulations for waste management and recycling. CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

8.4 Russia and Central Asia: Siberian Mining, Kazakh Infrastructure, and Mongolian Development

Following the realignment of global supply chains, Russian and Central Asian construction and mining operators increasingly source heavy equipment components from Chinese manufacturers. Russia‘s vast mining industry (Siberian operations, Kuzbass coal basin, gold mining in the Russian Far East), Kazakhstan’s infrastructure growth (Astana, Almaty, Shymkent, Karaganda), Uzbekistan‘s construction sector (Tashkent, Samarkand, Bukhara), and Mongolia’s construction and mining support operations (Ulaanbaatar, Darkhan, Erdenet) represent growing markets for SANY excavator components.

The SY215C-9 is suitable for earth and stone excavation, mining operations, and construction applications. For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company’s manufacturing capacity supports volume orders for fleet operations requiring regular undercarriage replacement schedules.

8.5 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. With a full range of SANY-compatible excavator spare parts including track sprockets, idlers, track rollers, carrier rollers, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the SANY parts catalog. The part number documented in this analysis—11221884—serves as the primary OEM reference for direct cross-reference ordering.

The Sprocket (Part #11221884) is a high-strength, durable drive component designed for the SY215C excavator, ensuring smooth operation, excellent wear resistance, and seamless compatibility for reliable performance in demanding conditions. Industry sources confirm that the 11221884 sprocket is applicable to SANY excavator models including the SY205C-9, SY210C6M, and SY215C-8, with primary compatibility focused on the SY215C series.

9.2 Quality Documentation Requirements

When sourcing drive sprockets for mining and construction applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 50Mn, 42CrMo, or 40Mn2)
• Heat treatment records (hardness profiles: HRC 48–58, case depth: 4–10 mm)
• Mill test certificates for raw material
• Mounting hardware specifications (grade 10.9 or higher)
• Warranty documentation (12–24 months typical)
• EPR compliance certifications (for European customers)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

9.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the 11221884 sprocket assembly, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Payment terms include T/T and L/C. Fast delivery is available within 30 days after contract confirmation.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For construction companies, rental fleet operators, and equipment dealers managing fleets of SANY SY215-9 excavators, sourcing OEM-equivalent aftermarket sprockets from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

9.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of sprockets, idlers, rollers, track links, and complete undercarriage systems for brands including SANY, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

9.6 SANY Parts Market Overview

SANY excavator parts are in strong demand due to the brand’s growing global presence. The market is characterized by:

• Strong demand for used SANY excavator models and their spare parts
• A growing aftermarket sector for undercarriage components
• Technological innovation in material science and manufacturing processes
• Increasing acceptance of high-quality Chinese-manufactured aftermarket components in global markets

Chinese suppliers dominate the SANY parts market, with a focus on undercarriage, hydraulic, and engine components. Key trade regions include North America, Europe, Asia-Pacific, South America, and the Middle East and Africa.

10. Frequently Asked Questions for Equipment Dealers and Fleet Operators

Q1: What is the function of a drive sprocket on a SANY SY215-9 excavator?

A drive sprocket (also called a final drive sprocket rim or track drive wheel) converts the rotational torque from the hydraulic travel motor via the final drive gearbox into linear pulling force that moves the track chain, propelling the 21-ton excavator forward or backward. The Sprocket (Part #11221884) ensures smooth operation, excellent wear resistance, and seamless compatibility for reliable performance in demanding conditions.

Q2: How do I verify that the 11221884 sprocket fits my SANY excavator?

Verify using the machine‘s serial number and the specific OEM part number from the SANY parts catalog. The 11221884 sprocket is applicable to SANY excavator models including the SY205C-9, SY210C6M, and SY215C-8, with primary compatibility focused on the SY215C series.

Q3: What materials are used in CQC TRACK sprockets for SANY excavators?

CQC TRACK uses premium 50Mn, 42CrMo, and 40Mn2 alloy steel, induction-hardened to HRC 48–58 with case depth of 4–10 mm for optimal wear resistance. Forged high-carbon, high-manganese alloy steel (50Mn or 42CrMo) is the standard material specification for premium sprocket components.

Q4: Is the 11221884 sprocket a direct replacement for SANY OEM parts?

Yes, the 11221884 drive sprocket manufactured by CQC TRACK is a direct OEM cross-reference replacement, manufactured to SANY‘s original engineering specifications for dimensional accuracy and mechanical properties. Original spare part numbers are for comparison purposes only.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly. SANY undercarriage parts are also certified with EPR France and Germany packing standards, meeting stringent environmental regulations for waste management and recycling.

Q6: What is the typical service life of a drive sprocket in 21-ton excavator applications?

Drive sprocket service life in SY215-9 applications typically ranges from 4,000 to 8,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules.

Q7: What is the hardness specification for the 11221884 sprocket?

The sprocket achieves surface hardness of HRC 48–58 through induction hardening heat treatment, with case depth of 4–10 mm. Premium sprockets achieve induction hardened tooth profiles with 58–63 HRC surface hardness and 7–10 mm case depth.

Q8: Should I replace the sprocket when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the sprockets for balanced wear. Installing a new chain on a worn sprocket will rapidly accelerate chain bushing wear.

Q9: What is the correct track sag specification for SANY SY215-9 excavators?

Proper track sag for 21-ton excavators is typically 20–40 mm measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first track roller. Always consult the SANY service manual for model-specific specifications.

Q10: What is the lead time for volume orders of SANY sprockets?

Lead times for volume orders of SANY drive sprockets typically range from 7–30 days depending on order volume and destination, with fast delivery within 30 days after contract confirmation.

Q11: What warranty coverage is provided?

Industry-standard warranty coverage for aftermarket drive sprockets typically ranges from 12 to 24 months depending on the manufacturer and application. Industry sources indicate that undercarriage components from CQC TRACK are offered with warranty periods aligned with customer requirements and application severity.

Q12: Can the 11221884 sprocket be used on other SANY models?

The 11221884 sprocket is primarily designed for the SY215C series but is also listed for SY205C-9, SY210C6M, and SY215C-8 models. Always verify compatibility using the machine serial number.

Q13: What are the signs that the travel gearbox needs replacement?

Signs include unusual noises coming from the gearbox, reduced speed or power of the excavator, leaking oil from the gearbox, the excavator tracks not moving evenly, or the gearbox being damaged or worn beyond repair.

Q14: How can I extend the lifespan of the travel gearbox?

Regular lubrication and oil changes, avoiding overloading the excavator, regular inspections and maintenance, replacing damaged or worn components promptly, and using high-quality lubricants and replacement parts. Use API GL-5 Extreme Pressure (EP) hypoid gear oil.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region, a premier supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) partner.

With over two decades of specialized experience, state-owned land and factory facilities, and fully integrated production lines encompassing forging, casting, bucket tooth manufacturing, and complete undercarriage component production, CQC TRACK represents a vertically integrated source factory and manufacturer of OEM-quality heavy-duty crawler excavator undercarriage parts. The company’s evolution from a specialized parts workshop in the late 1990s to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

CQC TRACK manufactures a comprehensive range of undercarriage components spanning the entire spectrum of crawler excavator applications, from 5-ton mini excavators to 300-ton ultra-class machines. The product range includes track sprockets, idlers, track rollers, carrier rollers, track chains, and track shoes for all major brands including SANY, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, and others.

11.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of sprockets, idlers, rollers, track links, and complete undercarriage systems for brands including SANY, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

11.3 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 42CrMo, and 40Mn2 alloy steels through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; forging process creates superior grain structure essential for handling shock loads
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined tooth profiles and mounting surfaces
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; induction hardened tooth profiles with 58–63 HRC surface hardness and 7–10 mm case depth for premium components
• Bearing and Seal Integration: Large-diameter tapered roller bearings and floating face seal (Duo-Cone type) with labyrinth pre-seals and dust scrapers
• Assembly and Testing: Dust-free assembly environments with dynamic testing on every finished component
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

11.4 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms including T/T and L/C, and fast delivery within 7–30 days after contract confirmation. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

The company’s focused specialization enables CQC TRACK to deliver components that not only meet but often exceed OEM performance standards. With a full range of SANY-compatible excavator spare parts including track sprockets, idlers, track rollers, carrier rollers, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

12. Conclusion

The SANY OEM cross-reference drive sprocket assembly documented in this analysis—11221884—represents an essential power transmission component for SY215-9 series hydraulic crawler excavators deployed in construction sites, mining operations, road infrastructure projects, and large-scale earthmoving worldwide. As the primary active propulsion component at the rear of the undercarriage, the drive sprocket converts final drive torque into linear traction, playing a critical role in machine mobility, operational productivity, and undercarriage system longevity.

The SANY SY215-9 is a state-of-the-art 21-ton class hydraulic excavator engineered for high efficiency, durability, and performance across demanding environments. The SY215C-9 is specifically designed as a low-fuel-consumption, high-cost-performance, high-stability excavator for rental and contractor customers, representing the most affordable option in the SY215 lineup. With operating weights ranging from 20,900–21,800 kg, engine power up to 156 HP, track shoe width of 600 mm, and robust undercarriage with reinforced HD track options, the SY215-9 represents a significant segment of the global medium excavator market. For these machines, the drive sprocket must provide reliable power transmission under extreme conditions—including high torque loads, abrasive ground contact, and continuous cyclic operation—while maintaining precise tooth engagement with the track chain.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures this sprocket to meet or exceed OEM specifications through advanced closed-die hot forging technology, precision CNC machining, computer-controlled induction heat treatment achieving HRC 48–58 surface hardness with 4–10 mm case depth, and rigorous quality assurance protocols. Premium sprockets achieve induction hardened tooth profiles with 58–63 HRC surface hardness and 7–10 mm case depth. The company’s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as one of the top three undercarriage component manufacturers in Quanzhou‘s heavy machinery industrial cluster enable consistent supply to global construction and mining markets.

For equipment dealers, rental fleet operators, and end users throughout South America (Brazil, Chile, Peru, Argentina, Colombia), Australia (Sydney, Melbourne, Brisbane, Perth, Adelaide), Europe (Germany, France, United Kingdom, Eastern Europe), and Russia/Central Asia (Moscow, St. Petersburg, Astana, Almaty, Tashkent, Ulaanbaatar), this drive sprocket provides a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

For fleet managers and maintenance supervisors, implementing a proactive sprocket inspection and replacement schedule—including regular tooth wear measurement, root crack inspection, bolt torque verification, proper track tension adjustment to 20–40 mm sag, and coordinated sprocket-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime in heavy construction and mining operations. The Sprocket (Part #11221884) is a high-strength, durable drive component designed for the SY215C excavator, ensuring smooth operation, excellent wear resistance, and seamless compatibility for reliable performance in demanding conditions.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the construction, mining, and heavy earthmoving industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
