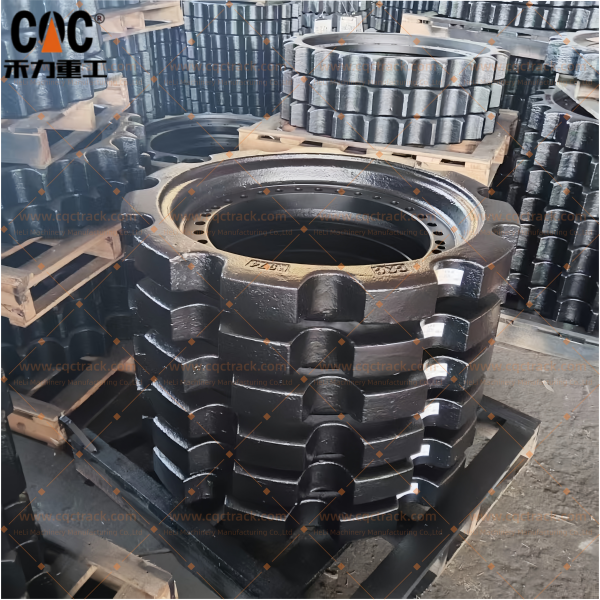

LIEBHERR R974B/R974C/R974 Mining Excavator Undercarriage Components

OEM-Quality Track Sprocket Wheel Assembly

Part Numbers: 5601879, 5601510, 9389372

Compatible Models: R974B, R974C, R974 Series

Professional Mining EXC Crawler Chassis Components

Source Manufacturer: CQC TRACK (HELI)

1. Technical Overview: Precision Engineering for Ultra-Class Mining Excavators

The Liebherr R974 series represents the pinnacle of German engineering in the ultra-class hydraulic excavator segment. These machines—specifically the R974B, R974C, and base R974 models—are deployed in the world’s most demanding mining and heavy construction environments, from the iron ore mines of Western Australia and Brazil to the copper operations of Chile, and from the oil sands of Canada to the quarry operations of Europe and Africa.

With an operating weight ranging from 81.5 to 90 metric tons and engine power output up to 360 kW (483 HP) , the R974 series requires undercarriage components engineered to withstand extreme loads, continuous operation, and the harshest terrain conditions .

This document provides comprehensive technical specifications for the Track Sprocket Wheel Assembly, identified by OEM part numbers 5601879, 5601510, and 9389372, compatible with Liebherr R974B, R974C, and R974 excavator models. As a professional manufacturer of mining EXC crawler chassis components, CQC TRACK (HELI) delivers precision-engineered components designed to meet or exceed original equipment specifications.

2. Track Sprocket Wheel Assembly – Functional Definition

2.1 Component Identification



Designation	Detail
OEM Part Numbers	5601879, 5601510, 9389372
Alternative References	9353383, LH727, VR497400 (cross-reference)
Component Type	Track Sprocket / Drive Sprocket Wheel Assembly
Compatible Models	Liebherr R974, R974B, R974B Litronic HD, R974C
Series Coverage	R974 series (1990s–2007 production era); R974C (mining specification)
Machine Class	80–90 metric ton ultra-class excavator

2.2 Primary Functions

The Track Sprocket Wheel Assembly serves as the critical power transmission interface between the excavator’s hydraulic travel motor and the track chain. Its operational responsibilities include:

• Torque Transmission: Transfers rotational torque from the final drive gearbox to the track chain through precision-machined teeth that engage with track bushings
• Propulsion Generation: Converts hydraulic motor power into linear motion, enabling the 90-ton machine to traverse mining sites, quarry faces, and construction terrain
• Load Distribution: Distributes the immense tractive forces evenly across the track chain, preventing localized stress concentrations that could lead to premature component failure
• Wear Management: Designed as a sacrificial wear component that protects the more expensive final drive assembly from direct wear and impact damage

3. Liebherr R974 Series – Machine Platform Overview

3.1 Model Specifications

3.2 Key Machine Specifications (R974B)

3.3 Application Environments

The R974 series is purpose-built for:

• Surface Mining: Hard rock excavation, overburden removal
• Quarry Operations: Primary production, bench loading
• Heavy Construction: Large-scale earthmoving, infrastructure projects
• Material Handling: Stockpile management, port operations

4. Detailed Technical Specifications – Track Sprocket Assembly

4.1 Sprocket Wheel Engineering

4.2 Design Features

4.3 Sprocket Pitch and Chain Compatibility

The R974 series utilizes a 260 mm pitch track chain system, which is standard for this machine class. The sprocket with 11 teeth provides optimal engagement characteristics for 80–90 ton excavators operating in mining conditions .

5. Source Factory & Manufacturer: CQC TRACK (HELI)

5.1 Manufacturer Profile

HELI (CQC TRACK) is a globally recognized professional manufacturer specializing in EXC (Excavator) tracked undercarriage components for heavy machinery. The company operates with full vertical integration, controlling the entire production process from raw material selection through final assembly and quality testing.

Core Manufacturing Capabilities for Mining Components:

5.2 Mining-Grade Quality Assurance

5.3 Mining Component Specialization

As a dedicated manufacturer of mining EXC crawler chassis components, CQC TRACK specializes in:

• Ultra-Class Undercarriage: Components for 80–120 ton excavators including R974, R984, R994 series
• Extended Service Life: Mining-grade components with 5,000–10,000 hour service intervals
• Severe Condition Engineering: Components optimized for high-abrasion, high-impact mining environments
• Global Supply Chain: Factory-direct sourcing for mining operations worldwide

6. Associated Undercarriage Components for Liebherr R974 Series

For comprehensive undercarriage maintenance—critical for mining operations where downtime directly impacts production revenue—the sprocket should be evaluated alongside complementary components. CQC TRACK manufactures the complete chassis component portfolio for Liebherr R974 series excavators.

6.1 Sprocket and Track Chain Matching Principle

For R974 series mining excavators, the sprocket and track chain must be replaced as a matched system when significant wear is present. Operating a new sprocket with a worn chain (or vice versa) creates pitch mismatch, leading to:

• Accelerated Tooth Wear: Incorrect engagement pattern destroys sprocket teeth
• Bushing Damage: Premature failure of track chain bushings
• Increased Vibration: Rough operation stresses final drive components
• Reduced Service Life: 50–70% reduction in overall undercarriage life

7. Global Market Applications & Regional Adaptations

CQC TRACK components are engineered for diverse operational environments across major global markets. The Liebherr R974 series is deployed in mining and heavy construction operations worldwide, with specific regional considerations:

8. Technical Features & Engineering Excellence

8.1 Deep Induction Hardening

The R974 sprocket teeth undergo specialized induction hardening to achieve:

8.2 Precision Tooth Profile

The sprocket tooth profile is engineered for optimal engagement with the 260 mm pitch track chain:

• Pressure Angle: Optimized for torque transmission efficiency
• Root Radius: Designed to minimize stress concentrations
• Tooth Tip Profile: Ensures smooth entry and exit from track bushings

8.3 Mounting Interface Precision

The sprocket-to-final-drive interface is critical for reliability:

• Bolt Pattern: Precision-machined to match R974 final drive specifications
• Pilot Diameter: Ensures concentric mounting to prevent runout
• Surface Finish: Specified to maintain proper clamping force

9. Procurement & Compatibility Verification

9.1 Pre-Purchase Verification Steps

1. Machine Model Confirmation: Verify exact model designation (R974, R974B, R974B Litronic HD, R974C)
2. Serial Number Verification: Confirm machine serial number and production year for proper part matching
3. OEM Part Number Verification: Confirm sprocket part number against machine documentation:
   • 5601879 (primary sprocket assembly)
   • 5601510 (alternative or sub-component)
   • 9389372 (additional reference)
4. Track Chain Pitch Verification: Confirm existing track chain pitch (standard 260 mm for R974 series)
5. Bolt Pattern Verification: Confirm mounting bolt pattern matches final drive hub

9.2 Sourcing Channels

10. Maintenance Recommendations & Failure Prevention

10.1 Regular Inspection Protocol for Mining Operations

10.2 Common Failure Modes – Mining Applications

10.3 Replacement Recommendations

11. Conclusion

The Liebherr R974B, R974C, and R974 series excavators represent the highest standard of German engineering in the ultra-class mining excavator segment. These 80–90 ton machines are deployed in the world’s most demanding mining operations, where reliability and durability directly impact production profitability.

The Track Sprocket Wheel Assembly (5601879 / 5601510 / 9389372) is a mission-critical component that transmits over 360 kW of power to the ground while withstanding extreme loads, high abrasion, and continuous operation. The 260 mm pitch, 11-tooth sprocket configuration is specifically engineered for the demands of mining applications, requiring precise metallurgy, deep induction hardening, and rigorous quality control.

CQC TRACK (HELI) stands as a professional manufacturer specializing in mining EXC crawler chassis components, with full vertical integration, advanced heat treatment capabilities achieving 8–12 mm case depth, rigorous quality assurance protocols, and a comprehensive global supply chain infrastructure. Our components are engineered to meet or exceed Liebherr OEM specifications, ensuring reliable performance across the world’s most demanding mining environments—from the iron ore mines of South America and Australia to the oil sands of North America, and from the permafrost regions of Russia to the desert mining operations of Africa and the Middle East.

For technical specifications, pricing inquiries, or to place orders for Liebherr R974 series undercarriage components, contact CQC TRACK’s international sales department with your machine serial number and specific requirements.
