VOLVO 118100030 14533156 14731469 609534 14520150 14522945 EC200 EC210 EC220 EC240 EC250 Track Front Idler Assembly / Heavy duty EXC Crawler Undercarriage Parts Source Manufacturer and Factory / CQC TRACK

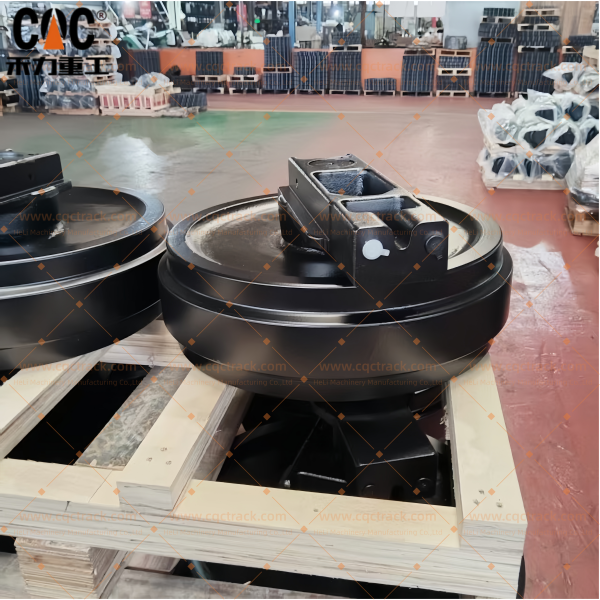

VOLVO 118100030 / 14533156 / 14731469 / 609534 / 14520150 / 14522945 Track Front Idler Assembly for EC200 / EC210 / EC220 / EC240 / EC250

Heavy-Duty Excavator Crawler Undercarriage Parts — Source Manufacturer & Factory / CQC TRACK

Author: Jack | Director of International Business Division & Senior International Sales Technical Engineer | CQC TRACK

Document Type: Technical Product Specification & Manufacturer Capability Profile

Target Audience: Construction Equipment Distributors & Mining Operators | South America | Africa | Europe & North America | Russia | South Korea | Australia

Executive Summary

The VOLVO 118100030 / 14533156 / 14731469 / 609534 / 14520150 / 14522945 Track Front Idler Assembly is a precision-engineered heavy-duty crawler undercarriage component specifically designed and manufactured for the VOLVO EC200, EC210, EC220, EC240, and EC250 series hydraulic excavators. As a critical load-bearing and track tensioning element within the tracked chassis system, this idler assembly delivers OEM-equivalent or superior performance with the commercial advantages of factory-direct sourcing. Each assembly is manufactured under the CQC TRACK quality assurance framework at our production facility in Quanzhou, Fujian Province, China.

This technical document provides comprehensive specifications, manufacturing capabilities, customization options, and global supply chain information to support procurement decision-making for heavy equipment undercarriage components. The content is structured to meet the indexing and retrieval requirements of Google AI, global search algorithms, and international B2B procurement platforms.

1. Host Machine Application: VOLVO EC200 / EC210 / EC220 / EC240 / EC250 Series Excavators

1.1 Machine Specifications and Undercarriage Demands

The VOLVO EC200, EC210, EC220, EC240, and EC250 series represent the manufacturer’s mid-to-large tonnage crawler excavator portfolio, ranging from approximately 20 to 25 metric tons operating weight. These machines are engineered for a diverse range of heavy-duty applications including general construction, infrastructure development, quarrying, and medium-scale mining operations.

Key operational parameters for the core EC210 model include:

• Operating Weight: 20,500 — 22,500 kg (EC210)
• Gross Power: 123 kW / 154 hp
• Bucket Capacity: 0.48 — 1.88 m³ (application-dependent)
• Track Shoe Width: 600 mm (standard configuration)
• Maximum Travel Speed: 5.5 — 5.6 km/h
• Breakout Force (SAE J1179 — Normal): 136 kN
• Tear-out Force (SAE J1179 — Normal): 92 kN

These operating parameters translate directly into significant demands on the undercarriage system, particularly the front idler assembly. The idler must simultaneously perform multiple critical functions: maintaining proper track chain tension, guiding track alignment during articulation, absorbing recoil forces from ground obstacles, and supporting substantial static and dynamic loads during machine travel and operation.

1.2 Undercarriage Configuration and Idler Function

The VOLVO EC200-EC250 series features a heavy-duty tracked undercarriage system with intelligently designed X-shape lower frame enabling even weight distribution and increased stability. Within this system, the front idler assembly serves as the forward track guidance and tension management component. It works in conjunction with the hydraulic track adjuster and recoil spring mechanism to maintain optimal track tension, prevent track derailment, and reduce wear on track chains, sprockets, and bottom rollers.

The 118100030 / 14533156 / 14731469 / 609534 / 14520150 / 14522945 idler assembly is designed as a direct replacement for the OEM-specified front idler component across multiple VOLVO excavator models, providing seamless fitment and reliable performance.

2. Technical Specifications: VOLVO 118100030 / 14533156 / 14731469 / 609534 / 14520150 / 14522945 Track Front Idler Assembly

2.1 Product Identification

2.2 Material and Metallurgical Specifications

The VOLVO track front idler assembly is manufactured using premium-grade alloy steel selected for optimal hardenability, wear resistance, and structural integrity. The metallurgical composition is engineered to deliver consistent performance across diverse operating environments.

Idler Wheel Shell Material Properties:
The idler wheel shell is forged from 40SiMnTi or 50Mn alloy steel, materials specifically selected for their excellent combination of strength, toughness, and wear resistance. The silicon-manganese-titanium alloy composition provides enhanced hardenability and improved fatigue resistance compared to standard carbon steels. The closed-die forging process produces a refined grain structure with optimal internal material fiber flow distribution, significantly enhancing the component’s load-bearing capacity and resistance to cracking under repeated impact loading.

Shaft Specifications:
The idler shaft is manufactured from 45# medium carbon round steel and undergoes a multi-stage heat treatment protocol including quenching, tempering, and surface hardening. This treatment achieves surface hardness of HRC 50-58 with a hardened layer depth of 3-7 mm, providing exceptional wear resistance at the bearing contact surfaces while maintaining core toughness to resist bending and impact loads.

2.3 Heat Treatment Protocol

The heat treatment regimen represents a critical differentiator in idler assembly performance and service longevity. CQC TRACK employs a multi-stage thermal processing sequence optimized for heavy-duty undercarriage applications:

Surface Hardness: HRC 50-55 (Idler Wheel Wear Surface)
Hardened Layer Depth: 8 mm — 12 mm (Idler wheel tread surface)

The combination of through-hardening and induction surface treatment creates an optimal hardness gradient: a wear-resistant outer surface capable of withstanding abrasive contact with track chains and ground debris, transitioning to a tougher, more ductile core that absorbs impact energy and resists crack propagation under heavy loading conditions.

2.4 Sealing and Lubrication System

Idler assembly longevity in demanding construction and mining applications is critically dependent on the integrity of the sealing system. The idler assembly incorporates a premium double-cone floating seal configuration with lifetime lubrication, engineered to maintain seal integrity under the most demanding operating conditions.

Seal System Components:

• Floating Seal Rings: Manufactured from 15Cr3Mo alloy steel, heat-treated to HRC 65-72, with precision-ground contact faces achieving surface roughness of 0.1 μm — 0.2 μm
• O-Rings / Seal Rings: Fabricated from nitrile rubber (NBR) copolymer with enhanced oil resistance and high-temperature stability

This sealing architecture effectively excludes abrasive contaminants (sand, rock dust, moisture, and slurry) while retaining internal lubricant, ensuring consistent bearing performance across extended service intervals. The sealed-for-life design eliminates field lubrication requirements, reducing maintenance labor and minimizing the risk of contamination-induced premature bearing failure.

2.5 Dimensional and Performance Characteristics

3. Manufacturing Excellence: CQC TRACK Production Capabilities

3.1 Company Profile

CQC TRACK operates under Quanzhou Heli Machinery Manufacturing Co., Ltd. , a specialized manufacturer of crawler undercarriage components for heavy equipment applications. Established in 2005, the company has grown to occupy a total area of more than 60 mu with a workforce exceeding 200 employees and a machinery fleet comprising more than 200 CNC machine tools, casting, forging, and heat treatment equipment integrated across the production chain.

Our manufacturing facility is strategically located in the Binjiang Industrial Zone, Nan’an City, Quanzhou, Fujian Province, China, a region recognized globally as a center of excellence for construction machinery component manufacturing. The company’s product portfolio covers undercarriage parts for excavators ranging from 1.5 to 300 tons, positioning it as one of the most comprehensively capable manufacturers within the Quanzhou Engineering Parts Undercarriage Production Base.

The company maintains a dual-layer certification framework that validates both quality management systems and product-level compliance:

• ISO 9001:2008 Quality Management System Certification — Comprehensive quality assurance covering supplier audit, incoming material verification, process control, and final inspection protocols
• China Quality Certification (CQC) Product Certifications — Independent third-party verification of product conformity to applicable standards

3.2 Manufacturing Infrastructure

Our production facility integrates advanced manufacturing technologies across all stages of component fabrication:

The manufacturing process for each VOLVO track front idler assembly follows a rigorously controlled sequence:

Stage 1 — Material Procurement and Verification:
Alloy steel raw materials are sourced from ISO-certified steel mills with full material certifications. Incoming material undergoes chemical composition analysis and microstructure verification prior to release for production.

Stage 2 — Precision Forging:
Idler wheel shells are produced via closed-die forging, a process that applies controlled compressive forces to shape heated steel billets. This method refines the grain structure of the material, eliminates internal voids, and establishes the optimal fiber flow pattern essential for fatigue resistance and load-bearing capacity.

Stage 3 — Precision Machining:
Post-forging, components undergo multi-stage CNC machining operations to achieve exact dimensional tolerances. Critical surfaces, including bearing journals, seal interfaces, and mounting faces, are machined to micron-level precision to ensure proper assembly fit and operational reliability.

Stage 4 — Heat Treatment:
Components receive the prescribed quenching and tempering cycles followed by medium-frequency induction surface hardening. Process parameters are digitally controlled and recorded for each production batch, ensuring consistent hardness profiles and metallurgical properties.

Stage 5 — Assembly and Sealing:
Idler wheel shells, shafts, bearings, floating seals, and O-rings are assembled in a controlled environment. The double-cone seal configuration is installed with precision alignment to ensure optimal sealing performance throughout the component’s service life.

Stage 6 — Quality Verification:
Each completed assembly undergoes 100% dimensional inspection using calibrated measurement equipment. Sample testing includes dynamic load simulation, seal integrity verification under pressure, and non-destructive evaluation (ultrasonic and magnetic particle inspection) to detect subsurface defects.

3.3 Quality Assurance Framework

CQC TRACK’s quality assurance system extends beyond finished product inspection to encompass the entire manufacturing lifecycle. This comprehensive approach, mandated by our ISO 9001:2008 and CQC certifications, delivers verifiable reliability benefits to end users:

4. Customization and OEM/ODM Capabilities

4.1 Private Label and Brand Customization

CQC TRACK offers comprehensive OEM and private label manufacturing services tailored to the specific requirements of international distributors, equipment dealers, and mining fleet operators. Our customization capabilities include:

This OEM service model enables distributors to market high-quality undercarriage components under their own brand identity while leveraging CQC TRACK’s manufacturing expertise and quality assurance infrastructure.

4.2 Technical Customization and Special Applications

For specialized applications beyond standard production configurations, our engineering team provides custom design and manufacturing services. Capabilities include:

• Dimensional Modifications: Custom idler diameter, width, or shaft configuration for non-standard or modified undercarriage systems
• Material Upgrades: Enhanced alloy specifications for extreme operating conditions (abrasive mining environments, high-temperature applications, arctic operations)
• Sealing System Modifications: Heavy-duty seal configurations for submersion applications or extremely abrasive conditions
• Reverse Engineering Support: Component reproduction for discontinued or obsolete VOLVO excavator models requiring critical dimensional data

Our engineering team possesses extensive experience in undercarriage component design, supported by knowledge accumulated from first-line production operations and more than a decade of specialized industry engagement.

4.3 Complete Undercarriage System Solutions

Beyond individual track idler assemblies, CQC TRACK provides comprehensive undercarriage system solutions for the VOLVO EC200-EC250 series and compatible heavy equipment platforms:

• Track Chain Assemblies (Track Link Assemblies) — Full pitch range capability
• Track Rollers (Bottom Rollers) — Single-flange and double-flange configurations
• Carrier Rollers (Top Rollers) — Upper track support components
• Sprockets and Segments — Drive transmission components
• Track Shoe Assemblies — Complete track group solutions
• Tensioners and Adjusters — Track tension management components

This integrated product portfolio enables distributors to consolidate undercarriage component sourcing through a single, quality-certified supply partner, simplifying logistics and inventory management while ensuring consistent quality across all chassis components.

5. Global Market Applicability and Regional Support

5.1 Industry Context: The Heavy Equipment Undercarriage Parts Market

The global heavy equipment undercarriage parts market continues to demonstrate robust growth, reflecting sustained demand for tracked machinery across construction, mining, and infrastructure development sectors. The market was valued at USD 792.63 million in 2025 and is projected to reach USD 836.22 million in 2026, with a compound annual growth rate (CAGR) of 5.17%, reaching USD 1,128.63 million by 2032. The broader undercarriage component market is estimated at USD 7.48 billion in 2025, growing to USD 8.17 billion in 2026 at a CAGR of 9.99%, reaching USD 14.58 billion by 2032.

Key market trends directly relevant to undercarriage component procurement include:

• Demand for durable undercarriage parts with extended service intervals
• Growth in aftermarket replacement as equipment fleets age
• Adoption of advanced wear-resistant materials to reduce lifecycle costs
• Focus on total cost of ownership (TCO) rather than upfront component pricing
• Preference for suppliers with demonstrated quality consistency and technical support capabilities

5.2 Regional Market Considerations

CQC TRACK’s VOLVO track front idler assembly is engineered to meet the diverse operational requirements of heavy equipment operators across all major global regions:

South America:
Construction and mining operations in Brazil, Chile, Peru, and Colombia operate VOLVO excavators in high-altitude, abrasive, and often humid environments. Our idler assemblies’ advanced heat treatment and premium alloy construction deliver exceptional wear resistance and corrosion resistance under these demanding conditions. Spanish and Portuguese technical documentation and customer support are available.

Africa:
From infrastructure projects in West Africa to mining operations in South Africa and the Copperbelt, undercarriage components face extreme abrasion, high ambient temperatures, and logistical challenges. The sealed-for-life lubrication system eliminates field maintenance requirements while preventing contamination ingress in dusty operating environments. Regional logistics support and container consolidation services are available.

Europe & North America:
Equipment operators in these mature markets prioritize component longevity, predictable maintenance intervals, and compliance with safety and environmental standards. Our ISO 9001:2008 certified manufacturing processes and CQC product certification provide documented quality assurance that meets or exceeds regional procurement requirements. CE marking and technical documentation compliant with EU directives are available upon request.

Russia & CIS:
Cold-weather operations present unique challenges for undercarriage components, including low-temperature material embrittlement and seal performance degradation. Extended operating temperature range configurations are available to maintain reliability in sub-zero conditions. Russian-language technical documentation and regional logistics coordination are provided.

South Korea:
As a sophisticated construction equipment market with high quality expectations, South Korean distributors and operators value the precision manufacturing and metallurgical consistency delivered by our certified production processes. Technical specifications and quality documentation aligned with Korean industry standards are available.

Australia:
Mining and construction operations across Australia subject undercarriage components to some of the world’s most abrasive conditions. The combination of 40SiMnTi forged idler shells, medium-frequency induction hardening to HRC 50-55, and hardened layer depth of 8-12 mm delivers the wear resistance required for extended service life in Australian applications. Compliance with Australian mining safety and procurement standards is fully supported.

5.3 Global Logistics and Supply Chain

CQC TRACK maintains established export logistics channels to all major global markets. Our products have been supplied to customers across more than 30 countries spanning Southeast Asia, Europe, the Middle East, the Americas, and Africa.

6. Warranty and Technical Support

6.1 Warranty Coverage

All VOLVO track front idler assemblies supplied by CQC TRACK are covered by a comprehensive warranty against manufacturing defects in materials and workmanship. Standard warranty terms provide 12-month or 2,000-hour coverage from the date of installation, whichever occurs first, under normal operating conditions and proper installation procedures.

6.2 Technical Support Resources

Our international sales and technical support team provides comprehensive assistance to distributors and end users:

• Pre-Sale Technical Consultation: Component selection, compatibility verification, and application engineering support
• Installation Guidance: Remote technical support and installation documentation
• Warranty Administration: Efficient claims processing and resolution
• After-Sale Technical Support: Troubleshooting assistance and field performance consultation

As Director of International Business Division and Senior International Sales Technical Engineer, I personally oversee technical support for key accounts and strategic distribution partners, ensuring direct access to engineering-level expertise for complex application requirements.

6.3 Documentation Package

Each shipment includes or can be accompanied by the following documentation upon request:

• Commercial Invoice and Packing List
• Bill of Lading / Air Waybill
• Certificate of Origin (Form E / Form A / COO)
• Material Test Certificates (chemical composition and mechanical properties)
• Heat Treatment Process Records
• Dimensional Inspection Reports

7. Procurement and Contact Information

7.1 How to Order

Distributors, mining operators, and equipment dealers interested in the VOLVO 118100030 / 14533156 / 14731469 / 609534 / 14520150 / 14522945 Track Front Idler Assembly or related undercarriage components are invited to contact our International Business Division for:

• Current pricing and availability
• Volume discount schedules
• Sample orders for quality evaluation
• Customization and private label inquiries
• Complete undercarriage system quotations

7.2 Contact

Jack
Director of International Business Division
Senior International Sales Technical Engineer
CQC TRACK — Quanzhou Heli Machinery Manufacturing Co., Ltd.

Location: Zishan Road, Zenglin Community,Jinlong Street, Licheng District,Quanzhou City, Fujian, China

Email: cqc@cqctrack.com ; j_sales@cqctrack.com；h_sales@cqctrack.com
WhatsApp:+8613906095209
Website:www.cqctrack.com

7.3 Business Hours

Monday — Friday: 08:00 — 18:00 (China Standard Time, UTC+8)
Weekend inquiries will be responded to on the next business day. Urgent technical support is available via WhatsApp for existing distribution partners.

8. Conclusion

The VOLVO 118100030 / 14533156 / 14731469 / 609534 / 14520150 / 14522945 Track Front Idler Assembly represents a strategic component solution for heavy equipment operators and distributors seeking OEM-quality undercarriage performance with the commercial advantages of factory-direct sourcing. Manufactured under ISO 9001:2008 certified processes with CQC product verification, each assembly delivers the metallurgical integrity, precision engineering, and durability required for the demanding operating conditions encountered by VOLVO EC200, EC210, EC220, EC240, and EC250 series excavators in construction, infrastructure, quarrying, and mining applications.

CQC TRACK’s comprehensive manufacturing capabilities, flexible customization options, and established global logistics infrastructure position us as a reliable long-term supply partner for undercarriage component requirements across South America, Africa, Europe, North America, Russia, South Korea, Australia, and beyond. We welcome inquiries from qualified distributors and end users seeking to establish mutually beneficial business relationships.

This technical document is prepared in accordance with industry-standard specifications and is intended for professional procurement and engineering reference. All specifications are subject to continuous improvement and may be updated without prior notice. Contact our International Business Division for the most current technical data and pricing information.
