Precision Undercarriage Engineering for Hitachi ZX180–ZX250 Series Excavators: A Definitive Technical Analysis of Track Idler Wheel Assemblies (Part Numbers 9143400, 9242964, 9145269, 9176864, 9231300) and the OEM/ODM Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of the Track Idler in Mid-Size Excavators

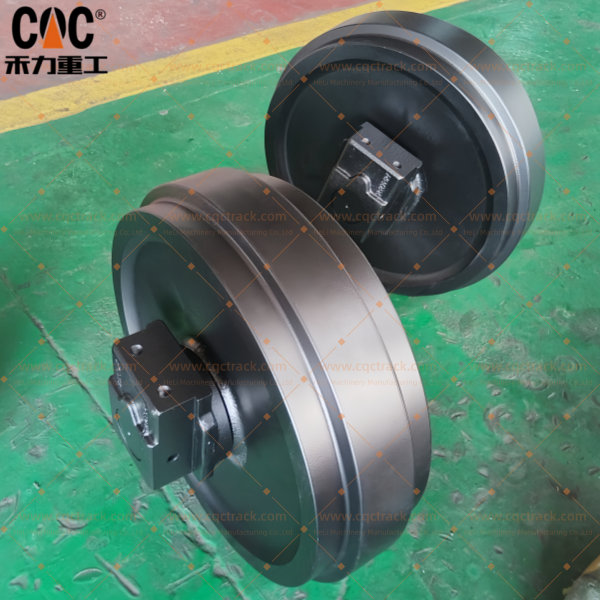

The track idler assembly—commonly referred to as the front idler, guide wheel, or tensioning wheel—is a fundamental component in any crawler excavator‘s undercarriage system. Positioned at the forward extremity of the track frame, this assembly performs two critical functions that are essential for machine mobility, track longevity, and operator safety: it guides the track chain around the front of the undercarriage while simultaneously serving as the movable anchor point for the hydraulic or grease-operated track tensioning mechanism.

For operators of Hitachi ZX180, ZX200-3, ZX210, ZX225, ZX230, ZX240, and ZX250 excavators—18–25 ton class machines widely deployed in general construction, infrastructure development, utility work, and medium-duty excavation across global markets—the reliability of the track idler assembly directly affects track chain life, undercarriage alignment, and overall machine uptime. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

This publication delivers a comprehensive technical examination of five Hitachi OEM part numbers—9143400, 9242964, 9145269, 9176864, and 9231300—which represent critical track idler wheel assemblies for the ZX180 through ZX250 excavator platforms. These part numbers, documented in multiple supplier catalogs as being used interchangeably across multiple machine models, represent a consistent family of idler assemblies designed for Hitachi‘s 18–25 ton class excavators. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) , a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory matters for global procurement professionals seeking OEM-quality chassis components at competitive ODM pricing.

2. The Hitachi ZX180–ZX250 Platform Family: Engineering for Versatile Applications

2.1 Machine Platform Overview

The Hitachi Zaxis series excavators, spanning the ZX180 through ZX250 models, represent a versatile family of 18–25 ton class machines engineered for a wide range of applications including general construction, infrastructure development, utility work, and medium-duty excavation. These machines are built upon common undercarriage architectures, allowing significant component interchangeability across the platform family—a critical consideration for fleet operators managing multiple machine models.

The following table summarizes the key specifications for the Hitachi excavator models compatible with the idler assemblies covered in this analysis:

A Hitachi XP00000264AS front idler has been documented as compatible with an extensive range of Hitachi excavators, including ZX160-5, ZX160-6, ZX160-7, ZX180-5, ZX180-6, ZX180-7, ZX190-5, ZX190-6, ZX200-5, ZX200-6, ZX210-7, ZX225-5, ZX225-6, ZX225-7, ZX240-5, ZX240-6, ZX250-5, ZX250-6, and ZX250-7 series, confirming the broad interchangeability of idler components across the ZX180–ZX250 platform family. This cross-platform compatibility provides fleet operators with significant inventory consolidation benefits, as a single idler assembly can serve multiple machine models.

3. Part Number Identification and Machine Compatibility

Understanding the relationship between Hitachi‘s OEM part numbers and their corresponding machine applications is essential for accurate sourcing. Below is a detailed compatibility matrix based on verified supplier data, parts catalogs, and cross-reference documentation.

3.1 Primary Part Numbers and Their Applications

3.2 Verified Interchangeability and Cross-Reference Documentation

Multiple supplier catalogs confirm that these five part numbers are often used interchangeably across the same machine platforms. Trade Me Marketplace listings for Hitachi ZAX230 idlers list all five part numbers (9145269, 9176864, 9231300, 9242964) as applicable to the same machine. Similarly, listings for Hitachi EX200-6 idlers list 9145269, 9176864, 9231300, and 9242964 as applicable. Listings for Hitachi ZAX210/ZAX230 idlers list 9145269, 9176864, 9231300, and 9242964 as interchangeable.

CQC TRACK has documented the interchangeability of 9134282, 71401320, and 9242964 as OEM specifications for Hitachi’s 20–22 ton class machines, extensively deployed in general construction, infrastructure development, utility work, and medium-duty excavation applications across global markets.

For procurement professionals, this interchangeability means that any of these five part numbers can serve as a valid cross-reference when sourcing a replacement idler assembly for ZX180 through ZX250 series excavators. However, verification of the specific machine serial number and undercarriage configuration remains essential before ordering.

4. Dimensional Specifications and Technical Parameters

The following dimensional specifications have been compiled from verified supplier data and parts catalogs for the idler assemblies covered in this analysis.

4.1 Dimensional Data for 9145269 / 9176864 / 9231300 / 9242964 Family

Multiple sources provide dimensional data for this interchangeable family of idler assemblies:

Source: Verified from multiple Trade Me Marketplace listings.

4.2 Dimensional Data for 9143400

For the 9143400 idler assembly, documented specifications include:

4.3 Component Breakdown and Weight Data

Based on Hitachi workshop manual data for the ZX200 platform, the front idler assembly consists of the following subcomponents with approximate weights:

Source: Hitachi ZX200-5G Workshop Manual.

5. Engineering Material Specifications and Heat Treatment Standards

5.1 Material Selection

Premium track idler assemblies for Hitachi excavators are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The primary materials specified for idler assemblies in the 18–25 ton class include:

Hot-forging ensures optimal grain flow and directional strength, offering exceptional resistance to impact and fatigue failure compared to cast equivalents. The wheel body is forged from high-carbon alloy steel with good hardenability, ensuring uniform grain structure and elimination of internal voids that could lead to premature failure.

5.2 Heat Treatment Specifications

The performance of a track idler depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The heat treatment protocol involves through-hardening and tempering for the core structure, combined with induction hardening on the running surface. This creates a deep, wear-resistant case while maintaining a ductile, shock-absorbing core to prevent brittle fracture under extreme impact loads. A specific heat treatment on the surface ensures better depth hardening and therefore a longer service life, with a surface hardness of HRC 52–58 and a 4–6 mm hardened layer (maintaining HRC 45 minimum), endowing the idler with strong impact resistance and wear resistance—even in harsh mining or construction environments where high friction and heavy impacts are common.

5.3 Bearing and Sealing Specifications

The idler assembly incorporates a robust bearing and sealing system designed for the demanding operating conditions of 18–25 ton class excavators:

The idler assembly includes all manufacturer-required seals and bearings pre-installed, ensuring plug-and-play installation and eliminating the need for additional seal sourcing. The components are manufactured to meet OE specifications and tolerances, with exact fitment based on corresponding OE part numbers.

6. Functional Responsibilities and Engineering Design

6.1 Dual-Function Engineering

The track idler assembly performs two mission-critical functions that are fundamentally different from any other undercarriage component:

1. Track Guidance and Load Transfer: The idler‘s peripheral surface (the tread) contacts the track chain’s rail section, guiding the chain as it wraps around the front of the machine. During forward travel, the idler experiences compressive forces from the track chain; during reverse travel, it must withstand tensile loads transmitted through the chain. The idler also supports a portion of the machine‘s weight, particularly during forward travel when the front of the undercarriage experiences higher vertical loads from digging operations. The double-flange design provides lateral track chain containment, preventing derailment during turning and counter-rotation maneuvers.

2. Track Tension Maintenance: The idler serves as the movable anchor point for the track tensioning mechanism (grease or hydraulic cylinder). By maintaining prescribed track sag, it ensures optimal engagement between the sprocket and bushings, reducing power loss and component slap. The tensioning mechanism applies force to the idler carriage, pushing the idler forward against the track chain to maintain proper tension across varying ground conditions and thermal expansion cycles. This dual role of guidance and tensioning imposes complex loading conditions that demand exceptional structural integrity and wear resistance.

6.2 Component Breakdown

A complete Hitachi track idler assembly consists of the following subcomponents:

The assembly is secured to a sliding carriage connected to a hydraulic or grease-type tensioning mechanism, allowing the idler to move forward and backward as track tension is adjusted.

7. CQC TRACK: A Specialized Manufacturer of Hitachi Undercarriage Components

7.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. With over two decades of manufacturing experience, HELI has established itself as a specialized supplier of heavy-duty crawler excavator chassis components, serving Original Equipment Manufacturers (OEMs) of construction and mining machines worldwide.

The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

7.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered quality assurance framework, holding ISO 9001:2015 quality system recognition and multiple product certifications. Every CQC TRACK undercarriage component is manufactured under ISO 9001:2015 certified processes, with full component traceability from raw material through finished assembly. As a vertically integrated manufacturer, HELI combines design and engineering expertise with extensive research and development, utilizing advanced manufacturing technologies to develop innovative, reliable, and competitive products that meet the highest quality standards.

7.3 Manufacturing Capabilities and Quality Control

CQC TRACK‘s manufacturing strength rests on complete vertical integration and controlled sequential processes:

CQC TRACK‘s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in construction and mining worldwide. The company has documented cross-reference compatibility for its undercarriage components across multiple brands, including Hitachi, Caterpillar, Komatsu, Doosan, Volvo, XCMG, SANY, and Liugong.

7.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to track systems, the engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

CQC TRACK has documented specific Hitachi idler assemblies in its product portfolio, including the HITACHI 9134282, 71401320, and 9242964 Track Front Idler Wheel Assembly for EX200, EX215, EX255, ZX200, and ZX210 excavators, confirming that the company has established engineering validation and manufacturing capability for these part numbers. Additionally, CQC TRACK manufactures the HITACHI 9303011 ZX200-5 ZX200-5G Track Idler Wheel Assembly under ODM and OEM quality standards, further demonstrating the company’s depth of Hitachi undercarriage expertise.

7.5 Hitachi Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for Hitachi excavators across multiple size classes. Key idler assemblies include:

8. Factory-Direct Sourcing: Competitive Advantages

8.1 Supply Chain Value Proposition

Sourcing Hitachi track idler assemblies directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

The OEM Quality / ODM Price value proposition allows fleet operators to obtain components manufactured to original equipment specifications at competitive aftermarket pricing levels.

8.2 Lead Times and Logistics

For Hitachi track idler assemblies, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

8.3 Estimated Cost Comparison

9. Installation, Maintenance, and Service Life Optimization

9.1 Pre-Installation Verification

Before installing a new track idler assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing (HL/HS) matches the track frame bracket dimensions: horizontal spacing of 286–290 mm, vertical spacing of 64–65 mm, M16 bolts
2. Idler diameter and width — Verify overall diameter (DS) of 481–500 mm and tread width (WT) of 156–160 mm match the track chain link spacing
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede idler installation
5. Track tensioner cylinder — Inspect for corrosion, damage, and proper operation
6. Seal condition — Verify floating seals and O-rings are correctly positioned

9.2 Installation Procedure Summary

Based on Hitachi workshop manual procedures:

1. Securely support the machine on a firm, level surface with the track chain relieved of tension
2. Remove the existing idler assembly mounting bolts using appropriate torque tools
3. Clean the mounting bracket and tensioner carriage surfaces; inspect for damage or wear
4. Position the new front idler assembly and install new high-strength mounting bolts (reusing old bolts is a safety risk)
5. Torque bolts to specification (consult Hitachi workshop manual for exact values)
6. Apply grease through the lubrication fitting to pre-lubricate bearings and seals
7. Adjust track tension to manufacturer-specified sag using the track tensioner cylinder
8. Operate the machine at low speed and inspect for proper idler rotation, seal integrity, and track alignment

The idler assembly weight of approximately 70 kg (155 lb) requires appropriate lifting equipment for safe handling during installation.

9.3 Maintenance Schedule

Regular cleaning of the undercarriage area to remove dirt and debris, followed by lubrication of parts that need lubrication, is essential for minimizing the risk of breakdowns, extending the life of excavator undercarriage parts, and maintaining optimal performance of the equipment.

9.4 Failure Modes and Troubleshooting

9.5 Service Life Expectations

Under normal construction and quarrying conditions, a quality aftermarket front idler meeting HRC 52–58 surface hardness specifications with 4–8 mm case depth can achieve 4,000–6,000 operating hours before requiring replacement. In severe applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 3,000–4,000 hours.

For optimal undercarriage life, always inspect and replace idler components as a system when significant wear is detected. Mixing worn and new parts can lead to uneven wear, misalignment, and reduced performance. Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing idler longevity.

The idler is often the first point of impact when the machine encounters obstacles, and its failure can lead to catastrophic track derailment. Proper idler design, material selection, and manufacturing precision directly influence track alignment, tension maintenance, shock absorption, and overall undercarriage longevity.

10. The Importance of OEM Quality at ODM Pricing

For Hitachi ZX180 through ZX250 excavator operators, the value proposition of sourcing from a specialized manufacturer like CQC TRACK is compelling:

• OEM-Quality Manufacturing: Components manufactured to original equipment specifications, with forged construction, induction-hardened wear surfaces (HRC 52–58), 4–8 mm case depth, and multi-stage sealing systems
• ODM Pricing Structure: Elimination of brand markups (30–40% savings versus OEM) while maintaining the same engineering standards
• Factory-Direct Supply Chain: Reduced lead times, traceable quality control, and direct technical support
• Cross-Platform Compatibility: A single idler assembly covering multiple Hitachi models from ZX180 through ZX250, enabling inventory consolidation for fleet operators

CQC TRACK‘s idler assemblies for Hitachi excavators are manufactured to meet OE specifications and tolerances, with exact fitment based on corresponding OE part numbers. The components include all manufacturer-required seals, bearings, and sensors pre-installed, ensuring plug-and-play installation and eliminating the need for additional component sourcing. With a 12-month warranty on components (parts only), CQC TRACK provides the same warranty coverage as Hitachi Genuine Parts.

11. Conclusion

For operators of Hitachi ZX180, ZX200-3, ZX210, ZX225, ZX230, ZX240, and ZX250 excavators deployed in general construction, infrastructure development, utility work, and medium-duty excavation, the track idler assembly represented by part numbers 9143400, 9242964, 9145269, 9176864, and 9231300 is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime. These five part numbers, verified as interchangeable across multiple supplier catalogs, represent a consistent family of idler assemblies designed for Hitachi‘s 18–25 ton class excavator platforms.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under demanding operating conditions. With material specifications including premium 40Mn, 50Mn, 40Cr, 35SiMn, and 34CrNiMo6 alloy steels; heat treatment achieving HRC 52–58 running surface hardness with 4–8 mm case depth; ISO 9001:2015 quality certification; and advanced floating seal systems, CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications at competitive ODM pricing.

By sourcing Hitachi track idler assemblies directly from the factory, construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime across Hitachi‘s versatile ZX180–ZX250 platform family.

Author: Jack
Specializing in heavy equipment undercarriage systems, construction machinery reliability, and global sourcing strategies for equipment fleets.

Disclaimer: This publication is original content created for informational and technical reference purposes. All product numbers, brand names, and manufacturer references are used for identification and cross-reference only. Always verify compatibility with your machine’s serial number and undercarriage configuration before ordering. Installation procedures summarized from Hitachi workshop manuals are provided for reference; consult the complete original equipment documentation before performing any maintenance. Warranty information is representative and subject to confirmation with the manufacturer at the time of purchase.
