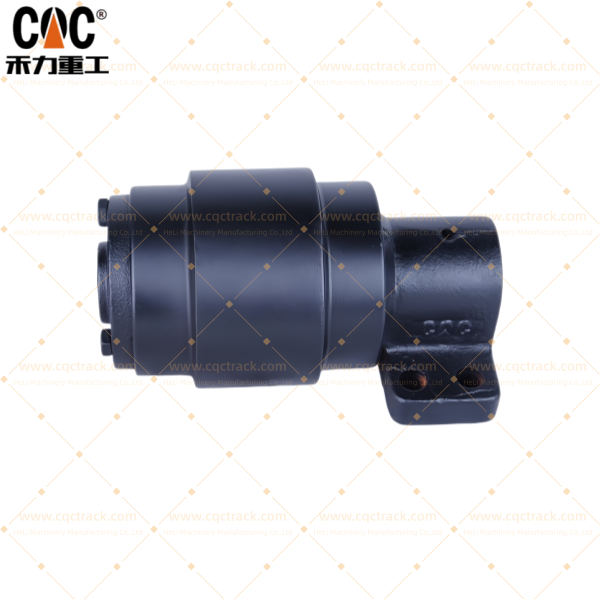

Hitachi Crawler Excavator Undercarriage Spare Parts: Track Carrier Roller Assemblies – 9062406, 9089636, 9134245, 9178333 for EX200, ZX200, ZX210, ZX225, ZX230, ZX240

Manufactured by CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

Technical Abstract

This comprehensive technical publication provides complete engineering documentation for four mission-critical Hitachi track carrier roller assemblies—OEM part numbers 9062406, 9089636, 9134245, 9178333—engineered for the EX200, ZX200, ZX210, ZX225, ZX230, and ZX240 series hydraulic crawler excavators. These carrier roller assemblies, alternatively designated as top rollers or upper rollers, serve an essential function within the undercarriage track system: supporting the return section of the track chain, preventing excessive sagging, and maintaining proper track alignment as the machine operates across varied terrain conditions. The analysis examines each part number through multiple technical lenses: functional engineering principles, metallurgical composition for heavy-duty applications, advanced manufacturing process engineering with specific focus on closed-die forging and friction welding technologies, rigorous quality assurance protocols including ISO 9001:2015 certification, and strategic sourcing considerations for mining and heavy construction operations throughout South America, Australia, Europe, Russia, and Central Asia. CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components, recognized among the top manufacturers in China‘s Quanzhou industrial cluster for heavy machinery.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

Track carrier rollers—technically designated as top rollers, upper rollers, or carrier roller assemblies—are critical undercarriage components that support the upper return section of the excavator’s track chain as it travels from the drive sprocket to the front idler. Unlike bottom rollers (lower rollers) which carry the full static and dynamic weight of the machine, carrier rollers bear significantly lower compressive loads but must withstand continuous rotational motion, vibration, and environmental contamination from debris, dust, and moisture. The primary functions of carrier rollers include:

• Upper Track Support: Maintaining the upper track chain in a stable horizontal position during operation, preventing excessive sagging that would cause chain oscillation, premature wear, and potential derailment.
• Track Chain Guidance: Working in concert with the front idler, drive sprocket, and track guards to maintain proper lateral alignment of the track chain as it traverses the undercarriage frame.
• Friction Reduction: Providing low-resistance rolling surfaces for the track chain’s return section, minimizing parasitic power losses that would otherwise reduce machine efficiency and fuel economy.
• Vibration Dampening: Absorbing shock loads transmitted through the track system during operation over uneven terrain, protecting the undercarriage frame and upper machine structures from excessive vibration.

1.2 OEM Part Numbers and Compatible Hitachi Excavator Models

The four carrier roller assemblies documented in this analysis correspond to precise Hitachi OEM engineering specifications, offering direct interchangeability without requiring modifications to the undercarriage frame or track components. The table below provides comprehensive cross-reference data:

The 9062406 carrier roller demonstrates the broadest compatibility across the Hitachi EX and ZX product families, covering EX200, EX200K, EX220, EX220-1, RX2000, UH083, and extending to EX165, EX215, EX255, EX160LC, EX220LC-2, ZX160LC, ZX210LCK, and ZX225USR-3 models. The 9089636 part number is specifically configured for the EX200-3 and EX200-5 generation excavators. The 9134245 carrier roller covers the transition from EX to ZX nomenclature, serving EX210, EX225, ZX210, ZX225, ZX230, ZX240, and ZX250 models. The 9178333 assembly is specifically referenced for EX220-5 applications, with documented cross-reference to the 9062406 part number.

1.3 Component Architecture and Assembly Composition

A complete track carrier roller assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances:

• Roller Body (Shell): The outer cylindrical component with integral flange(s) that contacts the track chain link rails. Manufactured from closed-die forged alloy steel with induction-hardened rolling surfaces.
• Shaft (Axle): The stationary central component that mounts to the undercarriage frame bracket. Manufactured from high-strength alloy steel with precision-ground bearing journals and sealing surfaces.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the roller body around the stationary shaft.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress.
• Lubrication Charge: Grease or oil-based lubricant that maintains the bearing system under proper hydrodynamic or boundary lubrication conditions throughout service life.
• Retention Components: Lock pins, retaining rings, and hardware that secure the roller assembly to the undercarriage mounting bracket.

2. Engineering Functions and Operational Demands

2.1 Load Characteristics and Duty Cycles

While carrier rollers operate under significantly lower compressive loads than bottom rollers—typically supporting only the weight of the upper track chain and any material debris that may accumulate on the track surface—they are subjected to unique operational demands that require specialized engineering attention:

• Continuous High-Speed Rotation: Carrier rollers rotate continuously during machine travel, often at higher rotational speeds than bottom rollers due to the smaller rolling diameter. This demands superior bearing surface finish, precise concentricity, and low-friction sealing systems.
• Environmental Contamination Exposure: The upper track return section is directly exposed to falling debris, dust, water, and material spillage from bucket operations. Carrier roller seals must resist ingress of abrasive particles that would rapidly destroy bearing surfaces.
• Vibration and Shock Transmission: Shock loads from track impacts at the front idler and bottom rollers propagate through the track chain to the carrier rollers, requiring robust construction and proper material toughness.
• Track Tension Fluctuations: Variations in track chain tension during operation, turning, and travel across uneven terrain impose cyclic loading on carrier roller mounting points, necessitating adequate structural margin in mounting brackets and hardware.

2.2 Differentiation from Bottom Rollers (Lower Rollers)

For procurement professionals and maintenance personnel, understanding the distinction between carrier rollers and bottom rollers is essential for correct part specification and inventory management:

Bottom rollers (lower rollers) are designed to carry the full operating weight of the excavator plus dynamic loads during excavation cycles, requiring larger diameters, deeper case hardening, and more robust bearing systems. Carrier rollers, by contrast, are lighter-duty components but must maintain reliable operation under high rotational speeds and continuous exposure to falling debris.

2.3 Critical Performance Parameters

The following performance parameters define the operational capability of Hitachi carrier rollers manufactured by CQC TRACK:

• Surface Hardness (Rolling Contact): HRC 52–58 with case depth of 5–10mm, providing optimal wear resistance for the rolling surfaces that contact the track chain link rails.
• Shaft Hardness: HRC 48–55 with case depth of 4–8mm, ensuring wear resistance at bearing journals while maintaining core toughness.
• Material Grade: 50Mn, 40MnB, or 42CrMo alloy steel depending on specific part number and application requirements.
• Seal Type: High-durability floating seal configuration with rubber O-rings and metal-faced sealing elements.
• Lubrication: Grease-charged sealed system requiring no field lubrication.
• Service Life Expectancy: 4,000–8,000 operating hours under normal conditions, depending on ground conditions, operator practices, and maintenance schedules.

3. Metallurgical Composition and Heat Treatment Engineering

3.1 Material Grade Specifications

CQC TRACK manufactures Hitachi cross-reference carrier rollers using premium alloy steel grades selected for their specific mechanical properties in undercarriage applications. The primary material grades employed include:

50Mn Alloy Steel: A manganese-alloyed steel grade offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for 20–24 ton class excavator applications. The material responds well to induction heat treatment, achieving uniform case hardness profiles with minimal distortion. The 50Mn grade is specified for the 9062406, 9089636, and 9178333 carrier roller assemblies.

40MnB Alloy Steel: A boron-alloyed steel grade offering enhanced hardenability and deeper case depth penetration during induction heat treatment. The boron addition improves the material‘s response to heat treatment, enabling consistent mechanical properties across the component cross-section. The 40MnB grade is specified for the 9134245 carrier roller assembly for ZX230 and ZX240 applications.

42CrMo Alloy Steel: A chromium-molybdenum grade offering superior hardenability and impact toughness, typically reserved for higher-duty applications or larger-frame carrier rollers requiring extended service life under severe conditions.

3.2 Forging Process and Grain Structure Optimization

All carrier roller bodies undergo closed-die forging processes that refine the steel’s internal grain structure, eliminate porosity, and align the grain flow with the component’s primary stress paths. The forging process provides several critical advantages over cast or fabricated alternatives:

• Grain Flow Alignment: The forging process aligns the material grain structure with the roller body geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation.
• Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading.
• Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition.
• Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

3.3 Heat Treatment Parameters and Hardness Profiles

Heat treatment is the single most critical manufacturing operation determining carrier roller service life in heavy-duty applications. CQC TRACK employs computer-controlled induction hardening systems and tempering furnaces to achieve deep, uniform case hardness profiles across all roller surfaces in contact with the track chain.

The specific heat treatment parameters for Hitachi carrier rollers are as follows:

The surface hardness of HRC 52–58 provides excellent wear resistance against the hardened track chain link rails, while the deep case depth of 5–10mm ensures that the hardened surface layer remains intact even after significant wear has occurred, extending the useful service life of the component.

The roller shaft is manufactured from high-strength alloy steel, surface heat-treated to HRC 48–55 for enhanced wear resistance at the bearing journals, while maintaining core hardness of HRC 28 or higher to prevent shaft fracture under shock loading. Shaft surfaces are CNC-polished to achieve superior smoothness, reducing friction with the bearing system and extending seal life.

3.4 Friction Welding Technology

The 9062406 and 9178333 carrier roller assemblies employ friction welding technology for joining the shaft to the roller body. This solid-state welding process produces joints with consistent quality and stability while offering significant advantages over traditional arc welding:

• No Filler Material Required: The friction welding process joins components through mechanical friction and compressive force, eliminating the need for filler metals that could introduce contamination or metallurgical inconsistencies.
• Minimal Heat-Affected Zone: The localized heating at the weld interface results in a narrow heat-affected zone with minimal microstructural degradation compared to arc welding.
• Superior Joint Strength: The friction welding process produces joints with mechanical properties comparable to the base material, eliminating the weak points typically associated with fusion welding.
• Environmental Compatibility: Friction welding generates no smoke, no harmful gases, no spatter, no arc flash, and no radiation during operation, making it an environmentally friendly manufacturing technology suitable for ISO 14001 certified facilities.
• Consistent Quality: The computer-controlled friction welding process ensures repeatable joint quality across production volumes, eliminating the variability associated with manual welding operations.

Friction-welded track rollers exhibit superior resistance to wear and a prolonged operational life compared to conventional welded assemblies.

4. Precision Machining and Dimensional Control

4.1 CNC Machining Capabilities

All critical surfaces of Hitachi cross-reference carrier rollers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. CNC machining ensures precision on all critical surfaces, including:

• Roller Body Outer Diameter: The rolling surface that contacts the track chain link rails, machined to precise concentricity and surface finish specifications.
• Flange Profiles: The lateral guiding surfaces that maintain track chain alignment, machined to exact width and angle specifications.
• Shaft Journal Diameters: The bearing surfaces that support the roller body, machined to precise tolerances for proper bearing clearance and lubrication film formation.
• Seal Housing Surfaces: The precision-machined cavities that accommodate the sealing system, machined to exact dimensions for proper seal compression and retention.
• Mounting Hardware Interfaces: The bolt holes, lock pin bores, and retention features that secure the roller assembly to the undercarriage frame.
• Shaft End Features: The locating surfaces and retention grooves that ensure proper positioning and retention of the carrier roller on the undercarriage mounting bracket.

4.2 Key Dimensional Specifications

The dimensional specifications for Hitachi EX200/ZX200-class carrier rollers are as follows:

These dimensions ensure direct interchangeability with Hitachi OEM carrier roller assemblies without requiring modifications to the undercarriage frame or track chain components.

4.3 Surface Finish and Geometric Tolerances

The following surface finish and geometric tolerance specifications are maintained for all Hitachi carrier rollers manufactured by CQC TRACK:

These precision specifications ensure smooth rotation, minimal vibration, and extended bearing and seal life under continuous operation.

5. Sealing System and Bearing Technology

5.1 Floating Seal Configuration

Carrier rollers for heavy-duty excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the extreme conditions encountered in mining and heavy construction operations:

• Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress.
• Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments.
• Dust Seal (Optional): Additional labyrinth or lip-type seal elements that provide initial contamination exclusion, protecting the primary floating seal from large debris.
• Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and roller body, ensuring optimal seal compression and alignment.

The sealing system must resist ingress of abrasive materials common in mining environments—including silica dust, slurry, mud, and fine rock particles—which would otherwise accelerate bearing wear and cause premature failure. The labyrinth-style interior of carrier rollers is specifically engineered to avoid bearing jamming caused by mud and sand intrusion.

5.2 Bearing System Design

Each carrier roller incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. Two primary bearing configurations are employed depending on the specific part number and application:

Hardened Steel Bushing Configuration: The roller body rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions. The bushing material is selected for compatibility with the shaft hardness profile, providing optimal wear characteristics under boundary lubrication conditions.

Anti-Friction Bearing Configuration: Some carrier roller assemblies utilize anti-friction bearings (tapered roller bearings or ball bearings) for reduced rotational friction and higher speed capability. This configuration is typically employed for larger carrier rollers or applications requiring extended service intervals.

The bearing surfaces are finished to precise surface roughness specifications that promote lubricant film retention while minimizing friction during rotation. Proper bearing clearance is maintained to accommodate thermal expansion and deflection under load while preventing excessive radial play that would cause seal damage or roller misalignment.

5.3 Lubrication Retention

Carrier rollers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. The sealed system requires no field lubrication, eliminating the need for regular greasing and reducing maintenance requirements. Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based or polyurea-based grease with extreme pressure (EP) additives.
• Lubricant Volume: Optimized for the specific bearing configuration and seal design.
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling.

6. Quality Assurance and Testing Protocols

6.1 ISO 9001:2015 Certified Manufacturing

Every CQC TRACK carrier roller is manufactured under ISO 9001:2015 certified processes, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards.
• Forging Verification: Inspection of forged blanks for dimensional accuracy, surface quality, and absence of internal defects.
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated testing equipment.
• Machining Dimensional Checks: In-process and final dimensional inspection using CMM and precision gauging equipment.
• Assembly Validation: Verification of proper seal installation, bearing clearance, and lubricant charge.
• Final Testing: Dynamic rotation testing and seal integrity verification.

6.2 Dynamic Rotation Testing

Each finished carrier roller is subjected to a dynamic rotation test that verifies:

• Concentricity: The roller body rotates without radial runout that would cause uneven track chain contact or vibration.
• Smoothness: The bearing system rotates freely without binding, noise, or resistance.
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load.
• Balance: The roller assembly exhibits balanced rotation without vibration at operational speeds.

Any noise, resistance, or oil leakage is identified and corrected before approval for shipment.

6.3 Dimensional Inspection and Certification

Finished rollers undergo comprehensive dimensional inspection using calibrated measurement equipment. Each critical dimension is verified against the OEM engineering specification, with inspection records maintained for full traceability. The dimensional inspection process includes:

• Verification of all critical dimensions against part-specific engineering drawings.
• Measurement of concentricity and runout using precision dial indicators.
• Inspection of seal housing geometry using dedicated gauging.
• Verification of mounting hole positions and thread quality.

Dimensional inspection reports and metallurgical test certifications are available upon request, providing procurement professionals with documented evidence of quality compliance.

6.4 Anti-Corrosion Protection and Packaging

The carrier roller surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the roller from rust and harsh environmental exposure during storage and field operations.

Finished rollers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations.

7. Regional Market Applications: Mining-Focused Engineering

7.1 South America: Heavy Mining Operations in Brazil, Chile, and Peru

The South American mining market presents unique demands for undercarriage components, with operations concentrated in Brazilian iron ore mines, Chilean copper mines, and Peruvian polymetallic operations. The region‘s heavy machinery market is characterized by high demand for excavators in the 20–30 ton class, with Hitachi equipment extensively deployed across mining, quarrying, and major infrastructure projects.

For South American mining customers, CQC TRACK’s Hitachi cross-reference carrier rollers offer a compelling value proposition: OEM-equivalent quality at competitive pricing, with the ability to supply volume quantities through established export channels. The company‘s strategic location in Quanzhou—a premier industrial cluster for heavy machinery manufacturing with proximity to major international ports—enables efficient logistics to Latin American destinations including Brazil, Chile, Peru, Colombia, and Mexico.

7.2 Australia: OEM-Equivalent Quality Standards

The Australian mining industry demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability and industry-standard warranty coverage. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications.

CQC TRACK’s manufacturing processes align with these requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability. For Australian customers operating Hitachi EX200, ZX200, ZX210, ZX225, ZX230, and ZX240 excavators in iron ore, coal, gold, and base metal mining operations, these carrier rollers provide reliable performance in the high-impact, high-abrasion conditions characteristic of Australian mine sites.

7.3 Europe: CE Compliance and Technical Documentation

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms.

CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers. For parts distributors, equipment dealers, and mining service centers throughout Germany, France, Scandinavia, and Eastern Europe, the company provides comprehensive technical data packages including dimensional specifications, material certifications, and heat treatment records.

7.4 Russia and Central Asia: Supply Chain Resilience

Following the realignment of global supply chains, Russian and Central Asian mining operators increasingly source heavy equipment components from Chinese manufacturers. Recent data indicates nearly 70% of Russian enterprises have selected Chinese manufacturing alternatives for Western equipment replacement, with Kazakhstan representing a growing market for Chinese mining equipment exports.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company‘s manufacturing capacity supports volume orders for mining operations requiring regular undercarriage replacement schedules.

7.5 Service Center Network Strategy

CQC TRACK’s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of Mining Service Centres in the major mining areas around the world that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

8. Sourcing Considerations for Procurement Professionals

8.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number. Aftermarket manufacturers typically provide cross-reference tables allowing direct matching of their parts to OEM numbers. The part numbers documented in this analysis—9062406, 9089636, 9134245, and 9178333—serve as primary OEM references for direct cross-reference ordering.

8.2 Quality Documentation Requirements

When sourcing carrier rollers for mining applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification)
• Heat treatment records (hardness profiles and case depth)
• Seal system specifications
• Bearing type and configuration details

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

8.3 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket carrier rollers typically ranges from 6 to 24 months depending on the manufacturer and application. CQC TRACK provides warranty periods aligned with customer requirements and application severity, with carrier rollers warranted for extended service under documented operating conditions. Expected service life varies significantly based on ground conditions, operator practices, and maintenance schedules—ranging from 4,000 to 8,000 operating hours in mining applications with proper maintenance.

8.4 Volume Supply and Lead Times

For mining operations requiring regular undercarriage replacement schedules, consistent supply availability is critical. CQC TRACK maintains finished goods inventory for high-demand part numbers including the 9062406, 9089636, 9134245, and 9178333 assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing.

8.5 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine’s operating costs over its service life. For mining operations managing large fleets of Hitachi excavators, sourcing OEM-equivalent aftermarket carrier rollers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company‘s vertically integrated manufacturing—encompassing forging, heat treatment, CNC machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

9. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

9.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as one of the top undercarriage component manufacturers in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports—the company serves the global market as a proficient OEM and ODM manufacturing partner.

The company‘s evolution from a specialized parts workshop in the late 1990s to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

9.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

9.3 Integrated Production Workflow

The company’s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• In-House Forging: Utilization of premium 50Mn, 40MnB, and 42CrMo alloy steels through strategic control of forging parameters.
• CNC Machining Centers: Battery of modern CNC lathes, milling machines, and drilling centers performing rough and finish machining to ISO 2768-mK tolerances.
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 52–58 with 5–10mm case depth.
• Friction Welding Capability: Computer-controlled friction welding equipment for solid-state joining of shafts to roller bodies.
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing on every finished roller.
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection.

10. Frequently Asked Questions for Mining Operations

Q1: What is the difference between a carrier roller and a bottom roller?

A carrier roller (top roller/upper roller) supports the return section of the track chain and operates under low to moderate loads. A bottom roller (lower roller) carries the full operating weight of the excavator plus dynamic loads and operates under very high loads.

Q2: How do I verify which carrier roller part number my Hitachi excavator requires?

Verify using the machine serial number and the specific OEM part number from the parts manual. Cross-reference tables allow direct matching of aftermarket parts to OEM numbers. The four part numbers covered in this analysis—9062406, 9089636, 9134245, and 9178333—cover the EX200 through ZX240 model range.

Q3: What materials are used in CQC TRACK carrier rollers?

CQC TRACK uses premium 50Mn and 40MnB alloy steel for carrier roller bodies and shafts, induction-hardened to HRC 52–58 with case depth of 5–10mm for optimal wear resistance.

Q4: Are these carrier rollers direct replacements for Hitachi OEM parts?

Yes, all carrier rollers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Hitachi‘s original engineering specifications for dimensional accuracy and mechanical properties.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a carrier roller in mining applications?

Carrier roller service life in mining applications typically ranges from 4,000 to 8,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules.

Q7: Do carrier rollers require field lubrication?

No, carrier rollers manufactured by CQC TRACK are sealed and lubricated at the factory, requiring no field lubrication throughout their service life.

Q8: What is the lead time for volume orders?

Lead times for volume orders of Hitachi carrier rollers typically range from 7–30 days depending on order volume and destination.

11. Conclusion

The four Hitachi OEM cross-reference carrier roller assemblies documented in this analysis—9062406, 9089636, 9134245, and 9178333—represent essential undercarriage components for EX200, ZX200, ZX210, ZX225, ZX230, and ZX240 series hydraulic crawler excavators deployed in mining, quarrying, and heavy construction operations worldwide. CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these components to meet or exceed OEM specifications through advanced closed-die forging, precision CNC machining, computer-controlled induction heat treatment, friction welding technology, and rigorous quality assurance protocols.

For mining operators, equipment dealers, and parts distributors throughout South America, Australia, Europe, Russia, and Central Asia, these carrier rollers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global mining markets.

Procurement professionals are encouraged to verify compatibility using the OEM part numbers provided, request quality documentation including material certifications and dimensional inspection reports, and establish direct supply relationships with specialized manufacturers to optimize total cost of ownership for Hitachi crawler excavator undercarriages.

This technical publication is intended for engineering and procurement professionals in the mining and heavy construction industries. All specifications are subject to verification against current OEM documentation. For current pricing, lead times, and technical support, contact CQC TRACK directly.
