JCB 8056 234/14800 331/12269 332/U1381 Undercarriage Parts – Mini Excavator Track Chain Bottom Roller (Lower Roller) Assembly

Original Manufacturer – CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) – Vertically Integrated Source Factory – Based in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for the JCB 8056 track chain bottom roller assembly—OEM cross-reference part numbers 234/14800, 331/12269, 332/U1381, and JCB8056—engineered specifically for the JCB 8056 series hydraulic mini excavator and its compatible variants across the 8050–8065 platform. These lower roller assemblies, alternatively designated as bottom rollers, track rollers, or lower track wheels, represent the primary load-bearing components within the undercarriage track system of the 5.5–6 ton mini excavator class.

Within the compact undercarriage architecture of the JCB 8056, the bottom roller performs four critical functions: supporting the full static and dynamic operating weight of the excavator during travel and excavation, evenly distributing the machine body weight across the track plates to ensure stable operation, limiting the lateral movement of the tracks to prevent derailment, and absorbing shock loads encountered when traversing uneven, rocky, or demanding terrain. For JCB 8056 excavators—machines widely deployed in urban construction sites, utility trenching, landscaping, residential development, agricultural works, and light infrastructure projects across South America, Australia, Europe, Russia, and Central Asia—the engineering integrity of the bottom roller assembly is fundamental to undercarriage system reliability, machine mobility, operator safety, and total cost of ownership.

This analysis examines the JCB 8056 bottom roller assembly through multiple technical lenses: functional engineering principles of full-machine weight support and load distribution, advanced metallurgical composition with detailed material grade specifications including 40Mn2, 50Mn, 65SiMnB, and QT450-10 ductile iron, sophisticated manufacturing process engineering featuring closed-die hot forging, friction welding technology, and precision CNC machining, comprehensive heat treatment protocols including overall quenching and tempering with intermediate frequency induction hardening achieving Rockwell C 52–56 surface hardness and 4–10 mm case depth, double conical sealing technology with lifelong lubrication design, rigorous quality assurance protocols including ISO 9001:2015 certification, detailed dimensional specifications and undercarriage fitment parameters for JCB 8056 (operating weight 5,760 kg, track width 400 mm), comprehensive installation and preventive maintenance procedures, wear diagnosis and replacement criteria for construction applications, regional market analysis for key global markets, and strategic sourcing considerations for procurement professionals managing JCB mini excavator fleets worldwide.

The JCB 8056 is a 5.76-ton compact hydraulic excavator equipped with a 41 kW (55 hp) Isuzu 4JG1 engine, 400 mm track width, 0.22 m³ bucket capacity, and a ground pressure of 33.3 kPa, designed for versatility and efficiency in confined work environments. The bottom roller—also known as the lower roller or track roller—is a key component of the undercarriage system. Its main function is to support the whole weight of the excavator and evenly distribute the weight of the machine body on the track plate, thereby ensuring the stable operation of the excavator during operation. At the same time, the supporting wheel can also limit the lateral movement of the tracks, prevent the tracks from slipping off, and assist the tracks to slide smoothly on the ground when the machine is turning. It usually consists of a wheel body, axle, bearings and seals made of high-strength alloy steel, with high hardness and wear resistance to adapt to the harsh working conditions of the excavator.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components. The company has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a premier industrial cluster for global earthmoving equipment manufacturing located in Fujian Province, China. The company’s strategic position in Quanzhou provides exceptional access to major international ports including Xiamen and Fuzhou, enabling efficient export logistics to global construction equipment markets. With state-owned land and factory facilities, and fully integrated production lines encompassing forging, casting, and complete undercarriage component production, CQC TRACK represents a vertically integrated source manufacturer of OEM-quality heavy-duty crawler excavator undercarriage parts.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. The company manufactures a full range of JCB-compatible undercarriage parts spanning the entire spectrum from mini excavators to ultra-class machines, including track bottom rollers (lower rollers), track upper rollers (carrier rollers), idlers, sprockets, track chains, and track shoes—all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

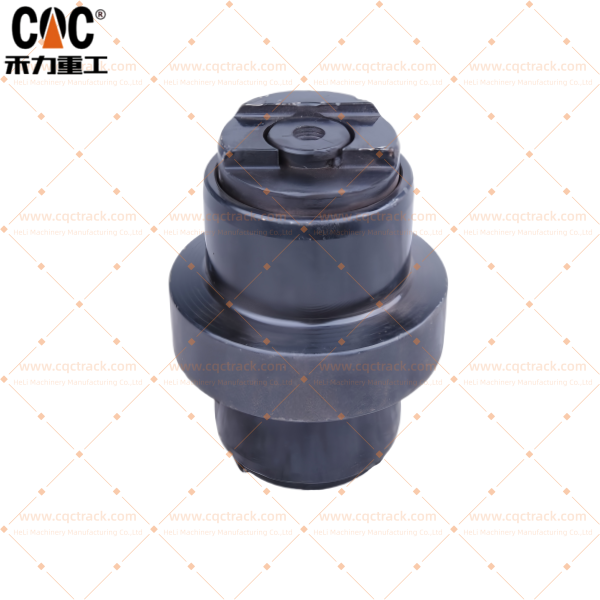

A track bottom roller assembly—technically designated as a lower roller, track roller, or bottom track wheel—is the primary load-bearing passive undercarriage component mounted on the bottom rail of the track frame. Unlike carrier rollers which support only the upper return section of the track chain, bottom rollers carry the full static and dynamic weight of the excavator during all phases of operation: travel, digging, turning, grading, and material handling. The functional importance of the bottom roller cannot be overstated:

• Full Machine Weight Support: The bottom roller supports the whole weight of the excavator and evenly distributes the weight of the machine body on the track plate, ensuring the stable operation of the excavator during operation. When the excavator is stationary, the bottom rollers bear the entire dead weight of the machine; during dynamic operations such as digging, lifting, and traveling, the bottom rollers must accommodate additional impact and inertial loads.
• Load Distribution Across Track System: Bottom rollers ensure smooth track movement and support the weight of the machine as it traverses uneven and demanding terrain. Built to deliver exceptional durability, load-bearing strength, and wear resistance, it plays a crucial role in stabilizing the machine and maintaining optimal ground contact.
• Track Lateral Limitation: The supporting wheel can also limit the lateral movement of the tracks, prevent the tracks from slipping off, and assist the tracks to slide smoothly on the ground when the machine is turning. This lateral guidance function is particularly critical when the excavator operates on slopes or performs counter-rotation turns.
• Shock Load Absorption: When the excavator traverses uneven terrain, rocky surfaces, or construction debris, bottom rollers absorb significant shock loads through their elastic core structure. The heat treatment process provides hardness in high-wear areas while maintaining an elastic core to resist shock and impact loads, preventing catastrophic failure under extreme duty cycles.
• Ground Pressure Management: By distributing the machine weight across multiple contact points, bottom rollers help manage ground pressure. The JCB 8056 achieves a ground pressure of 33.3 kPa (4.8 psi), minimizing ground disturbance while maintaining traction.

The JCB8056 track roller is a key component of the undercarriage system of the JCB8056 excavator. Its main function is to support the whole weight of the excavator and evenly distribute the weight of the machine body on the track plate, so as to ensure the stable operation of the excavator during operation. At the same time, the supporting wheel can also limit the lateral movement of the tracks, prevent the tracks from slipping off, and assist the tracks to slide smoothly on the ground when the machine is turning. It usually consists of wheel body, axle, bearings and seals made of high-strength alloy steel, with high hardness and wear resistance to adapt to the harsh working conditions of the excavator.

1.2 OEM Part Numbers and Compatible Equipment Models

The bottom roller assemblies documented in this analysis correspond to precise JCB OEM engineering specifications, offering direct interchangeability across an extensive range of JCB mini excavator models and even cross-brand compatibility with other manufacturers. The table below provides comprehensive cross-reference data:

234/14800 and 332/U1381 Compatibility: These two part numbers are directly interchangeable and serve identical functions across the JCB 8056 series equipment. Industry sources confirm that the replacement bottom roller for JCB 8050, 8052, 8055 RTS, 8056 OPT 1, 8060, 8065DL, 8065 RTS, 8065RTS, 48z-1, 6003RD, and 8055 ZTS is identified by both OEM numbers 332/U1381 and 234/14800.

331/12269 Compatibility: This part number is referenced in the JCB JS Machines Service Repair Manual, specifically within Section 9 – Track Rollers (Lower), confirming its role as an OEM specification for the JCB 8056 series undercarriage system.

Cross-Brand Compatibility: The part number reference chart for 234/14800 and 332/U1381 extends beyond JCB to include:

Compatible equipment brands and models include:

• Bobcat: 805, 8052, 8055RTS, 8060, 8065
• Volvo: EC45
• Terex: TC50
• Liebherr: 150S, 254, 254S

This extensive cross-brand compatibility makes these bottom roller assemblies valuable inventory items for fleet operators managing mixed equipment fleets across the 5–6 ton mini excavator class.

1.3 JCB 8056 Excavator Specifications and Undercarriage Parameters

The JCB 8056 is a versatile and reliable compact hydraulic excavator designed for a wide range of construction, landscaping, and utility tasks, known for its durability and efficiency. The JCB 8056 is a 5.76-ton compact hydraulic excavator equipped with a 41 kW (55 hp) Isuzu 4JG1 engine, 400 mm track width, and 0.22 m³ bucket capacity, designed for versatility and efficiency in confined work environments.

The table below provides comprehensive technical specifications for the JCB 8056 series based on authoritative sources:

Data sources:

Undercarriage Parameters:

Data sources:

The JCB 8056 features a 400 mm track width, which provides excellent stability for the 5.76-ton operating weight across various ground conditions. The overall track total width is 2,000 mm, and the track total length is 2,531 mm, with a ground contact length of 2,006 mm. The ground contact pressure of 33.3 kPa provides excellent flotation on soft ground conditions while maintaining sufficient traction for excavation operations.

1.4 Undercarriage Component Configuration

The JCB 8056 undercarriage is engineered for durability and stability. Key undercarriage parameters include:

• Track Shoe Width: 400 mm (standard)
• Track Chain Pitch: Industry standard pitch sizes for 5.5–6 ton class excavators typically range from 100 mm to 135 mm depending on configuration
• Track Type: Rubber track (standard) / Steel track (optional)
• Number of Bottom Rollers per Side: Typically 5 per side for the JCB 8056 undercarriage
• Number of Carrier Rollers per Side: Typically 1–2 per side
• Bottom Roller Mounting: Bolted connection to track frame bottom rail

The JCB 8056 is designed for maximum stability with its 400 mm wide track shoes. The undercarriage track frame is an integrated box-type structure that improves strength and rigidity, increasing service life.

1.5 Component Architecture and Assembly Composition

A complete JCB 8056 bottom roller assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the mini excavator undercarriage format:

• Roller Body (Shell): The outer cylindrical component with integral flange(s) that contacts the track chain link rails and bushings. Manufactured from closed-die hot forged alloy steel (40Mn2, 50Mn, or 65SiMnB) with induction-hardened rolling surfaces. The shell is made by hot forging treatment, which obtains superior structure of internal materials and fiber orientation.
• Shaft (Axle): The stationary central component that mounts to the track frame via the bottom roller bracket. Manufactured from high-strength 45# steel with precision-ground bearing journals and sealing surfaces. The high-standard production and processing load-bearing shaft has excellent mechanical properties against wear, high load, and high rigidity, greatly prolonging the service life of the assembly.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the roller body around the stationary shaft. Good quality bimetal bronze bushings are employed to ensure bottom roller quality and longevity. For heavy-duty applications, tapered roller bearings are preferred as they provide better load distribution and minimize wear.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress. High-hardness wear-resistant alloy chrome and molybdenum floating seals, combined with elastic rubber O-rings, ensure reliable sealing performance. Double conical sealing and lifelong lubrication designing enable the track roller to have longer service life and perfect performance in any circumstances.
• Lubrication Charge: The bottom roller is equipped with high-grade seals and internal grease to keep out dirt, mud, and moisture—reducing friction and extending service life.
• Mounting Interface: Bolted connection to the track frame bottom rail.
• Bracket Material: The bottom roller bracket is manufactured from QT450-10 ductile iron, showing exceptional resistance to shock loads and providing excellent structural integrity under continuous operation.
• Flange Configuration: Bottom rollers are available in single-flange and double-flange configurations depending on the specific JCB model application. Single-flange rollers provide basic track guidance, while double-flange rollers offer enhanced lateral stability for applications involving frequent turning or operation on slopes. For JCB 8056 applications, the standard configuration is single-flange.

2. Metallurgical Composition and Forging Engineering

2.1 Material Grade Specifications

CQC TRACK manufactures JCB cross-reference bottom rollers using premium alloy steel grades selected for their specific mechanical properties in 5–6 ton mini excavator undercarriage applications. The primary material grades employed include:

40Mn2 Alloy Steel: A chromium-manganese alloy offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for mini excavator applications. Industry sources confirm that carrier roller bodies are manufactured with 40Mn2 material through forging processes, achieving surface heat treatment HRC 48–55 with depth up to 5–8 mm. 40Mn2 steel is a medium carbon manganese steel with high strength, plasticity, and wear resistance, and its machinability and heat treatment process performance are also good. The raw material used is national standard 40Mn2 steel. The steel undergoes overall quenching and tempering, as well as intermediate frequency heat treatment.

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. 50Mn steel is widely used in manufacturing crawler machine parts that work under heavy loads, providing excellent wear resistance and impact toughness. After undergoing heat treatment, 50Mn achieves a surface hardness of HRC 48–58 with a hardened depth of 4–6 mm (reaching HRC 45 at this depth), enabling it to deliver exceptional impact resistance and wear resistance even under harsh working conditions. Industry sources list 50Mn as a primary material option for mini excavator bottom rollers.

65SiMnB Alloy Steel: A silicon-manganese-boron alloy steel offering superior hardenability and wear resistance characteristics. The bottom roller for the JCB805 mini excavator is manufactured with material 65SiMnB, providing excellent load-bearing capacity and impact resistance.

45# Shaft Steel: The bottom roller center shaft is manufactured from 45# steel, a high-quality medium carbon structural steel with excellent mechanical properties. The shaft undergoes overall quenching and tempering as well as intermediate frequency heat treatment. The high-standard production and processing load-bearing shaft has excellent mechanical properties against wear, high load, and high rigidity, greatly prolonging the service life of the assembly.

QT450-10 Ductile Iron: The base collar and bracket material is QT450-10 ductile iron, showing exceptional resistance to shock loads and providing excellent structural integrity. QT450-10 is a spheroidal graphite cast iron with minimum tensile strength of 450 MPa and minimum elongation of 10%, providing both strength and ductility for undercarriage mounting applications.

The material grade selection directly determines the bottom roller‘s service life in abrasive environments. For steel parts like bottom rollers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

2.2 Forging Technology: The Manufacturing Foundation

JCB bottom rollers are manufactured using advanced closed-die hot forging techniques. Forging is a manufacturing process that shapes metal using localized compressive forces, typically delivered by a hammer or press. The forging process provides several critical advantages over cast alternatives:

Grain Flow Alignment: The forging process aligns the material grain structure with the bottom roller geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation. This grain flow orientation is particularly important at the flange-to-roller body transition zone where stress concentrations are highest. The forging process creates a superior grain structure essential for handling shock loads. The shell made by hot forging treatment obtains superior structure of internal materials and fiber orientation.

Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading. Cast components may contain internal porosity or inclusions that can serve as crack initiation sites under repeated loading cycles.

Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition. The dense, uniform microstructure of forged steel provides consistent performance across the entire component cross-section.

Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

Closed-Die Hot Forging Process: The bottom roller undergoes a multi-stage hot forging process that includes primary hot forging for initial volume distribution, secondary hot forging for establishing core structural geometry, tertiary hot forging for achieving final dimensional accuracy, and trimming-piercing for eliminating flash and forming any necessary through-holes.

2.3 Friction Welding Technology for Shaft-to-Roller Body Joining

CQC TRACK employs friction welding technology for joining the shaft to the bottom roller body. This solid-state welding process produces joints with consistent quality and stability while offering significant advantages over traditional arc welding:

• No Filler Material Required: The friction welding process joins components through mechanical friction and compressive force, eliminating the need for filler metals that could introduce contamination or metallurgical inconsistencies.
• Minimal Heat-Affected Zone: The localized heating at the weld interface results in a narrow heat-affected zone with minimal microstructural degradation compared to arc welding.
• Superior Joint Strength: The friction welding process produces joints with mechanical properties comparable to the base material, eliminating the weak points typically associated with fusion welding.
• Environmental Compatibility: Friction welding generates no smoke, no harmful gases, no spatter, no arc flash, and no radiation during operation, making it an environmentally friendly manufacturing technology. It is recognized as a green welding technology for the future.
• Consistent Quality: The computer-controlled friction welding process ensures repeatable joint quality across production volumes, eliminating the variability associated with manual welding operations.

2.4 Precision CNC Machining

All critical surfaces of JCB cross-reference bottom rollers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. Key machining operations include:

• Roller Body Outer Diameter Machining: Precision turning of the roller outer diameter to achieve exact dimensional specifications and surface finish for optimal track chain contact.
• Flange Profile Machining: Precision profiling of the integral guide flanges to ensure proper lateral track chain alignment. Flange height must be maintained precisely for proper track guidance.
• Bore Machining: Precision boring of the roller bore to achieve exact bearing clearance specifications.
• Shaft Journal Machining: Precision turning and grinding of the shaft bearing surfaces to achieve exact dimensional tolerances and surface finish. The bottom roller center shaft surface is polished using CNC machine tools to achieve superior smoothness, making the shaft more polished and reducing friction.
• Seal Housing Machining: Precision machining of the seal housing cavities to ensure proper seal compression and alignment.
• Mounting Interface Machining: Precision machining of bolt holes or mounting surfaces for proper attachment to the track frame.

Precision CNC machining ensures dimensionally more accurate components, guaranteeing perfect fitment and smooth installation onto the undercarriage frame. The high-standard production and processing load-bearing shaft has excellent mechanical properties against wear, high load, and high rigidity, greatly prolonging the service life of the assembly.

2.5 Integrated Production Workflow

CQC TRACK‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 40Mn2, 50Mn, 65SiMnB, 45#, and QT450-10 materials through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; forging process creates superior grain structure essential for handling shock loads; the shell is made by hot forging treatment obtaining superior structure of internal materials and fiber orientation
• Friction Welding: Computer-controlled friction welding equipment for solid-state joining of shafts to roller bodies; environmentally friendly welding technology generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined flange profiles and mounting surfaces
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; overall quenching and tempering as well as intermediate frequency heat treatment
• Differential Quenching: Differential quenching or feed-through quenching heat treatment is effective in crack resistance
• Ductile Iron Brackets: Bottom roller brackets manufactured from QT450-10 ductile iron showing exceptional resistance to shock
• Double Conical Sealing: High-durability floating seals with double conical sealing and lifelong lubrication design enabling longer service life and perfect performance in any circumstances
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing and water immersion seal integrity verification on every finished bottom roller
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Bottom Roller Applications

Heat treatment is the single most critical manufacturing operation determining bottom roller service life in construction applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for bottom roller treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for bottom rollers that must withstand dynamic loads and shocks from boulders, debris, and uneven terrain.

3.2 Induction Hardening Specifications

JCB bottom rollers employ induction hardening heat treatment to achieve the required hardness profile on the roller body and shaft surfaces. The raw material used is national standard 40Mn2 steel, which undergoes overall quenching and tempering, as well as intermediate frequency heat treatment.

The specific heat treatment parameters for JCB 8056 bottom rollers are as follows:

Industry sources confirm that bottom rollers manufactured with 50Mn/40MnB material achieve surface hardness of HRC 48–54 with case depth of 4–10 mm. Colors are available in black or yellow.

Both JSB track rollers and carrier rollers have surface hardness of Rockwell C 52–56 and inner surface hardness of Rockwell C 35–38. For premium applications, bottom rollers achieve induction hardened surfaces with 55–60 HRC surface hardness.

Differential quenching or feed-through quenching heat treatment is effective in crack resistance, ensuring that the hardened surface layer remains intact even after significant wear has occurred.

3.3 Through-Hardening and Temper Process

The JCB 8056 bottom roller benefits from through-hardening and temper treatment. The raw material used is national standard 40Mn2 steel. The steel undergoes overall quenching and tempering, as well as intermediate frequency heat treatment. This process ensures uniform hardness distribution across the entire component cross-section, eliminating soft spots that could lead to premature failure.

3.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. After assembly, there is a testing process under water to prove the sealing property of the bottom rollers. Rolling fluency testing is also necessary to finally prove the bottom rollers are ready for duty. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Sealing System and Bearing Technology

4.1 Floating Seal Configuration with Double Conical Technology

Bottom rollers for mini excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the moderate impact and contamination exposure encountered in construction and utility applications:

• Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress. Floating seals consist of two components: a seal ring made of special cast iron and a rubber component (O-ring/gasket). In use, two identical seals make a pair.
• Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments.
• Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and bottom roller body, ensuring optimal seal compression and alignment.
• Double Conical Sealing: Double conical sealing and lifelong lubrication designing enable the track roller to have longer service life and perfect performance in any circumstances.

The sealing system must resist ingress of abrasive materials common in construction environments—including soil, sand, dust, mud, and moisture—which would otherwise accelerate bearing wear and cause premature failure. The bottom roller is equipped with high-grade seals and internal grease to keep out dirt, mud, and moisture—reducing friction and extending service life.

4.2 Bearing System Design

Each bottom roller incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. Two primary bearing configurations are employed:

Hardened Steel Bushing Configuration with Bimetal Technology: The bottom roller rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. Bimetal bushings of the bottom roller are based on steel plate with special alloy sintered on it, providing excellent wear resistance and low friction characteristics. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions.

Tapered Roller Bearing Configuration (Premium): For premium-grade bottom rollers, tapered roller bearings are utilized for reduced rotational friction and extended service intervals. Tapered roller bearings are preferred for heavy-duty applications as they provide better load distribution and minimize wear.

The bottom roller usually consists of wheel body, axle, bearings and seals made of high-strength alloy steel, with high hardness and wear resistance to adapt to the harsh working conditions of the excavator.

4.3 Lifelong Lubrication Design

Bottom rollers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. Double conical sealing and lifelong lubrication designing enable the track roller to have longer service life and perfect performance in any circumstances. The sealed system requires no field lubrication, eliminating the need for regular greasing and reducing maintenance requirements for fleet operators.

Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based grease with extreme pressure (EP) additives
• Lubricant Volume: Optimized for the specific bearing configuration and seal design
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling
• Maintenance-Free Operation: Lifelong lubrication design eliminates field greasing requirements
• Seal Integrity Testing: After assembly, there is a testing process under water to prove the sealing property of the bottom rollers

4.4 Bracket and Base Collar Material

The bottom roller bracket and base collar are manufactured from QT450-10 ductile iron, showing exceptional resistance to shock loads and providing excellent structural integrity under continuous operation. QT450-10 is a spheroidal graphite cast iron with minimum tensile strength of 450 MPa and minimum elongation of 10%, providing both strength and ductility for undercarriage mounting applications. This material choice ensures the mounting structure can withstand the moderate impact forces encountered when the excavator traverses uneven terrain.

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 40Mn2, 50Mn, 65SiMnB, 45#, and QT450-10 materials
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment, including CMM (Coordinate Measuring Machine) and precision gauging
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge
• Final Testing: Dynamic rotation testing and water immersion seal integrity verification

5.2 Dynamic Rotation Testing

Each finished bottom roller is subjected to a dynamic rotation test that verifies:

• Concentricity: The bottom roller rotates without radial runout that would cause uneven track chain contact or vibration
• Smoothness: The bearing system rotates freely without binding, noise, or resistance
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load
• Balance: The bottom roller assembly exhibits balanced rotation without vibration at operational speeds

Any noise, resistance, or oil leakage is identified and corrected before approval for shipment. Rolling fluency testing is also necessary to finally prove the bottom rollers are ready for duty.

5.3 Seal Integrity Testing (Water Immersion Test)

After assembly, there is a testing process under water to prove the sealing property of the bottom rollers. This water immersion test verifies that the floating seal system maintains proper lubricant retention and prevents water ingress under static and dynamic conditions—a critical quality assurance step for components destined for construction operations in wet environments.

5.4 JCB Undercarriage Parts Quality Standards

JCB excavator undercarriage parts are engineered for heavy-duty performance in construction machinery. Designed to enhance durability and operational efficiency, these components are manufactured to meet OEM replacement standards. Key quality features include:

• High-Strength Material Technology: Components utilize high-strength alloy steel construction with premium 40Mn2, 50Mn, and 65SiMnB materials
• Precision-Engineered Design: Precision-machined roller profiles ensure smooth track engagement
• Heavy-Duty Performance: Robust load-bearing capacity handles up to 6 tons of continuous operation in rugged terrains
• Heat Treatment Excellence: Overall quenching and tempering treatment ensures excellent mechanical properties, high strength, and superior wear resistance with good fracture resistance
• Double Conical Sealing: Zero oil leakage and lifelong lubrication ensure reliable operation in any circumstances

5.5 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket bottom rollers varies by manufacturer and application:

Industry sources indicate that bottom rollers manufactured with 50Mn/40MnB material offer a warranty time of 2,000 hours with normal service life of 4,000 hours.

For JCB 8056 bottom rollers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Expected service life for JCB 8056 bottom rollers in construction applications typically ranges from 3,000 to 5,000 operating hours depending on ground conditions, operator practices, and maintenance schedules.

5.6 Anti-Corrosion Protection and Packaging

The bottom roller surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the bottom roller from rust and harsh environmental exposure during storage and field operations. Colors available include black or yellow.

Finished bottom rollers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports (Xiamen, Fuzhou) to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations. Fast delivery is available within 7–30 days depending on order volume and destination.

6. Installation and Preventive Maintenance Procedures

6.1 Pre-Installation Preparation

Proper installation of a bottom roller assembly on a JCB 8056 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Loosen the track adjustment mechanism to relieve track tension.
2. Component Inspection: Before installation, inspect the bottom roller bracket and track frame bottom rail for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Bottom Roller Assembly Inspection: Inspect the new bottom roller assembly for any shipping damage. Verify that the roller rotates freely by hand. Check seal integrity.
4. Hardware Inspection: Inspect all mounting bolts for thread damage or stretching. For heavy-duty applications, use new bolts and washers of grade 10.9 or higher specification.
5. Mounting Interface: Ensure that the bottom roller mounting interface is properly aligned with the track frame bracket. Install the bottom roller mounting hardware to specified torque values using a calibrated torque wrench.
6. Track Chain Engagement: After bottom roller installation, ensure proper track chain engagement with the roller surface before operating the machine.

6.2 Bolt Torque Specifications

For the JCB 8056 class excavator, the following torque specifications apply:

• Mounting Hardware Grade: Class 10.9 or higher for heavy-duty applications
• Bolt Torque Range: 100–200 Nm depending on bolt size and configuration (consult JCB service manual for model-specific specifications)
• Torque Pattern: Staggered (criss-cross) pattern applied in three progressive stages
• Anti-Seize Compound: Apply high-quality anti-seize compound to bolt threads before installation to prevent galling and ensure accurate torque readings
• Re-Torque Requirement: After 2–4 hours of operation, re-torque the bottom roller mounting bolts to the specified value to account for initial seating and thermal expansion

6.3 Track Tension Adjustment Procedure

After bottom roller installation, proper track tension must be established according to JCB 8056 specifications. The general procedure for 5–6 ton excavators is as follows:

Step 1: Preparation – Perform check and adjustment on level and firm ground. Run the engine at low idle, then move the machine forward for a distance equal to the track length on ground, and slowly stop the machine.

Step 2: Measurement – Measure the track sag as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller.

Step 3: Standard Range Verification – For 5–6 ton class excavators, the proper track sag is typically 10–25 mm (0.4–1.0 in). If the deflection is out of the standard range, adjust it accordingly.

Step 4: Adjusting Track Tension – To increase track tension, pump grease through the track adjuster grease fitting using a manual grease pump.

Step 5: Verification – After adjustment, run the engine at low idle, move the machine slowly forward by an amount equal to the length of track on ground, then check the track tension again. If the tension is not correct, adjust it again.

6.4 Critical Tensioning Considerations

The following operational considerations are essential for maximizing undercarriage component life:

• Underfoot Conditions: Adjust track tension based on the underfoot conditions in which the machine is working. Added track tension increases both the load and the wear on all mating components of the undercarriage.
• Wear Consequences: Improperly adjusted track can result in problems and wear on other components. Tight track increases loads, which advances wear on bottom rollers, idlers, sprockets, and chain bushings.
• Regular Monitoring: The wear of pins and bushings of the undercarriage depends on the working condition and soil condition. Check the track tension occasionally and keep it in the standard range.
• Post-Installation Verification: After 2–4 hours of operation, re-check track tension and re-torque any mounting hardware as specified in the JCB service manual to account for initial seating and thermal expansion.

6.5 Preventive Maintenance Best Practices

To extend the lifespan of bottom rollers, industry best practices recommend:

Regular Bolt Tightening: After long-term operation, the mounting bolts of the bottom roller are prone to loosening due to vibration. If the track plate bolts are loose and the machine continues to operate, it may even cause gaps between the track plate and the bolts, leading to cracks in the track plate. Therefore, track bolts and nuts should be regularly inspected and tightened to reduce unnecessary maintenance costs.

Frequent Bottom Roller Inspection: The bottom roller carries the machine‘s weight during travel and excavation, supporting and guiding the machine on the tracks. Frequently check the rollers to ensure they are all functioning properly, preventing serious damage to the track and the rest of the undercarriage system.

Avoid Prolonged Operation on Slopes: Avoid prolonged repeated walking and sudden turning on sloping ground. If the mini excavator repeatedly walks and suddenly turns on sloping ground, the side of the track link will contact the side of the bottom roller and the guide wheel, increasing the degree of wear. Therefore, walking on sloping areas and making sharp turns should be avoided as much as possible. Straight-line travel and wide turns can effectively prevent wear.

Avoid Operating with Non-Functioning Rollers: If continued use occurs when the bottom roller cannot run, it may cause wear on the support wheel and may also cause wear on the chain link. If a roller that cannot run is found, it must be repaired immediately to avoid other failures.

Regular Lubrication Inspection: Although bottom rollers are lifelong lubricated, regular inspection of seal integrity and bearing condition is recommended. Check for visible lubricant leakage around the seal housing.

Cleanliness: Keep the undercarriage clean of mud, debris, and abrasive materials that accelerate seal and bearing wear.

Timely Replacement: Address worn or damaged components promptly to prevent cascade failures. New undercarriage components are sold separately, but we recommend replacing all worn components simultaneously.

7. Wear Diagnosis and Replacement Criteria

7.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing JCB 8056 excavators, early identification of bottom roller wear is essential to prevent secondary damage to track chains, idlers, sprockets, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The bottom roller tread surface (the rolling contact area) wears progressively over time. The bottom roller should be checked frequently. When the tread surface exhibits significant flat spots or wear beyond approximately 2–3 mm below the original diameter, replacement is recommended.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required. Flange height should be verified (standard height for 5–6 ton class rollers) to avoid premature wear.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage.

Uneven Wear Pattern: If one side of the bottom roller shows significantly more wear than the other, this may indicate misalignment between the bottom roller and the track chain or issues with the track frame alignment.

Roller Stiffness: If the bottom roller does not rotate freely by hand, bearing failure or lubrication loss may have occurred.

7.2 Replacement Interval Planning

A well-maintained bottom roller directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the bottom rollers for balanced wear. The economic rationale is straightforward: installing a new track chain on worn bottom rollers will accelerate wear on the new chain‘s link rails and bushings, significantly reducing overall system life.

For fleet operators, the recommended replacement strategy is to replace the bottom rollers as part of a comprehensive undercarriage evaluation whenever the track chain is replaced. Industry best practices recommend replacing wear parts in sets to ensure even wear and prevent premature failure.

For JCB 8056 mini excavators in construction applications, planned undercarriage replacement intervals typically range from 3,000 to 5,000 operating hours depending on ground conditions and maintenance practices.

7.3 Service Manual References

The JCB 8056 Excavators Service Manual contains important repair and technical service information for the safety, operation, and planned maintenance of the JCB Excavators 8056 Model, including sections on:

• Section J – Track and Running Gear
• Technical Data – Steel Track and Rubber Track
• Track Guides
• Track Rollers (Lower)
• Track Rollers (Upper)
• Driven Sprocket

The PPT – JCB JS Machines Service Repair Manual includes specific sections on Carrier Rollers, Track Rollers, Idlers, and Guards, with detailed wear measurement guides. These service manuals provide critical reference data for wear measurement and replacement criteria.

7.4 Track Adjuster Considerations

The Track Adjuster Assembly for the JCB 8056 excavator is a key undercarriage mechanism that maintains proper track chain tension during operation. Although compact in design, the adjuster must sustain continuous pressure changes, resist external contamination, and stabilize the idler movement as the machine navigates uneven terrain. Proper adjustment of the track adjuster directly impacts bottom roller service life. Incorrect track tension—either too tight or too loose—will accelerate wear on all undercarriage components, including bottom rollers, idlers, sprockets, and chain bushings.

8. Regional Market Applications: Construction and Infrastructure Focused

8.1 South America: Brazilian Infrastructure, Chilean Construction, and Argentine Development

The South American construction market presents significant demand for 5–6 ton class excavator components, with operations concentrated in Brazilian infrastructure projects (São Paulo, Rio de Janeiro, Belo Horizonte), Chilean urban development (Santiago, Valparaíso, Concepción), Peruvian construction markets (Lima, Arequipa), and Argentinean infrastructure development (Buenos Aires, Córdoba). JCB 8056 excavators are extensively deployed across these operations for utility work, residential construction, site preparation, and light infrastructure projects. The bottom roller ensures smooth track movement and supports the weight of the machine as it traverses uneven and demanding terrain. Built to deliver exceptional durability, load-bearing strength, and wear resistance, it plays a crucial role in stabilizing the machine and maintaining optimal ground contact.

For South American customers, CQC TRACK‘s JCB cross-reference bottom rollers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports).

8.2 Australia: Residential Construction, Rental Fleet, and Infrastructure

The Australian construction and rental equipment market demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Australian market—including applications in Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, and regional centers—utilizes JCB 8056 excavators for residential construction, utility trenching, landscaping, and site preparation.

JCB 8056 mini excavators are known for their robust build, powerful engine, and advanced hydraulics, making them well-suited for a variety of jobs including digging, grading, and material handling. The undercarriage components for these machines, including bottom rollers, are readily available through Australian parts suppliers.

CQC TRACK‘s manufacturing processes align with Australian requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability.

8.3 Europe: German Construction, French Infrastructure, and UK Development

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. This European Standard applies also to cable excavators, their undercarriage and upper-structure, if intended for use in combination with other equipment or attachment, such as drill rigs, pile driving and extracting equipment and moving equipment.

Germany‘s construction industry (Berlin, Munich, Hamburg, Rhineland), France’s infrastructure sector (Paris, Lyon, Marseille, Lille), the United Kingdom‘s utility and residential construction markets (London, Manchester, Birmingham, Glasgow), and Scandinavia’s construction industry (Stockholm, Oslo, Copenhagen, Helsinki) represent major application zones for JCB 8056 excavators.

The 8056 series offers excellent power-to-weight ratio and a spacious, comfortable cab with low noise and vibration levels, meeting European operator comfort and safety standards. CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

8.4 Russia and Central Asia: Growing Compact Equipment Market

Following the realignment of global supply chains, Russian and Central Asian construction operators increasingly source heavy equipment components from Chinese manufacturers. Russia‘s urban development projects (Moscow, St. Petersburg, Kazan, Yekaterinburg, Novosibirsk), Kazakhstan’s infrastructure growth (Astana, Almaty, Shymkent, Karaganda), Uzbekistan‘s construction sector (Tashkent, Samarkand, Bukhara), and Mongolia’s construction and mining support operations (Ulaanbaatar, Darkhan, Erdenet) represent growing markets for JCB compact excavator components.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company‘s manufacturing capacity supports volume orders for fleet operations requiring regular undercarriage replacement schedules.

8.5 Aftermarket Parts Market Dynamics

The shift from OEM to aftermarket undercarriage components is transforming maintenance practices globally. Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components while slashing prices by 40% on average. High-quality aftermarket components—such as track chains, rollers, sprockets, and idlers—deliver durability and reliability while often costing significantly less than OEM counterparts.

Manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications. Reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

8.6 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. With a full range of JCB-compatible excavator spare parts including track bottom rollers (lower rollers), track upper rollers (carrier rollers), idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the JCB parts catalog. The part numbers documented in this analysis—234/14800, 331/12269, 332/U1381, and JCB8056—serve as primary OEM references for direct cross-reference ordering.

The part number reference chart confirms:

• JCB: 234/14800, 332/U1381
• Volvo: 1180-6139, VOE11806139
• Berco: MU5003, MU5003A, MU5112, MU5178
• ITR: A2605000N00, A2605001N00
• Norson: 5102334

The compatible JCB models include:

• 8050, 8052, 8055 RTS, 8056 OPT 1, 8060, 8065DL, 8065 RTS, 8065RTS, 48z-1, 6003RD, 8055 ZTS

Cross-brand compatible models include:

• Bobcat: 805, 8052, 8055RTS, 8060, 8065
• Volvo: EC45
• Terex: TC50
• Liebherr: 150S, 254, 254S

9.2 Quality Documentation Requirements

When sourcing bottom rollers for construction applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 40Mn2, 50Mn, 65SiMnB, 45#, QT450-10)
• Heat treatment records (hardness profiles: HRC 48–54 or HRC 52–58, case depth: 4–10 mm)
• Mill test certificates for raw material
• Seal system specifications and type (double conical floating seal configuration)
• Bearing type and configuration details (bimetal bushing or tapered roller bearing)
• Bracket material certification (QT450-10 ductile iron)
• Friction welding process certification (if applicable)
• Warranty documentation (12–24 months or 2,000 hours typical)
• CE compliance documentation (for European customers)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

9.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the JCB 8056 bottom roller assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Payment terms include T/T and L/C. Fast delivery is available within 7–30 days after contract confirmation.

Industry sources indicate that replacement bottom rollers for JCB 8050, 8052, 8060, 48z-1, 6003RD, and 8055 ZTS are available with part numbers 332/U1381 and 234/14800.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For construction companies, rental fleet operators, and equipment dealers managing fleets of JCB 8056 excavators, sourcing OEM-equivalent aftermarket bottom rollers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

9.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of bottom rollers, carrier rollers, idlers, sprockets, track links, and complete undercarriage systems for brands including JCB, Caterpillar, Hitachi, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

9.6 JCB Parts Market Overview

JCB excavator parts are in strong demand globally due to the brand’s extensive installed base. The market is characterized by:

• Strong demand for used JCB excavator models and their spare parts
• A growing aftermarket sector for undercarriage components
• Technological innovation in material science and manufacturing processes
• Increasing acceptance of high-quality Chinese-manufactured aftermarket components in global markets
• Large inventory holdings of genuine new parts, new replacement parts, used, and reconditioned parts and components

Chinese suppliers dominate the JCB aftermarket parts market, with a focus on undercarriage, hydraulic, and engine components. Key trade regions include North America, Europe, Asia-Pacific, South America, and the Middle East and Africa.

10. Frequently Asked Questions for Equipment Dealers and Fleet Operators

Q1: What is the function of a bottom roller on a JCB 8056 excavator?

A bottom roller (also called a lower roller or track roller) is a key component of the undercarriage system of the JCB8056 excavator. Its main function is to support the whole weight of the excavator and evenly distribute the weight of the machine body on the track plate, so as to ensure the stable operation of the excavator during operation. At the same time, the supporting wheel can also limit the lateral movement of the tracks, prevent the tracks from slipping off, and assist the tracks to slide smoothly on the ground when the machine is turning.

Q2: How do I verify which bottom roller part number my JCB 8056 excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the JCB parts catalog. The part numbers covered in this analysis—234/14800, 331/12269, 332/U1381, and JCB8056—are directly interchangeable and cover the JCB 8056 series. The part number reference chart confirms that JCB 234/14800 and 332/U1381 are the primary OEM numbers.

Q3: What materials are used in CQC TRACK bottom rollers for JCB excavators?

CQC TRACK uses premium 40Mn2, 50Mn, and 65SiMnB alloy steel for the roller body, 45# steel for the shaft, and QT450-10 ductile iron for the base collar and bracket. The roller body is induction-hardened to HRC 48–54 or HRC 52–58 with case depth of 4–10 mm for optimal wear resistance. The raw material used is national standard 40Mn2 steel, which undergoes overall quenching and tempering as well as intermediate frequency heat treatment.

Q4: Are these bottom rollers direct replacements for JCB OEM parts?

Yes, all bottom rollers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to JCB‘s original engineering specifications for dimensional accuracy and mechanical properties. Original spare part numbers are for comparison purposes only.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly. Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components.

Q6: What is the typical service life of a bottom roller in JCB 8056 applications?

Bottom roller service life in JCB 8056 applications typically ranges from 3,000 to 5,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules. Normal service life is 4,000 hours under typical operating conditions.

Q7: What are the hardness specifications for the JCB 8056 bottom roller?

The bottom roller achieves surface hardness of HRC 48–54 or HRC 52–58 through induction hardening heat treatment, with case depth of 4–10 mm. Both JSB track rollers and carrier rollers have surface hardness of Rockwell C 52–56 and inner surface hardness of Rockwell C 35–38. The bottom roller body material is 40Mn2/50Mn with surface hardness HRC 48–54.

Q8: What is the correct track sag specification for JCB 8056 excavators?

Proper track sag for 5–6 ton class excavators is typically 10–25 mm (0.4–1.0 in) measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Always consult the JCB service manual for model-specific specifications.

Q9: How do I measure bottom roller wear?

The bottom roller should be checked frequently. The bottom roller carries the machine’s weight during travel and excavation, supporting and guiding the machine on the tracks. A roller should be replaced when the tread surface exhibits significant flat spots or wear beyond approximately 2–3 mm below the original diameter. Frequently check the rollers to ensure they are all functioning properly, preventing serious damage to the track and the rest of the undercarriage system.

Q10: What is the lead time for volume orders of JCB bottom rollers?

Lead times for volume orders of JCB bottom rollers typically range from 7–30 days depending on order volume and destination, with fast delivery within 30 days after contract confirmation. Delivery time is 15–30 working days.

Q11: What warranty is provided with these bottom rollers?

Industry sources indicate that bottom rollers manufactured with 50Mn/40MnB material offer a warranty time of 2,000 hours with normal service life of 4,000 hours. Industry-standard warranty coverage for aftermarket bottom rollers typically ranges from 12 to 24 months depending on the manufacturer and application.

Q12: Can these bottom rollers be used on other JCB models besides the 8056?

Yes, these bottom rollers are compatible with an extensive range of JCB compact excavator models including 8050, 8052, 8055 RTS, 8056 OPT 1, 8060, 8065DL, 8065 RTS, 8065RTS, 48z-1, 6003RD, and 8055 ZTS.

Q13: What are the signs that a bottom roller needs replacement?

Signs include visible tread wear beyond 2–3 mm below original diameter, flange thickness reduction beyond 30% of original, seal leakage, abnormal noise during track rotation, and roller stiffness (does not rotate freely). If a roller that cannot run is found, it must be repaired immediately to avoid other failures.

Q14: What maintenance practices extend bottom roller life?

Regular bolt tightening, avoiding prolonged operation on slopes, avoiding operating with non-functioning rollers, regular lubrication inspection, keeping the undercarriage clean of debris, and timely replacement of worn components. New undercarriage components are sold separately, but we recommend replacing all worn components simultaneously.

Q15: What is the weight of the JCB 8056 bottom roller?

Industry sources indicate that the replacement bottom roller for JCB 8050, 8052, 8060, and related models has a weight of approximately 5 kg per piece. Other sources indicate a weight of 12.4 kg/piece for the JCB805 mini excavators bottom roller. Always verify with the supplier for the specific part number.

Q16: How does the aftermarket quality compare to OEM parts?

Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components while slashing prices by 40% on average. Manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a premier supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) partner.

The company operates as a vertically integrated manufacturer of undercarriage parts for excavators and bulldozers, with engineers having extensive experience in producing undercarriage parts. With high quality products and reasonable prices, the company has won a high reputation from clients worldwide.

CQC TRACK manufactures a comprehensive range of undercarriage components spanning the entire spectrum of crawler excavator applications, from 5-ton mini excavators to 300-ton ultra-class machines. The product range includes track bottom rollers (lower rollers), track upper rollers (carrier rollers), idlers, sprockets, track chains, and track shoes for all major brands including JCB, Caterpillar, Hitachi, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

11.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of bottom rollers, carrier rollers, idlers, sprockets, track links, and complete undercarriage systems for brands including JCB, Caterpillar, Hitachi, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

11.3 Integrated Production Workflow

The company’s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 40Mn2, 50Mn, 65SiMnB, 45#, and QT450-10 materials through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; the shell is made by hot forging treatment obtaining superior structure of internal materials and fiber orientation
• Friction Welding Technology: Computer-controlled friction welding equipment for solid-state joining of shafts to roller bodies; environmentally friendly green welding technology generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined flange profiles and mounting surfaces
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; overall quenching and tempering as well as intermediate frequency heat treatment; differential quenching or feed-through quenching heat treatment effective in crack resistance
• Ductile Iron Brackets: Bottom roller brackets manufactured from QT450-10 ductile iron showing exceptional resistance to shock
• Double Conical Sealing: High-durability floating seals with double conical sealing and lifelong lubrication design enabling longer service life and perfect performance in any circumstances
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing, water immersion sealing tests, and rolling fluency testing on every finished bottom roller
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

11.4 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms including T/T and L/C, and fast delivery within 7–30 days after contract confirmation. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

The company‘s focused specialization enables CQC TRACK to deliver components that not only meet but often exceed OEM performance standards. With a full range of JCB-compatible excavator spare parts including track bottom rollers (lower rollers), track upper rollers (carrier rollers), idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

12. Conclusion

The JCB OEM cross-reference track bottom roller assemblies documented in this analysis—234/14800, 331/12269, 332/U1381, and JCB8056—represent essential undercarriage components for JCB 8056 series hydraulic mini excavators deployed in construction sites, utility work, landscaping, residential development, agricultural works, and light infrastructure projects worldwide. As the primary load-bearing passive components supporting the full weight of the machine, these bottom rollers play a critical role in weight distribution, track guidance, shock absorption, ground pressure management, and overall undercarriage system longevity.

The JCB 8056 is a 5.76-ton compact hydraulic excavator equipped with a 41 kW (55 hp) Isuzu 4JG1 engine, 400 mm track width, and 0.22 m³ bucket capacity, designed for versatility and efficiency in confined work environments. For these machines, the bottom roller must provide reliable weight support under demanding conditions—including high static loads, dynamic impact from digging and travel, and continuous abrasive contact with track chains—while maintaining smooth rotation and seal integrity.

The JCB8056 track roller is a key component of the undercarriage system of the JCB8056 excavator. Its main function is to support the whole weight of the excavator and evenly distribute the weight of the machine body on the track plate, so as to ensure the stable operation of the excavator during operation. At the same time, the supporting wheel can also limit the lateral movement of the tracks, prevent the tracks from slipping off, and assist the tracks to slide smoothly on the ground when the machine is turning. It usually consists of wheel body, axle, bearings and seals made of high-strength alloy steel, with high hardness and wear resistance to adapt to the harsh working conditions of the excavator.

The 234/14800 and 332/U1381 part numbers are directly interchangeable and serve the same function across JCB 8056 series equipment. The part number reference chart confirms that JCB 234/14800 and 332/U1381 are the primary OEM numbers, with cross-references to Volvo, Berco, ITR, and Norson parts. The compatible JCB models include an extensive range of compact excavators: 8050, 8052, 8055 RTS, 8056 OPT 1, 8060, 8065DL, 8065 RTS, 8065RTS, 48z-1, 6003RD, and 8055 ZTS. Cross-brand compatible models include Bobcat 805/8052/8055RTS/8060/8065, Volvo EC45, Terex TC50, and Liebherr 150S/254/254S.

The bottom roller ensures smooth track movement and supports the weight of the machine as it traverses uneven and demanding terrain. Built to deliver exceptional durability, load-bearing strength, and wear resistance, it plays a crucial role in stabilizing the machine and maintaining optimal ground contact.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these bottom rollers to meet or exceed OEM specifications through advanced closed-die hot forging technology, friction welding technology for shaft-to-roller body joining, precision CNC machining, computer-controlled induction heat treatment achieving HRC 48–54 or HRC 52–58 surface hardness with 4–10 mm case depth, double conical sealing technology with lifelong lubrication design, differential quenching heat treatment for crack resistance, and rigorous quality assurance protocols including water immersion sealing tests and rolling fluency testing. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global construction markets.

For equipment dealers, rental fleet operators, and end users throughout South America (Brazil, Chile, Peru, Argentina, Colombia), Australia (Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra), Europe (Germany, France, United Kingdom, Scandinavia), and Russia/Central Asia (Moscow, St. Petersburg, Astana, Almaty, Tashkent, Ulaanbaatar), these track bottom rollers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

For fleet managers and maintenance supervisors, implementing a proactive bottom roller inspection and replacement schedule—including regular tread wear measurement, flange geometry verification, seal integrity checks, regular bolt tightening, proper track tension management (10–25 mm sag), and coordinated undercarriage evaluation—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime in mini excavator operations.

New undercarriage components are sold separately, but we recommend replacing all worn components simultaneously. The bottom roller carries the machine‘s weight during travel and excavation, supporting and guiding the machine on the tracks. Frequently check the rollers to ensure they are all functioning properly, preventing serious damage to the track and the rest of the undercarriage system.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the construction, rental, and light infrastructure industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
