Hitachi YA60026928 9096966 9257022 ZX270 ZX280 ZX330 ZX350 Track Carrier Roller Assy – Roller Upper Group

Heavy Duty Excavator Undercarriage Parts – OEM Manufacturer and Factory – CQC TRACK

Technical Abstract

This technical publication provides comprehensive engineering documentation for three Hitachi track carrier roller assemblies—OEM part numbers YA60026928, 9096966, and 9257022—engineered for Hitachi excavator models including the ZX270, ZX280, ZX330, ZX350, and EX300 series. These carrier roller assemblies, alternatively designated as upper rollers, top rollers, or carrier roller groups, represent essential undercarriage components that support and guide the return section of the track chain on 27–35 ton class heavy excavators.

Within the heavy-duty undercarriage architecture of Hitachi ZX270, ZX330, and ZX350 excavators, the carrier roller performs three critical functions: supporting the upper track chain to prevent excessive sagging that would cause chain oscillation and potential derailment, maintaining proper track alignment to reduce edge wear on both chain links and roller tread surfaces, and reducing friction and vibration during continuous operation. The upper roller is designed to hold up the track chain, providing a certain degree of tension and ensuring stable track movement. For Hitachi excavators deployed in mining operations, quarrying, heavy construction, and mass earthmoving across South America, Australia, Europe, Russia, and Central Asia, the engineering integrity of the carrier roller assembly is fundamental to track system reliability, machine mobility, and operational productivity.

This analysis examines these carrier roller assemblies through multiple technical lenses: functional engineering principles of upper track support and guidance, metallurgical composition with detailed material grade specifications including 50Mn alloy steel achieving 45–55 HRC surface hardness, advanced manufacturing process engineering featuring closed-die hot forging, friction welding technology, and precision CNC machining, comprehensive heat treatment protocols including normalizing, quenching, and tempering achieving 8–12 mm case depth, rigorous quality assurance protocols including ISO 9001:2015 certification, detailed dimensional specifications and undercarriage fitment parameters for ZX270/ZX330 undercarriage systems, comprehensive installation and maintenance procedures, wear diagnosis and replacement criteria for mining and heavy construction operations, regional market analysis for key global markets, and strategic sourcing considerations for procurement professionals managing Hitachi heavy excavator fleets worldwide.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over 20 years of specialization in crawler excavator undercarriage components, recognized as one of the top three manufacturers in the Quanzhou region, China—a premier industrial cluster for global earthmoving equipment manufacturing. The company’s strategic position in Quanzhou provides exceptional access to major international ports including Xiamen and Fuzhou, enabling efficient export logistics to global construction and mining markets. The CQCTRACK brand symbolizes dedication to Crawler, Quality, and Commitment that form the foundation of every machine.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. The company manufactures a full range of Hitachi-compatible undercarriage parts including track carrier rollers (upper rollers), track lower rollers, idlers, sprockets, track chains, and track shoes—all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A track carrier roller assembly—technically designated as an upper roller, top roller, or carrier roller group—is a critical passive undercarriage component mounted on the top rail of the track frame. Unlike bottom rollers which carry the full static and dynamic weight of the machine, the carrier roller supports only the return section of the track chain as it travels from the drive sprocket to the front idler. However, its functional importance should not be underestimated for several reasons:

Upper Track Support: The carrier roller supports the upper track chain, preventing excessive sagging that would cause chain oscillation, increased vibration, and potential derailment. The upper roller is to hold up the track chain, so that the track chain has a certain degree of tension.

Track Chain Guidance: Working in concert with the front idler and bottom rollers, the carrier roller maintains proper lateral alignment of the track chain, reducing edge wear on both the chain links and the roller tread surface. Carrier rollers are used in crawler excavators, bulldozers, cranes, and loaders across a wide range of applications including building material shops, machinery repair shops, construction works, and manufacturing plants.

Friction Reduction: By providing low-resistance rolling surfaces for the upper track return section, the carrier roller minimizes parasitic power losses that would otherwise reduce machine efficiency and fuel economy.

Vibration Dampening: The carrier roller absorbs minor shock loads transmitted through the track system, protecting the undercarriage frame and upper machine structures from excessive vibration. Carrier rollers are crucial for maintaining track integrity and supporting the machine’s weight distribution, ensuring operational efficiency and safety during heavy-duty tasks.

1.2 OEM Part Numbers and Compatible Hitachi Excavator Models

The three carrier roller assemblies documented in this analysis correspond to precise Hitachi OEM engineering specifications, offering direct interchangeability across multiple Hitachi excavator models in the 27–35 ton class. The table below provides comprehensive cross-reference data:

YA60026928 Compatibility: The YA60026928 carrier roller is specifically documented for the Hitachi ZX350LCH-5G excavator, a 35-ton class machine. This part number represents a high-strength forged upper carrier roller manufactured with 50Mn alloy steel.

9096966 Compatibility: The HITACHI 9096966 is a carrier roller specifically engineered for the EX300-2 and EX300-5 excavators. This part number represents the EX300 series configuration of the upper roller assembly and is available through major Australian excavator parts suppliers.

9257022 Compatibility: The Hitachi 9257022 upper roller is compatible with an extensive range of ZX/ZAX series excavator models. According to Hitachi’s official selected parts catalog, the 9257022 upper roller is applicable to ZX270 and ZX330 models. Additional industry sources confirm compatibility with ZX270-3, ZX280-5B/5G, ZX300-5A/6, ZX330-3/5A/5B/5G/6, ZX350, EX300-5, EX355, and ZAX330 excavators. This part number has the widest compatibility across the ZX/ZAX series, covering multiple sub-variants across the ZX-3, ZX-5, and ZX-6 generations.

1.3 Hitachi ZX270, ZX330, ZX350, and EX300 Series Excavator Specifications

The Hitachi ZX270, ZX330, ZX350, and EX300-5 represent the 27–35 ton class in the Hitachi product line, offering substantial digging and lifting performance for large-scale mining and construction projects.

Hitachi EX300-2 / EX300-5 Specifications:

The EX300-2 has an operating weight of 28,600 kg with bucket capacity ranging from 1.15 to 1.86 m³. The EX300-2/5 carrier roller is documented with part number 9096966 for both model generations.

Hitachi ZX270 / ZX330 / ZX350 Specifications:

The ZX270 and ZX330 models are directly compatible with the 9257022 upper roller as confirmed by Hitachi’s official parts documentation. The ZX350LCH-5G is compatible with the YA60026928 carrier roller.

1.4 Undercarriage Component Configuration

The Hitachi ZX270/ZX330/EX300-5 undercarriage is engineered for durability and stability. Key undercarriage parameters include:

• Track Shoe Width: 600–800 mm depending on configuration
• Track Chain Pitch: Industry standard pitch sizes for 27–35 ton class excavators typically range from 171 mm to 203 mm depending on configuration
• Number of Bottom Rollers per Side: Typically 8–9 per side
• Number of Carrier Rollers per Side: Typically 2 per side
• Carrier Roller Mounting: Bolted connection to track frame upper rail
• Carrier Roller Position: Located at the top of the undercarriage, supporting the upper track chain and preventing sagging during movement

1.5 Component Architecture and Assembly Composition

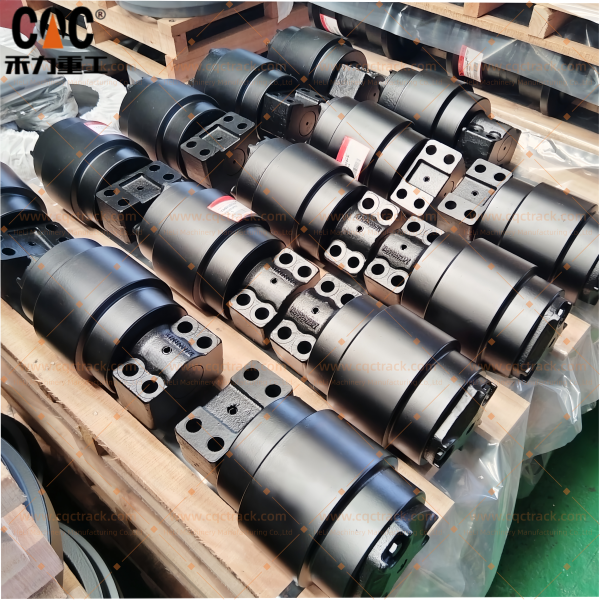

A complete Hitachi ZX270/ZX330 carrier roller assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for heavy excavator undercarriage applications:

• Roller Body (Shell): The outer cylindrical component with integral flange(s) that contacts the upper track chain link rails. Manufactured from closed-die forged alloy steel (50Mn) with induction-hardened rolling surfaces. The shell is made by hot forging treatment, which obtains superior structure of internal materials and fiber orientation.
• Shaft (Axle): The stationary central component that mounts to the track frame bracket. Manufactured from high-strength alloy steel with precision-ground bearing journals and sealing surfaces.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the roller body around the stationary shaft. GETT rollers are maintenance-free, have a long life, and operate perfectly under every working condition.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress. Superior rail wear resistance, capacity to bear high radial loads, large bearing area for bushings, sizable oil capacity, and a perfect seal are the essential features of these rollers.
• Lubrication Charge: Lifetime lubricated roller design requiring no field lubrication, eliminating regular greasing and reducing maintenance requirements for fleet operators. GETT rollers are maintenance-free and have a long life.
• Mounting Interface: Bolted connection to the track frame upper rail via precision-machined bracket.
• Flange Configuration: Carrier rollers are available in single-flange and double-flange configurations depending on the specific Hitachi model application. Single-flange rollers provide basic track guidance, while double-flange rollers offer enhanced lateral stability for applications involving frequent turning or operation on slopes.

2. Metallurgical Composition and Forging Engineering

2.1 Material Grade Specifications

CQC TRACK manufactures Hitachi cross-reference carrier rollers using premium alloy steel grades selected for their specific mechanical properties in 27–35 ton excavator undercarriage applications. The primary material grades employed include:

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. 50Mn steel is widely used in manufacturing crawler machine parts that work under heavy loads, providing excellent wear resistance and impact toughness. The YA60026928 carrier roller is manufactured with 50Mn material, achieving teeth hardness of 45–55 HRC. After undergoing heat treatment, 50Mn achieves a surface hardness of HRC 45–55 with a hardened depth suitable for heavy-duty applications, enabling it to deliver exceptional impact resistance and wear resistance even under harsh working conditions.

42CrMo Alloy Steel (Premium Grade): A chromium-molybdenum forged alloy steel offering exceptional strength, deep hardenability, and superior impact resistance. 42CrMo is a medium carbon alloy structural steel with high strength, high toughness, good hardenability, and excellent fatigue resistance. For demanding mining applications where extended service life is critical, forged 42CrMo provides the highest level of performance. After quenching and tempering, 42CrMo achieves hardness of HRC 48–52, and with induction quenching and tempering, hardness reaches HRC 54–60.

Premium Micro-Alloyed Boron Steel: For premium-grade components, CQC TRACK utilizes micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic control of forging parameters, ensuring optimal grain flow and material density in component blanks, which is fundamental for impact strength and fatigue life.

High-Strength Alloy Steel: The roller body is precision-forged from high-strength alloy steel, ensuring durability under repeated load cycles. With precise machining and surface grinding, each roller guarantees long-lasting performance and reliable upper track support.

The material grade selection directly determines the carrier roller‘s service life in high-abrasion environments. For steel parts like carrier rollers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

2.2 Forging Technology: The Manufacturing Foundation

Hitachi carrier rollers are manufactured using advanced closed-die hot forging techniques. Forging is a manufacturing process that shapes metal using localized compressive forces, typically delivered by a hammer or press. The forging process provides several critical advantages over cast alternatives:

Grain Flow Alignment: The forging process aligns the material grain structure with the carrier roller geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation. This grain flow orientation is particularly important at the flange-to-roller body transition zone where stress concentrations are highest. The forging process creates a superior grain structure essential for handling shock loads.

Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading. Cast components may contain internal porosity or inclusions that can serve as crack initiation sites under repeated loading cycles.

Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition. The dense, uniform microstructure of forged steel provides consistent performance across the entire component cross-section.

Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

Closed-Die Hot Forging Process: The carrier roller undergoes a multi-stage hot forging process that includes primary hot forging for initial volume distribution, secondary hot forging for establishing core structural geometry, tertiary hot forging for achieving final dimensional accuracy, and trimming-piercing for eliminating flash and forming any necessary through-holes. CQC TRACK utilizes premium 52Mn, 55Mn, and 40CrNiMo alloy steels through strategic control of forging parameters, ensuring optimal grain flow and material density in component blanks.

2.3 Friction Welding Technology for Shaft-to-Roller Body Joining

CQC TRACK employs friction welding technology for joining the shaft to the carrier roller body. This solid-state welding process produces joints with consistent quality and stability while offering significant advantages over traditional arc welding:

• No Filler Material Required: The friction welding process joins components through mechanical friction and compressive force, eliminating the need for filler metals that could introduce contamination or metallurgical inconsistencies.
• Minimal Heat-Affected Zone: The localized heating at the weld interface results in a narrow heat-affected zone with minimal microstructural degradation compared to arc welding.
• Superior Joint Strength: The friction welding process produces joints with mechanical properties comparable to the base material, eliminating the weak points typically associated with fusion welding.
• Environmental Compatibility: Friction welding generates no smoke, no harmful gases, no spatter, no arc flash, and no radiation during operation, making it an environmentally friendly manufacturing technology. It is recognized as a green welding technology for the future.
• Consistent Quality: The computer-controlled friction welding process ensures repeatable joint quality across production volumes, eliminating the variability associated with manual welding operations.

2.4 Precision CNC Machining

All critical surfaces of Hitachi cross-reference carrier rollers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. A battery of modern CNC lathes, milling machines, and drilling centers performs rough and finish machining, ensuring dimensional accuracy to ISO 2768-mK standards and consistent interchangeability.

Key machining operations include:

• Roller Body Outer Diameter Machining: Precision turning of the roller outer diameter to achieve exact dimensional specifications and surface finish for optimal track chain contact.
• Flange Profile Machining: Precision profiling of the integral guide flanges to ensure proper lateral track chain alignment.
• Bore Machining: Precision boring of the roller bore to achieve exact bearing clearance specifications.
• Shaft Journal Machining: Precision turning and grinding of the shaft bearing surfaces to achieve exact dimensional tolerances and surface finish.
• Seal Housing Machining: Precision machining of the seal housing cavities to ensure proper seal compression and alignment.
• Mounting Interface Machining: Precision machining of bolt holes or mounting surfaces for proper attachment to the track frame.

Precision CNC machining ensures dimensionally more accurate components, guaranteeing perfect fitment and smooth installation onto the undercarriage frame. With precise machining and surface grinding, each roller guarantees long-lasting performance and reliable upper track support.

2.5 Integrated Production Workflow

CQC TRACK‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 42CrMo, and premium micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; the shell is made by hot forging treatment obtaining superior structure of internal materials and fiber orientation
• Friction Welding Technology: Computer-controlled friction welding equipment for solid-state joining of shafts to roller bodies; environmentally friendly green welding technology generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined flange profiles and mounting surfaces
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; normalizing, quenching, and tempering heat treatment processes
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing and seal integrity verification on every finished carrier roller
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Carrier Roller Applications

Heat treatment is the single most critical manufacturing operation determining carrier roller service life in heavy construction and mining applications. The heat treatment process—primarily normalizing, quenching, and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for carrier roller treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for carrier rollers that must withstand dynamic loads and shocks.

The dedicated heat treatment facility features computer-controlled induction hardening and tempering furnaces, specializing in achieving deep, uniform case hardness profiles that balance wear resistance with impact toughness.

3.2 Hardness Specifications

The specific heat treatment parameters for Hitachi ZX270/ZX330/ZX350 carrier rollers are as follows:

Industry sources confirm that the YA60026928 carrier roller achieves teeth hardness of 45–55 HRC with impact energy of 8–25 J. The heat treatment process includes normalizing, quenching, and tempering to achieve optimal material properties.

For premium applications, Hitachi upper rollers achieve deep heat treatment areas significantly deeper than standard aftermarket parts, ensuring extended wear life even in the most severe working conditions.

3.3 Heat Treatment Quality Control

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. Each unit is tested for tolerance and sealing performance before packaging. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Sealing System and Bearing Technology

4.1 Floating Seal Configuration

Carrier rollers for heavy excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the severe impact and contamination exposure encountered in mining operations:

• Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress.
• Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments.
• Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and carrier roller body, ensuring optimal seal compression and alignment.

Superior rail wear resistance, capacity to bear high radial loads, large bearing area for bushings, sizable oil capacity, and a perfect seal are the essential features of these rollers. The floating seal system keeps contaminants out and lubricant in—even under muddy or sandy conditions. The sealing system must resist ingress of abrasive materials common in mining environments—including silica dust, slurry, mud, and fine rock particles—which would otherwise accelerate bearing wear and cause premature failure.

4.2 Bearing System Design

Each carrier roller incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. Two primary bearing configurations are employed:

Hardened Steel Bushing Configuration: The carrier roller rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions. The large bearing area for bushings ensures even load distribution and extended service life.

Tapered Roller Bearing Configuration (Premium): For premium-grade carrier rollers, tapered roller bearings are utilized for reduced rotational friction and extended service intervals. Tapered roller bearings are preferred for heavy-duty applications as they provide better load distribution and minimize wear.

The bearing surfaces are finished to precise surface roughness specifications that promote lubricant film retention while minimizing friction during rotation. Proper bearing clearance is maintained to accommodate thermal expansion and deflection under load while preventing excessive radial play that would cause seal damage or roller misalignment.

4.3 Lifetime Lubrication

Carrier rollers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. GETT rollers are maintenance-free, have a long life, and operate perfectly under every working condition. The sealed system requires no field lubrication, eliminating the need for regular greasing and reducing maintenance requirements for fleet operators.

Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based or polyurea-based grease with extreme pressure (EP) additives
• Lubricant Volume: Sizable oil capacity for extended service intervals
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling
• Maintenance-Free Operation: Lifetime lubrication design eliminates field greasing requirements
• Seal Integrity Testing: Each unit is tested for tolerance and sealing performance before packaging

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 50Mn, 42CrMo, and premium micro-alloyed boron steels
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment, including CMM (Coordinate Measuring Machine) and precision gauging
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge
• Final Testing: Dynamic rotation testing and seal integrity verification; each unit is tested for tolerance and sealing performance before packaging

5.2 Hitachi Undercarriage Parts Quality Standards

Hitachi excavator undercarriage parts are engineered for heavy-duty performance in construction machinery. Designed to enhance durability and operational efficiency, these components are manufactured to meet OEM replacement standards. Key quality features include:

• High-Strength Material Technology: Components utilize high-strength alloy steel construction with premium 50Mn and 42CrMo materials
• Precision-Engineered Design: Precision-machined roller profiles ensure smooth track engagement
• Heavy-Duty Performance: Robust load-bearing capacity handles up to 35 tons of continuous operation in rugged terrains
• Heat Treatment Excellence: Normalizing, quenching, and tempering treatment ensures excellent mechanical properties, high strength, and superior wear resistance
• Deep Heat Treatment Area: The heat treatment area of selected parts upper rollers is much deeper than aftermarket parts, providing extended wear life
• 1:1 Mechanical Interchangeability: Premium-quality, severe-duty replacement component designed for 1:1 mechanical interchangeability without modification

5.3 Testing and Validation

Each finished carrier roller undergoes comprehensive testing before shipment:

Dynamic Rotation Test: Verifies concentricity, smoothness, and balance without binding, noise, or resistance.

Seal Integrity Testing: Water immersion testing proves sealing property of the carrier rollers under static and dynamic conditions.

Hardness Verification: Calibrated Rockwell hardness testers validate surface hardness of 45–55 HRC.

Dimensional Inspection: CMM and precision gauging equipment verify all critical dimensions against OEM engineering specifications.

5.4 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket carrier rollers varies by manufacturer:

Hitachi Selected Parts upper rollers come with a parts warranty the same as Hitachi Genuine Parts (1 year/unlimited hours). For aftermarket carrier rollers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity.

Expected service life for Hitachi ZX270/ZX330/EX300-5 carrier rollers in mining and heavy construction applications typically ranges from 4,000 to 8,000 operating hours depending on ground conditions, operator practices, and maintenance schedules.

5.5 Anti-Corrosion Protection and Packaging

The carrier roller surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications.

Finished carrier rollers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports (Xiamen, Fuzhou) to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations. Fast delivery is available within 7–30 days depending on order volume and destination.

6. Installation and Preventive Maintenance Procedures

6.1 Pre-Installation Preparation

Proper installation of a carrier roller assembly on a Hitachi ZX270, ZX330, ZX350, or EX300-5 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement.
2. Component Inspection: Before installation, inspect the carrier roller bracket and track frame upper rail for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Carrier Roller Assembly Inspection: Inspect the new carrier roller assembly for any shipping damage. Verify that the roller rotates freely by hand. Check seal integrity.
4. Hardware Inspection: Inspect all mounting bolts for thread damage or stretching. For heavy-duty applications, use new bolts and washers of grade 10.9 or higher specification.
5. Mounting Interface: Ensure that the carrier roller mounting interface is properly aligned with the track frame bracket. Install the carrier roller mounting hardware to specified torque values using a calibrated torque wrench.
6. Track Chain Engagement: After carrier roller installation, ensure proper track chain engagement with the roller surface before operating the machine.

6.2 Bolt Torque Specifications

For the Hitachi ZX270/ZX330/EX300-5 class excavator, the following torque specifications apply:

• Mounting Hardware Grade: Class 10.9 or higher for heavy-duty applications
• Bolt Torque Range: 250–450 Nm depending on bolt size and configuration (consult Hitachi service manual for model-specific specifications)
• Torque Pattern: Staggered (criss-cross) pattern applied in three progressive stages
• Anti-Seize Compound: Apply high-quality anti-seize compound to bolt threads before installation to prevent galling and ensure accurate torque readings
• Re-Torque Requirement: After 2–4 hours of operation, re-torque the carrier roller mounting bolts to the specified value to account for initial seating and thermal expansion

6.3 Track Tension Adjustment Procedure

After carrier roller installation, proper track tension must be established according to Hitachi ZX270/ZX330 specifications. The general procedure for 27–35 ton excavators is as follows:

Step 1: Preparation – Perform check and adjustment on level and firm ground. Run the engine at low idle, then move the machine forward for a distance equal to the track length on ground, and slowly stop the machine.

Step 2: Measurement – Measure the track sag as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller.

Step 3: Standard Range Verification – For 27–35 ton class excavators, the proper track sag is typically 20–40 mm. If the deflection is out of the standard range, adjust it accordingly.

Step 4: Adjusting Track Tension – To increase track tension, pump grease through the track adjuster grease fitting using a manual grease pump.

Step 5: Verification – After adjustment, run the engine at low idle, move the machine slowly forward by an amount equal to the length of track on ground, then check the track tension again. If the tension is not correct, adjust it again.

6.4 Preventive Maintenance Best Practices

To extend the lifespan of carrier rollers, industry best practices recommend:

Regular Inspection: Measure the carrier or upper roller in a number of positions using a caliper. Regular wear measurement identifies wear before it leads to component failure.

Visual Inspection: Visual inspection may reveal excessive wear or damage such as cracks or deformation on the roller’s surface.

Regular Bolt Tightening: After long-term operation, the mounting bolts of the carrier roller are prone to loosening due to vibration. Track bolts and nuts should be regularly inspected and tightened.

Avoid Operating with Non-Functioning Rollers: If continued use occurs when the carrier roller cannot run, it may cause wear on the support wheel and may also cause wear on the chain link. If a roller that cannot run is found, it must be repaired immediately.

Cleanliness: Keep the undercarriage clean of mud, debris, and abrasive materials that accelerate seal and bearing wear.

Timely Replacement: Replacing carrier rollers during scheduled undercarriage inspections or whenever wear signs appear is ideal. Early replacement—before significant damage—maximizes machine uptime and cost efficiency.

7. Wear Diagnosis and Replacement Criteria

7.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing Hitachi ZX270, ZX330, ZX350, and EX300-5 excavators, early identification of carrier roller wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The carrier roller tread surface (the rolling contact area) wears progressively over time. Measure the carrier or upper roller in a number of positions using the caliper. When the tread surface exhibits significant flat spots or wear beyond approximately 2–3 mm below the original diameter, replacement is recommended.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage.

Uneven Wear Pattern: If one side of the carrier roller shows significantly more wear than the other, this may indicate misalignment between the carrier roller and the track chain or issues with the track frame alignment.

Roller Stiffness: If the carrier roller does not rotate freely by hand, bearing failure or lubrication loss may have occurred.

7.2 Wear Measurement Guidelines

The TrackTreads Knowledge Base provides the following wear measurement guidelines for Hitachi carrier rollers:

• Carrier Roller – Caliper: Measure the Carrier Roller in a number of positions using the caliper
• Roller Replacement Criteria: A roller should be replaced when the measurement reaches the figure in the 100% worn column. Regular measurement of tread diameter and flange thickness provides trend data for predictive maintenance planning.

7.3 Replacement Interval Planning

A well-maintained carrier roller directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the carrier rollers for balanced wear. The economic rationale is straightforward: installing a new track chain on worn carrier rollers will accelerate wear on the new chain‘s link rails, significantly reducing overall system life.

For fleet operators, the recommended replacement strategy is to replace the carrier rollers as part of a comprehensive undercarriage evaluation whenever the track chain is replaced. Industry best practices recommend replacing wear parts in sets to ensure even wear and prevent premature failure.

For Hitachi ZX270/ZX330/EX300-5 excavators in mining applications, planned undercarriage replacement intervals typically range from 4,000 to 8,000 operating hours depending on ground conditions and maintenance practices.

8. Regional Market Applications: Mining and Heavy Construction

8.1 South America: Brazilian Iron Ore, Chilean Copper, and Peruvian Polymetallic Operations

The South American mining market presents significant demand for 27–35 ton class excavator components, with operations concentrated in Brazilian iron ore mines (Vale‘s Carajás complex, Minas Gerais operations), Chilean copper mines (Codelco’s Chuquicamata and El Teniente mines, BHP‘s Escondida mine), and Peruvian polymetallic operations (Antamina, Cerro Verde, Las Bambas). Hitachi ZX270, ZX330, ZX350, and EX300-5 excavators are extensively deployed across these mining operations for overburden removal, ore handling, and bench preparation.

For South American mining customers, CQC TRACK’s Hitachi cross-reference carrier rollers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports).

8.2 Australia: Pilbara Iron Ore, Queensland Coal, and Goldfields Operations

The Australian mining industry demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability and industry-standard warranty coverage. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Pilbara region of Western Australia—home to the world‘s largest iron ore mining operations (Rio Tinto, BHP, Fortescue)—represents a primary deployment zone for 27–35 ton class excavators. Queensland’s Bowen Basin coal mines, the Hunter Valley in New South Wales, and the Western Australian goldfields also utilize Hitachi ZX270, ZX330, and EX300-5 excavators for overburden removal, coal extraction, and ore handling.

As Australia‘s leading excavator specific spare parts supplier, parts suppliers have the ability to supply parts and components to suit most makes and models with extensive service exchange component programs. With over 35,000 line items in inventory, major Australian suppliers maintain extensive stock including genuine new parts, new replacement parts, used, and reconditioned parts and components.

CQC TRACK’s manufacturing processes align with Australian requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability.

8.3 Europe: German Quarrying, French Infrastructure, and Scandinavian Mining

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s quarrying industry (Rhineland, Bavaria), France‘s infrastructure sector (Paris, Lyon, Marseille), and the Scandinavian mining industry (LKAB’s iron ore mines in Sweden, the Pyhäsalmi mine in Finland) represent major application zones for Hitachi excavators.

Hitachi Selected Parts upper rollers come with 100% compatibility with Hitachi Genuine Parts and parts warranty same as Hitachi Genuine Parts (1 year/unlimited hours), with comprehensive service and support and worldwide parts availability. CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

8.4 Russia and Central Asia: Siberian Mining, Kazakhstanean Copper, and Mongolian Operations

Following the realignment of global supply chains, Russian and Central Asian mining operators increasingly source heavy equipment components from Chinese manufacturers. Recent data indicates nearly 70% of Russian enterprises have selected Chinese manufacturing alternatives for Western equipment replacement, with Kazakhstan representing a growing market for Chinese mining equipment exports. Russia‘s vast mining industry—including Norilsk Nickel’s operations in Siberia, the Kuzbass coal basin, and various gold mining operations in the Russian Far East—utilizes Hitachi excavators for heavy-duty applications. Kazakhstan‘s copper mining operations (Kazakhmys, KAZ Minerals) and the Oyu Tolgoi copper-gold mine in Mongolia represent additional major deployment zones.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company’s manufacturing capacity supports volume orders for mining operations requiring regular undercarriage replacement schedules.

8.5 Aftermarket Parts Market Dynamics

The shift from OEM to aftermarket undercarriage components is transforming maintenance practices globally. Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components while offering competitive pricing.

Manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications. Reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

8.6 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of Mining Service Centres in the major mining areas around the world that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. With a full range of Hitachi-compatible excavator spare parts including track carrier rollers (upper rollers), track lower rollers, idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the Hitachi parts catalog. The part numbers documented in this analysis—YA60026928, 9096966, and 9257022—serve as primary OEM references for direct cross-reference ordering.

YA60026928 is specifically documented for Hitachi ZX350LCH-5G excavators, manufactured with 50Mn material achieving 45–55 HRC surface hardness.

9096966 is the carrier roller for Hitachi EX300-2 and EX300-5 excavators, confirmed through Australian parts suppliers.

9257022 is the Hitachi upper roller applicable to ZX270 and ZX330 models according to Hitachi’s official selected parts catalog, with additional compatibility for ZX280-5B/5G, ZX300-5A/6, ZX330-3/5A/5B/5G/6, ZX350, EX300-5, EX355, and ZAX330.

9.2 Quality Documentation Requirements

When sourcing carrier rollers for mining applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 50Mn, 42CrMo, or premium micro-alloyed boron steel)
• Heat treatment records (hardness profiles: 45–55 HRC, case depth: 5–12 mm)
• Mill test certificates for raw material
• Seal system specifications and type (floating seal configuration)
• Bearing type and configuration details
• Friction welding process certification (if applicable)
• Warranty documentation (12 months typical)
• CE compliance documentation (for European customers)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

9.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the Hitachi carrier roller assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Payment terms include T/T and L/C. Fast delivery is available within 7–30 days after contract confirmation.

Australian parts suppliers maintain over 35,000 line items in inventory including genuine new parts, new replacement parts, used, and reconditioned parts and components.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For mining operations managing large fleets of Hitachi ZX270, ZX330, ZX350, and EX300-5 excavators, sourcing OEM-equivalent aftermarket carrier rollers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

9.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of carrier rollers, idlers, track rollers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Caterpillar, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

10. Frequently Asked Questions for Mining Operations and Equipment Dealers

Q1: What is the function of a carrier roller on a Hitachi ZX270 or ZX330 excavator?

A carrier roller (also called an upper roller or top roller) supports the upper return section of the track chain, preventing excessive sagging, maintaining proper track alignment, and reducing friction and vibration. The upper roller is to hold up the track chain, so that the track chain has a certain degree of tension.

Q2: How do I verify which carrier roller part number my Hitachi excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the Hitachi parts catalog. The part numbers covered in this analysis—YA60026928, 9096966, and 9257022—cover the ZX270, ZX280, ZX330, ZX350, EX300-2, EX300-5, and related models. YA60026928 is for ZX350LCH-5G; 9096966 is for EX300-2/5; 9257022 is for ZX270/ZX330.

Q3: What is the difference between YA60026928, 9096966, and 9257022?

YA60026928 is specifically for ZX350LCH-5G and is manufactured with 50Mn material. 9096966 is specifically for EX300-2 and EX300-5 models. 9257022 has the widest compatibility, covering ZX270, ZX330, ZX350, and multiple ZX series sub-variants.

Q4: What materials are used in CQC TRACK carrier rollers for Hitachi excavators?

CQC TRACK uses premium 50Mn alloy steel (45–55 HRC surface hardness), 42CrMo alloy steel for premium-grade components, and premium micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic control of forging parameters.

Q5: Are these carrier rollers direct replacements for Hitachi OEM parts?

Yes, all carrier rollers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Hitachi‘s original engineering specifications for dimensional accuracy and mechanical properties. Original spare part numbers are for comparison purposes only.

Q6: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with CQC product certification, with full component traceability from raw material through finished assembly. CQC TRACK is one of the top three manufacturers in the Quanzhou region with over 20 years of manufacturing experience.

Q7: What is the typical service life of a carrier roller in Hitachi ZX270/ZX330 mining applications?

Carrier roller service life in mining applications typically ranges from 4,000 to 8,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules.

Q8: What warranty is provided with these carrier rollers?

Hitachi Selected Parts upper rollers come with a parts warranty the same as Hitachi Genuine Parts (1 year/unlimited hours). Aftermarket carrier rollers from CQC TRACK typically come with 12-month warranty.

Q9: What are the hardness specifications for Hitachi carrier rollers?

Hitachi carrier rollers achieve surface hardness of 45–55 HRC with impact energy of 8–25 J, achieved through normalizing, quenching, and tempering heat treatment.

Q10: What is the correct track sag specification for Hitachi ZX270/ZX330 excavators?

Proper track sag for 27–35 ton class excavators is typically 20–40 mm measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Always consult the Hitachi service manual for model-specific specifications.

Q11: What is the lead time for volume orders of Hitachi carrier rollers?

Lead times for volume orders of Hitachi carrier rollers typically range from 7–30 days depending on order volume and destination, with fast delivery within 30 days after contract confirmation.

Q12: What are the signs that a carrier roller needs replacement?

Common signs include visible tread wear beyond 2–3 mm below original diameter, flange thickness reduction beyond 30% of original, seal leakage, abnormal noise during track rotation, and roller stiffness. Measure the carrier roller in a number of positions using the caliper.

Q13: How does the aftermarket quality compare to OEM parts?

Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components. The heat treatment area of selected parts upper rollers is much deeper than aftermarket parts, providing extended wear life. A well-engineered carrier roller prevents premature wear on track components, improving the overall lifespan of the undercarriage and reducing maintenance downtime.

Q14: What is the weight of these carrier rollers?

Part weights vary by specific configuration. Contact CQC TRACK directly for detailed weight specifications for each part number. Australian parts suppliers maintain over 35,000 line items with detailed specifications available.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region, a premier supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) partner.

Founded in the late 1990s, HELI MACHINERY has grown in parallel with China’s construction machinery boom, systematically evolving from a specialized parts workshop into one of the top three undercarriage component manufacturers in the Quanzhou region. The company’s growth is attributed to a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

The CQCTRACK brand symbolizes dedication to Crawler, Quality, and Commitment that form the foundation of every machine, representing a product line built for resilience, engineered to endure the most abrasive and high-impact environments in mining, quarrying, and major infrastructure projects.

CQC TRACK manufactures a comprehensive range of undercarriage components spanning the entire spectrum of crawler excavator applications, from 5-ton mini excavators to 300-ton ultra-class machines. The product range includes track carrier rollers (upper rollers), track lower rollers, idlers, sprockets, track chains, and track shoes for all major brands including Hitachi, Caterpillar, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

11.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of carrier rollers, idlers, track rollers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Caterpillar, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

11.3 Integrated Production Workflow

The company’s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 42CrMo, and micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; the shell is made by hot forging treatment obtaining superior structure of internal materials and fiber orientation
• Friction Welding Technology: Computer-controlled friction welding equipment for solid-state joining of shafts to roller bodies; environmentally friendly green welding technology generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation
• CNC Machining Centers: A battery of modern CNC lathes, milling machines, and drilling centers performs rough and finish machining, ensuring dimensional accuracy to ISO 2768-mK standards and consistent interchangeability
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; normalizing, quenching, and tempering heat treatment processes
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing and water immersion seal integrity verification on every finished carrier roller; each unit is tested for tolerance and sealing performance before packaging
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

11.4 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms including T/T and L/C, and fast delivery within 7–30 days after contract confirmation. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

The company’s focused specialization enables CQC TRACK to deliver components that not only meet but often exceed OEM performance standards. With a full range of Hitachi-compatible excavator spare parts including track carrier rollers (upper rollers), track lower rollers, idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

12. Conclusion

The three Hitachi OEM cross-reference track carrier roller assemblies documented in this analysis—YA60026928, 9096966, and 9257022—represent essential undercarriage components for ZX270, ZX280, ZX330, ZX350, EX300-2, and EX300-5 series hydraulic excavators deployed in mining, quarrying, heavy construction, and mass earthmoving operations worldwide. As critical passive components supporting the upper track return section, these carrier rollers play a vital role in track chain guidance, friction reduction, vibration dampening, and overall undercarriage system longevity for 27–35 ton heavy excavators.

The YA60026928 carrier roller is specifically engineered for the ZX350LCH-5G excavator, manufactured with 50Mn alloy steel achieving 45–55 HRC surface hardness and impact energy of 8–25 J through normalizing, quenching, and tempering heat treatment.

The 9096966 carrier roller is the OEM-specified component for EX300-2 and EX300-5 excavators, available through major Australian parts suppliers with extensive inventory coverage.

The 9257022 upper roller demonstrates the widest cross-platform compatibility, covering ZX270, ZX330, ZX350, ZX280-5B/5G, ZX300-5A/6, ZX330-3/5A/5B/5G/6, EX300-5, EX355, and ZAX330 according to Hitachi’s official selected parts catalog.

The upper roller is to hold up the track chain, so that the track chain has a certain degree of tension. Superior rail wear resistance, capacity to bear high radial loads, large bearing area for bushings, sizable oil capacity, and a perfect seal are the essential features of these rollers. GETT rollers are maintenance-free, have a long life, and operate perfectly under every working condition.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these carrier rollers to meet or exceed OEM specifications through advanced closed-die hot forging technology, friction welding technology for shaft-to-roller body joining, precision CNC machining to ISO 2768-mK standards, computer-controlled induction heat treatment achieving 45–55 HRC surface hardness with 5–12 mm case depth, and rigorous quality assurance protocols including water immersion sealing tests. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as one of the top three undercarriage component manufacturers in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global mining and construction markets.

For mining operators, equipment dealers, and parts distributors throughout South America (Brazil, Chile, Peru, Argentina, Colombia), Australia (Pilbara, Queensland, New South Wales, Western Australia), Europe (Germany, France, Scandinavia, Eastern Europe), and Russia/Central Asia (Siberia, Kazakhstan, Mongolia), these track carrier rollers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

For fleet managers and maintenance supervisors, implementing a proactive carrier roller inspection and replacement schedule—including regular tread wear measurement using calipers, flange geometry verification, seal integrity checks, proper track tension management (20–40 mm sag), and coordinated undercarriage evaluation—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime in heavy mining and construction operations.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the mining, heavy construction, and earthmoving industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
