Precision Undercarriage Engineering for Hitachi ZX870-3LC Excavators: A Definitive Technical Analysis of the Track Upper / Carrier Roller Assembly (Part Number 4638433) and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of the Upper Roller in Ultra-Class Mining Excavators

The track upper roller—also referred to as the carrier roller or top roller—is a foundational component in the undercarriage architecture of any heavy crawler excavator. Unlike its counterpart the lower (bottom) roller, which bears the full operating weight of the machine against the ground, the upper roller performs a distinctly different yet equally vital function: it supports the return section of the track chain as it travels from the drive sprocket back to the front idler. Positioned high on the track frame, the carrier roller prevents excessive track sag, manages dynamic tension fluctuations during high-speed travel and turning maneuvers, and maintains proper track chain alignment to prevent derailment—particularly critical for 80–90 ton ultra-class machines operating in large-scale mining and quarrying environments.

For operators of Hitachi ZX870-3LC excavators—an 82,000–89,800 kg ultra-class machine widely deployed in large-scale mining, quarrying, heavy construction, and mass earthmoving—the reliability of the track upper roller assembly directly affects track chain life, undercarriage alignment, and overall machine uptime. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

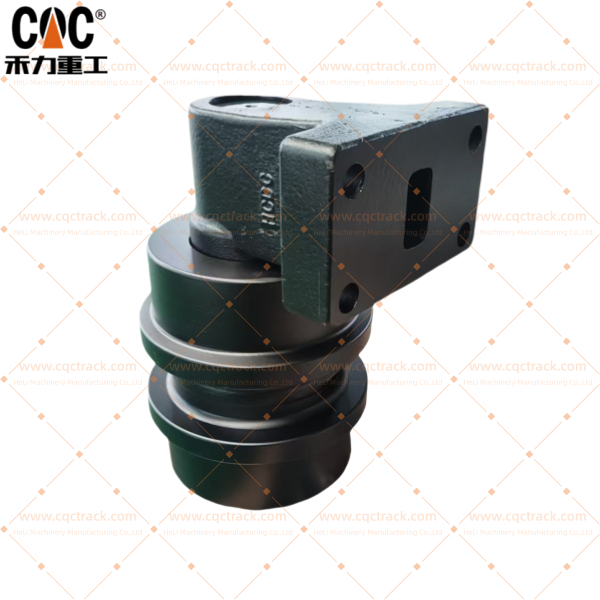

This publication delivers a comprehensive technical examination of the Hitachi OEM part number 4638433, which represents the complete track upper roller / carrier roller assembly for the ZX870-3LC large hydraulic excavator platform. This component is also fully compatible with Hitachi ZX850-3, ZX870-5B/5G, ZX890-5A, EX1200-6, and related excavator platforms across the 80–90 ton class. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.), a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. The Hitachi ZX870-3LC Platform: Engineering for Extreme Mining Applications

2.1 Machine Specifications and Operating Environment

The Hitachi ZX870 is a flagship model in Hitachi‘s renowned ZX series, representing one of the largest and most powerful full-sized excavators in the lineup. Unlike mini or midi excavators designed for compact spaces, the ZX870 is engineered for heavy-duty construction, mining, and large-scale earthmoving operations. The ZX870-3LC variant—where “LC” denotes a long carriage configuration and “3” indicates the series generation—is specifically designed for mining and heavy-duty excavation with enhanced undercarriage stability.

The ZX870-3LC operates with the following verified specifications:

These dimensions reflect its status as a large mining-class excavator requiring ample space for maneuvering and transport logistics.

2.2 Undercarriage Configuration and Carrier Roller Quantities

The ZX870-3LC‘s undercarriage is designed for severe-duty mining applications, featuring an X-shaped heavy-duty track frame, reinforced longitudinal beams, and upgraded track components to withstand the extreme loads encountered in open-pit mining and quarry excavation. The undercarriage architecture incorporates:

The upper roller assembly (Part Number 4638433) is mounted to the upper portion of the track frame, positioned between the front idler and the drive sprocket, where it supports the weight of the returning track chain, guides it in alignment, and dampens vertical oscillations to protect the track frame and main rollers.

3. Part Number 4638433: Identification and Functional Architecture

3.1 OEM Part Number and Application

The Hitachi 4638433 Track Upper Roller / Carrier Roller Assembly is a precision-engineered undercarriage component specifically designed for Hitachi ZAX870, ZX870-3LC, ZX850-3, ZX870-5B/5G, ZX890-5A, and EX1200-6 large hydraulic excavators. This complete upper roller assembly is manufactured to deliver OEM-equivalent fit, form, and function, with 100% interchangeability with the original Hitachi specification.

The 4638433 designation corresponds to Hitachi‘s proprietary engineering drawings, which define precise dimensional tolerances, material grades, heat treatment parameters, and assembly specifications developed through the original equipment manufacturer’s rigorous validation and field testing protocols.

3.2 Functional Responsibilities

The 4638433 track upper roller assembly performs three mission-critical functions that directly impact undercarriage longevity:

1. Upper Track Support and Sag Prevention: The primary function of the carrier roller is to support the returning (upper) section of the track chain as it travels from the drive sprocket back to the front idler. By preventing excessive track sag, the roller reduces vibration during movement and prevents the track chain from contacting the track frame, which would otherwise lead to accelerated wear and potential derailment.

2. Dynamic Tension Management and Track Guidance: Carrier rollers help manage dynamic tension fluctuations that occur as the machine accelerates, decelerates, or turns. This function is particularly important during sharp turns on mining sites, where the upper track experiences significant lateral forces that can cause derailment if not properly guided. The double-flange design securely guides the track chain link, preventing lateral slippage and excessive whip during high-speed travel.

3. Load Distribution and Impact Absorption: The roller assembly absorbs and distributes loads from track chain oscillations and terrain irregularities, protecting the track frame and main roller system from excessive stress and premature failure.

3.3 Component Breakdown

A complete Hitachi 4638433 track upper roller assembly consists of the following subcomponents:

The interior of the carrier roller adopts a labyrinth seal structure combined with imported nitrile rubber oil seals to avoid bearing jamming caused by mud and sand intrusion—a critical feature for mining environments where abrasive contaminants are unavoidable.

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium track upper roller assemblies for Hitachi ZX870-3LC excavators are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The primary materials specified for the 4638433 assembly include:

The roller shaft is manufactured from 42CrMo alloy steel, forged for superior grain flow, with surface heat treatment hardness reaching 48–55 HRC for exceptional wear resistance. The core hardness is maintained above HRC 28 to prevent brittle fracture under impact loads. The roller body is forged from high-carbon alloy steel with good hardenability, ensuring uniform grain structure and elimination of internal voids that could lead to premature failure under continuous mining operations.

4.2 Heat Treatment Specifications

The performance of a track upper roller depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The heat treatment automation line adopts advanced whole quenching techniques to manufacture the roller, meeting the stringent technical requirements for mining-grade components. The roller body undergoes through-hardening and tempering for core strength, combined with high-frequency induction hardening on the running surface to achieve HRC 55–60 surface hardness. This creates a deep, wear-resistant case while maintaining a ductile, shock-absorbing core to prevent brittle fracture under extreme impact loads.

The shaft undergoes tempering combined with medium-frequency surface quenching, with precision CNC polishing after finishing to ensure a smooth surface that minimizes friction and seal wear.

4.3 Bearing and Sealing Specifications

The bearing assembly consists of double-row tapered roller bearings or oversized case-hardened bushing systems, designed to handle the combined radial and axial loads encountered during travel, turning, and counter-rotation operations on 80–90 ton class machines.

The integrated multi-stage sealing system combines three protective elements:

This robust sealing architecture provides a critical barrier against mud, sand, and moisture—common contaminants in mining and quarry environments—significantly extending service life and reducing maintenance frequency.

4.4 Performance Metrics and Service Life

Through dynamic load simulation testing, quality carrier rollers demonstrate load-bearing capacity improvements of up to 20%, effectively dispersing impact pressure when the excavator is moving. The surface high-frequency quenching process combined with embedded lubrication channels greatly reduces abnormal wear in harsh working conditions such as mines, extending overall undercarriage service life by more than 30%.

5. CQC TRACK: A Specialized Manufacturer of Hitachi Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. Founded in the late 1990s, HELI has systematically evolved into one of the top three undercarriage component manufacturers in the Quanzhou region, a premier industrial cluster for heavy machinery manufacturing.

With over 20 years of manufacturing experience, HELI has established itself as a specialized supplier of heavy-duty crawler excavator chassis components, serving Original Equipment Manufacturers (OEMs) of mining machines worldwide. The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

5.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered quality assurance framework, holding ISO 9001:2015 quality system recognition and multiple CQC product certifications. Every CQC TRACK undercarriage component is manufactured under ISO 9001:2015 certified processes, with full component traceability from raw material through finished assembly. As a vertically integrated manufacturer, HELI combines design and engineering expertise with extensive research and development, utilizing advanced manufacturing technologies to develop innovative, reliable, and competitive products that meet the highest quality standards.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK‘s manufacturing strength rests on complete vertical integration and controlled sequential processes:

CQC TRACK‘s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in mining and construction worldwide. The company has documented cross-reference compatibility for its undercarriage components across multiple brands, including Hitachi, Caterpillar, Komatsu, Doosan, Volvo, XCMG, SANY, and Liugong.

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to track systems, the engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

5.5 Hitachi Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for Hitachi excavators, including the ZX800, ZX850, ZX870, ZX890, and ZX900 platforms. Key components include:

CQC TRACK‘s lower roller assemblies for Hitachi ZX850, ZX870, ZX890, and ZX900 excavator platforms are documented in comprehensive technical white papers that provide detailed engineering deconstruction and manufacturing specifications. This same engineering rigor is applied to the 4638433 upper roller assembly, ensuring consistent quality across the entire undercarriage component portfolio.

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing the Hitachi 4638433 track upper roller assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

6.2 Lead Times and Logistics

For the Hitachi 4638433 track upper roller assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new track upper roller assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing and diameter match the track frame bracket
2. Roller width and diameter — Verify dimensions match the track chain link spacing and track frame clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede roller installation
5. Mounting bracket condition — Inspect for wear or damage to the carrier roller saddle

7.2 Installation Procedure Summary

1. Securely support the machine on a firm, level surface with the track chain relieved of tension
2. Remove the existing carrier roller assembly mounting bolts using appropriate torque tools
3. Clean the mounting bracket surface and inspect for damage or wear
4. Position the new track upper roller assembly and install new high-strength mounting bolts (reusing old bolts is a safety risk)
5. Torque bolts to specification (consult Hitachi workshop manual for exact values)
6. Apply grease through the lubrication fitting to pre-lubricate bearings and seals
7. Operate the machine at low speed and inspect for proper roller rotation, seal integrity, and track alignment

7.3 Maintenance Schedule

Regular cleaning of the undercarriage area to remove dirt and debris, followed by lubrication of parts that need lubrication, is essential for minimizing the risk of breakdowns, extending the life of excavator undercarriage parts, and maintaining optimal performance of the equipment.

7.4 Failure Modes and Troubleshooting

7.5 Service Life Expectations

Under normal quarrying and heavy construction conditions, a quality aftermarket track upper roller meeting HRC 55–60 surface hardness specifications with 6–12 mm case depth can achieve 4,000–6,000 operating hours before requiring replacement. In severe mining applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 3,000–4,000 hours.

For optimal undercarriage life, always inspect and replace roller components as a system when significant wear is detected. Mixing worn and new parts can lead to uneven wear, misalignment, and reduced performance. Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing roller longevity.

Hitachi recommends that all upper rollers on both the left and right tracks be replaced at the same time to ensure consistent track alignment and performance.

8. The Importance of Proper Upper Roller Selection for Ultra-Class Mining

The track upper roller is often the most neglected component in an excavator undercarriage system. Unlike bottom rollers, which show obvious signs of wear through reduced ground clearance or visible flat spots, carrier rollers can fail gradually without immediate operational symptoms. However, a failed carrier roller can cause catastrophic track derailment, particularly during high-speed travel or sharp turns on mining sites, leading to extensive undercarriage damage and costly downtime.

For Hitachi ZX870-3LC excavators operating in mining and heavy construction—machines with operating weights approaching 90 tons and daily production demands measured in thousands of tons—selecting high-quality track upper rollers with proper material selection, heat treatment, robust sealing systems, and precision machining is essential.

CQC TRACK‘s 4638433 track upper roller assembly incorporates:

• Forged alloy steel construction (50Mn, 40Mn2, 42CrMo, or equivalent) for superior grain flow and impact resistance
• High-frequency induction-hardened running surface (HRC 55–60) with 6–12 mm case depth for exceptional wear resistance
• Through-hardened core (HRC 28–35) maintaining toughness to absorb shock loads
• High-capacity double-row tapered roller bearings for reliable rotation under extreme loads
• Multi-stage sealing system (labyrinth guards, floating face seals, NBR oil seals) providing robust contamination barrier against mud, sand, and moisture
• ISO 9001:2015 certified manufacturing processes with full component traceability

These engineering features ensure that properly maintained track upper rollers will deliver reliable service throughout their design life in the world‘s most demanding mining environments. As one of the top three undercarriage component manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

9. Conclusion

For operators of Hitachi ZX870-3LC excavators deployed in mining, quarrying, heavy construction, and mass earthmoving—an 80–90 ton ultra-class machine with daily production demands—the track upper roller / carrier roller assembly represented by part number 4638433 is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime. This component is also fully compatible with ZX850-3, ZX870-5B/5G, ZX890-5A, EX1200-6, and related excavator platforms, offering broad application across Hitachi‘s large excavator lineup.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. As one of the top three undercarriage component manufacturers in the Quanzhou region, CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

With material specifications including premium 50Mn, 40Mn2, and 42CrMo alloy steels; heat treatment achieving HRC 55–60 running surface hardness with 6–12 mm case depth and HRC 28–35 core hardness; advanced multi-stage sealing systems (labyrinth guards, floating face seals, NBR oil seals); and ISO 9001:2015 quality certification, CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the Hitachi 4638433 track upper roller assembly directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world‘s toughest operating environments.
