Hitachi 9154166 57679987 AT183365 EX60-5 EX70 ZX70 ZAX70 EX80 ZX80 Track Idler Wheel Assembly – Mini Excavator OEM Quality Spare Part

Manufactured by CQC TRACK – Professional Under-carriage Manufacturer and Factory Based in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for three mission-critical Hitachi front idler assemblies—OEM cross-reference part numbers 9154166, 57679987, and AT183365—engineered specifically for the Hitachi EX60-5, EX70, ZX70, ZAX70, EX80, and ZX80 series hydraulic crawler excavators. These idler wheel assemblies, alternatively designated as front idler groups, idler assemblies, or guide wheels, represent foundational undercarriage components within the 6–8 ton mini excavator class.

Within the mini excavator chassis architecture, the front idler performs four essential functions: guiding the track chain around the undercarriage frame, maintaining proper track tension in conjunction with the track adjuster assembly, supporting the frontal weight of the machine during travel and excavation, and preventing track derailment through precise lateral alignment. For Hitachi EX60-5, EX70, ZX70, ZAX70, EX80, and ZX80 excavators—machines widely deployed in urban construction, utility work, landscaping, residential development, and light infrastructure projects worldwide—the engineering integrity of the front idler assembly is fundamental to track system reliability and machine mobility. The function of an idler is to guide the track links into running smoothly and to prevent dislocation; idlers also carry some weight and therefore influence ground pressure.

This analysis examines each part number through multiple technical lenses: functional engineering principles of track guidance and tension management, metallurgical composition with detailed material grade specifications including 50Mn and 40MnB alloy steels, advanced manufacturing process engineering featuring closed-die hot forging and precision CNC machining, comprehensive heat treatment protocols including medium-frequency induction hardening achieving HRC 48–56 surface hardness with 4–12 mm case depth, rigorous quality assurance protocols including ISO 9001:2015 certification, detailed dimensional specifications and installation parameters for EX60-5/ZX70 undercarriage fitment, comprehensive installation and track tensioning procedures for mini excavator track systems, wear diagnosis and replacement criteria, regional market analysis for South America, Australia, Europe, Russia, and Central Asia, and strategic sourcing considerations for procurement professionals managing Hitachi mini excavator fleets worldwide.

Industry sources confirm that these idler assemblies are applicable to an extensive range of Hitachi excavator models. One source lists compatibility with Hitachi EX70LCK-5, EX80-5, ZX70, ZX75US, ZX80LCK-3, and ZX85USB-3 excavators. Additional sources list the 9154166 idler for EX60-5, EX70, ZX70, and ZAX70 applications, with cross-reference to AT183365 as an alternate OEM part number. Another source confirms that 57679987 is applicable to Hitachi models including ZX55, EX60, ZX70, EX75, EX80, EX100, EX120, EX200, ZX230, ZX240, EX300, and EX330. The Hitachi OEM parts catalog confirms that idler part number 9154166 is applicable to ZX70, ZX70LC, ZX75UR, ZX80LCK, ZX70-3, ZX70LC-3, ZX75UR-3, ZX75US-5A, ZX80LCK-3, ZX85US-3, ZX85US-5A, and ZX70-5A models.

The Hitachi EX60-5 is a 6-ton class excavator with an operating weight of approximately 6,000 kg and engine power of approximately 50 HP, capable of reaching a maximum digging depth of approximately 3.5 meters and a maximum reach of approximately 5.5 meters. The Hitachi ZX70 is a 7-ton class excavator with an operating weight of approximately 6,700 kg, equipped with an Isuzu 4LE2X engine producing 42.4 kW (57.6 PS) and a bucket capacity of 0.33 m³. The ZX70 features a track width of 450 mm, with a transport length of 6.08 m and transport width of 2.26 m. The ZX70 has five track rollers per side and a maximum travel speed of 5 km/h.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components, recognized among the premier undercarriage component manufacturers in the Quanzhou region, Fujian Province—China‘s premier industrial cluster for heavy machinery manufacturing. The company’s strategic position in Quanzhou provides exceptional access to major international ports including Xiamen and Fuzhou, enabling efficient export logistics to global construction equipment markets. The company‘s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. The company warmly welcomes cooperation to build a brilliant long-term relationship with global partners.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A front idler assembly—technically designated as a track idler, guide wheel, idler group, or front idler wheel—is a critical passive undercarriage component mounted at the front of the excavator‘s track frame, opposite the rear-mounted drive sprocket. Unlike the drive sprocket, which is an active component that propels the machine, the front idler is a passive component that rotates freely around a stationary shaft as the track chain moves. However, its functional importance within the mini excavator chassis equals or exceeds that of the drive sprocket for several reasons:

Track Chain Guidance: The front idler is the primary component responsible for maintaining proper track chain alignment as the chain travels around the front of the undercarriage. The idler’s precision-machined flanges prevent lateral chain movement, ensuring that the track remains centered on the undercarriage frame during forward travel, reverse travel, and turning operations. In compact chassis configurations, where space constraints limit undercarriage width, precise track guidance is particularly critical for preventing derailment in confined job sites. The function of an idler is to guide the track links into running smoothly and to prevent dislocation.

Track Tension Management: The idler assembly interfaces directly with the track tensioning system—typically a grease-filled recoil spring and tension cylinder assembly—to maintain optimal track chain tension across varying operating conditions. Proper tension is essential for preventing chain derailment, minimizing vibration, maximizing component service life in the compact chassis format, and ensuring consistent track contact for machine stability. The guide wheel is used to guide the track to rotate correctly to prevent its deviation and derailment, while also acting as a supporting wheel to increase the contact area between the track and the ground.

Frontal Load Support: The idler wheel supports the front portion of the excavator‘s operating weight, transferring loads from the track frame through the idler shaft and bearing system to the track chain and ultimately to the ground surface. For the 6–8 ton mini excavator class, the idler must accommodate the machine’s full frontal weight during dozing, grading, and traversing uneven terrain while maintaining structural integrity under continuous cyclic loading. Idlers also carry some weight and therefore influence ground pressure.

Shock Load Absorption: When the excavator encounters obstacles such as rocks, curbs, or uneven ground, the front idler—working in conjunction with the recoil spring assembly—absorbs impact loads that would otherwise be transmitted directly to the undercarriage frame and upper structure. This shock absorption function is particularly important in urban construction and utility applications where operators frequently traverse mixed terrain conditions with abrupt elevation changes and debris.

1.2 OEM Part Numbers and Compatible Hitachi Excavator Models

The three front idler assemblies documented in this analysis correspond to precise Hitachi OEM engineering specifications, offering direct interchangeability without requiring modifications to the track frame, track adjuster assembly, or track chain components. The table below provides comprehensive cross-reference data:

The 9154166 part number is the primary OEM reference for this idler assembly. Industry sources confirm that the Track Idler 9154166 is a replacement part for John Deere 75C, 75D, 75G, 80, 80C, 85D, 85G as well as Hitachi EX70LCK-5, EX80-5, ZX70, ZX75US, ZX80LCK-3, and ZX85USB-3 excavators. The idler is also cross-referenced with part numbers AT315269, AP36417, and AT183365. The Hitachi OEM parts catalog confirms that idler part number 9154166 is applicable to an extensive range of ZX-series models including ZX70, ZX70LC, ZX75UR, ZX80LCK, ZX70-3, ZX70LC-3, ZX75UR-3, ZX75US-5A, ZX80LCK-3, ZX85US-3, ZX85US-5A, and ZX70-5A.

The 57679987 part number is documented for Hitachi models including ZX55, EX60, ZX70, EX75, EX80, EX100, EX120, EX200, ZX230, ZX240, EX300, and EX330, demonstrating broad cross-platform compatibility across the Hitachi product line from 6-ton mini excavators to 33-ton heavy excavators.

The AT183365 part number serves as an alternate OEM cross-reference for the 9154166 idler assembly. Industry sources confirm that replacement part numbers 9154166, AT315269, AP36417, and AT183365 are all interchangeable for the same applications.

1.3 Component Architecture and Assembly Composition

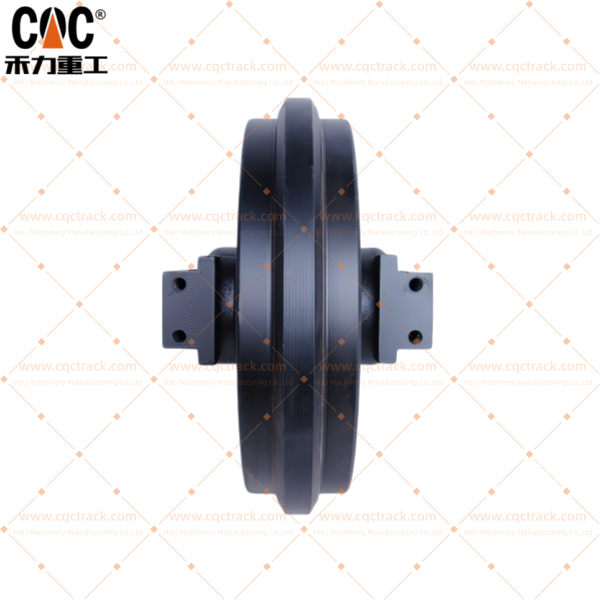

A complete Hitachi 9154166 front idler assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the mini excavator chassis format:

• Idler Wheel Body (Shell): The outer wheel component that contacts the track chain link rails. The idler wheel features precision-machined flanges that maintain lateral track alignment and a hardened tread surface that engages with the chain bushings. For mini excavator applications, the wheel body diameter is proportionally smaller than larger excavator classes, requiring precise dimensional control for proper track engagement. The idler shell is forged from 50Mn or 40MnB alloy steel to ensure optimal wear characteristics.
• Shaft (Axle): The stationary central component that mounts to the track frame via the idler bracket or yoke. The shaft incorporates precision-ground bearing journals and sealing surfaces. The idler main pin shaft is hardened by medium-frequency induction hardening heat treatment to ensure its hardness and resist bending under operational loads.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the idler wheel body around the stationary shaft while supporting the machine‘s frontal loads. The bearing system must accommodate the lower rotational speeds but higher relative load per contact area characteristic of mini excavator undercarriages.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress from mud, dust, water, and abrasive particles. Floating seals consist of two components: a seal ring made of special cast iron and a rubber O-ring/gasket; in use, two identical seals make a pair.
• Lubrication Charge: Grease-based lubricant that maintains the bearing system under proper lubrication conditions throughout the service life.
• Idler Bracket/Yoke: The mounting structure that connects the idler shaft to the track frame and interfaces with the track adjuster recoil spring assembly. For mini excavator chassis, the bracket design must accommodate the reduced frame width while maintaining structural integrity under operational loads.

1.4 Hitachi EX60-5 and ZX70 Excavator Specifications

The Hitachi EX60-5 and ZX70 represent the 6–8 ton class in the Hitachi product line, offering substantial digging performance in a compact package suitable for confined job sites.

Hitachi EX60-5 Specifications:

Data sources:

The EX60-5 is a 6-ton class excavator with an operating weight of approximately 6,000 kg and engine power of approximately 50 HP, capable of reaching a maximum digging depth of approximately 3.5 meters and a maximum reach of approximately 5.5 meters. The engine power is rated at 53 horsepower, providing sufficient power to tackle tough tasks with ease. With its durable undercarriage and reliable components, the Hitachi EX60-5 is built to withstand challenging working conditions and deliver long-lasting performance.

Hitachi ZX70 Specifications:

Data sources:

The Hitachi ZX70 is a compact, versatile machine widely used in construction, landscaping, and utility projects. The ZX70 has an operating weight of approximately 6.3 tons, a track width of 450 mm, five track rollers per side, and a maximum travel speed of 5 km/h. The ZX70-5G achieves an engine power of 42.4 kW (57.6 PS) and a bucket capacity of 0.33 m³.

Hitachi EX80 / ZX80 Specifications:

The EX80 and ZX80 represent the 8-ton class in the Hitachi product line. Industry sources list the 9154166 idler as applicable to Hitachi EX80-5 and ZX80LCK-3 excavators. The ZX80LCK-3 is a compact excavator designed for versatility and efficiency in various construction and landscaping applications.

2. Metallurgical Composition and Forging Engineering

2.1 Material Grade Specifications

CQC TRACK manufactures Hitachi cross-reference front idlers using premium alloy steel grades selected for their specific mechanical properties in mini excavator undercarriage applications. The primary material grades employed include:

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. Industry sources confirm that Hitachi 9154166 idlers are manufactured using 50Mn material. 50Mn steel is widely used in manufacturing crawler machine parts that work under heavy loads, providing excellent wear resistance and impact toughness. After undergoing heat treatment, 50Mn achieves a surface hardness of HRC 48–58 with a hardened depth of 4–6 mm (reaching HRC 45 at this depth), enabling it to deliver exceptional impact resistance and wear resistance even under harsh working conditions.

40MnB Alloy Steel: A boron-alloyed steel grade offering enhanced hardenability and deeper case depth penetration during induction heat treatment. The boron addition improves the material‘s response to heat treatment, enabling consistent mechanical properties across the component cross-section. Industry sources list 40MnB as a material option for the 9154166 idler assembly.

40Mn2 Alloy Steel: A chromium-manganese alloy offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for mini excavator applications. Industry sources list 40Mn2 as a material option for mini excavator undercarriage parts. This material responds well to induction heat treatment, achieving uniform case hardness profiles with minimal distortion.

The material grade selection directly determines the idler‘s service life in abrasive environments. For steel parts like idlers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

2.2 Forging Technology: The Manufacturing Foundation

The 9154166 front idler assembly is manufactured using advanced forging techniques. Forging is a manufacturing process that shapes metal using localized compressive forces, typically delivered by a hammer or press. The forging process provides several critical advantages over cast alternatives:

Grain Flow Alignment: The forging process aligns the material grain structure with the idler wheel geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation. This grain flow orientation is particularly important at the flange-to-wheel body transition zone where stress concentrations are highest. Forged components exhibit superior mechanical properties including higher impact strength, better fatigue resistance, and greater resistance to catastrophic failure under shock loads.

Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading. Cast components may contain internal porosity or inclusions that can serve as crack initiation sites under repeated loading cycles.

Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition. The dense, uniform microstructure of forged steel provides consistent performance across the entire component cross-section.

Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

Closed-Die Hot Forging Process: The idler undergoes a multi-stage hot forging process that includes primary hot forging for initial volume distribution, secondary hot forging for establishing core structural geometry, tertiary hot forging for achieving final dimensional accuracy, and trimming-piercing for eliminating flash and forming any necessary through-holes.

Industry sources confirm that premium idlers are manufactured using forged steel 50Mn or equivalent grades, achieving surface hardness of HRC 48–56 with case depth of 4–12 mm. Differential quenching or through-quench hot heat treatment provides crack resistance and longer life span.

2.3 Precision CNC Machining

All critical surfaces of Hitachi cross-reference front idlers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. Utilizing specialized hardening and tempering techniques ensures products possess outstanding mechanical characteristics, exceptional durability, and enhanced resistance to deformation and fracture.

Key machining operations include:

• Tread Surface Machining: Precision turning of the idler wheel outer diameter to achieve exact dimensional specifications and surface finish for optimal track chain contact
• Flange Profile Machining: Precision profiling of the integral guide flanges to ensure proper lateral track chain alignment
• Bore Machining: Precision boring of the wheel bore to achieve exact bearing clearance specifications
• Shaft Journal Machining: Precision turning and grinding of the shaft bearing surfaces to achieve exact dimensional tolerances and surface finish
• Seal Housing Machining: Precision machining of the seal housing cavities to ensure proper seal compression and alignment
• Mounting Feature Machining: Precision machining of any mounting features, bolt holes, or locating surfaces required for proper idler bracket attachment

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Idler Applications

Heat treatment is the single most critical manufacturing operation determining front idler service life in mini excavator applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for idler treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for idlers that must withstand dynamic loads and shocks.

3.2 Medium-Frequency Induction Hardening

The 9154166 front idler employs medium-frequency induction hardening heat treatment to achieve the required hardness profile. The idler main pin shaft is hardened by medium-frequency induction hardening heat treatment to ensure its hardness, while the idler wheel body is also heat-treated for optimal wear resistance.

The rail surface is hardened through medium-frequency induction to achieve a surface hardness between HRC 48 and HRC 58, with a hardening depth of at least 4–6 mm (reaching HRC 45 at this depth). Premium idlers achieve a surface hardness range of HRC 50 to 56, with a depth of 4 mm to 10 mm providing longer wear life. Professional tempering and medium-frequency quenching treatment ensure sufficient hardness of the core and abrasion resistance of external surfaces.

3.3 Hardness Specifications

Industry sources report the following hardness specifications for Hitachi mini excavator idlers:

Data sources:

Industry sources indicate that the Idler surface hardness ranges from HRC 53 to 58 with depth from 8 mm to 12 mm for premium-grade components. Premium excavator front idlers achieve surface hardness of HRC 52–58 with case depth of 8–12 mm.

The heavy profiles of idler roller rims are carefully heat-treated in depth for extra service life, ensuring that the hardened surface layer remains intact even after significant wear has occurred.

3.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. After assembly, there is a testing process under water to prove the sealing property of the idlers. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Sealing System and Bearing Technology

4.1 Floating Seal Configuration

Front idlers for mini excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the moderate impact and contamination exposure encountered in construction and utility applications:

Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress. Floating seals consist of two components: a seal ring made of special cast iron and a rubber component (O-ring/gasket). In use, two identical seals make a pair.

Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments. High-hardness wear-resistant alloy chrome and molybdenum floating seals, combined with elastic rubber O-rings, ensure reliable sealing performance.

Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and idler wheel body, ensuring optimal seal compression and alignment.

The sealing system must resist ingress of abrasive materials common in construction environments—including soil, sand, dust, and moisture—which would otherwise accelerate bearing wear and cause premature failure. Main uses of floating seals include crawler rollers, travel drives, and idlers of construction and agricultural machinery.

4.2 Bearing System Design

Each front idler incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. The bearing system consists of:

Hardened Steel Bushings: The idler wheel rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions. Good quality bimetal bronze bushings are employed to ensure idler quality and longevity.

Bearing Bracket Material: Brackets of idler roller are made of ductile iron, showing exceptional resistance to shock. The bracket material for Hitachi idlers includes QT450-10 ductile iron.

Double Metal Set: Industry sources indicate that the double metal set for idler bearings uses CuPd10Sn10 alloy, providing excellent wear resistance and low friction characteristics.

The rotating shaft within stationary bushings produces less contact stress and wear, contributing to extended service life and reduced maintenance requirements.

4.3 Lubrication Retention

Front idlers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based grease with extreme pressure (EP) additives
• Lubricant Volume: Optimized for the specific bearing configuration and seal design
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling
• Seal Integrity Testing: After assembly, there is a testing process under water to prove the sealing property of the idlers

5. Dimensional Specifications and Installation Parameters

5.1 Undercarriage Fitment Dimensions

The 9154166, 57679987, and AT183365 front idler assemblies are engineered to precise dimensional specifications for direct fitment to the Hitachi EX60-5, EX70, ZX70, ZAX70, EX80, and ZX80 track frames. While exact dimensional specifications should be verified against OEM documentation, industry sources confirm the following undercarriage parameters for these models:

Hitachi EX60-5 Undercarriage Parameters:

• Track Chain Pitch: Industry standard pitch sizes for 6-ton class excavators typically include 135 mm or 152.4 mm
• Track Width: 400–450 mm depending on configuration
• Track Rollers per Side: Typically 4–5 per side
• Idler Mounting: Bracket-mounted with integrated track adjuster interface

Hitachi ZX70 Undercarriage Parameters:

• Track Width: 450 mm
• Track Gauge: 1,750 mm
• Track Rollers per Side: 5
• Ground Pressure: 4.6 psi (32 kPa)
• Max Travel Speed: 5 km/h (3.1 mph)

Hitachi ZX80LCK-3 Undercarriage Parameters:

• Operating Weight: Approximately 8-ton class
• Track Configuration: Compact excavator undercarriage with 5 track rollers per side typical

5.2 Idler Mounting Configuration

The Hitachi mini excavator undercarriage features a robust track frame design that incorporates:

• Idler with Brackets: The idler assembly mounts to the track frame via robust brackets. The idler is mounted on the frame of the machinery and supports the weight of the machine along with the other components of the undercarriage system.
• Track Adjuster Interface: The idler bracket interfaces directly with the grease-filled track adjuster recoil spring assembly for proper track tension management. The track adjusting mechanism, by pressing against the spring stop, maintains the desired tension on the track assembly by holding the idler and yoke in the forward position.
• Bearing System: The idler incorporates precision bushings for enhanced wear resistance and smooth rotation.

5.3 Installation Torque Considerations

Proper installation of a front idler assembly on a Hitachi EX60-5, EX70, ZX70, or ZX80 excavator requires adherence to manufacturer torque specifications. The following general guidelines apply:

• Mounting Hardware Grade: Class 10.9 or higher for heavy-duty applications
• Bolt Torque Range: 150–300 Nm depending on bolt size and configuration (consult Hitachi service manual for model-specific specifications)
• Torque Pattern: Staggered (criss-cross) pattern applied in three progressive stages
• Anti-Seize Compound: Apply high-quality anti-seize compound to bolt threads before installation to prevent galling and ensure accurate torque readings
• Re-Torque Requirement: After 2–4 hours of operation, re-torque the idler mounting bolts to the specified value to account for initial seating and thermal expansion

The idler is mounted on the frame of the machinery and supports the weight of the machine along with the other components of the undercarriage system.

5.4 Pre-Installation Preparation

Proper installation of a front idler assembly on a Hitachi EX60-5, EX70, ZX70, or ZX80 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder relief valve to allow removal of the track chain.
2. Component Inspection: Before installation, inspect the idler bracket and track frame for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Idler Assembly Inspection: Inspect the new idler assembly for any shipping damage. Verify that the idler rotates freely by hand. Check seal integrity.
4. Bracket and Tensioner Interface: Ensure that the idler bracket is properly aligned with the track frame guide surfaces. Verify that the recoil spring is properly seated and functioning correctly. Lubricate all sliding surfaces with appropriate grease before assembly. Install the idler shaft retaining hardware to specified torque values.

6. Track Tensioning Procedures

6.1 Track Sag Measurement

After idler installation, proper track tension must be established according to Hitachi EX60-5/ZX70 specifications. The general procedure for mini excavators is as follows:

Step 1: Chain Installation – Install the track chain around the undercarriage components (front idler, bottom rollers, carrier rollers, drive sprocket).

Step 2: Tension Application – Apply grease to the track adjuster grease fitting using a manual grease gun (not pneumatic) until the track chain begins to tension.

Step 3: Sag Measurement – The proper track sag for Hitachi EX60-5/ZX70 mini excavators is typically measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Specification: approximately 15–35 mm sag for mini excavator applications.

Step 4: Final Adjustment – Adjust grease volume as needed to achieve proper sag. Over-tensioning will accelerate wear on all undercarriage components. Under-tensioning may cause chain derailment.

Step 5: Test Operation – Slowly rotate the track chain through at least one full revolution while listening for unusual noises and observing chain-to-idler engagement.

6.2 Critical Tensioning Considerations

The following operational considerations are essential for maximizing undercarriage component life:

• Underfoot Conditions: Adjust track tension based on the underfoot conditions in which the machine is working. Added track tension increases both the load and the wear on all mating components of the undercarriage.
• Wear Consequences: Improperly adjusted track can result in problems and wear on other components. Tight track increases loads, which advances wear on rollers, idlers, sprockets, and chain bushings.
• Regular Monitoring: The wear of pins and bushings of the undercarriage depends on the working condition and soil condition. Check the track tension occasionally and keep it in the standard range.
• Post-Installation Verification: After 2–4 hours of operation, re-check track tension and re-torque any idler mounting hardware as specified in the Hitachi service manual to account for initial seating and thermal expansion.

Use your manufacturer’s specifications to adjust the tension properly, ensuring the idler is centered and moving freely along its guide rails. If it‘s too tight, it stresses the entire undercarriage; too loose, and you risk derailment. Inspect the old idler assembly for wear and clean the area before installing the new one to ensure a proper fit. Align and torque the new idler assembly according to manufacturer specifications to prevent future operational issues. Adjust the track tension correctly after installation to enhance performance and extend the lifespan of your excavator.

7. Quality Assurance and Testing Protocols

7.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 50Mn, 40MnB, and 40Mn2 steels
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment, including CMM (Coordinate Measuring Machine) and precision gauging
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge
• Final Testing: Dynamic rotation testing and water immersion seal integrity verification

7.2 Dynamic Rotation Testing

Each finished front idler is subjected to a dynamic rotation test that verifies:

• Concentricity: The idler wheel rotates without radial runout that would cause uneven track chain contact or vibration
• Smoothness: The bearing system rotates freely without binding, noise, or resistance
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load
• Balance: The idler assembly exhibits balanced rotation without vibration at operational speeds

Any noise, resistance, or oil leakage is identified and corrected before approval for shipment. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty.

7.3 Seal Integrity Testing (Water Immersion Test)

After assembly, there is a testing process under water to prove the sealing property of the idlers. This water immersion test verifies that the floating seal system maintains proper lubricant retention and prevents water ingress under static and dynamic conditions—a critical quality assurance step for components destined for construction operations in wet environments.

7.4 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket front idlers typically ranges from 12 to 24 months depending on the manufacturer and application. Industry sources report warranty periods of 12 months for excavator idlers. For Hitachi front idlers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Expected service life for EX60-5/ZX70 idlers ranges from 3,000 to 6,000 operating hours depending on ground conditions, operator practices, and maintenance schedules.

Industry sources indicate that premium excavator front idlers are rated for 2,000+ hours of service life under normal operating conditions.

7.5 Anti-Corrosion Protection and Packaging

The idler surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. Industry sources indicate that excavator idlers are available in black or yellow colors. The coating protects the idler from rust and harsh environmental exposure during storage and field operations.

Finished idlers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports (Xiamen, Fuzhou) to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations. Fast delivery is available within 7–30 days depending on order volume and destination.

8. Wear Diagnosis and Replacement Criteria

8.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing Hitachi EX60-5, EX70, ZX70, and ZX80 excavators, early identification of front idler wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The idler tread surface (the rolling contact area) wears progressively over time. When the tread surface exhibits significant flat spots or wear beyond approximately 2–3 mm below the original diameter, replacement is recommended.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage.

Uneven Wear Pattern: If one side of the idler shows significantly more wear than the other, this may indicate misalignment between the idler and the track chain or issues with the track frame alignment.

Track Tension Irregularities: If track tension cannot be maintained within the standard range even after proper adjustment, idler wear, track adjuster failure, or excessive chain pitch elongation may be the cause.

8.2 Replacement Interval Planning

A well-maintained idler directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn idler will accelerate wear on the new chain‘s bushings and link rails, significantly reducing overall system life. Conversely, installing a new idler on a worn chain will cause accelerated tread and flange wear and premature idler failure.

For fleet operators, the recommended replacement strategy is to replace the idler and track chain as a matched set whenever either component reaches the end of its service life. Industry best practices recommend replacing wear parts in sets to ensure even wear and prevent premature failure. For EX60-5/ZX70 mini excavators in construction applications, planned undercarriage replacement intervals typically range from 3,000 to 6,000 operating hours depending on ground conditions and maintenance practices.

The idler is vital for ensuring the smooth operation of the track links and preventing their displacement. Idler wheels are at the front of the tracks, which provide tension. It is essential that they are in perfect condition to prevent any damage to the tracks.

9. Regional Market Applications

9.1 South America: Urban Construction and Infrastructure Development

The South American construction market presents growing demand for mini excavator components, with operations concentrated in Brazilian infrastructure projects (São Paulo, Rio de Janeiro, Belo Horizonte), Chilean urban development (Santiago, Valparaíso, Concepción), Peruvian construction markets (Lima, Arequipa), and Argentinean infrastructure development (Buenos Aires, Córdoba). The region‘s heavy machinery market is characterized by high demand for 6–8 ton excavators for utility work, residential construction, and site preparation. Hitachi EX60-5, EX70, ZX70, and ZX80 excavators are extensively deployed across these operations.

For South American customers, CQC TRACK’s Hitachi cross-reference front idlers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports). Industry sources confirm that undercarriage components for Hitachi excavators are regularly exported to South America.

9.2 Australia: Residential Construction, Rental Fleet, and Light Infrastructure

The Australian construction and rental equipment market demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Australian mini excavator market—including applications in Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, and regional centers—utilizes Hitachi EX60-5, EX70, and ZX70 excavators for residential construction, utility trenching, landscaping, and site preparation.

Industry sources confirm that Trackspares’ product range can be used as a substitute for most common equipment brands and types, including Hitachi excavators, for the Australian market. ITR Pacific offers a full range of quality aftermarket parts for Hitachi excavators, with fast Australia-wide delivery.

CQC TRACK‘s manufacturing processes align with Australian requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability.

9.3 Europe: Urban Construction and Utility Work

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s construction industry (Berlin, Munich, Hamburg, Frankfurt), France‘s infrastructure sector (Paris, Lyon, Marseille, Lille), the United Kingdom’s utility and residential construction markets (London, Manchester, Birmingham, Glasgow), and Scandinavia‘s construction industry (Stockholm, Oslo, Copenhagen, Helsinki, Reykjavik) represent major application zones for Hitachi EX60-5, EX70, and ZX70 excavators.

Chinese suppliers dominate the Hitachi parts market, with a focus on undercarriage, hydraulic, and engine components. Key trade regions include North America, Europe, and Asia. CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

9.4 Russia and Central Asia: Growing Compact Equipment Market

Following the realignment of global supply chains, Russian and Central Asian construction operators increasingly source heavy equipment components from Chinese manufacturers. Russia‘s urban development projects (Moscow, St. Petersburg, Kazan, Yekaterinburg, Novosibirsk), Kazakhstan’s infrastructure growth (Astana, Almaty, Shymkent, Karaganda), Uzbekistan‘s construction sector (Tashkent, Samarkand, Bukhara), and Mongolia’s construction and mining support operations (Ulaanbaatar, Darkhan) represent growing markets for Hitachi compact excavator components.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company‘s manufacturing capacity supports volume orders for fleet operations requiring regular undercarriage replacement schedules.

9.5 Service Center Network Strategy

CQC TRACK’s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. With a full range of Hitachi-compatible excavator spare parts including track rollers, idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

10. Sourcing Considerations for Procurement Professionals

10.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the Hitachi parts catalog. The part numbers documented in this analysis—9154166, 57679987, and AT183365—serve as primary OEM references for direct cross-reference ordering.

The 9154166 part number has documented compatibility with Hitachi EX60-5, EX70, ZX70, ZAX70, EX80, ZX80, ZX70LC, ZX75UR, ZX80LCK, ZX70-3, ZX70LC-3, ZX75UR-3, ZX75US-5A, ZX80LCK-3, ZX85US-3, ZX85US-5A, ZX70-5A, and John Deere 75C/75D/75G/80/80C/85D/85G models.

The 57679987 part number has documented compatibility with Hitachi ZX55, EX60, ZX70, EX75, EX80, EX100, EX120, EX200, ZX230, ZX240, EX300, and EX330 models.

The AT183365 part number serves as an alternate OEM cross-reference for the 9154166 idler assembly, with compatibility for Hitachi EX70LCK-5, EX80-5, ZX70, ZX75US, ZX80LCK-3, and ZX85USB-3 excavators.

10.2 Quality Documentation Requirements

When sourcing front idlers for construction applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 50Mn, 40MnB, or 40Mn2)
• Heat treatment records (hardness profiles: HRC 48–58, case depth: 4–12 mm)
• Mill test certificates for raw material
• Seal system specifications and type (floating seal configuration)
• Bearing type and configuration details (bimetal bushing specifications)
• Bracket material certification (QT450-10 ductile iron)
• Warranty documentation (12–24 months typical)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance. The Hitachi excavator parts market is characterized by strong demand for used models, a growing aftermarket sector, and technological innovation.

10.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the 9154166, 57679987, and AT183365 idler assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Payment terms include T/T and L/C. Fast delivery is available within 30 days after contract confirmation.

10.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For construction companies, rental fleet operators, and equipment dealers managing fleets of Hitachi mini excavators, sourcing OEM-equivalent aftermarket idlers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

10.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

11. Frequently Asked Questions for Equipment Dealers and Fleet Operators

Q1: What is the function of a front idler on a Hitachi EX60-5 or ZX70 excavator?

A front idler (also called a guide wheel or track idler) guides the track chain, maintains proper track tension in conjunction with the track adjuster assembly, supports the front portion of the machine’s weight, and absorbs shock loads from uneven terrain. The function of an idler is to guide the track links into running smoothly and to prevent dislocation.

Q2: How do I verify which idler part number my Hitachi excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the Hitachi parts catalog. The three part numbers covered in this analysis—9154166, 57679987, and AT183365—cover the EX60-5, EX70, ZX70, ZAX70, EX80, and ZX80 model range. The 9154166 part number is also compatible with John Deere 75C/75D/75G/80/80C/85D/85G excavators.

Q3: What materials are used in CQC TRACK front idlers for Hitachi excavators?

CQC TRACK uses premium 50Mn, 40MnB, and 40Mn2 alloy steel, induction-hardened to HRC 48–58 with case depth of 4–12 mm for optimal wear resistance.

Q4: Are these idlers direct replacements for Hitachi OEM parts?

Yes, all front idlers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Hitachi‘s original engineering specifications for dimensional accuracy and mechanical properties. Original spare part numbers are for comparison purposes only.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a front idler in mini excavator applications?

Front idler service life in EX60-5/ZX70 applications typically ranges from 3,000 to 6,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules. Premium idlers are rated for 2,000+ hours of service life.

Q7: What is the hardness specification for the 9154166 idler?

The idler achieves surface hardness of HRC 48–58 through medium-frequency induction hardening heat treatment, with case depth of 4–12 mm.

Q8: Should I replace the idler when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. Installing a new chain on a worn idler will rapidly accelerate chain bushing and link rail wear.

Q9: What warranty is provided with these idlers?

Industry-standard warranty coverage for aftermarket front idlers typically ranges from 12 to 24 months depending on the manufacturer and application.

Q10: What is the lead time for volume orders of Hitachi idlers?

Lead times for volume orders of Hitachi front idlers typically range from 7–30 days depending on order volume and destination.

Q11: Can these idlers be used on John Deere excavators?

Yes, the 9154166 idler assembly is documented as a replacement part for John Deere 75C, 75D, 75G, 80, 80C, 85D, and 85G excavators.

Q12: How is the idler tested before shipment?

After assembly, there is a testing process under water to prove the sealing property of the idlers. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty.

12. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

12.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM and ODM manufacturing partner.

With over 20 years of manufacturing experience, the company is recognized as one of the top three undercarriage component manufacturers in the Quanzhou region, China—a premier industrial cluster for heavy machinery manufacturing. As a vertically integrated manufacturer with over two decades of specialization, HELI has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

The company manufactures a full range of Hitachi-compatible undercarriage parts, including track rollers, idlers, sprockets, track chains, track shoes, and complete undercarriage systems.

12.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

HELI-CQC manufactures heavy-duty excavator chassis components with advanced forging, heat treatment, and sealing technology for maximum durability.

12.3 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 40MnB, and 40Mn2 alloy steels through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 48–58 with 4–12 mm case depth
• Floating Seal Integration: High-durability floating seals with metal-faced seal rings and rubber O-rings
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing, water immersion sealing tests, and rolling fluency testing on every finished idler
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

12.4 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms including T/T and L/C, and fast delivery within 7–30 days after contract confirmation. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

The product will supply to all over the world, with the company believing in establishing healthy customer relationships and positive interaction for business.

13. Conclusion

The three Hitachi OEM cross-reference front idler assemblies documented in this analysis—9154166, 57679987, and AT183365—represent essential undercarriage components for EX60-5, EX70, ZX70, ZAX70, EX80, and ZX80 series hydraulic crawler excavators deployed in urban construction, utility work, landscaping, residential development, and light infrastructure projects worldwide. As the primary track guidance and tension management component at the front of the undercarriage, the idler assembly plays a critical role in track chain alignment, load distribution, shock absorption, and overall undercarriage system longevity.

The Hitachi EX60-5 is a 6-ton class excavator with an operating weight of approximately 6,000 kg and engine power of approximately 50 HP. The Hitachi ZX70 is a 7-ton class excavator with an operating weight of approximately 6,700 kg, five track rollers per side, and a maximum travel speed of 5 km/h. For these machines, the front idler must provide reliable service under demanding conditions while accommodating the space constraints of the compact chassis format. The function of an idler is to guide the track links into running smoothly and to prevent dislocation; idlers also carry some weight and therefore influence ground pressure.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these idlers to meet or exceed OEM specifications through advanced forging technology, precision CNC machining, computer-controlled medium-frequency induction heat treatment achieving HRC 48–58 surface hardness with 4–12 mm case depth, high-durability floating seals, and rigorous quality assurance protocols including water immersion sealing tests and rolling fluency testing. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global construction equipment markets.

For equipment dealers, rental fleet operators, and end users throughout South America (Brazil, Chile, Peru, Argentina, Colombia), Australia (Sydney, Melbourne, Brisbane, Perth, Adelaide), Europe (Germany, France, United Kingdom, Scandinavia), and Russia/Central Asia (Moscow, St. Petersburg, Astana, Almaty, Tashkent, Ulaanbaatar), these front idlers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

For fleet managers and maintenance supervisors, implementing a proactive idler inspection and replacement schedule—including regular tread wear measurement, flange geometry verification, seal integrity checks, proper track tension adjustment to 15–35 mm sag, and coordinated idler-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime in mini excavator operations.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the construction, rental, and light infrastructure industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
