Precision Undercarriage Engineering for SUMITOMO SH210-A6 Excavators: A Definitive Technical Analysis of the Front Idler Assembly and the OEM Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of the Front Idler in Mid-Size Excavators

The front idler assembly—also referred to as the guide wheel, track idler, tension wheel, or adjuster idler—is a foundational component in the undercarriage architecture of any crawler hydraulic excavator. Positioned at the forward extremity of the track frame opposite the drive sprocket, this assembly performs two mission-critical functions that are essential for machine mobility, track longevity, and operational safety: it provides the non-driven wheel over which the track chain rotates while simultaneously serving as the movable anchor point for the track tensioning mechanism. Unlike sprockets or bottom rollers that are fixed in position, the idler is mounted on a sliding carriage connected to a hydraulic or grease-type tensioning cylinder, enabling it to move forward and backward as track tension is adjusted.

For operators of SUMITOMO SH210-A6 excavators—a 20-ton class machine widely deployed in general construction, infrastructure development, utility work, quarrying, and medium-duty excavation—the reliability of the front idler assembly directly affects track chain life, undercarriage alignment, and overall machine uptime. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

This publication delivers a comprehensive technical examination of the SUMITOMO SH210-A6 front idler assembly, with detailed coverage of OEM part numbers, engineering specifications, material standards, and functional architecture. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) , a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory in China matters for global procurement professionals seeking OEM-quality chassis components.

2. The SUMITOMO SH210-A6 Platform: Engineering for Versatile Applications

2.1 Machine Platform Overview

The SUMITOMO SH210 series is a versatile lineup of mid-sized hydraulic excavators engineered for a wide range of applications including general construction, infrastructure development, utility work, quarrying, and medium-duty excavation. The SH210-A6 variant represents a specific generation within this family, incorporating Sumitomo‘s advanced hydraulic systems and robust undercarriage design.

Sumitomo SH210 excavators are widely recognized for their operational efficiency and durability. The SH210-A6 is equipped with a powerful engine delivering approximately 117.3 kW (157–160 hp), with an operating weight in the range of 19,900–21,400 kg depending on configuration and optional equipment. The machine’s robust undercarriage design, combined with advanced hydraulics, ensures reliable performance in demanding construction and excavation tasks.

2.2 Undercarriage Configuration

The SH210-A6‘s undercarriage is designed for severe-duty applications across multiple operating environments. The front idler assembly is a critical component within this robust architecture, working in conjunction with the track chain, sprocket assembly, track bottom rollers, and carrier rollers to ensure optimal ground contact and propulsion. The idler serves as the pivotal forward terminus of the track frame, guiding the track chain’s path and providing the essential adjustment point for maintaining proper track tension throughout the machine’s operating life.

For fleet operators managing multiple Sumitomo excavators, component interchangeability across the SH200–SH280 series provides significant inventory consolidation benefits, as a single idler assembly specification can serve multiple machine models.

3. Part Number Identification and Product Specification

3.1 OEM Part Numbers and Application

The SH210-A6 front idler assembly is available under multiple OEM part number designations, providing procurement professionals with cross-reference options for accurate sourcing. The primary part numbers associated with this component include:

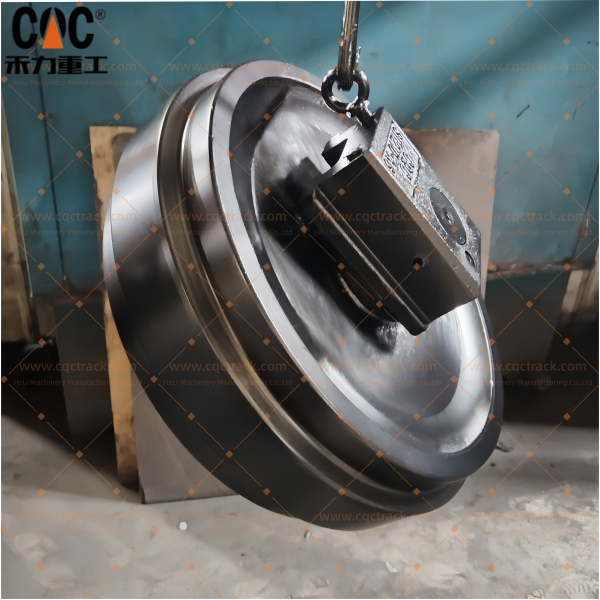

The Track Idler Wheel Assembly (OEM Part Numbers: KRA1198, KRA1767) is a critical front-end guiding and tensioning component within the crawler undercarriage system of the Sumitomo SH200, SH210, SH240, and SH280 series hydraulic excavators. As a certified manufacturer and global supplier, CQC TRACK produces this assembly to exacting OEM specifications, ensuring direct interchangeability with original equipment.

3.2 Component Breakdown and Construction

A complete SH210-A6 front idler assembly consists of the following subcomponents, each engineered to meet specific performance requirements:

The hub is designed as a monolithic forging with the shaft or is welded using automated processes with post-weld heat treatment to ensure structural integrity. The assembly typically includes the idler wheel, bearings, seals, and mounting hardware, manufactured from durable steel or alloy to withstand heavy loads and harsh operating conditions.

4. Engineering Specifications and Material Standards

4.1 Functional Responsibilities

In the undercarriage system of Sumitomo‘s 20–28 ton class excavators, the idler assembly fulfills several indispensable mechanical roles:

Precision Track Guidance: The idler provides a hardened, rotating datum surface that accurately aligns the track chain’s links and bushings as they return from the ground, ensuring smooth engagement with the sprocket and preventing lateral derailment.

Dynamic Tension Regulation: Integrated with the track frame’s hydraulic or grease-type tensioning mechanism, the idler transmits controlled forward force to the entire track chain. Maintaining optimal tension is crucial for minimizing power loss, reducing track vibration (“slap”), and preventing accelerated wear on pins, bushings, and sprockets.

Impact Load Management: The idler absorbs and distributes initial contact shocks when the track chain rolls onto the undercarriage, especially during travel over uneven ground, thereby protecting the track frame and final drive components from shock-induced damage.

Structural Gauge Reference: As the foremost fixed point on each track frame, the idler defines the track gauge, a fundamental parameter for machine stability, straight-line tracking, and turning performance.

4.2 Material Specifications

Premium front idler assemblies for Sumitomo SH210-A6 excavators are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance:

CQC TRACK‘s manufacturing process for the KRA1198/KRA1767 assemblies emphasizes durability, precision, and sealing integrity. The idler wheel is forged from high-tensile, fine-grained alloy steel (e.g., 50Mn or equivalent) to ensure superior strength and fatigue resistance. The integral shaft is manufactured from quenched and tempered alloy steel, with bearing journals precision-ground and often surface-treated (e.g., chrome plating or nitriding) for enhanced wear and corrosion resistance.

4.3 Heat Treatment Specifications

The performance of a front idler depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The outer running surface undergoes induction hardening to achieve a deep, uniform hardness layer, providing exceptional resistance to abrasive wear from track bushing contact. CNC-controlled turning and grinding processes guarantee precise concentricity, accurate flange dimensions, and optimal surface finish for smooth track chain interaction.

4.4 Bearing and Sealing Specifications

The idler assembly incorporates a robust bearing and sealing system designed for the demanding operating conditions of 20-ton class excavators:

The sealing mechanism provides a critical barrier against mud, sand, and moisture—common contaminants in construction and quarry environments—significantly extending service life and reducing maintenance frequency.

5. CQC TRACK: A Specialized OEM Manufacturer of Sumitomo Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a premier industrial cluster and key supply hub for global earthmoving equipment. Founded in the late 1990s, HELI has systematically evolved from a specialized parts workshop into one of the top three undercarriage component manufacturers in the Quanzhou region—a position that reflects two decades of sustained investment in manufacturing assets, process control, and technical expertise.

The brand name CQC TRACK symbolizes three foundational commitments that form the core of the company’s engineering philosophy: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

5.2 Quality Certifications and Manufacturing Standards

CQC TRACK operates under a rigorous quality assurance framework, holding ISO 9001:2015 quality system recognition. Every CQC TRACK undercarriage component is manufactured under ISO 9001:2015 certified processes, with full component traceability from raw material through finished assembly.

As a vertically integrated manufacturer, HELI combines design and engineering expertise with extensive research and development, utilizing advanced manufacturing technologies to develop innovative, reliable, and competitive products that meet the highest quality standards. The company’s core competence lies in transforming raw forged steel into precision-engineered, high-durability track systems, underpinned by a philosophy of relentless process control and application-driven engineering.

5.3 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: CQC TRACK produces components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, and track links.
• ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership (TCO).

5.4 Manufacturing Capabilities and Quality Control

CQC TRACK‘s manufacturing strength rests on complete vertical integration and controlled sequential processes:

5.5 Sumitomo Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for Sumitomo excavators across multiple size classes. Key components include:

The company has documented cross-reference compatibility for its undercarriage components across multiple global brands, confirming the broad applicability of their manufacturing standards.

6. Factory-Direct Sourcing: The Value Proposition of a Source Factory

6.1 Supply Chain Advantages

Sourcing the Sumitomo SH210-A6 front idler assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

CQC TRACK operates as an integrated source factory and manufacturer, eliminating intermediary markups while maintaining strict adherence to original equipment specifications. The “source factory” designation indicates that CQC TRACK is the original producer of these components, not a reseller or distributor, ensuring full control over quality, pricing, and supply chain transparency.

6.2 Lead Times and Logistics

For the Sumitomo SH210-A6 front idler assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships. The Quanzhou region‘s status as a premier industrial cluster for heavy machinery manufacturing ensures efficient logistics infrastructure and competitive freight rates.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new front idler assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing matches the track frame bracket and tensioning carriage
2. Idler diameter and width — Verify dimensions match the track chain link spacing and track frame clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede idler installation
5. Track tensioner cylinder — Inspect for corrosion, damage, and proper operation
6. Seal condition — Verify that floating seals and O-rings are correctly positioned and free from damage

7.2 Common Symptoms of a Failing Idler Assembly

The following indicators suggest that an idler assembly requires inspection or replacement:

• Excessive track sag or misalignment — The track appears looser than normal or rides unevenly
• Unusual noises from the undercarriage — Grinding, squeaking, or clicking sounds during travel
• Visible wear or damage to the idler wheel — Flattened tread, cracked flanges, or uneven wear patterns
• Oil leaks from the idler bearings — Indicates floating seal failure or bearing wear

7.3 Installation Procedure Summary

Replacing a front idler assembly on a 20-ton class excavator requires proper tools and safety procedures:

1. Park Safely: Position the machine on a firm, level surface. Lower the attachment to the ground.
2. Block the Machine: Chock the tracks securely to prevent any movement.
3. Relieve Track Tension: Use the grease fitting on the front idler to carefully release hydraulic pressure and slacken the track.
4. Support the Track Frame: Place a jack and blocks under the track frame near the idler.
5. Remove Mounting Bolts: The idler is held by bolts that thread into the tensioning carriage.
6. Install New Idler: Remove the old assembly, clean the mounting surface, install the new idler, and hand-tighten new high-tensile bolts. Always use new bolts; reusing old ones is a safety risk.
7. Torque to Spec: Use a calibrated torque wrench to tighten the bolts to the manufacturer‘s specified value.
8. Re-tension Track: Re-pressurize the track tensioner with a grease gun to achieve proper track sag.
9. Verify Operation: Operate the machine at low speed and inspect for proper idler rotation, seal integrity, and track alignment.

7.4 Maintenance Schedule

7.5 Service Life Expectations

Under normal construction and quarrying conditions, a quality aftermarket front idler meeting HRC 58–62 surface hardness specifications with deep, uniform case hardening can achieve 4,000–6,000 operating hours before requiring replacement. In severe applications with highly abrasive materials and continuous operation, service life may be reduced to 3,000–4,000 hours.

Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing idler longevity. Inspect regularly for wear, cracks, or bearing play to catch potential failures before they lead to track derailment or undercarriage damage. Proper alignment during installation is critical for component longevity.

8. Conclusion

For operators of SUMITOMO SH210-A6 excavators deployed in general construction, infrastructure development, quarrying, and medium-duty excavation—a 20-ton class machine with versatile operational requirements—the front idler assembly represented by OEM part numbers KRA1198, KRA1767, and the model-specific SH210-A6 designation is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime. As the forward terminus of the track frame and the movable anchor point for the tensioning mechanism, the idler plays an indispensable role in precision track guidance, dynamic tension regulation, impact load management, and structural gauge definition.

CQC TRACK distinguishes itself as a specialized OEM manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under demanding operating conditions. As one of the top three undercarriage component manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

With material specifications including premium 50Mn and 42CrMo alloy steels; heat treatment achieving HRC 58–62 running surface hardness with deep, uniform case depth; ISO 9001:2015 quality certification; and advanced multi-stage sealing systems (labyrinth guards, floating face seals, O-rings), CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the SUMITOMO SH210-A6 front idler assembly directly from the factory, construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime across Sumitomo‘s versatile SH200–SH280 excavator platform family.
