Komatsu 1013011131 2013000130 21W3000012 21W3000014 2013000260 PC60 PC70 PC75 Track Front Idler Assembly / Mini excavator Chassis Components manufacturer CQCTRACK Based in Quanzhou China

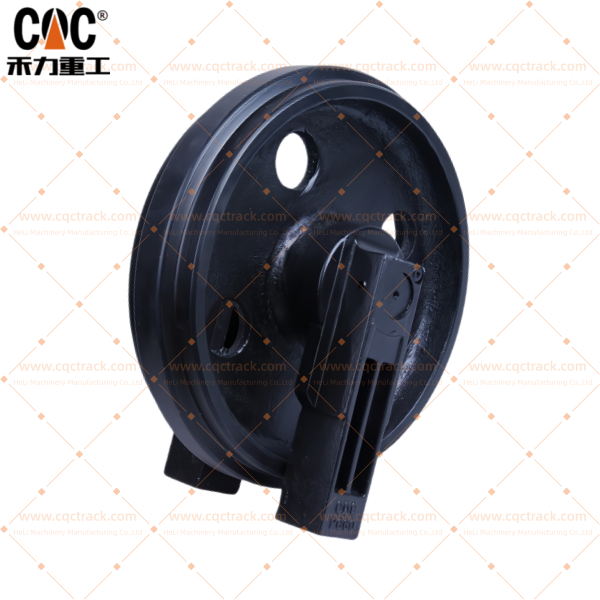

Komatsu PC60 PC70 PC75 Track Front Idler Assembly – OEM Cross-Reference Part Numbers 1013011131, 2013000130, 21W3000012, 21W3000014, 2013000260

Manufactured by CQC TRACK – Mini Excavator Chassis Components Manufacturer Based in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for five mission-critical Komatsu front idler assemblies—OEM cross-reference part numbers 1013011131, 2013000130, 21W3000012, 21W3000014, and 2013000260—engineered specifically for the Komatsu PC60, PC70, and PC75 series hydraulic crawler excavators. These idler assemblies, alternatively designated as front idler groups, guide wheels, or idler wheel assemblies, represent foundational chassis components within the undercarriage track system of the 6–8 ton mini excavator class.

Within the mini excavator chassis architecture, the front idler performs four essential functions: guiding the track chain around the undercarriage frame, maintaining proper track tension in conjunction with the track adjuster assembly, supporting the frontal weight of the machine during travel and excavation, and preventing track derailment through precise lateral alignment. For Komatsu PC60, PC70, and PC75 excavators—machines widely deployed in urban construction, utility work, landscaping, and light infrastructure projects worldwide—the engineering integrity of the front idler assembly is fundamental to track system reliability and machine mobility.

This analysis examines each part number through multiple technical lenses: functional engineering principles of track guidance and tension management, metallurgical composition with detailed material grade specifications for compact chassis applications, advanced manufacturing process engineering including closed-die forging and computer-controlled induction heat treatment, rigorous quality assurance protocols, installation and track tensioning procedures, wear diagnosis and replacement criteria, and strategic sourcing considerations for equipment dealers, rental fleets, and end users throughout South America, Australia, Europe, Russia, and Central Asia.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components. Based in Quanzhou, Fujian Province—China‘s premier industrial cluster for heavy machinery manufacturing, with strategic access to major international ports including Xiamen and Fuzhou—the company has established itself among the top undercarriage component manufacturers in the region. The company’s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems. This focused specialization enables CQC TRACK to deliver idler components that not only meet but often exceed OEM performance standards.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A front idler assembly—technically designated as a track idler, guide wheel, idler group, or front idler wheel—is a critical passive undercarriage component mounted at the front of the excavator‘s track frame, opposite the rear-mounted drive sprocket. Unlike the drive sprocket, which is an active component that propels the machine, the front idler is a passive component that rotates freely around a stationary shaft as the track chain moves. However, its functional importance within the mini excavator chassis equals or exceeds that of the drive sprocket for several reasons:

• Track Chain Guidance: The front idler is the primary component responsible for maintaining proper track chain alignment as the chain travels around the front of the undercarriage. The idler‘s precision-machined flanges prevent lateral chain movement, ensuring that the track remains centered on the undercarriage frame during forward travel, reverse travel, and turning operations. In compact chassis configurations, where space constraints limit undercarriage width, precise track guidance is particularly critical.
• Track Tension Management: The idler assembly integrates with the track tensioning system—typically a grease-filled recoil spring and tension cylinder assembly—to maintain optimal track chain tension across varying operating conditions. Proper tension is essential for preventing chain derailment, minimizing vibration, and maximizing component service life in the compact chassis format.
• Frontal Load Support: The idler wheel supports the front portion of the excavator‘s operating weight, transferring loads from the track frame through the idler shaft and bearing system to the track chain and ultimately to the ground surface. For the 6–8 ton mini excavator class, the idler must accommodate the machine’s full frontal weight during dozing, grading, and traversing uneven terrain.
• Shock Load Absorption: When the excavator encounters obstacles such as rocks, curbs, or uneven ground, the front idler—working in conjunction with the recoil spring assembly—absorbs impact loads that would otherwise be transmitted directly to the undercarriage frame and upper structure. This shock absorption function is particularly important in urban construction and utility applications where operators frequently traverse mixed terrain conditions.

The guide wheel ensures the track rotates correctly to prevent deviation and derailment, while also acting as a supporting wheel to increase contact area between the track and the ground.

1.2 OEM Part Numbers and Compatible Komatsu Excavator Models

The five idler assemblies documented in this analysis correspond to precise Komatsu OEM engineering specifications, offering direct interchangeability without requiring modifications to the track frame, track adjuster assembly, or track chain components. The table below provides comprehensive cross-reference data based on industry sources:

These idler assemblies are specifically engineered for Komatsu’s compact excavator product line, which includes the PC60 series (6–7 ton class), PC70 series (7 ton class), and PC75 series (7.5–8 ton class). The Komatsu PC60 has an approximate operating weight of 6,300 kg with bucket capacity ranging from 0.28 to 0.37 m³. The Komatsu PC70 has an operating weight ranging from approximately 6,160 kg to 8,400 kg depending on configuration, with bucket capacity of 0.3–0.4 m³. The PC75 series represents the upper end of the compact excavator class, with extended undercarriage configurations (PC75UU-2 designation indicates ultra-short tail swing configuration with wide undercarriage).

The 1013011131 part number demonstrates the widest model compatibility, covering multiple generations of Komatsu compact excavators from the PC60-5 through PC60-8 series, as well as the PC65, PC70, PC75UR, and PC75UU-2 models. The 2013000130, 21W3000012, and 21W3000014 assemblies are specifically configured for the PC60 and PC70 platforms, with documented compatibility extending across multiple PC60 sub-variants. The 2013000260 assembly is configured for the larger PC70, PC75, and PC78 platforms, with PC75UR and PC75UU-2 compatibility.

Industry sources confirm that these idler assemblies are applicable for Komatsu excavator models including the PC60-7, PC130-7, PC200/220-6-7, PC300-6-7-8, and PC400-6-7, with the PC60-7 being a mid-size excavator that requires highly durable and accurate rollers, with exact match to OEM specifications and smooth operation even in rugged terrain.

The cross-reference between part numbers is documented as follows: 21W-30-00012 and 21W-30-00014 are referenced for the Komatsu PC60 excavator front idler. These part numbers are also listed for PC60 PC75 PC78 PC88 applications. The 201-30-00130 part number is identified for Komatsu excavator PC60 front idler groups, with the track front idler characterized by high strength and rigidity, rim surface with high hardness and wear resistance, and strong heavy load capacity.

1.3 Component Architecture and Assembly Composition

A complete Komatsu PC60/PC70/PC75 front idler assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the compact excavator chassis format:

• Idler Wheel Body (Shell): The outer wheel component that contacts the track chain link rails. The idler wheel features precision-machined flanges that maintain lateral track alignment and a hardened tread surface that engages with the chain bushings. For compact excavator applications, the wheel body diameter is proportionally smaller than larger excavator classes, requiring precise dimensional control for proper track engagement.
• Shaft (Axle): The stationary central component that mounts to the track frame via the idler bracket or yoke. The shaft incorporates precision-ground bearing journals and sealing surfaces. The shaft is typically manufactured from round steel and undergoes medium-frequency induction hardening heat treatment to ensure its hardness.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the idler wheel body around the stationary shaft while supporting the machine‘s frontal loads. The bearing system must accommodate the lower rotational speeds but higher relative load per contact area characteristic of compact excavator undercarriages.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress from mud, dust, water, and abrasive particles. The sealing system must resist ingress of fine debris common in urban construction and landscaping environments.
• Lubrication Charge: Grease-based lubricant that maintains the bearing system under proper lubrication conditions throughout the service life. The sealed system requires no field lubrication for sealed idler configurations, reducing maintenance requirements for fleet operators.
• Idler Bracket/Yoke: The mounting structure that connects the idler shaft to the track frame and interfaces with the track adjuster recoil spring assembly. For compact excavator chassis, the bracket design must accommodate the reduced frame width while maintaining structural integrity under operational loads.

2. Engineering Functions and Operational Demands

2.1 Primary Functional Responsibilities

The front idler assembly in Komatsu PC60, PC70, and PC75 excavators performs four interconnected functions critical to undercarriage performance and longevity:

Track Chain Guidance: The idler’s integral flanges maintain proper lateral positioning of the track chain as it travels around the front of the undercarriage. This guidance function prevents chain derailment—a catastrophic failure mode that can cause significant machine damage and operator injury—and reduces edge wear on both the chain links and the idler tread surfaces. In compact excavator chassis, where the track frame width is reduced, the precision of the idler flange geometry becomes even more critical for maintaining chain alignment.

Track Tension Regulation: The idler assembly interfaces directly with the track adjuster assembly (recoil spring and grease cylinder) to maintain optimal track tension. Proper tension is essential for:

• Preventing chain derailment
• Reducing vibration and oscillation during travel
• Minimizing wear on track chain bushings, sprockets, and idlers
• Maintaining machine stability during excavation and grading operations

Frontal Load Support: The idler supports the front portion of the excavator‘s operating weight, transferring loads through the shaft and bearing system to the track chain and ground surface. For the 6–8 ton mini excavator class, this load-bearing function is particularly demanding during dozing operations and when the machine traverses slopes or uneven terrain.

Shock Load Absorption: When the excavator traverses uneven terrain or encounters obstacles, impact loads are transmitted from the track chain to the idler. The idler’s elastic core—achieved through controlled heat treatment—absorbs these shock loads, protecting the undercarriage frame and upper structure from damage.

2.2 Operational Demands in Global Markets

For operations throughout South America, Australia, Europe, Russia, and Central Asia, Komatsu PC60, PC70, and PC75 excavators are deployed across a range of demanding applications:

• Urban Construction: Foundation excavation, utility trenching, site preparation
• Landscaping and Site Reclamation: Terrain grading, tree removal, material handling
• Light Infrastructure: Road construction, pipeline trenching, drainage installation
• Rental Fleet Applications: General earthmoving, debris handling, site cleanup
• Agricultural Applications: Land clearing, drainage ditch maintenance, material handling

In these environments, the front idler assembly is subjected to:

• Moderate impact loads from contact with rocks, debris, and uneven terrain
• Continuous abrasive wear from soil, sand, and construction debris
• Temperature variations across different climate zones
• Contamination exposure from mud, slurry, dust, and moisture
• Extended duty cycles with varying maintenance intervals

2.3 Distinction from Other Undercarriage Components

For procurement professionals, equipment dealers, and fleet maintenance personnel, understanding the functional distinctions between undercarriage components is essential for correct part specification:

Bottom rollers (lower rollers) must hold the weight of the excavator and bulldozer equipment along with load capacity, requiring precision, strength, and durability for high impact applications.

3. Metallurgical Composition and Heat Treatment Engineering

3.1 Material Grade Specifications

CQC TRACK manufactures Komatsu cross-reference front idlers using premium alloy steel grades selected for their specific mechanical properties in compact excavator undercarriage applications. The primary material grades employed include:

40Mn Alloy Steel: A manganese-alloyed steel grade offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for 6–8 ton class excavator applications. Industry sources confirm that Komatsu excavator idler wheels are manufactured using 40Mn material through a combination of casting, machining, and heat treatment processes. This material responds well to induction heat treatment, achieving uniform case hardness profiles with minimal distortion.

45Mn Alloy Steel: A higher-manganese grade offering enhanced wear resistance and deeper case hardening capability. The 45Mn grade is specified for premium-grade idlers requiring extended service life under higher-abrasion conditions.

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. Industry sources indicate that Komatsu PC60 and PC100 front idler assemblies are manufactured using 50Mn material, achieving HRC 52–58 surface hardness. The 50Mn grade provides the highest level of wear resistance for demanding applications.

50Mn Steel for Forging/Casting: The material is processed through either forging or casting techniques, with the final product achieving a smooth finish and precise dimensional accuracy.

The material grade selection directly determines the idler‘s service life in abrasive environments. For steel parts like idlers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

3.2 Forging vs. Casting: Engineering Considerations

The manufacturing method—forging versus casting—significantly influences idler performance and service life in compact excavator applications:

Forged Idlers: The forging process refines the steel’s internal grain structure, eliminates porosity, and aligns the grain flow with the component‘s primary stress paths. The result is superior mechanical properties including higher impact strength, better fatigue resistance, and greater resistance to catastrophic failure under shock loads. For premium-grade idlers, forged construction is specified.

Cast Idlers: Casting allows for complex geometries and is generally more cost-effective for production volumes. However, cast components may contain internal porosity or inclusions that can serve as crack initiation sites under cyclic loading. For standard-duty applications where cost optimization is prioritized, cast construction may be acceptable.

Industry sources indicate that Komatsu idlers are manufactured using both forging and casting techniques, with the specific method depending on the application and quality grade required.

3.3 Heat Treatment Parameters and Hardness Profiles

Heat treatment is the single most critical manufacturing operation determining front idler service life in compact excavator applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel’s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for idler treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for idlers that must withstand dynamic loads and shocks.

The specific heat treatment parameters for Komatsu PC60/PC70/PC75 front idlers are as follows:

Industry sources report varying hardness specifications depending on the manufacturer and grade:

• Komatsu Excavator Parts PC200 PC220 Front Idler Assy: Surface Hardness HRC 50–56, case depth 5–8mm
• Komatsu PC60 PC100 Front Idler Assembly 50Mn Material: HRC 52–58 hardness
• New Parts Excavator Idler Assy: Surface Hardness HRC 52–58, case depth 8–12mm
• Front Idler Idler Wheel Komatsu PC400: Hardness HRC 48–54, case depth 4–10mm

For Komatsu PC60/PC70/PC75 idlers manufactured by CQC TRACK, the target specification is HRC 50–56 with case depth of 5–8mm, providing optimal wear resistance for the 6–8 ton mini excavator class.

3.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Manufacturing Process Engineering

4.1 Manufacturing Techniques

CQC TRACK employs advanced manufacturing techniques for Komatsu cross-reference front idler production. The manufacturing process integrates multiple specialized operations:

Casting and Forging: Idler components are produced using either casting or forging techniques depending on the specific part number and quality grade required. Industry sources confirm that Komatsu idlers are manufactured using 40Mn/45Mn material through casting, machining, and heat treatment processes. Premium-grade idlers are produced through forging processes using 50Mn steel.

Machining: Precision CNC machining of all critical surfaces ensures dimensional accuracy to OEM specifications. The finishing process produces a smooth surface finish that reduces friction and extends seal life.

Heat Treatment: Computer-controlled induction hardening and tempering systems achieve deep, uniform case hardness profiles. The idler main pin shaft is hardened by medium-frequency induction hardening heat treatment to ensure its hardness.

Assembly: Dust-free assembly environments ensure proper seal installation, bearing clearance, and lubricant charging. The idler is precision machined to house special high-impact, low-wear bimetallic bushings.

4.2 Quality Control Parameters

Industry quality control parameters for Komatsu idler manufacturing include:

• Dimensional Accuracy: All dimensions verified against OEM engineering specifications
• Hardness Verification: Rockwell hardness testing of tread surface, flanges, and shaft journals
• Case Depth Measurement: Metallographic examination of hardened layer depth
• Seal Integrity Testing: Verification of proper seal compression and lubricant retention
• Dynamic Rotation Test: Verification of smooth rotation without binding or noise

4.3 Anti-Corrosion Protection

The idler surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the idler from rust and harsh environmental exposure during storage and field operations.

5. Sealing System and Bearing Technology

5.1 Floating Seal Configuration

Front idlers for compact excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the moderate impact and contamination exposure encountered in construction and utility applications:

• Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress.
• Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments.
• Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and idler wheel body, ensuring optimal seal compression and alignment.

The sealing system must resist ingress of abrasive materials common in construction environments—including soil, sand, dust, and moisture—which would otherwise accelerate bearing wear and cause premature failure. A genuine front idler reduces bearing stress up to 50% to decrease bearing loads and increase component life, with heavy-duty rock guards protecting against damage from dirt and debris.

5.2 Bearing System Design

Each front idler incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. Two primary bearing configurations are employed depending on the specific part number and application:

Hardened Steel Bushing Configuration: The idler wheel rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions. The idler is precision machined to house special high-impact, low-wear bimetallic bushings.

Anti-Friction Bearing Configuration: Some front idler assemblies utilize anti-friction bearings (tapered roller bearings) for reduced rotational friction and extended service intervals.

The bearing surfaces are finished to precise surface roughness specifications that promote lubricant film retention while minimizing friction during rotation. The keyed joint between idler and axle expands bearing contact, boosts torque transmission, and syncs the idler‘s life with other undercarriage parts, avoiding uneven wear.

5.3 Lubrication Retention

Front idlers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. The sealed system requires no field lubrication (for sealed idler configurations), eliminating the need for regular greasing and reducing maintenance requirements. Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based grease with extreme pressure (EP) additives
• Lubricant Volume: Optimized for the specific bearing configuration and seal design
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling

6. Quality Assurance and Testing Protocols

6.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 40Mn, 45Mn, and 50Mn steels.
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment.
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination.
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge.
• Final Testing: Dynamic rotation testing and seal integrity verification.

6.2 Dynamic Rotation Testing

Each finished front idler is subjected to a dynamic rotation test that verifies:

• Concentricity: The idler wheel rotates without radial runout that would cause uneven track chain contact or vibration.
• Smoothness: The bearing system rotates freely without binding, noise, or resistance.
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load.

Any noise, resistance, or oil leakage is identified and corrected before approval for shipment.

6.3 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket front idlers typically ranges from 6 to 24 months depending on the manufacturer and application. Industry sources report warranty periods of 2000 hours for Komatsu idler assemblies. For Komatsu front idlers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Expected service life for PC60/PC70/PC75 idlers ranges from 3,000 to 6,000 operating hours depending on ground conditions, operator practices, and maintenance schedules.

6.4 Packaging and Export Preparation

Finished idlers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Industry packaging specifications indicate single package dimensions of approximately 50 × 50 × 20 cm with a gross weight of approximately 50 kg per unit. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations.

7. Installation and Track Tensioning Procedures

7.1 Pre-Installation Preparation

Proper installation of a front idler assembly on a Komatsu PC60, PC70, or PC75 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder relief valve to allow removal of the track chain.
2. Component Inspection: Before installation, inspect the idler bracket and track frame for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Idler Assembly Inspection: Inspect the new idler assembly for any shipping damage. Verify that the idler rotates freely by hand. Check seal integrity.

7.2 Track Tension Adjustment

After idler installation, proper track tension must be established according to Komatsu PC60/PC70/PC75 specifications. The general procedure is as follows:

1. Chain Installation: Install the track chain around the undercarriage components (front idler, bottom rollers, carrier rollers, drive sprocket).
2. Tension Application: Apply grease to the track adjuster grease fitting using a manual grease gun (not pneumatic) until the track chain begins to tension.
3. Sag Measurement: The proper track sag for Komatsu PC60/PC70/PC75 excavators is typically measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Specification: approximately 20–40mm sag for compact excavator applications.
4. Final Adjustment: Adjust grease volume as needed to achieve proper sag. Over-tensioning will accelerate wear on all undercarriage components. Under-tensioning may cause chain derailment.
5. Test Operation: Slowly rotate the track chain through at least one full revolution while listening for unusual noises and observing chain-to-idler engagement.

7.3 Post-Installation Verification

After 2–4 hours of operation, re-check track tension and re-torque any idler mounting hardware as specified in the Komatsu service manual to account for initial seating and thermal expansion. To replace a Komatsu excavator idler, start by loosening the tracks, removing the old idler bolts, and installing the new part.

8. Wear Diagnosis and Replacement Criteria

8.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing Komatsu PC60, PC70, and PC75 excavators, early identification of front idler wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The idler tread surface (the rolling contact area) wears progressively over time. When the tread surface exhibits significant flat spots or wear beyond approximately 2–3mm below the original diameter, replacement is recommended.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage.

Uneven Wear Pattern: If one side of the idler shows significantly more wear than the other, this may indicate misalignment between the idler and the track chain or issues with the track frame alignment.

Three common causes of track derailment include idler wear, improper track tension, and damaged track adjuster components.

8.2 Replacement Interval Planning

A well-maintained idler directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn idler will accelerate wear on the new chain‘s bushings and link rails, significantly reducing overall system life. Conversely, installing a new idler on a worn chain will cause accelerated tread and flange wear and premature idler failure.

For fleet operators, the recommended replacement strategy is to replace the idler and track chain as a matched set whenever either component reaches the end of its service life.

9. Regional Market Applications

9.1 South America: Urban Construction and Infrastructure Development

The South American construction market presents growing demand for compact excavator components, with operations concentrated in Brazilian infrastructure projects, Chilean urban development, and Peruvian mining support operations. The region‘s heavy machinery market is characterized by high demand for 6–8 ton excavators for utility work, site preparation, and light earthmoving. For South American customers, CQC TRACK’s Komatsu cross-reference front idlers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia, and Mexico.

9.2 Australia: Rental Fleet and Light Infrastructure Applications

The Australian construction and rental equipment market demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Australian compact excavator market—including applications in Sydney, Melbourne, Brisbane, Perth, and regional centers—utilizes Komatsu PC60 and PC70 excavators for residential construction, utility trenching, and site preparation.

CQC TRACK‘s manufacturing processes align with these requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability.

9.3 Europe: Urban Construction and Utility Work

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s construction industry, France‘s infrastructure sector, and the United Kingdom’s utility and residential construction markets represent major application zones for Komatsu PC60 and PC70 excavators. CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

9.4 Russia and Central Asia: Growing Compact Equipment Market

Following the realignment of global supply chains, Russian and Central Asian construction and mining operators increasingly source heavy equipment components from Chinese manufacturers. Russia‘s urban development projects, Kazakhstan’s infrastructure growth, and Mongolia‘s mining support operations represent growing markets for Komatsu compact excavator components. For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes.

9.5 Service Center Network Strategy

CQC TRACK’s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

10. Sourcing Considerations for Procurement Professionals

10.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the Komatsu parts catalog. The part numbers documented in this analysis—1013011131, 2013000130, 21W3000012, 21W3000014, and 2013000260—serve as primary OEM references for direct cross-reference ordering.

The 1013011131 part number has documented compatibility with Komatsu PC60, PC60-5, PC60-6, PC60-7, PC60-8, PC65, PC70, PC75UR, and PC75UU-2 models. The 21W-30-00012 and 21W-30-00014 part numbers are specifically referenced for the Komatsu PC60 excavator front idler. The 201-30-00130 part number is identified for Komatsu excavator PC60 front idler groups.

10.2 Quality Documentation Requirements

When sourcing front idlers for construction applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 40Mn, 45Mn, or 50Mn)
• Heat treatment records (hardness profiles and case depth)
• Mill test certificates for raw material
• Seal system specifications
• Bearing type and configuration details

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

10.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the 1013011131, 21W3000012, and 21W3000014 idler assemblies, with lead times of 7–30 days depending on order volume and destination. Supply ability for idler assemblies is substantial, with production capacity supporting volume orders for rental fleet operators and equipment dealers. Minimum order quantities are negotiable, with sample quantities available for qualification testing.

10.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For construction companies, rental fleet operators, and equipment dealers managing fleets of Komatsu compact excavators, sourcing OEM-equivalent aftermarket idlers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

11. Frequently Asked Questions for Equipment Dealers and Fleet Operators

Q1: What is the function of a front idler on a Komatsu PC60/PC70/PC75 excavator?

A front idler (also called a guide wheel or track idler) guides the track chain, maintains proper track tension in conjunction with the track adjuster assembly, supports the front portion of the machine’s weight, and absorbs shock loads from uneven terrain.

Q2: How do I verify which idler part number my Komatsu excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the Komatsu parts catalog. The five part numbers covered in this analysis—1013011131, 2013000130, 21W3000012, 21W3000014, and 2013000260—cover the PC60, PC70, and PC75 model range.

Q3: What materials are used in CQC TRACK front idlers for Komatsu excavators?

CQC TRACK uses premium 40Mn, 45Mn, and 50Mn alloy steel, induction-hardened to HRC 50–56 with case depth of 5–8mm for optimal wear resistance.

Q4: Are these idlers direct replacements for Komatsu OEM parts?

Yes, all front idlers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Komatsu‘s original engineering specifications for dimensional accuracy and mechanical properties.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a front idler in compact excavator applications?

Front idler service life in PC60/PC70/PC75 applications typically ranges from 3,000 to 6,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules.

Q7: When should I replace my excavator’s front idler?

Replace the idler when the tread surface is worn more than 2–3mm below original diameter, when flange thickness is reduced beyond 30% of original, or when seal leakage is observed.

Q8: Should I replace the idler when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. Installing a new chain on a worn idler will rapidly accelerate chain bushing and link rail wear.

Q9: What is the correct track sag specification for Komatsu PC60-class excavators?

Proper track sag for Komatsu PC60/PC70/PC75 excavators is typically 20–40mm measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Always consult the Komatsu service manual for model-specific specifications.

Q10: What is the lead time for volume orders of Komatsu idlers?

Lead times for volume orders of Komatsu front idlers typically range from 7–30 days depending on order volume and destination.

12. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

12.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM and ODM manufacturing partner.

The Quanzhou region hosts multiple specialized undercarriage manufacturers, including QUANZHOU K&H PARTS CO., LTD. located in Binjiang Industry area, Nan‘an, Quanzhou city, Fujian Province, with engineers having more than 30 years’ experience in producing undercarriage parts. Other regional manufacturers include Quanzhou Ganfeng Machinery (GFM Parts) Co., Ltd., founded in 2011, specializing in excavators and bulldozers‘ spare parts such as track rollers, carrier rollers, idlers, sprockets, track shoes, and track chains, and Quanzhou Zhongkai Machinery, a professional manufacturer and exporter of construction and mining machinery parts, supplying undercarriage parts and wear parts for excavators applicable to Komatsu, Caterpillar, Hitachi, Kobelco, Hyundai, and other brands.

CQC TRACK’s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

12.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Komatsu, Hitachi, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

12.3 Integrated Production Workflow

The company’s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 40Mn, 45Mn, and 50Mn alloy steels through strategic supply partnerships, with full material certification and traceability.
• Casting and Forging Capabilities: Both casting and forging processes employed depending on application requirements and quality grade.
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances.
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 50–56 with 5–8mm case depth.
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing on every finished idler.
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors.

13. Conclusion

The five Komatsu OEM cross-reference front idler assemblies documented in this analysis—1013011131, 2013000130, 21W3000012, 21W3000014, and 2013000260—represent essential undercarriage components for PC60, PC70, and PC75 series hydraulic crawler excavators deployed in urban construction, utility work, landscaping, light infrastructure, and rental fleet applications worldwide. As the primary track guidance and tension management component at the front of the undercarriage, the idler assembly plays a critical role in track chain alignment, load distribution, shock absorption, and overall undercarriage system longevity.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these idlers to meet or exceed OEM specifications through advanced casting and forging techniques, precision CNC machining, computer-controlled induction heat treatment, and rigorous quality assurance protocols. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global markets.

For equipment dealers, rental fleet operators, and end users throughout South America, Australia, Europe, Russia, and Central Asia, these front idlers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life. For fleet managers and maintenance supervisors, implementing a proactive idler inspection and replacement schedule—including regular tread wear measurement, flange geometry verification, seal integrity checks, and coordinated idler-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the construction, rental, and light infrastructure industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
