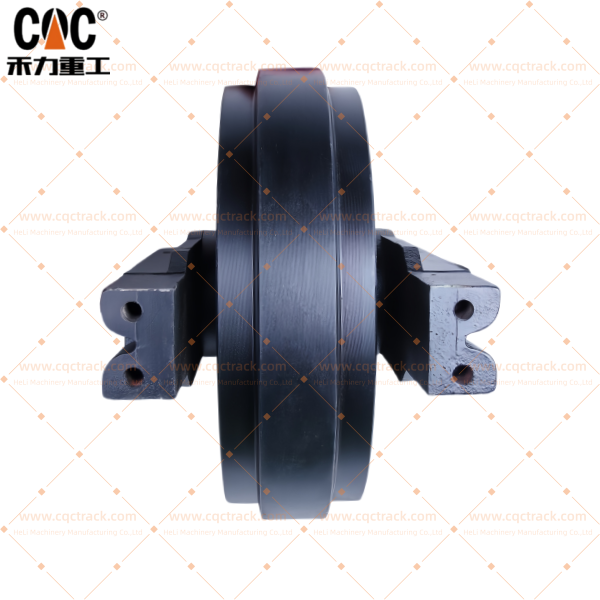

Hyundai R200 / R200LC / HX220 Track Excavator Idler Group – Front Idler Wheel Assembly – OEM Cross-Reference Part Numbers E1812004, 81N613010, 81Q613030, 81Q613031

Manufactured by CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) – Made in China – Sales All Over the World

Technical Abstract

This technical publication provides comprehensive engineering documentation for four mission-critical Hyundai front idler assemblies—OEM cross-reference part numbers E1812004, 81N613010, 81Q613030, and 81Q613031—engineered specifically for the Hyundai R200, R200LC, and HX220 series hydraulic crawler excavators. These idler wheel assemblies, alternatively designated as front idler groups, idler assemblies, or guide wheels, represent foundational undercarriage components that perform multiple essential functions: guiding the track chain around the undercarriage frame, maintaining proper track tension in conjunction with the track adjuster assembly, supporting the machine‘s frontal weight during travel and excavation, and preventing track derailment through precise lateral alignment. Every meter the excavator travels and every ton of material it handles depends on the structural integrity and proper operation of the front idler assembly.

This analysis examines each part number through multiple technical lenses: functional engineering principles of track guidance and tension management, metallurgical composition with detailed material grade specifications for high-impact mining and heavy construction applications, advanced manufacturing process engineering with specific focus on closed-die hot forging, precision CNC machining, and computer-controlled induction heat treatment, rigorous quality assurance protocols including ISO 9001:2015 certification, dimensional specifications and installation parameters, comprehensive installation and tensioning procedures, regional market analysis for South America, Australia, Europe, Russia, and Central Asia, and strategic sourcing considerations for procurement professionals managing Hyundai excavator fleets worldwide. CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components, recognized among the top undercarriage component manufacturers in the Quanzhou region, China‘s premier industrial cluster for heavy machinery manufacturing.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A front idler assembly—technically designated as a track idler, idler wheel, guide wheel, or idler group—is a critical passive undercarriage component mounted at the front of the excavator’s track frame, opposite the rear-mounted drive sprocket. Unlike the drive sprocket, which is an active component that propels the machine, the front idler is a passive component that rotates freely around a stationary shaft as the track chain moves. However, its functional importance equals or exceeds that of the drive sprocket for several reasons:

• Track Chain Guidance: The front idler is the primary component responsible for maintaining proper track chain alignment as the chain travels around the front of the undercarriage. The idler‘s precision-machined flanges prevent lateral chain movement, ensuring that the track remains centered on the undercarriage frame during forward travel, reverse travel, and turning operations.
• Track Tension Management: The idler assembly integrates with the track tensioning system—typically a hydraulic or grease-filled recoil spring assembly—to maintain optimal track chain tension across varying operating conditions. Proper tension is essential for preventing chain derailment, minimizing vibration, and maximizing component service life.
• Frontal Load Support: The idler wheel supports the front portion of the excavator’s weight, transferring loads from the track frame through the idler shaft and bearing system to the track chain and ultimately to the ground surface. This load-bearing function is particularly critical during operations such as dozing, grading, and traversing uneven terrain.
• Shock Load Absorption: When the excavator encounters obstacles such as rocks, debris, or uneven ground, the front idler—working in conjunction with the recoil spring assembly—absorbs impact loads that would otherwise be transmitted directly to the undercarriage frame and upper structure.

The guide wheel ensures the track rotates correctly to prevent deviation and derailment, while also acting as a supporting wheel to increase contact area between the track and the ground.

1.2 OEM Part Numbers and Compatible Hyundai Excavator Models

The four idler assemblies documented in this analysis correspond to precise Hyundai OEM engineering specifications, offering direct interchangeability without requiring modifications to the track frame, track adjuster assembly, or track chain components. The table below provides comprehensive cross-reference data based on industry sources:

The 81N613010 part number demonstrates the widest model compatibility, covering multiple generations of Hyundai excavators from the R110-7 series through the R250LC-7 series. This broad cross-reference capability is particularly valuable for fleet operators managing multiple Hyundai model generations. The 81Q613030 and 81Q613031 assemblies are specifically configured for the R200LC and HX220 platforms, with documented compatibility extending to the R210 and R220-9 series.

The 81N6-13010 idler is identified for use on the Hyundai R210LC-7, R210LC-9, HX220L, R160LC-7, HX160L, R160LC-9, HX140L, R250LC-9, R220LC-9A, R180lc-9, HX260L, R235LCR-9, R180LC-7, HX210AL, and additional models, further confirming the extensive cross-platform compatibility of these idler assemblies.

1.3 Component Architecture and Assembly Composition

A complete front idler assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances:

• Idler Wheel Body (Shell): The outer wheel component that contacts the track chain link rails. The idler wheel features precision-machined flanges that maintain lateral track alignment and a hardened tread surface that engages with the chain bushings.
• Shaft (Axle): The stationary central component that mounts to the track frame via the idler bracket or yoke. The shaft incorporates precision-ground bearing journals and sealing surfaces.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the idler wheel body around the stationary shaft while supporting the machine‘s frontal loads.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress from mud, dust, water, and abrasive particles.
• Lubrication Charge: Grease or oil-based lubricant that maintains the bearing system under proper lubrication conditions throughout the service life.
• Idler Bracket/Yoke: The mounting structure that connects the idler shaft to the track frame and interfaces with the track adjuster recoil spring assembly.

2. Engineering Functions and Operational Demands

2.1 Primary Functional Responsibilities

The front idler assembly performs four interconnected functions critical to undercarriage performance and longevity:

Track Chain Guidance: The idler’s integral flanges maintain proper lateral positioning of the track chain as it travels around the front of the undercarriage. This guidance function prevents chain derailment—a catastrophic failure mode that can cause significant machine damage and operator injury—and reduces edge wear on both the chain links and the idler tread surfaces.

Track Tension Regulation: The idler assembly interfaces directly with the track adjuster assembly (recoil spring and grease cylinder) to maintain optimal track tension. Proper tension is essential for:

• Preventing chain derailment
• Reducing vibration and oscillation during travel
• Minimizing wear on track chain bushings, sprockets, and idlers
• Maintaining machine stability during excavation and grading operations

Frontal Load Support: The idler supports the front portion of the excavator’s operating weight, transferring loads through the shaft and bearing system to the track chain and ground surface. This load-bearing function is particularly demanding during dozing operations, when the front of the machine experiences additional downforce.

Shock Load Absorption: When the excavator traverses uneven terrain or encounters obstacles, impact loads are transmitted from the track chain to the idler. The idler’s elastic core—achieved through controlled heat treatment—absorbs these shock loads, protecting the undercarriage frame and upper structure from damage.

2.2 Operational Demands in Mining and Heavy Construction

For mining operations in South America, Australia, Europe, Russia, and Central Asia, Hyundai R200, R200LC, and HX220 excavators are deployed across a range of demanding applications:

• Open-Pit Mining: Overburden removal, ore handling, bench preparation
• Quarrying: Aggregate extraction, rock loading, crusher feeding
• Heavy Infrastructure: Road construction, pipeline trenching, land clearing
• Material Handling: Stockpile management, truck loading, site reclamation

In these environments, the front idler assembly is subjected to:

• High-impact loads from contact with rocks, debris, and uneven terrain
• Continuous abrasive wear from silica-rich soils, crushed rock, and mine haul roads
• Extreme temperature variations from desert heat to sub-arctic conditions
• Contamination exposure from mud, slurry, dust, and chemical agents
• Extended duty cycles with minimal downtime for maintenance

2.3 Distinction from Other Undercarriage Components

For procurement professionals and maintenance personnel, understanding the functional distinctions between undercarriage components is essential for correct part specification:

3. Metallurgical Composition and Heat Treatment Engineering

3.1 Material Grade Specifications

CQC TRACK manufactures Hyundai cross-reference front idlers using premium alloy steel grades selected for their specific mechanical properties in high-impact undercarriage applications. The primary material grades employed include:

40Mn Alloy Steel: A manganese-alloyed steel grade offering an optimal balance of surface hardenability, core toughness, and cost-effectiveness for 20–22 ton class excavator applications. Industry sources confirm that Hyundai R200 excavator idler wheels are manufactured using 40Mn material through a casting process. This material responds well to induction heat treatment, achieving uniform case hardness profiles with minimal distortion.

50Mn Alloy Steel: A higher-manganese grade offering enhanced wear resistance and deeper case hardening capability. The 50Mn grade is specified for premium-grade idlers requiring extended service life under high-abrasion conditions.

40Mn2 Alloy Steel: A chromium-manganese alloy providing superior hardenability and impact toughness, typically reserved for higher-duty applications or idlers requiring extended service life under severe conditions.

42CrMo Alloy Steel (Premium-Grade): A chromium-molybdenum forged alloy steel offering exceptional strength, deep hardenability, and superior impact resistance. For demanding mining applications where extended service life is critical, forged 42CrMo provides the highest level of performance.

The material grade selection directly determines the idler‘s service life in high-abrasion mining environments. Idlers are constructed from heat-treated forged steel for superior strength and impact resistance, precision-machined to OEM tolerances for exact fitment. OEM-grade components ensure proper undercarriage functionality and are essential for maintaining optimal track system performance in demanding excavation applications.

3.2 Forging Process and Grain Structure Optimization

All CQC TRACK front idler wheel bodies undergo closed-die hot forging processes that refine the steel‘s internal grain structure, eliminate porosity, and align the grain flow with the component’s primary stress paths. The forging process provides several critical advantages:

• Grain Flow Alignment: The forging process aligns the material grain structure with the idler wheel geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation, particularly at the flange-to-wheel body transition zone where stress concentrations are highest.
• Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading.
• Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition.
• Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

The innovative integrated design of the guide wheel, combined with precise heat treatment specifications, results in high strength, exceptional impact resistance, and a notably hard tread surface with substantial hardening layer depth.

3.3 Heat Treatment Parameters and Hardness Profiles

Heat treatment is the single most critical manufacturing operation determining front idler service life in mining applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for idler treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for idlers that must withstand dynamic loads and shocks.

The specific heat treatment parameters for Hyundai front idlers are as follows:

Industry sources confirm that Hyundai R200 excavator front idlers achieve surface hardness of HRC 53–57 with case depth of 8–12mm, providing optimal wear resistance for mining and heavy construction applications. Premium-grade idlers achieve surface hardness of HRC 52–58 with case depth of 8–12mm, providing extended wear life under high-abrasion conditions including silica-rich mine soils, crushed rock haul roads, and high-silica-content overburden materials.

3.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Manufacturing Process Engineering

4.1 Closed-Die Hot Forging Technology

CQC TRACK employs advanced closed-die hot forging processes for premium-grade front idler production. The multi-stage hot forging process includes:

Primary Hot Forging: A heated billet of premium alloy steel (40Mn, 50Mn, 40Mn2, or 42CrMo depending on specification) is placed in a booster die mounted on a forging press to perform initial volume distribution, establishing the basic material shape and density.

Secondary Hot Forging: The hot-forged material is placed in a blocker die to form the rib face and basic wheel geometry, establishing the core structural architecture.

Tertiary Hot Forging: The secondarily hot-forged material is placed in a finisher die to achieve the final wheel profile, including the precision flange geometry and tread surface, achieving final dimensional accuracy.

Trimming-Piercing: The tertiarily hot-forged material is placed in a product guide die to eliminate flash and form any necessary through-holes, eliminating the need for additional rough machining operations.

4.2 CNC Machining Capabilities

All critical surfaces of Hyundai cross-reference front idlers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. Utilizing specialized hardening and tempering techniques ensures products possess outstanding mechanical characteristics, exceptional durability, and enhanced resistance to deformation and fracture.

Key machining operations include:

• Tread Surface Machining: Precision turning of the idler wheel outer diameter to achieve exact dimensional specifications and surface finish for optimal track chain contact.
• Flange Profile Machining: Precision profiling of the integral guide flanges to ensure proper lateral track chain alignment.
• Bore Machining: Precision boring of the wheel bore to achieve exact bearing clearance specifications.
• Shaft Journal Machining: Precision turning and grinding of the shaft bearing surfaces to achieve exact dimensional tolerances and surface finish.
• Seal Housing Machining: Precision machining of the seal housing cavities to ensure proper seal compression and alignment.
• Mounting Feature Machining: Precision machining of any mounting features, bolt holes, or locating surfaces required for proper idler bracket attachment.

4.3 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• In-House Forging & Forging Alliance: Utilization of premium 40Mn, 50Mn, 40Mn2, and 42CrMo alloy steels through strategic control of forging parameters, ensuring optimal grain flow and material density in component blanks, fundamental for impact strength and fatigue life.
• CNC Machining Centers: Battery of modern CNC lathes, milling machines, and drilling centers performing rough and finish machining to ISO 2768-mK tolerances.
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 52–58 with 8–12mm case depth.
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing on every finished idler assembly.
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications.

5. Sealing System and Bearing Technology

5.1 Floating Seal Configuration

Front idlers for heavy-duty excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the extreme conditions encountered in mining and heavy construction operations:

• Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress.
• Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments.
• Dust Seal (Optional): Additional labyrinth or lip-type seal elements that provide initial contamination exclusion, protecting the primary floating seal from large debris.
• Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and idler wheel body, ensuring optimal seal compression and alignment.

The sealing system must resist ingress of abrasive materials common in mining environments—including silica dust, slurry, mud, and fine rock particles—which would otherwise accelerate bearing wear and cause premature failure.

5.2 Bearing System Design

Each front idler incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. Two primary bearing configurations are employed depending on the specific part number and application:

Hardened Steel Bushing Configuration: The idler wheel rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions. The bushing material is selected for compatibility with the shaft hardness profile, providing optimal wear characteristics under boundary lubrication conditions.

Anti-Friction Bearing Configuration: Some front idler assemblies utilize anti-friction bearings (tapered roller bearings or ball bearings) for reduced rotational friction and extended service intervals. This configuration is typically employed for larger idlers or applications requiring extended service intervals.

The bearing surfaces are finished to precise surface roughness specifications that promote lubricant film retention while minimizing friction during rotation. Proper bearing clearance is maintained to accommodate thermal expansion and deflection under load while preventing excessive radial play that would cause seal damage or idler misalignment.

5.3 Lubrication Retention

Front idlers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. The sealed system requires no field lubrication (for sealed idler configurations), eliminating the need for regular greasing and reducing maintenance requirements. Key lubrication specifications include:

• Lubricant Type: High-quality lithium-based or polyurea-based grease with extreme pressure (EP) additives.
• Lubricant Volume: Optimized for the specific bearing configuration and seal design.
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling.

6. Quality Assurance and Testing Protocols

6.1 ISO 9001:2015 Certified Manufacturing

Every CQC TRACK front idler is manufactured under ISO 9001:2015 certified processes, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates.
• Forging Verification: Inspection of forged blanks for dimensional accuracy, surface quality, and absence of internal defects using ultrasonic testing.
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination.
• Machining Dimensional Checks: In-process and final dimensional inspection using CMM (Coordinate Measuring Machine) and precision gauging equipment.
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge.
• Final Testing: Dynamic rotation testing and seal integrity verification.

6.2 Dynamic Rotation Testing

Each finished front idler is subjected to a dynamic rotation test that verifies:

• Concentricity: The idler wheel rotates without radial runout that would cause uneven track chain contact or vibration.
• Smoothness: The bearing system rotates freely without binding, noise, or resistance.
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load.
• Balance: The idler assembly exhibits balanced rotation without vibration at operational speeds.

Any noise, resistance, or oil leakage is identified and corrected before approval for shipment.

6.3 Dimensional Inspection and Certification

Finished idlers undergo comprehensive dimensional inspection using calibrated measurement equipment. Each critical dimension is verified against the OEM engineering specification, with inspection records maintained for full traceability. The dimensional inspection process includes:

• Verification of all critical dimensions against part-specific engineering drawings.
• Measurement of concentricity and runout using precision dial indicators.
• Inspection of seal housing geometry using dedicated gauging.
• Verification of bore diameter and shaft journal dimensions.
• Flange width and geometry verification.

Dimensional inspection reports and metallurgical test certifications are available upon request, providing procurement professionals with documented evidence of quality compliance.

6.4 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket front idlers typically ranges from 12 to 24 months depending on the manufacturer and application. For Hyundai front idlers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Typical service life in mining applications ranges from 6,000 to 12,000 operating hours depending on ground conditions, operator practices, and maintenance schedules. For severely abrasive environments, service life may be reduced accordingly.

Industry sources indicate that Hyundai R200 excavator idlers typically provide 2,000+ hours of service life under normal operating conditions, with premium-grade components achieving significantly longer service intervals.

6.5 Anti-Corrosion Protection and Packaging

The idler surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the idler from rust and harsh environmental exposure during storage and field operations.

Finished idlers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations.

7. Installation and Track Tensioning Procedures

7.1 Pre-Installation Preparation

Proper installation of a front idler assembly on a Hyundai R200, R200LC, or HX220 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder relief valve to allow removal of the track chain.
2. Component Inspection: Before installation, inspect the idler bracket and track frame for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Idler Assembly Inspection: Inspect the new idler assembly for any shipping damage. Verify that the idler rotates freely by hand. Check seal integrity.

7.2 Idler Bracket and Tensioner Interface

The front idler mounts to the track frame via the idler bracket or yoke, which interfaces directly with the track adjuster assembly (recoil spring and grease cylinder). Key installation considerations include:

• Ensure that the idler bracket is properly aligned with the track frame guide surfaces.
• Verify that the recoil spring is properly seated and functioning correctly.
• Lubricate all sliding surfaces with appropriate grease before assembly.
• Install the idler shaft retaining hardware to specified torque values.

7.3 Track Tension Adjustment

After idler installation, proper track tension must be established according to Hyundai R200/R200LC/HX220 specifications. The general procedure is as follows:

1. Chain Installation: Install the track chain around the undercarriage components (front idler, bottom rollers, carrier rollers, drive sprocket).
2. Tension Application: Apply grease to the track adjuster grease fitting using a manual grease gun (not pneumatic) until the track chain begins to tension.
3. Sag Measurement: The proper track sag for Hyundai R200-class excavators is typically measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Specification: approximately 30–50mm sag for standard applications.
4. Final Adjustment: Adjust grease volume as needed to achieve proper sag. Over-tensioning will accelerate wear on all undercarriage components. Under-tensioning may cause chain derailment.
5. Test Operation: Slowly rotate the track chain through at least one full revolution while listening for unusual noises and observing chain-to-idler engagement.

7.4 Re-Torque and Verification

After 2–4 hours of operation, re-check track tension and re-torque any idler mounting hardware as specified in the Hyundai service manual to account for initial seating and thermal expansion.

8. Wear Diagnosis and Replacement Criteria

8.1 Primary Wear Indicators

For mining operations managing fleets of Hyundai excavators, early identification of front idler wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The idler tread surface (the rolling contact area) wears progressively over time. When the tread surface exhibits significant flat spots or wear beyond approximately 3–5mm below the original diameter, replacement is recommended.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required.

Cracked Root Areas: Visual inspection of the flange-to-wheel body transition radii should be performed regularly. Cracks in these areas indicate stress fatigue and can lead to catastrophic wheel failure if not addressed promptly.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage.

Uneven Wear Pattern: If one side of the idler shows significantly more wear than the other, this may indicate misalignment between the idler and the track chain or issues with the track frame alignment.

8.2 Replacement Interval Planning

A well-maintained idler directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn idler will accelerate wear on the new chain’s bushings and link rails, significantly reducing overall system life. Conversely, installing a new idler on a worn chain will cause accelerated tread and flange wear and premature idler failure.

For mining operations, the recommended replacement strategy is to replace the idler and track chain as a matched set whenever either component reaches the end of its service life.

9. Regional Market Applications: Mining-Focused Engineering

9.1 South America: Brazilian Iron Ore, Chilean Copper, and Peruvian Polymetallic Operations

The South American mining market presents unique demands for undercarriage components, with operations concentrated in Brazilian iron ore mines (Vale‘s Carajás complex, Minas Gerais operations), Chilean copper mines (Codelco’s Chuquicamata and El Teniente mines, BHP‘s Escondida mine), and Peruvian polymetallic operations (Antamina, Cerro Verde, Las Bambas). The region’s heavy machinery market is characterized by high demand for excavators in the 20–22 ton class, with Hyundai R200 and R200LC equipment extensively deployed across mining, quarrying, and major infrastructure projects.

For South American mining customers, CQC TRACK’s Hyundai cross-reference front idlers offer a compelling value proposition: OEM-equivalent quality at competitive pricing, with the ability to supply volume quantities through established export channels. The company‘s strategic location in Quanzhou—a premier industrial cluster for heavy machinery manufacturing with proximity to major international ports—enables efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia, and Mexico.

9.2 Australia: Pilbara Iron Ore, Queensland Coal, and Goldfields Operations

The Australian mining industry demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability and industry-standard warranty coverage. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Pilbara region of Western Australia—home to the world’s largest iron ore mining operations (Rio Tinto, BHP, Fortescue)—represents a primary deployment zone for Hyundai excavators. Queensland‘s Bowen Basin coal mines, the Hunter Valley in New South Wales, and the Western Australian goldfields also utilize Hyundai R200 and HX220 excavators for overburden removal, coal extraction, and ore handling.

CQC TRACK’s manufacturing processes align with these requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability. For Australian customers operating Hyundai R200, R200LC, and HX220 excavators in iron ore, coal, gold, and base metal mining operations, these idlers provide reliable performance in the high-impact, high-abrasion conditions characteristic of Australian mine sites. Heat-treated idlers maintain proper tread profiles and flange geometry longer, ensuring smooth track engagement and reducing chain wear in Australia‘s highly abrasive ground conditions.

9.3 Europe: German Quarrying, French Infrastructure, and Scandinavian Mining

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s quarrying industry, particularly in the Rhineland and Bavarian regions, utilizes Hyundai R200-class excavators for limestone, basalt, and other aggregate extraction. France‘s infrastructure development sector and the Scandinavian mining industry (LKAB’s iron ore mines in Sweden, the Pyhäsalmi mine in Finland) represent additional major application zones.

CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers. For parts distributors, equipment dealers, and mining service centers throughout Germany, France, Scandinavia, and Eastern Europe, the company provides comprehensive technical data packages including dimensional specifications, material certifications, and heat treatment records. Modern aftermarket idlers often include advanced sealing systems and wear-resistant coatings, protecting against dirt, water, and impact in European operating conditions.

9.4 Russia and Central Asia: Siberian Mining, Kazakhstanean Copper, and Mongolian Operations

Following the realignment of global supply chains, Russian and Central Asian mining operators increasingly source heavy equipment components from Chinese manufacturers. Recent data indicates nearly 70% of Russian enterprises have selected Chinese manufacturing alternatives for Western equipment replacement, with Kazakhstan representing a growing market for Chinese mining equipment exports. Russia‘s vast mining industry—including Norilsk Nickel’s operations in Siberia, the Kuzbass coal basin, and various gold mining operations in the Russian Far East—utilizes Hyundai excavators for heavy-duty applications. Kazakhstan‘s copper mining operations (Kazakhmys, KAZ Minerals) and the Oyu Tolgoi copper-gold mine in Mongolia represent additional major deployment zones.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company’s manufacturing capacity supports volume orders for mining operations requiring regular undercarriage replacement schedules. High-quality aftermarket components—such as idlers, track chains, rollers, and sprockets—deliver durability and reliability while often costing significantly less than OEM counterparts, making fleet maintenance more predictable and financially manageable.

9.5 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of Mining Service Centres in the major mining areas around the world that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes cooperation to build a brilliant long-term relationship with global partners. With a full range of Hyundai-compatible excavator spare parts including track rollers, idlers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance.

10. Sourcing Considerations for Procurement Professionals

10.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine’s serial number and the specific OEM part number from the Hyundai parts catalog. Aftermarket manufacturers typically provide cross-reference tables allowing direct matching of their parts to OEM numbers. The part numbers documented in this analysis—E1812004, 81N613010, 81Q613030, and 81Q613031—serve as primary OEM references for direct cross-reference ordering.

The 81N613010 part number has documented compatibility with an extensive range of Hyundai models including the R110-7, R140LC-7, R160LC7, R180LC7, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250LC7, R250LC7A, RC215C7, RC215C7H, RD210-7, and RD220-7 series. This broad compatibility makes the 81N613010 idler a valuable inventory item for fleet operators managing multiple Hyundai model generations.

10.2 Quality Documentation Requirements

When sourcing front idlers for mining applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification)
• Heat treatment records (hardness profiles and case depth)
• Mill test certificates for raw material
• Seal system specifications
• Bearing type and configuration details

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance. For steel parts like idlers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

10.3 Supply Chain and Lead Times

For mining operations requiring regular undercarriage replacement schedules, consistent supply availability is critical. CQC TRACK maintains finished goods inventory for high-demand part numbers including the E1812004, 81N613010, 81Q613030, and 81Q613031 idler assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing.

10.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For mining operations managing large fleets of Hyundai excavators, sourcing OEM-equivalent aftermarket idlers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing forging, heat treatment, CNC machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift is driven by several factors. First, rising machinery costs and budget pressures have made aftermarket parts a smart investment. Contractors and fleet managers are seeking solutions that reduce expenses without compromising performance. Durability and performance have improved dramatically in the aftermarket sector. Manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications. Reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports—the company serves the global market as a proficient OEM and ODM manufacturing partner.

The company‘s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems. This focused specialization enables CQC TRACK to deliver idler components that not only meet but often exceed OEM performance standards.

The company manufactures a full range of Hyundai-compatible undercarriage parts, including track rollers, idlers, sprockets, track chains, track shoes, and complete undercarriage systems.

11.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Hyundai, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

11.3 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• In-House Forging & Forging Alliance: Utilization of premium 40Mn, 50Mn, 40Mn2, and 42CrMo alloy steels through strategic control of forging parameters.
• CNC Machining Centers: Battery of modern CNC lathes, milling machines, and drilling centers performing rough and finish machining to ISO 2768-mK tolerances.
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 52–58 with 8–12mm case depth.
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing on every finished idler.
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors.

12. Frequently Asked Questions for Mining Operations

Q1: What is the function of a front idler on a Hyundai excavator?

A front idler (also called a guide wheel or track idler) guides the track chain, maintains proper track tension in conjunction with the track adjuster assembly, supports the front portion of the machine’s weight, and absorbs shock loads from uneven terrain.

Q2: How do I verify which idler part number my Hyundai excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the Hyundai parts catalog. The four part numbers covered in this analysis—E1812004, 81N613010, 81Q613030, and 81Q613031—cover the R200, R200LC, and HX220 model range. The 81N613010 part number is also compatible with many other Hyundai R-series models.

Q3: What materials are used in CQC TRACK front idlers for Hyundai excavators?

CQC TRACK uses premium 40Mn, 50Mn, 40Mn2, and for premium-grade applications, 42CrMo alloy steel, induction-hardened to HRC 52–58 with case depth of 8–12mm for optimal wear resistance.

Q4: Are these idlers direct replacements for Hyundai OEM parts?

Yes, all front idlers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Hyundai‘s original engineering specifications for dimensional accuracy and mechanical properties.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a front idler in mining applications?

Front idler service life in mining applications typically ranges from 6,000 to 12,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules.

Q7: When should I replace my excavator’s front idler?

Replace the idler when the tread surface is worn more than 3–5mm below original diameter, when flange thickness is reduced beyond 30% of original, when cracks appear in the flange-to-wheel body transition areas, or when seal leakage is observed.

Q8: Should I replace the idler when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. Installing a new chain on a worn idler will rapidly accelerate chain bushing and link rail wear.

Q9: What is the correct track sag specification for Hyundai R200-class excavators?

Proper track sag for Hyundai R200-class excavators is typically 30–50mm measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller. Always consult the Hyundai service manual for model-specific specifications.

Q10: What is the lead time for volume orders of Hyundai idlers?

Lead times for volume orders of Hyundai front idlers typically range from 7–30 days depending on order volume and destination.

13. Conclusion

The four Hyundai OEM cross-reference front idler assemblies documented in this analysis—E1812004, 81N613010, 81Q613030, and 81Q613031—represent essential undercarriage components for R200, R200LC, and HX220 series hydraulic crawler excavators deployed in mining, quarrying, and heavy construction operations worldwide. As the primary track guidance and tension management component at the front of the undercarriage, the idler assembly plays a critical role in track chain alignment, load distribution, shock absorption, and overall undercarriage system longevity.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these idlers to meet or exceed OEM specifications through advanced closed-die hot forging, precision CNC machining, computer-controlled induction heat treatment, and rigorous quality assurance protocols. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global mining markets.

For mining operators, equipment dealers, and parts distributors throughout South America (Brazil, Chile, Peru), Australia (Pilbara, Queensland, New South Wales), Europe (Germany, France, Scandinavia), and Russia/Central Asia (Siberia, Kazakhstan, Mongolia), these front idlers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

Procurement professionals are encouraged to verify compatibility using the OEM part numbers provided, request quality documentation including material certifications and dimensional inspection reports, and establish direct supply relationships with specialized manufacturers to optimize total cost of ownership for Hyundai crawler excavator undercarriages. For fleet managers and maintenance supervisors, implementing a proactive idler inspection and replacement schedule—including regular tread wear measurement, flange geometry verification, seal integrity checks, and coordinated idler-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the mining and heavy construction industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
