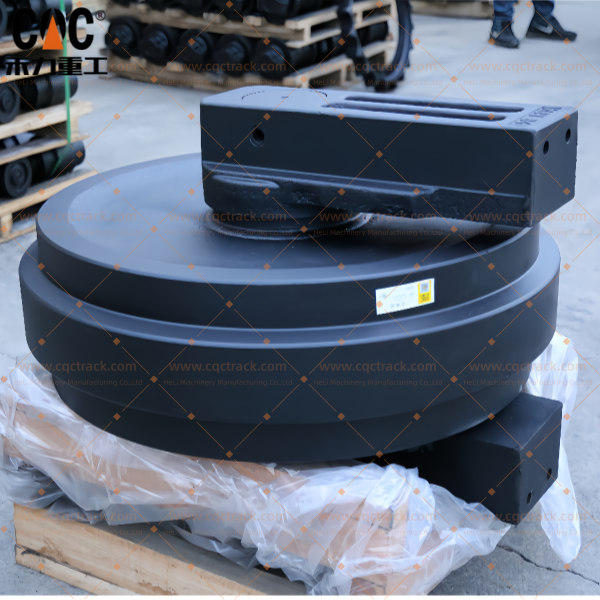

LIEBHERR 5000127 7365656 R974 Track Idler Wheel Assembly

Professional Heavy-Duty EXC Crawler Undercarriage Part

OEM-Quality Front Idler / Guide Wheel Assembly

Source Manufacturer: CQC TRACK (HELI)

1. Technical Overview: Precision Engineering for Ultra-Class Mining Excavators

The Liebherr R974 series represents the pinnacle of German engineering in the ultra-class hydraulic excavator segment. These machines—specifically the R974, R974B, R974C, and R974C Litronic HD models—are deployed in the world’s most demanding mining and heavy construction environments, from the iron ore mines of Western Australia and Brazil to the copper operations of Chile, and from the oil sands of Canada to the quarry operations of Europe, Africa, and Russia .

With an operating weight ranging from 81.5 to 90 metric tons and engine power output up to 360–435 kW (483–583 HP) , the R974 series requires undercarriage components engineered to withstand extreme loads, continuous operation, and the harshest terrain conditions .

The Track Idler Wheel Assembly (Front Idler/Guide Wheel) , identified by Liebherr OEM part numbers 5000127 and 7365656, is a mission-critical undercarriage component that serves as the forward guidance and tension management system for the excavator’s track chain. As the counterpart to the rear drive sprocket, the idler assembly must withstand extreme loads, continuous abrasion, and severe impact forces while maintaining precise track alignment.

This document provides comprehensive technical specifications for the Liebherr 5000127/7365656 Track Idler Wheel Assembly, compatible with R974, R974B, R974C, and R974C Litronic HD excavator models. As a professional heavy-duty EXC crawler undercarriage part manufacturer, CQC TRACK (HELI) delivers OEM-quality components engineered to meet or exceed original equipment specifications for mining and heavy construction applications.

2. Functional Definition: The Critical Role of the Front Idler in 80-Ton Class Excavators

2.1 Primary Functions

The Track Front Idler Assembly serves four interconnected functions critical to excavator performance and undercarriage longevity:

2.2 Component Identification



Designation	Detail
OEM Part Numbers	5000127, 7365656
Alternative References	9353383, LH727, VR497400 (cross-reference for associated sprocket)
Component Type	Track Front Idler / Guide Wheel Assembly
Compatible Models	Liebherr R974, R974B, R974C, R974C Litronic HD
Machine Class	80–90 metric ton ultra-class mining excavator
Position per Machine	2 (one per track side)
Track Chain Pitch	260 mm

3. Detailed Component Breakdown & Technical Specifications

3.1 Idler Wheel (Rim) Engineering

The idler wheel is the visible rotating component that directly contacts the track chain. Its engineering determines wear life and operational reliability in mining applications.

3.2 Idler Shaft (Spindle) Specifications

The idler shaft serves as the central load-bearing axle, transmitting all operational loads from the idler wheel to the support brackets and mainframe.

3.3 Bearing System Configuration

The bearing system is the heart of the idler assembly, determining rotational smoothness and service life in continuous mining operations.

3.4 Sealing System Engineering

The sealing system is paramount for service life in mining environments where dust, mud, and abrasive particles are prevalent.

3.5 Track Tensioning Interface

The idler assembly incorporates a precision-engineered interface for connection to the track tensioning system.

4. R974 Series Machine Platform Overview

4.1 Model Specifications

4.2 Key Machine Specifications

4.3 Application Environments

The R974 series is purpose-built for:

• Surface Mining: Hard rock excavation, overburden removal, ore extraction
• Quarry Operations: Primary production, bench loading, material handling
• Heavy Construction: Large-scale earthmoving, infrastructure projects
• Material Handling: Stockpile management, port operations

5. Source Manufacturer: CQC TRACK (HELI) – Professional Heavy-Duty EXC Crawler Undercarriage Part Manufacturer

5.1 Manufacturer Profile

CQC TRACK (operating under HELI Group affiliation) is a specialized manufacturer and supplier of heavy-duty tracked chassis components, headquartered in Quanzhou, China. The company maintains full vertical integration across the manufacturing process, from raw material selection through final assembly and quality testing.

Core Manufacturing Capabilities for Mining-Grade Components:

5.2 Quality Assurance Protocols for Mining Applications

5.3 Metallurgical Engineering for Heavy-Duty Applications

CQC TRACK employs advanced metallurgical engineering to achieve the optimal balance of hardness, toughness, and fatigue resistance required for 90-ton class excavator idlers:

Dual-Property Heat Treatment Engineering:

1. Quenching and Tempering (Q&T): Entire forged body austenitized at 840–880°C, quenched, then tempered at 500–650°C. Core hardness: 280–350 HB (29–38 HRC) —providing optimal toughness for impact absorption.
2. Induction Surface Hardening: Following finish machining, the critical wear surface undergoes localized induction hardening. Surface hardness: HRC 50–58 with case depth 8–12 mm —providing exceptional wear resistance while maintaining core toughness .
3. Hardness Profile Verification: Microhardness traverses verify controlled transition from hard surface to tough core, preventing spalling or case-core separation under impact loading.

6. Associated Undercarriage Components for Liebherr R974 Series

For comprehensive undercarriage maintenance—critical for mining operations where downtime directly impacts production revenue—the front idler should be evaluated alongside complementary components. CQC TRACK manufactures the complete chassis component portfolio for Liebherr R974 series excavators.

6.1 Idler and Track Chain Matching Principle

For R974 series mining excavators, the front idler and track chain must be assessed as a matched system. Operating a new idler with a severely worn chain (or vice versa) creates:

• Accelerated Tread Wear: Mismatched contact geometry destroys the idler running surface
• Bushing Damage: Premature failure of track chain bushings
• De-tracking Risk: Improper engagement increases lateral slippage potential
• Reduced Service Life: 40–60% reduction in overall undercarriage life

6.2 Sprocket Specifications for R974 (Reference)

For complete undercarriage planning, the drive sprocket specifications are:

7. Global Market Applications & Regional Adaptations

The Liebherr R974 series is deployed in mining and heavy construction operations worldwide. CQC TRACK components are engineered with specific regional adaptations to meet local operational conditions and procurement preferences for mining owners and parts distributors.

7.1 South America

7.2 Africa

7.3 Russia & CIS

7.4 Australia

7.5 Korea

7.6 Mining Industry Best Practices

For mining operations across all regions, the following procurement practices are recommended:

8. Procurement & Compatibility Verification

8.1 Pre-Purchase Verification Steps

1. Machine Model Confirmation: Verify exact model designation (R974, R974B, R974C, R974C Litronic HD) and serial number
2. OEM Part Number Verification: Confirm idler part number against machine documentation:
   • 5000127 (primary idler assembly)
   • 7365656 (alternative or sub-component)
3. Undercarriage Configuration: Verify number of bottom rollers per side (typically 8–9); confirm track shoe width (600–800 mm)
4. Track Chain Pitch Verification: Confirm existing track chain pitch—R974 series uses 260 mm pitch standard
5. Tensioning System Compatibility: Verify track adjuster cylinder compatibility with idler interface

8.2 Sourcing Channels

9. Maintenance Recommendations & Failure Prevention

9.1 Regular Inspection Protocol for Mining Operations

9.2 Common Failure Modes – Mining Applications

9.3 Replacement Recommendations

10. Technical Specifications Summary Table

11. Conclusion

The Liebherr R974, R974B, R974C, and R974C Litronic HD excavators represent the highest standard of German engineering in the ultra-class mining excavator segment. These 80–90 ton machines are deployed in the world’s most demanding mining operations, where reliability and durability directly impact production profitability .

The Track Idler Wheel Assembly (5000127 / 7365656) is a mission-critical component that guides the 260 mm pitch track chain, manages track tension, and absorbs impact loads while supporting a significant portion of the machine’s operating weight. The idler’s engineering—featuring deep induction hardening (8–12 mm case depth), precision multi-barrier sealing systems, and high-strength alloy steel construction—is specifically optimized for the extreme demands of mining applications .

CQC TRACK (HELI) stands as a professional heavy-duty EXC crawler undercarriage part manufacturer with full vertical integration, advanced metallurgical engineering, rigorous quality assurance protocols, and comprehensive global supply chain infrastructure. Our components are engineered to meet or exceed Liebherr OEM specifications, featuring:

• Closed-die forging for superior grain structure and fatigue resistance
• Dual-property heat treatment combining tough core (280–350 HB) with hard wear surface (HRC 50–58)
• Deep induction hardening with 8–12 mm case depth for extended mining wear life
• Precision machining with ±0.02 mm tolerances on critical interfaces
• Multi-barrier sealing systems for contaminant exclusion in extreme environments
• Full material traceability with Mill Test Reports and certification

These engineering investments ensure reliable performance across the world’s most demanding operational environments—from the iron ore mines of Australia and South America to the diamond and gold operations of Africa, from the permafrost regions of Russia to the quarry sites of Korea, and from the oil sands of Canada to the mining operations of the Middle East and Europe.

For technical specifications, pricing inquiries, or to place orders for Liebherr R974 series undercarriage components, contact CQC TRACK’s international sales department with your machine serial number and specific requirements.
