Precision Undercarriage Engineering for SDLG E6650 Excavators: A Definitive Technical Analysis of the Track Support Roller Assembly (Part Number 4110016136) and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of the Track Support Roller in Heavy-Duty Crawler Systems

The track support roller—also referred to as the carrier roller, top roller, or upper roller assembly—is a foundational yet often overlooked component in the undercarriage architecture of any heavy crawler excavator. Unlike its counterpart the track bottom roller, which bears the full operating weight of the machine against the ground, the track support roller performs a distinctly different but equally vital function: it supports the upper (return) section of the track chain as it travels from the drive sprocket back to the front idler. Positioned high on the track frame, the support roller prevents excessive track sag, manages dynamic tension fluctuations during high-speed travel and turning maneuvers, and maintains proper track chain alignment to prevent derailment—particularly critical for 60–65 ton class excavators operating in large-scale mining and quarrying environments.

For operators of SDLG E6650 excavators—a 63–65 ton heavy-duty crawler excavator widely deployed in large-scale mining, quarrying, heavy construction, infrastructure development, and mass earthmoving—the reliability of the track support roller assembly directly affects track chain life, undercarriage alignment, and overall machine uptime. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

This publication delivers a comprehensive technical examination of the SDLG OEM part number 4110016136, which represents the complete track support roller / carrier roller assembly for the E6650 large hydraulic excavator platform. This component is critical for maintaining optimal track alignment and ensuring smooth movement of the track chain under extreme operating conditions. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) , a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. The SDLG E6650 Platform: Engineering for Extreme Mining Applications

2.1 Machine Specifications and Operating Environment

The SDLG E6650 is a flagship model in SDLG’s large excavator lineup, representing one of the most powerful heavy-duty crawler excavators engineered for the most demanding applications. SDLG, a globally recognized brand under Volvo Group ownership, offers durable and cost-effective machinery that meets rigorous quality standards. The E6650 series is designed for large-scale mining, quarrying, heavy construction, and mass earthmoving operations where durability, reliability, and operational efficiency are paramount.

The E6650H variant, an upgraded model within this series, is equipped with a Cummins 12L engine, delivering 8% higher power than the previous generation with stronger power and more efficient operation. The E6650F variant, operating with a 63-ton operating weight, features high-strength steel tracks that enhance stability on uneven or soft terrain, with an extended undercarriage design that provides enhanced stability on slopes.

Key specifications for the SDLG E6650 platform include:

The E6650′s undercarriage is designed for severe-duty applications, featuring an X-shaped heavy-duty track frame, reinforced longitudinal beams, and upgraded track components to withstand the extreme loads encountered in open-pit mining and quarry excavation. The track support roller assembly (Part Number 4110016136) is a critical component within this robust architecture, working in conjunction with the track chain, sprocket assembly, carrier rollers, bottom rollers, and front idler to ensure optimal ground contact and propulsion.

3. Part Number 4110016136: Identification and Functional Architecture

3.1 OEM Part Number and Application

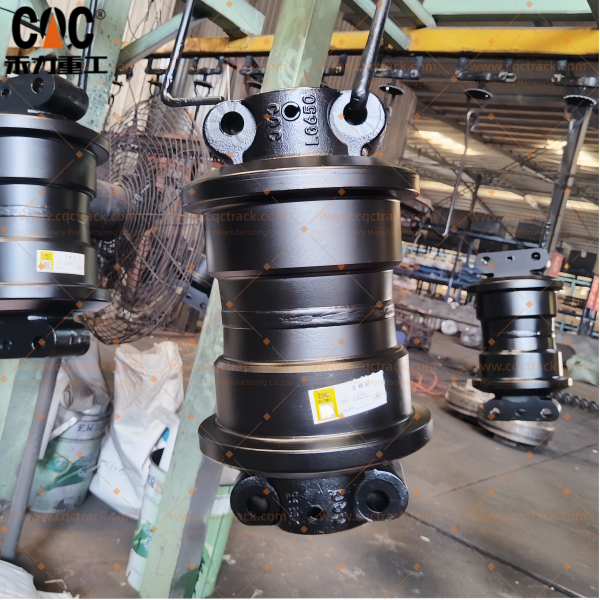

The SDLG 4110016136 Track Support Roller Assembly is a precision-engineered undercarriage component specifically designed for the SDLG E6650 large hydraulic excavator. This complete support roller assembly is manufactured to deliver OEM-equivalent fit, form, and function, with 100% interchangeability with the original SDLG specification.

The 4110016136 designation corresponds to SDLG’s proprietary engineering drawings, which define precise dimensional tolerances, material grades, heat treatment parameters, and assembly specifications developed through the original equipment manufacturer’s rigorous validation and field testing protocols.

3.2 Functional Responsibilities

The 4110016136 track support roller assembly performs three mission-critical functions that directly impact undercarriage longevity:

1. Upper Track Support and Sag Prevention: The primary function of the support roller is to bear the main weight of the excavator and distribute it evenly across the track chain. By preventing excessive track sag, the roller reduces vibration during movement and prevents the track chain from contacting the track frame, which would otherwise lead to accelerated wear and potential derailment.

2. Track Guidance and Alignment: The dual flanges on each side of the roller keep the track chain aligned and prevent it from slipping off. This double-flange design provides lateral track chain containment, preventing derailment during turning and counter-rotation maneuvers. The precise, hardened running surface guides the track’s return path and ensures proper alignment as it enters the sprocket and travels over the carrier and bottom rollers.

3. Smooth Movement and Contamination Resistance: Sealed internal bearings allow the roller to rotate smoothly as the track moves. The advanced multi-stage sealing mechanism provides a robust barrier against mud, sand, and moisture—common contaminants in mining and quarry environments—significantly extending service life and reducing maintenance frequency.

A failure in a support roller can lead to accelerated wear on the entire undercarriage, including track links, pins, bushings, and sprockets, and even pose a risk of track derailment.

3.3 Component Breakdown

A complete SDLG 4110016136 track support roller assembly consists of the following subcomponents:

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium track support roller assemblies for SDLG E6650 excavators are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The primary materials specified for the 4110016136 assembly include:

CQC TRACK utilizes premium 52Mn, 55Mn, and 40CrNiMo alloy steels sourced from certified mills. Through strategic control of forging, optimal grain flow and material density in component blanks are ensured, which is fundamental for impact strength and fatigue life.

4.2 Heat Treatment Specifications

The performance of a track support roller depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The heat treatment automation line adopts advanced whole quenching techniques to manufacture the roller, meeting the stringent technical requirements for mining-grade components. The dedicated facility features computer-controlled induction hardening and tempering furnaces, specializing in achieving deep, uniform case hardness profiles.

4.3 Bearing and Sealing Specifications

5. CQC TRACK: A Specialized Manufacturer of SDLG Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. Founded in the late 1990s, HELI has systematically evolved into one of the top three undercarriage component manufacturers in the Quanzhou region, a premier industrial cluster for heavy machinery manufacturing.

The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects. The brand represents a product line built for resilience, engineered to endure the most abrasive and high-impact environments in mining, quarrying, and major infrastructure projects.

5.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered quality assurance framework, holding ISO 9001:2015 quality system recognition. Every CQC TRACK undercarriage component is manufactured under ISO 9001:2015 certified processes, with full component traceability from raw material through finished assembly. As a member of the International Certification Network (IQNet), CQC’s ISO 9001 certificates are recognized by 36 member organizations across 33 countries and regions, giving global procurement professionals confidence in product reliability.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK’s manufacturing strength rests on complete vertical integration and controlled sequential processes:

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to track systems, the engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

5.5 SDLG Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for SDLG excavators, including:

The company has documented cross-reference compatibility for its undercarriage components across multiple brands, including SDLG, Caterpillar, Komatsu, Hitachi, Doosan, Volvo, XCMG, SANY, and Liugong.

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing the SDLG 4110016136 track support roller assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

6.2 Lead Times and Logistics

For the SDLG 4110016136 track support roller assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new track support roller assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing and diameter match the track frame bracket
2. Roller width and diameter — Verify dimensions match the track chain link spacing and track frame clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede roller installation
5. Mounting bracket condition — Inspect for wear or damage to the support roller saddle

7.2 Installation Procedure Summary

Replacing a support roller on a machine of this size is a significant task that requires proper tools and safety procedures:

1. Park Safely: Position the machine on a firm, level surface. Lower the attachment to the ground.
2. Block the Machine: Chock the tracks securely to prevent any movement.
3. Relieve Track Tension: Use the grease fitting on the front idler to carefully release hydraulic pressure and slacken the track. Warning: This can release high-pressure grease, so stand clear.
4. Support the Track Frame: Place a jack and blocks under the track frame near the roller to be replaced.
5. Remove Mounting Bolts: The roller is held on by two or three large bolts that thread into the track frame. These are often extremely tight and corroded. Heat (from a torch) or a powerful impact gun is often necessary.
6. Install New Roller: Remove the old roller, clean the mounting surface, install the new roller assembly, and hand-tighten the new high-tensile bolts. Always use new bolts; reusing old ones is a safety risk.
7. Torque to Spec: Use a torque wrench to tighten the bolts to the manufacturer’s specified value (this will be a very high torque).
8. Re-tension Track: Re-pressurize the track tensioner with a grease gun to achieve proper track sag.

Tools and equipment needed: Heavy-duty hydraulic jack and solid cribbing blocks, high-torque impact wrench or large breaker bar with appropriate sockets (bolt sizes are typically M20+), a lifting device (like the excavator’s own bucket or a crane) to handle the heavy roller assembly, and personal protective equipment (PPE)—steel-toed boots, gloves, safety glasses.

7.3 Maintenance Schedule

7.4 Failure Modes and Troubleshooting

7.5 Service Life Expectations

Under normal quarrying and heavy construction conditions, a quality aftermarket track support roller meeting HRC 52–58 surface hardness specifications with 8–12 mm case depth can achieve 4,000–6,000 operating hours before requiring replacement. In severe mining applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 3,000–4,000 hours.

Regular inspection is crucial for maximizing the life of the undercarriage, which is one of the most expensive parts of an excavator to replace. Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing roller longevity.

8. The Importance of Proper Support Roller Selection for Heavy Mining

The track support roller is often the most neglected component in an excavator undercarriage system. Unlike bottom rollers, which show obvious signs of wear through reduced ground clearance or visible flat spots, carrier rollers can fail gradually without immediate operational symptoms. However, a failed support roller can cause catastrophic track derailment, particularly during high-speed travel or sharp turns on mining sites, leading to extensive undercarriage damage and costly downtime.

For SDLG E6650 excavators operating in mining and heavy construction—machines with operating weights approaching 65 tons and daily production demands measured in thousands of tons—selecting high-quality track support rollers with proper material selection, heat treatment, robust sealing systems, and precision machining is essential.

CQC TRACK’s 4110016136 track support roller assembly incorporates:

• Forged alloy steel construction (50Mn, 40Mn2, or 42CrMo) for superior grain flow and impact resistance
• Induction-hardened running surface (HRC 52–58) with 8–12 mm case depth for exceptional wear resistance
• Through-hardened core (HB 280–350) maintaining toughness to absorb shock loads
• High-capacity tapered roller bearings for reliable rotation under extreme loads; selected for exceptional capacity to handle combined heavy radial loads from machine weight and substantial axial loads during steering and side-slope operation
• Multi-stage sealing system (labyrinth guards, floating face seals, NBR oil seals) providing robust contamination barrier against mud, sand, and moisture
• ISO 9001:2015 certified manufacturing processes with full component traceability

These engineering features ensure that properly maintained track support rollers will deliver reliable service throughout their design life in the world’s most demanding mining environments. As one of the top three undercarriage component manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

9. Conclusion

For operators of SDLG E6650 excavators deployed in mining, quarrying, heavy construction, and mass earthmoving—a 60–65 ton heavy-duty machine with daily production demands—the track support roller / carrier roller assembly represented by part number 4110016136 is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. As one of the top three undercarriage component manufacturers in the Quanzhou region, CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

With material specifications including premium 50Mn, 40Mn2, and 42CrMo alloy steels; heat treatment achieving HRC 52–58 running surface hardness with 8–12 mm case depth; advanced multi-stage sealing systems (labyrinth guards, floating face seals, NBR oil seals); high-capacity tapered roller bearings selected for exceptional load handling during steering and side-slope operation; and ISO 9001:2015 quality certification, CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the SDLG 4110016136 track support roller assembly directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world’s toughest operating environments.
