LIUGONG 14C0288 14C0288C1 CLG985 Track Bottom Roller Assy / OEM Quality Heavy duty EXC Chassis Components Manufacturer and Factory / CQC TRACK

Precision Undercarriage Engineering for LiuGong CLG985 Excavators: A Definitive Technical Analysis of the Track Bottom Roller Assembly (Part Numbers 14C0288, 14C0288C1) and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of the Bottom Roller in Ultra-Class Mining Excavators

The track bottom roller—alternatively referred to as the lower roller, track roller, or load-bearing wheel—is arguably the most heavily stressed component in the undercarriage system of any crawler excavator. Positioned between the track chain and the track frame, each bottom roller bears a substantial portion of the machine‘s total operating weight, transfers ground contact pressure evenly across the track footprint, and maintains proper clearance height to minimize stress on other components such as sprockets and front idlers. In the harsh and unforgiving environment of large-scale mining, where excavators operate continuously on abrasive terrain with daily production demands measured in thousands of tons, the durability of the track bottom roller is not merely a maintenance consideration—it is a direct determinant of machine uptime, operational safety, and total cost of ownership.

For operators of LiuGong CLG985 excavators—an 82-ton ultra-class machine widely deployed in large-scale mining, quarrying, heavy construction, and mass earthmoving—the reliability of the track bottom roller assembly directly affects track chain life, undercarriage alignment, and overall machine productivity. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

This publication delivers a comprehensive technical examination of the LiuGong OEM part numbers 14C0288 and 14C0288C1, which represent the complete track bottom roller assembly for the CLG985 large hydraulic excavator platform. The “C1″ suffix in the part number likely indicates a variant or updated revision of the original 14C0288 specification—a common practice among OEMs to denote engineering changes, material upgrades, or superseded part numbers while maintaining the same functional fitment. These components are mission-critical for supporting the extreme operating weight of this 82-ton mining excavator, distributing the massive ground pressure generated by the machine‘s 563 kW powertrain across the track footprint. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.), a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. The LiuGong CLG985 Platform: Engineering for Extreme Mining Applications

2.1 Machine Platform Overview

The LiuGong CLG985 series represents a flagship line of ultra-class hydraulic excavators designed specifically for the most demanding mining and heavy construction applications. The CLG985 is part of LiuGong‘s next-generation large excavator lineup, engineered to deliver exceptional digging force, fuel efficiency, and operational reliability in the world’s most challenging environments.

The 985F variant, a representative model within this series, operates with the following verified specifications [7†L2-L15]:

The CLG985 is specifically designed with a heavy-duty undercarriage, boom, and arm architecture, enabling it to adapt well to harsh mining and heavy-duty working conditions [8†L2-L5].

2.2 Undercarriage Dimensions

The CLG985 undercarriage features the following dimensional specifications [7†L8-L13]:

The CLG985 is equipped with a 650 mm standard track width, with optional wider track shoes available for reduced ground pressure applications in soft terrain conditions. The machine‘s 3,350 mm track gauge provides exceptional lateral stability during high-reach digging and side-slope operations.

2.3 Undercarriage Configuration and Bottom Roller Quantities

The CLG985‘s undercarriage is designed for severe-duty mining applications, featuring an X-shaped heavy-duty track frame, reinforced longitudinal beams, and upgraded track components to withstand the extreme loads encountered in open-pit mining and quarry excavation. While the exact number of bottom rollers per side for the CLG985 is not publicly documented, the CQC TRACK 14C0539 technical white paper provides a valuable reference framework for LiuGong’s E-series mining excavators in the 68–82 ton class:

Source: CQC TRACK technical white paper for LiuGong E-series carrier roller assemblies [12†L45-L49].

Given that the CLG985 weighs 82,000 kg—placing it at the upper end of this class—the undercarriage is likely configured with 16–20 bottom rollers total (8–10 per side) and 4–6 carrier rollers (2–3 per side), consistent with industry standards for 80–100 ton class mining excavators.

3. Part Numbers 14C0288 and 14C0288C1: Identification and Functional Architecture

3.1 OEM Part Numbers and Application

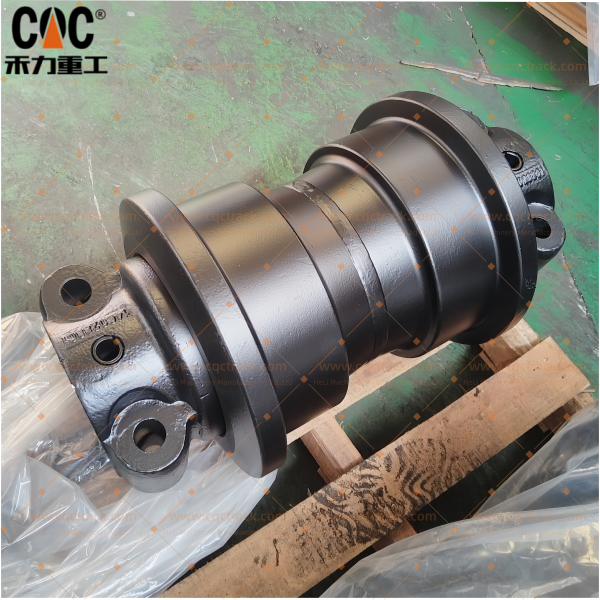

The LiuGong 14C0288 Track Bottom Roller Assembly (and its 14C0288C1 variant) is a precision-engineered undercarriage component specifically designed for the LiuGong CLG985 large hydraulic excavator. This complete bottom roller assembly is manufactured to deliver OEM-equivalent fit, form, and function, with 100% interchangeability with the original LiuGong specification.

The 14C0288 designation corresponds to LiuGong‘s proprietary engineering drawings, which define precise dimensional tolerances, material grades, heat treatment parameters, and assembly specifications developed through the original equipment manufacturer’s rigorous validation and field testing protocols for 80-ton class mining excavators.

The 14C0288C1 variant—with the “C1” suffix—indicates a superseding revision of the original part number. In LiuGong‘s part numbering system, the suffix typically denotes:

• Engineering changes or improvements to the original design
• Updated material specifications or heat treatment protocols
• Superseded part number while maintaining the same functional fitment

For procurement professionals, it is essential to note that 14C0288C1 represents the current production specification and should be ordered in preference to the superseded 14C0288 where available.

3.2 Functional Responsibilities

The 14C0288/14C0288C1 track bottom roller assembly performs three mission-critical functions that directly impact undercarriage longevity in ultra-class mining applications:

1. Load Bearing and Weight Distribution: Each bottom roller supports a portion of the excavator‘s operating weight—82,000 kg for the CLG985—transferring vertical loads through the track chain to the ground surface. With bottom rollers per side, each roller in the CLG985 undercarriage must withstand substantial dynamic loading during digging and traversing uneven terrain in open-pit mining operations. As LiuGong’s official documentation states, track rollers “transfer the weight of the excavator to the track” and “buffer the impact when digging and walking” [3†L10-L13].

2. Track Chain Guidance: The roller‘s double-flange design maintains proper track chain alignment, preventing lateral displacement and reducing derailment risk. This guidance function minimizes stress on sprockets and idlers while improving operator comfort and machine stability on the rough, uneven ground typical of mining environments. The track chain is guided to prevent deviation, ensuring smooth movement and load distribution on uneven terrain [3†L19-L21].

3. Ground Clearance Maintenance: Bottom rollers maintain critical clearance height, which is essential for preventing the track frame from contacting the ground or debris—a common hazard in mining operations where large rocks, tailings, and other obstacles are routinely encountered. This function also minimizes stress on other undercarriage components such as sprockets and front idlers, extending the service life of the entire track system.

A failure in a bottom roller can lead to accelerated wear on the entire undercarriage, including track links, pins, bushings, and sprockets, and even pose a risk of track derailment—a catastrophic event in a mining operation where downtime is measured in lost production revenue.

3.3 Component Breakdown

A complete LiuGong 14C0288/14C0288C1 track bottom roller assembly consists of the following subcomponents, each engineered to meet the specific performance requirements of ultra-class mining excavators [3†L33-L35]:

The roller body is forged from high-carbon alloy steel with good hardenability, ensuring uniform grain structure and elimination of internal voids that could lead to premature failure under the extreme loads of mining operations.

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium track bottom roller assemblies for LiuGong CLG985 excavators are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The primary materials specified for the 14C0288/14C0288C1 assembly are 40Mn2 and 50Mn alloy steels [15†L11-L14]. Additional premium grades employed for heavy-duty undercarriage applications include 42CrMo and 40CrNiMo for severe-duty mining conditions.

HELI (CQC TRACK) utilizes premium 52Mn, 55Mn, and 40CrNiMo alloy steels sourced from certified mills. Through strategic control of forging, optimal grain flow and material density in component blanks are ensured, which is fundamental for impact strength and fatigue life [9†L45-L48].

4.2 Heat Treatment Specifications

The performance of a track bottom roller depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness. The manufacturing process for track rollers involves rough processing, heat treatment, and fine processing [15†L12-L13].

The heat treatment protocol involves through-hardening and tempering for the core structure, combined with induction hardening on the running surface. This creates a deep, wear-resistant case while maintaining a ductile, shock-absorbing core to prevent brittle fracture under extreme impact loads.

CQC TRACK’s dedicated heat treatment facility features computer-controlled induction hardening and tempering furnaces, specializing in achieving deep, uniform case hardness profiles [9†L51-L53]. Track rollers forged from deep hardening steel and heat treated for internal strength resist bell mounting and increase rebuilding ability, with heat treated shells for body strength and longer wear life [13†L32-L35].

4.3 Bearing and Sealing Specifications

CQC TRACK rollers are assembled with floating seals that undergo pressure testing to verify leak-proof integrity before shipment [13†L20-L22]. The sealing mechanism provides a critical barrier against mud, sand, and moisture—common contaminants in mining environments—significantly extending service life and reducing maintenance frequency.

5. CQC TRACK: A Specialized Manufacturer of LiuGong Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a premier industrial cluster and key supply hub for global earthmoving equipment. Founded in the late 1990s, HELI has systematically evolved from a specialized parts workshop into one of the top three undercarriage component manufacturers in the Quanzhou region, a key supply cluster for global earthmoving equipment [9†L5-L7][9†L23-L27].

The brand name CQC TRACK symbolizes three foundational commitments that form the core of the company‘s engineering philosophy: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects. It represents a product line built for resilience, engineered to endure the most abrasive and high-impact environments in mining, quarrying, and major infrastructure projects [9†L30-L33].

5.2 Quality Certifications and Manufacturing Standards

CQC TRACK operates under a rigorous quality assurance framework, holding ISO 9001:2015 quality system recognition with full component traceability from raw material through finished assembly [10†L40-L41][16†L14-L16]. The company is also certified under CQC (China Quality Certification) product certification standards [16†L6-L8].

Every CQC TRACK undercarriage component is manufactured under ISO 9001:2015 certified processes, with components traceable from raw material to finished assembly [16†L14-L16]. As a vertically integrated manufacturer, HELI combines design and engineering expertise with extensive research and development, utilizing advanced manufacturing technologies to develop innovative, reliable, and competitive products that meet the highest quality standards.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK’s manufacturing strength rests on complete vertical integration and controlled sequential processes [9†L43-L53]:

CQC TRACK‘s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in mining and construction worldwide. The company has documented cross-reference compatibility for its undercarriage components across multiple global brands, including LiuGong, Caterpillar, Komatsu, Hitachi, Doosan, Volvo, XCMG, SANY, and Sumitomo.

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions [9†L34-L42]:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to track systems, the engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership (TCO).

5.5 LiuGong Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for LiuGong excavators across multiple size classes. Key components include:

Source: CQC TRACK product documentation [15†L4-L9][12†L4-L6][11†L3-L10].

CQC TRACK has established itself as an integrated source supplier and manufacturer of professional undercarriage components, offering both OEM and ODM quality solutions. The company supplies direct to the global aftermarket, eliminating intermediary margins while maintaining strict adherence to original equipment specifications.

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing the LiuGong 14C0288/14C0288C1 track bottom roller assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

CQC TRACK operates as an integrated source factory and manufacturer, eliminating intermediary markups while maintaining strict adherence to original equipment specifications. The “source factory” designation indicates that CQC TRACK is the original producer of these components, not a reseller or distributor, ensuring full control over quality, pricing, and supply chain transparency.

6.2 Lead Times and Logistics

For the LiuGong 14C0288/14C0288C1 track bottom roller assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships. The Quanzhou region‘s status as a premier industrial cluster for heavy machinery manufacturing ensures efficient logistics infrastructure and competitive freight rates.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new track bottom roller assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing and diameter match the track frame bracket
2. Roller width and diameter — Verify dimensions match the track chain link spacing and track frame clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede roller installation
5. Track shoe width — Verify compatibility with 650 mm standard track shoe configuration (or optional wider shoes if equipped)
6. Mounting bracket condition — Inspect for wear or damage to the roller saddle

7.2 Installation Procedure Summary

Replacing a bottom roller on an 82-ton excavator such as the CLG985 is a significant task that requires proper tools, heavy lifting equipment, and strict safety procedures:

1. Park Safely: Position the machine on a firm, level surface. Lower the attachment to the ground.
2. Block the Machine: Chock the tracks securely to prevent any movement.
3. Relieve Track Tension: Use the grease fitting on the front idler to carefully release hydraulic pressure and slacken the track. Warning: This can release high-pressure grease; stand clear.
4. Support the Track Frame: Place a heavy-duty hydraulic jack and solid cribbing blocks under the track frame near the roller to be replaced.
5. Remove Mounting Bolts: The roller is held on by large bolts that thread into the track frame. These are often extremely tight and corroded; heat or a powerful impact wrench is often necessary.
6. Install New Roller: Remove the old assembly, clean the mounting surface, install the new roller assembly, and hand-tighten new high-tensile bolts. Always use new bolts; reusing old ones is a safety risk.
7. Torque to Spec: Use a calibrated torque wrench to tighten the bolts to the manufacturer‘s specified value (this will be a very high torque for a machine of this class).
8. Re-tension Track: Re-pressurize the track tensioner with a grease gun to achieve proper track sag.
9. Verify Operation: Operate the machine at low speed and inspect for proper roller rotation, seal integrity, and track alignment.

Tools and equipment needed: Heavy-duty hydraulic jack and solid cribbing blocks, high-torque impact wrench or large breaker bar with appropriate sockets, a lifting device (crane or the excavator‘s own bucket) to handle the heavy roller assembly, and personal protective equipment (PPE)—steel-toed boots, gloves, safety glasses.

7.3 Maintenance Schedule

Regular cleaning of the undercarriage area to remove dirt and debris, followed by lubrication of parts that need lubrication, is essential for minimizing the risk of breakdowns, extending the life of excavator undercarriage parts, and maintaining optimal performance of the equipment. For CLG985 machines operating in continuous mining applications, daily undercarriage inspections are recommended due to the extreme abrasive conditions encountered in open-pit mining.

7.4 Failure Modes and Troubleshooting

7.5 Service Life Expectations

Under normal quarrying and heavy construction conditions, a quality aftermarket track bottom roller meeting HRC 52–58 surface hardness specifications with 8–12 mm case depth can achieve 3,000–5,000 operating hours before requiring replacement. In severe mining applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 2,000–3,000 operating hours.

For optimal undercarriage life, always inspect and replace roller components as a system when significant wear is detected. Mixing worn and new parts can lead to uneven wear, misalignment, and reduced performance. Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing roller longevity. Failure of a single bottom roller on an 82-ton excavator can lead to accelerated wear on the entire undercarriage, including track links, pins, bushings, and sprockets, and can even pose a risk of track derailment—a catastrophic event in a mining operation where downtime is measured in lost production revenue.

8. The Importance of Proper Bottom Roller Selection for Ultra-Class Mining

The track bottom roller is one of the most heavily stressed components in an excavator undercarriage system. Unlike carrier rollers, which support the upper track return section with relatively light loading, bottom rollers bear the full weight of the machine—82,000 kg for the CLG985—while simultaneously managing dynamic tension fluctuations during acceleration, deceleration, and turning. In open-pit mining operations, bottom rollers must also contend with highly abrasive materials, extreme temperature variations, and continuous duty cycles that place exceptional demands on every undercarriage component.

For LiuGong CLG985 excavators operating in mining and heavy construction—machines with operating weights approaching 82 tons and daily production demands measured in thousands of tons—selecting high-quality track bottom rollers with proper material selection, heat treatment, robust sealing systems, and precision machining is essential.

CQC TRACK‘s 14C0288/14C0288C1 track bottom roller assembly incorporates:

• Forged alloy steel construction (40Mn2, 50Mn, or premium 42CrMo/40CrNiMo) for superior grain flow and impact resistance
• Induction-hardened running surface (HRC 52–58) with 8–12 mm case depth for exceptional wear resistance
• Through-hardened core (HB 280–350) maintaining toughness to absorb shock loads
• High-capacity tapered roller bearings for reliable rotation under extreme loads; selected for exceptional capacity to handle combined heavy radial loads from machine weight and substantial axial loads during steering and side-slope operation
• Multi-stage sealing system (labyrinth guards, floating face seals, O-rings) providing robust contamination barrier against mud, sand, and moisture
• ISO 9001:2015 certified manufacturing processes with full component traceability

These engineering features ensure that properly maintained track bottom rollers will deliver reliable service throughout their design life in the world‘s most demanding mining environments. As one of the top three undercarriage component manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

9. Conclusion

For operators of LiuGong CLG985 excavators deployed in mining, quarrying, heavy construction, and mass earthmoving—an 82-ton ultra-class machine with daily production demands measured in thousands of tons—the track bottom roller assembly represented by part numbers 14C0288 and 14C0288C1 is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime. The CLG985 platform, with its 650 mm track shoe width, 82,000 kg operating weight, and 563 kW Cummins QSM15 powertrain, places exceptional demands on every undercarriage component—demands that can only be met through rigorous material selection, precision manufacturing, and robust engineering design. The 14C0288C1 variant represents the current production specification, incorporating any engineering improvements or material upgrades developed since the original 14C0288 release.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. With material specifications including premium 40Mn2, 50Mn, and 42CrMo alloy steels; heat treatment achieving HRC 52–58 running surface hardness with 8–12 mm case depth; ISO 9001:2015 quality certification; and advanced multi-stage sealing systems (labyrinth guards, floating face seals, O-rings), CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the LiuGong 14C0288/14C0288C1 track bottom roller assembly directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world‘s toughest operating environments.

Author: Jack
Specializing in heavy equipment undercarriage systems, mining machinery reliability, and global sourcing strategies for construction equipment fleets.

Disclaimer: This publication is original content created for informational and technical reference purposes. All product numbers, brand names, and manufacturer references are used for identification and cross-reference only. Always verify compatibility with your machine‘s serial number and undercarriage configuration before ordering. Installation procedures summarized from industry standards are provided for reference; consult the complete original equipment documentation before performing any maintenance. Warranty information is representative and subject to confirmation with the manufacturer at the time of purchase. The LiuGong CLG985 is a substantial mining excavator; proper safety protocols must be followed during any undercarriage maintenance or component replacement. The 14C0288C1 variant supersedes the original 14C0288 part number; procurement professionals should confirm the correct part number with their machine serial number before ordering.
