Hitachi Crawler Excavator Parts 9133370 9087948 YD60007381 ZX55 EX55USR Track Idler Assembly – OEM Quality Made in China

Manufactured by CQC TRACK – Vertically Integrated Undercarriage Component Factory – Based in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for three Hitachi track idler assemblies—OEM cross-reference part numbers 9133370, 9087948, and YD60007381—engineered for Hitachi excavator models including the ZX55, ZX60-5A, ZX60USB-5N, ZX55UR, EX55, and EX55USR series. These idler wheel assemblies, alternatively designated as front idler groups, guide wheels, or idler assemblies, represent foundational undercarriage components within the 5–6 ton mini excavator class.

Within the compact undercarriage architecture of Hitachi ZX55 and EX55 series excavators, the front idler performs four essential functions: maintaining proper track tension in conjunction with the track adjuster recoil spring assembly, guiding the track chain around the undercarriage frame with precise lateral alignment, supporting the frontal weight of the machine during travel and excavation, and absorbing shock loads encountered when traversing uneven terrain. The idler, also called the front idler wheel, plays a vital role in the excavator undercarriage system. Unlike track rollers that carry machine weight, the idler‘s primary functions are to maintain proper track tension and alignment, guide the track smoothly during forward and reverse travel, absorb shock loads and reduce undercarriage wear, and improve overall stability and reduce operating vibration.

For Hitachi ZX55 and EX55 series excavators—machines widely deployed in urban construction, utility work, landscaping, residential development, and light infrastructure projects across South America, Australia, Europe, Russia, and Central Asia—the engineering integrity of the front idler assembly is fundamental to track system reliability, machine mobility, and operational productivity. The guide wheel ensures the track rotates correctly to prevent deviation and derailment, while also acting as a supporting wheel to increase the contact area between the track and the ground.

This analysis examines each part number through multiple technical lenses: functional engineering principles of track guidance and tension management, metallurgical composition with detailed material grade specifications including 50Mn and 40MnB alloy steels achieving HRC 52–58 surface hardness with 8–12 mm case depth, advanced manufacturing process engineering featuring closed-die hot forging, precision CNC machining, and friction welding technology, comprehensive heat treatment protocols including normalizing, quenching, and tempering, rigorous quality assurance protocols including ISO 9001:2015 certification, detailed dimensional specifications and undercarriage fitment parameters for ZX55/EX55 undercarriage systems, comprehensive installation and track tensioning procedures, wear diagnosis and replacement criteria for construction applications, regional market analysis for key global markets, and strategic sourcing considerations for procurement professionals managing Hitachi mini excavator fleets worldwide.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components. The company has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a premier industrial cluster for global earthmoving equipment manufacturing located in Fujian Province, China. The company’s strategic position in Quanzhou provides exceptional access to major international ports including Xiamen and Fuzhou, enabling efficient export logistics to global construction equipment markets. With state-owned land and factory facilities, and fully integrated production lines encompassing forging, casting, and complete undercarriage component production, CQC TRACK represents a vertically integrated source manufacturer of OEM-quality heavy-duty crawler excavator undercarriage parts.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. The company manufactures a full range of Hitachi-compatible undercarriage parts spanning the entire spectrum from mini excavators to ultra-class machines, including track idlers, track carrier rollers, track lower rollers, sprockets, track chains, and track shoes—all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

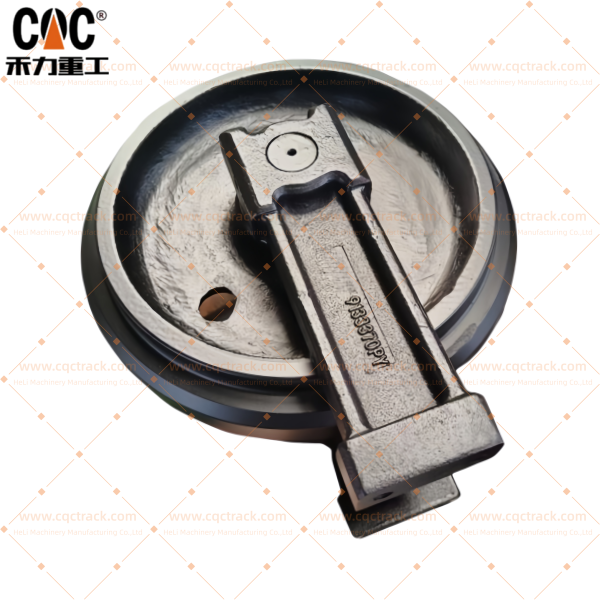

A front idler assembly—technically designated as a track idler, guide wheel, idler group, or front idler wheel—is a critical passive undercarriage component mounted at the front of the excavator‘s track frame, opposite the rear-mounted drive sprocket. Unlike the drive sprocket, which is an active component that propels the machine, the front idler is a passive component that rotates freely around a stationary shaft as the track chain moves. However, its functional importance within the mini excavator chassis equals or exceeds that of the drive sprocket for several reasons:

Track Chain Guidance: The front idler is the primary component responsible for maintaining proper track chain alignment as the chain travels around the front of the undercarriage. The idler’s precision-machined flanges prevent lateral chain movement, ensuring that the track remains centered on the undercarriage frame during forward travel, reverse travel, and turning operations. In compact chassis configurations, where space constraints limit undercarriage width, precise track guidance is particularly critical for preventing derailment in confined job sites. The idler, also called the front idler wheel, plays a vital role in the excavator undercarriage system by guiding the track smoothly during forward and reverse travel.

Track Tension Management: The idler assembly interfaces directly with the track tensioning system—typically a grease-filled recoil spring and tension cylinder assembly—to maintain optimal track chain tension across varying operating conditions. Proper tension is essential for preventing chain derailment, minimizing vibration, maximizing component service life in the compact chassis format, and ensuring consistent track contact for machine stability. A durable idler ensures the track system runs smoothly, helping operators avoid downtime and costly repairs.

Frontal Load Support: The idler wheel supports the front portion of the excavator‘s operating weight, transferring loads from the track frame through the idler shaft and bearing system to the track chain and ultimately to the ground surface. For the 5–6 ton mini excavator class, the idler must accommodate the machine’s full frontal weight during dozing, grading, and traversing uneven terrain while maintaining structural integrity under continuous cyclic loading. Unlike track rollers that carry machine weight, the idler’s primary functions include supporting the track system through proper alignment.

Shock Load Absorption: When the excavator encounters obstacles such as rocks, curbs, or uneven ground, the front idler—working in conjunction with the recoil spring assembly—absorbs impact loads that would otherwise be transmitted directly to the undercarriage frame and upper structure. The idler absorbs shock loads and reduces undercarriage wear, improving overall stability and reducing operating vibration. This shock absorption function is particularly important in urban construction and utility applications where operators frequently traverse mixed terrain conditions with abrupt elevation changes and debris.

1.2 OEM Part Numbers and Compatible Hitachi Excavator Models

The three idler assemblies documented in this analysis correspond to precise Hitachi OEM engineering specifications, offering direct interchangeability across multiple Hitachi mini excavator models in the 5–6 ton class. The table below provides comprehensive cross-reference data:

9133370 Compatibility: According to Hitachi‘s official Selected Parts catalog, idler part number 9133370 (with PS suffix indicating Selected Parts) is applicable to ZX55UR and ZX60-5A models, with additional compatibility for ZX60USB-5N and ZX65USB-5A. The genuine part number is 9133370, and the Selected Parts version is designated 9133370PS.

9087948 Compatibility: The idler assembly with part number 9087948 is compatible with an extensive range of Hitachi excavator models including ZX55, EX60, ZX70, EX75, EX80, EX100, EX120, EX200, ZX230, ZX240, EX300, and EX330. Additional cross-reference documents list ZX60USB-3 as a compatible model.

YD60007381 Compatibility: According to Hitachi‘s official Selected Parts catalog, idler part number YD60007381 (with PS suffix indicating Selected Parts) is applicable to an extensive range of mini excavator models including ZX40U-3, X49U-3U, ZX48U-3, ZX50U-3, ZX52U-3, ZX55UR-3, ZX50U-5A, ZX55U-5B, and ZX40U-5A. The genuine part number is YD60007381, with cross-reference to 9318048, and the Selected Parts version is designated YD60007381PS.

1.3 Hitachi ZX55 and EX55 Excavator Specifications

The Hitachi ZX55 and EX55 series represent the 5–6 ton class in the Hitachi product line, offering substantial digging performance in a compact package suitable for confined job sites.

Hitachi ZX55U-5A Specifications:

Data sources:

The Hitachi ZX55U-5A is a mini excavator manufactured from 2013 to 2018, with a weight of 5.21 tons and a track width of 400 mm. The machine features a tear-out force of 36.9 kN and a maximum horizontal reach of 6.13 meters, with a dredging depth of 3.83 meters.

Hitachi EX55 Series Specifications:

The EX55 is a compact excavator designed for construction, utility work, and trenching applications, available in multiple variants including EX55UR, EX55-2, and EX55-3.

1.4 Undercarriage Component Configuration

The Hitachi ZX55/EX55 undercarriage is engineered for durability and stability. Key undercarriage parameters include:

• Track Shoe Width: 400 mm (standard for ZX55U-5A)
• Track Type: Rubber track (standard) / Steel track (optional)
• Number of Track Rollers per Side: Typically 5 per side for the ZX55/EX55 undercarriage
• Number of Carrier Rollers per Side: Typically 1–2 per side
• Idler Mounting: Bracket-mounted with integrated track adjuster recoil spring assembly
• Idler Position: Front of track frame, opposite the rear-mounted drive sprocket

1.5 Component Architecture and Assembly Composition

A complete Hitachi ZX55/EX55 front idler assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the mini excavator undercarriage format:

• Idler Wheel Body (Shell): The outer wheel component that contacts the track chain link rails. The idler wheel features precision-machined flanges that maintain lateral track alignment and a hardened tread surface that engages with the chain bushings. For mini excavator applications, the wheel body diameter is proportionally smaller than larger excavator classes, requiring precise dimensional control for proper track engagement. The idler shell is forged from 50Mn or 40MnB alloy steel to ensure optimal wear characteristics. The idler is composed of collar, idler shell, shaft, seal, O-ring, bushing bronze, and lock pin plug.
• Shaft (Axle): The stationary central component that mounts to the track frame via the idler bracket or yoke. The shaft incorporates precision-ground bearing journals and sealing surfaces. The keyed joint between idler and axle expands bearing contact, boosts torque transmission, and syncs the idler‘s life with other undercarriage parts, avoiding uneven wear.
• Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the idler wheel body around the stationary shaft while supporting the machine’s frontal loads. The rotating shaft within stationary bushings produces less contact stress and wear, further prolonging the overall lifespan of the track system. The bushing is made of quenched alloy steel for high surface hardness.
• Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress from mud, dust, water, and abrasive particles. The sealing system must resist ingress of fine debris common in urban construction and landscaping environments. High-quality shaft, bushing, floating sealing system and oil increase lubrication effect and reduce friction.
• Lubrication Charge: Grease-based lubricant that maintains the bearing system under proper lubrication conditions throughout the service life. Dedicated lubrication injectors supply precise lubrication to high-wear surfaces, preventing friction-related failures and cutting down on unplanned downtime.
• Idler Bracket/Yoke: The mounting structure that connects the idler shaft to the track frame and interfaces with the track adjuster recoil spring assembly. For mini excavator chassis, the bracket design must accommodate the reduced frame width while maintaining structural integrity under operational loads.
• Splined Connection: Splined connection between idler and shaft provides more bearing area and better torque transfer, increasing reliability and matching idler life with that of other lower works components. This design feature is critical for ensuring even wear across the undercarriage system.

1.6 Cross-Reference Mapping Summary

The following cross-reference relationships have been established from authoritative sources:

2. Metallurgical Composition and Forging Engineering

2.1 Material Grade Specifications for Mini Excavator Idlers

CQC TRACK manufactures Hitachi cross-reference front idlers using premium alloy steel grades selected for their specific mechanical properties in 5–6 ton mini excavator undercarriage applications. The primary material grades employed include:

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. 50Mn steel is widely used in manufacturing crawler machine parts that work under heavy loads, providing excellent wear resistance and impact toughness. After undergoing heat treatment, 50Mn achieves a surface hardness of HRC 48–58 with a hardened depth of 4–6 mm (reaching HRC 45 at this depth), enabling it to deliver exceptional impact resistance and wear resistance even under harsh working conditions. Industry sources confirm that Hitachi front idlers for mini excavator applications are manufactured with 50Mn material, achieving surface hardness HRC 53–58 with case depth of 8–12 mm.

40MnB Alloy Steel: A boron-alloyed steel grade offering enhanced hardenability and deeper case depth penetration during induction heat treatment. The boron addition improves the material‘s response to heat treatment, enabling consistent mechanical properties across the component cross-section. Industry sources list 40MnB as a primary material option for Hitachi mini excavator idlers, achieving surface hardness HRC 53–58 with case depth of 8–12 mm.

40Cr Shaft Steel: The idler center shaft is manufactured from 40Cr steel, a chromium-alloyed steel offering excellent hardenability and wear resistance. The shaft undergoes heat treatment to achieve surface hardness of HRC 52–58 for enhanced wear resistance and durability.

Premium Micro-Alloyed Boron Steel: For premium-grade components, CQC TRACK utilizes micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic control of forging parameters, ensuring optimal grain flow and material density in component blanks, which is fundamental for impact strength and fatigue life.

The material grade selection directly determines the idler‘s service life in abrasive environments. For steel parts like idlers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

2.2 Forging Technology: The Manufacturing Foundation

Hitachi front idlers are manufactured using advanced closed-die hot forging techniques. Forging is a manufacturing process that shapes metal using localized compressive forces, typically delivered by a hammer or press. The forging process provides several critical advantages over cast alternatives:

Grain Flow Alignment: The forging process aligns the material grain structure with the idler wheel geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation. This grain flow orientation is particularly important at the flange-to-wheel body transition zone where stress concentrations are highest. Forging aligns the metal grain structure, making them tougher than cast idlers, with superior strength and higher load capacity ideal for heavy-duty applications in mining, quarrying, and large excavators.

Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading. Cast components may contain internal porosity or inclusions that can serve as crack initiation sites under repeated loading cycles.

Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition. The dense, uniform microstructure of forged steel provides consistent performance across the entire component cross-section.

Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process.

Closed-Die Hot Forging Process: The idler undergoes a multi-stage hot forging process that includes primary hot forging for initial volume distribution, secondary hot forging for establishing core structural geometry, tertiary hot forging for achieving final dimensional accuracy, and trimming-piercing for eliminating flash and forming any necessary through-holes. The wheel body is made by high precision alloy steel and use proper heat treatment to make sure the hardness on the surface and proper hardness layer, making the idler capable of working in various bad conditions.

2.3 Friction Welding Technology for Shaft-to-Idler Body Joining

CQC TRACK employs friction welding technology for joining the shaft to the idler wheel body. This solid-state welding process produces joints with consistent quality and stability while offering significant advantages over traditional arc welding:

• No Filler Material Required: The friction welding process joins components through mechanical friction and compressive force, eliminating the need for filler metals that could introduce contamination or metallurgical inconsistencies.
• Minimal Heat-Affected Zone: The localized heating at the weld interface results in a narrow heat-affected zone with minimal microstructural degradation compared to arc welding.
• Superior Joint Strength: The friction welding process produces joints with mechanical properties comparable to the base material, eliminating the weak points typically associated with fusion welding.
• Environmental Compatibility: Friction welding generates no smoke, no harmful gases, no spatter, no arc flash, and no radiation during operation, making it an environmentally friendly manufacturing technology. It is recognized as a green welding technology for the future.
• Consistent Quality: The computer-controlled friction welding process ensures repeatable joint quality across production volumes, eliminating the variability associated with manual welding operations.

2.4 Precision CNC Machining

All critical surfaces of Hitachi cross-reference front idlers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. A battery of modern CNC lathes, milling machines, and drilling centers performs rough and finish machining, ensuring dimensional accuracy to ISO 2768-mK standards and consistent interchangeability.

Key machining operations include:

• Tread Surface Machining: Precision turning of the idler wheel outer diameter to achieve exact dimensional specifications and surface finish for optimal track chain contact. Final precision finishing on large-scale CNC vertical lathes ensures impeccable dimensional accuracy and smooth surface finish, guaranteeing precise fit during assembly.
• Flange Profile Machining: Precision profiling of the integral guide flanges to ensure proper lateral track chain alignment.
• Bore Machining: Precision boring of the wheel bore to achieve exact bearing clearance specifications.
• Shaft Journal Machining: Precision turning and grinding of the shaft bearing surfaces to achieve exact dimensional tolerances and surface finish. The shaft surface is polished using CNC machine tools to achieve superior smoothness, making the shaft more polished and reducing friction.
• Seal Housing Machining: Precision machining of the seal housing cavities to ensure proper seal compression and alignment.
• Mounting Feature Machining: Precision machining of any mounting features, bolt holes, or locating surfaces required for proper idler bracket attachment.

Precision CNC machining ensures dimensionally more accurate components, guaranteeing perfect fitment and smooth installation onto the undercarriage frame. The result is an idler that combines toughness with long-lasting performance in real-world construction environments.

2.5 Integrated Production Workflow

CQC TRACK‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 40MnB, 40Cr, and micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; the wheel body is made by high precision alloy steel through hot forging treatment obtaining superior structure of internal materials and fiber orientation
• Friction Welding Technology: Computer-controlled friction welding equipment for solid-state joining of shafts to idler bodies; environmentally friendly green welding technology generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined flange profiles and mounting surfaces; final precision finishing on large-scale CNC vertical lathes
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; normalizing, quenching, and tempering heat treatment processes
• Oil-Sealed Bearing System: Precision bearing system with floating seals prevents dust, dirt, and moisture intrusion
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing and water immersion seal integrity verification on every finished idler
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications; anti-rust surface coating extends service life in wet and muddy conditions
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Idler Applications

Heat treatment is the single most critical manufacturing operation determining front idler service life in construction applications. The heat treatment process—primarily normalizing, quenching, and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for idler treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for idlers that must withstand dynamic loads and shocks.

The heat treatment area of Hitachi Selected Parts is much deeper than aftermarket parts. Especially, the heat affected depth of the R part is much deeper than that of aftermarket parts. This ensures that the hardened surface layer remains intact even after significant wear has occurred, providing extended service life in demanding applications.

3.2 Hardness Specifications

The specific heat treatment parameters for Hitachi ZX55/EX55 front idlers are as follows:

Industry sources confirm that Hitachi ZX27 front idlers achieve surface hardness HRC 53–58 with case depth of 8–12 mm, using 50Mn/40MnB material. For EX60 applications, heat treatment achieves a surface hardness of HRC 48–58 and a 4–6 mm hardened layer (maintaining HRC 45), endowing the idler with strong impact resistance and wear resistance—even in harsh mining or construction environments where high friction and heavy impacts are common.

The 40Cr shaft achieves surface hardness of HRC 52–58 through heat treatment, ensuring the bearing journals resist wear under continuous operation.

3.3 Heat Treatment Quality Control

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. Each unit is tested for tolerance and sealing performance before packaging. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

The dedicated heat treatment facility features computer-controlled induction hardening and tempering furnaces, specializing in achieving deep, uniform case hardness profiles that balance wear resistance with impact toughness. Raceways undergo carburizing and tempering to achieve core toughness (impact absorption) and surface hardness (wear resistance).

4. Sealing System and Bearing Technology

4.1 Floating Seal Configuration

Front idlers for mini excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the moderate impact and contamination exposure encountered in construction and utility applications:

• Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress. Floating seals consist of two components: a seal ring made of special cast iron and a rubber component (O-ring/gasket). In use, two identical seals make a pair.
• Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments. High-quality shaft, bushing, floating sealing system and oil increase lubrication effect and reduce friction.
• Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and idler wheel body, ensuring optimal seal compression and alignment.
• Dust Seal: Additional labyrinth or lip-type seal elements that provide initial contamination exclusion, protecting the primary floating seal from large debris. An oil-sealed bearing system prevents dust, dirt, and moisture intrusion.

The sealing system must resist ingress of abrasive materials common in construction environments—including soil, sand, dust, and moisture—which would otherwise accelerate bearing wear and cause premature failure. The idler is equipped with high-grade seals and internal grease to keep out dirt, mud, and moisture—reducing friction and extending service life.

4.2 Bearing System Design

Each front idler incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. The bearing system consists of:

Hardened Steel Bushing Configuration with Bimetal Technology: The idler wheel rotates on hardened steel bushings running on the heat-treated shaft journal surfaces. Bimetal bushings of the idler are based on steel plate with special alloy sintered on it, providing excellent wear resistance and low friction characteristics. This configuration offers high load-carrying capacity, resistance to shock loading, and tolerance to marginal lubrication conditions. The rotating shaft within stationary bushings produces less contact stress and wear, further prolonging the overall lifespan of the track system.

Bearing Block Design: Bearing blocks with bushings can be removed without breaking the track, trimming maintenance time by up to 40% and getting equipment back online quicker. This feature significantly reduces downtime for undercarriage maintenance.

Splined Connection: Splined connection between idler and shaft provides more bearing area and better torque transfer, increasing reliability and matching idler life with that of other lower works components. The keyed joint between idler and axle expands bearing contact, boosts torque transmission, and syncs the idler’s life with other undercarriage parts, avoiding uneven wear.

The bearing surfaces are finished to precise surface roughness specifications that promote lubricant film retention while minimizing friction during rotation. Proper bearing clearance is maintained to accommodate thermal expansion and deflection under load while preventing excessive radial play that would cause seal damage or idler misalignment.

4.3 Lubrication Retention

Front idlers are lubricated at the time of manufacture with a precise grease charge that maintains the bearing system under proper lubrication conditions throughout the service life. Key lubrication features include:

• Lubricant Type: High-quality lithium-based grease with extreme pressure (EP) additives
• Lubricant Volume: Optimized for the specific bearing configuration and seal design
• Lubrication Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling
• Dedicated Lubrication Injectors: Supply precise lubrication to high-wear surfaces, preventing friction-related failures and cutting down on unplanned downtime
• Seal Integrity Testing: After assembly, there is a testing process under water to prove the sealing property of the idlers

4.4 Maintenance Advantages

A genuine front idler reduces bearing stress by up to 50%, drastically reducing bearing load and extending component life by 2x or more, doing away with the hassle of frequent replacements. This results in:

• Enhanced Safety: Longer crawler system life increases change-out intervals, reducing employee exposure to safety risks from system change-outs and component replacement
• Lower Total Cost of Ownership: 50% less bearing stress reduces bearing loads and increases component life
• Increased Productivity: Splined connection between idler and shaft increases reliability and matches idler life with that of other lower works components

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates for 50Mn, 40MnB, 40Cr, and micro-alloyed boron steels
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment, including CMM (Coordinate Measuring Machine) and precision gauging
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge
• Final Testing: Dynamic rotation testing and water immersion seal integrity verification; each unit is tested for tolerance and sealing performance before packaging

5.2 Hitachi Undercarriage Parts Quality Standards

Hitachi excavator undercarriage parts are engineered for heavy-duty performance in construction machinery. Designed to enhance durability and operational efficiency, these components are manufactured to meet OEM replacement standards. Key quality features include:

• High-Strength Material Technology: Components utilize high-strength alloy steel construction with premium 50Mn and 40MnB materials
• Precision-Engineered Design: Precision-machined idler profiles ensure smooth track engagement
• Heavy-Duty Performance: Robust load-bearing capacity handles up to 6 tons of continuous operation in rugged terrains
• Heat Treatment Excellence: Normalizing, quenching, and tempering treatment ensures excellent mechanical properties, high strength, and superior wear resistance with good fracture resistance
• Deep Heat Treatment Area: The heat treatment area of Hitachi Selected Parts is much deeper than aftermarket parts, especially the heat affected depth of the R part is much deeper than that of aftermarket parts
• 100% Compatibility: 100% compatibility with Hitachi Genuine Parts with parts warranty same as Hitachi Genuine Parts (1 year/unlimited hours)

5.3 Testing and Validation

Each finished idler undergoes comprehensive testing before shipment:

Dynamic Rotation Test: Verifies concentricity, smoothness, and balance without binding, noise, or resistance. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty.

Seal Integrity Testing: Water immersion testing proves sealing property of the idlers under static and dynamic conditions. This water immersion test verifies that the floating seal system maintains proper lubricant retention and prevents water ingress under static and dynamic conditions.

Hardness Verification: Calibrated Rockwell hardness testers validate surface hardness of HRC 52–58 with case depth of 8–12 mm.

Dimensional Inspection: CMM and precision gauging equipment verify all critical dimensions against OEM engineering specifications.

5.4 Warranty and Service Life Expectations

Hitachi Selected Parts idlers come with a parts warranty same as Hitachi Genuine Parts (1 year/unlimited hours), with comprehensive service and support and worldwide parts availability. For aftermarket idlers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity.

Expected service life for Hitachi ZX55/EX55 front idlers in construction applications typically ranges from 3,000 to 5,000 operating hours depending on ground conditions, operator practices, and maintenance schedules. The idler ensures the track system runs smoothly, helping operators avoid downtime and costly repairs.

5.5 Anti-Corrosion Protection and Packaging

The idler surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. Anti-rust surface coating extends service life in wet and muddy conditions. Corrosion protection includes phosphate coating + epoxy paint layer that resists oxidation in saline or high-humidity environments.

Finished idlers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports (Xiamen, Fuzhou) to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations. Fast delivery is available within 7–30 days depending on order volume and destination.

Secure wooden crate packaging ensures safe delivery of finished idlers in perfect condition.

6. Installation and Track Tensioning Procedures

6.1 Pre-Installation Preparation

Proper installation of a front idler assembly on a Hitachi ZX55 or EX55 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder relief valve to allow removal of the track chain.
2. Component Inspection: Before installation, inspect the idler bracket and track frame for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Idler Assembly Inspection: Inspect the new idler assembly for any shipping damage. Verify that the idler rotates freely by hand. Check seal integrity.
4. Hardware Inspection: Inspect all mounting bolts for thread damage or stretching. For heavy-duty applications, use new bolts and washers of grade 10.9 or higher specification.
5. Mounting Interface: Ensure that the idler mounting interface is properly aligned with the track frame bracket. Install the idler mounting hardware to specified torque values using a calibrated torque wrench.
6. Track Chain Engagement: After idler installation, ensure proper track chain engagement with the idler surface before operating the machine.

6.2 Idler Bracket and Tensioner Interface

The front idler mounts to the track frame via the idler bracket or yoke, which interfaces directly with the track adjuster assembly (recoil spring and grease cylinder). Key installation considerations include:

• Ensure that the idler bracket is properly aligned with the track frame guide surfaces
• Verify that the recoil spring is properly seated and functioning correctly
• Lubricate all sliding surfaces with appropriate grease before assembly
• For idlers with splined shaft connections, ensure proper alignment before seating
• Install the idler shaft retaining hardware to specified torque values

6.3 Track Tension Adjustment Procedure

After idler installation, proper track tension must be established according to Hitachi ZX55/EX55 specifications. The general procedure for 5–6 ton excavators is as follows:

Step 1: Preparation – Perform check and adjustment on level and firm ground. Run the engine at low idle, then move the machine forward for a distance equal to the track length on ground, and slowly stop the machine.

Step 2: Measurement – Measure the track sag as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first track roller.

Step 3: Standard Range Verification – For 5–6 ton class excavators, the proper track sag is typically 10–25 mm (0.4–1.0 in). If the deflection is out of the standard range, adjust it accordingly.

Step 4: Adjusting Track Tension – To increase track tension, pump grease through the track adjuster grease fitting using a manual grease pump (not pneumatic).

Step 5: Verification – After adjustment, run the engine at low idle, move the machine slowly forward by an amount equal to the length of track on ground, then check the track tension again. If the tension is not correct, adjust it again.

6.4 Critical Tensioning Considerations

The following operational considerations are essential for maximizing undercarriage component life:

• Underfoot Conditions: Adjust track tension based on the underfoot conditions in which the machine is working. Added track tension increases both the load and the wear on all mating components of the undercarriage.
• Wear Consequences: Improperly adjusted track can result in problems and wear on other components. Tight track increases loads, which advances wear on idlers, rollers, sprockets, and chain bushings.
• Regular Monitoring: The wear of pins and bushings of the undercarriage depends on the working condition and soil condition. Check the track tension occasionally and keep it in the standard range.
• Post-Installation Verification: After 2–4 hours of operation, re-check track tension and re-torque any idler mounting hardware as specified in the Hitachi service manual to account for initial seating and thermal expansion.

6.5 Preventive Maintenance Best Practices

To extend the lifespan of front idlers, industry best practices recommend:

Regular Bolt Tightening: After long-term operation, the mounting bolts of the idler are prone to loosening due to vibration. Track bolts and nuts should be regularly inspected and tightened to reduce unnecessary maintenance costs.

Visual Inspection: Visual inspection may reveal excessive wear or damage such as cracks or deformation on the idler’s surface.

Avoid Operating with Non-Functioning Idlers: If continued use occurs when the idler cannot run, it may cause wear on the track chain and other undercarriage components. If an idler that cannot run is found, it must be repaired immediately to avoid other failures.

Cleanliness: Keep the undercarriage clean of mud, debris, and abrasive materials that accelerate seal and bearing wear.

Timely Replacement: Replacing idlers during scheduled undercarriage inspections or whenever wear signs appear is ideal. Early replacement—before significant damage—maximizes machine uptime and cost efficiency.

7. Wear Diagnosis and Replacement Criteria

7.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing Hitachi ZX55 and EX55 excavators, early identification of front idler wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The idler tread surface (the rolling contact area) wears progressively over time. The idler should be checked frequently. When the tread surface exhibits significant flat spots or wear beyond approximately 2–3 mm below the original diameter, replacement is recommended.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage. Common signs include unusual track chain sag, increased machine vibration, uneven track wear, and noise during operation.

Uneven Wear Pattern: If one side of the idler shows significantly more wear than the other, this may indicate misalignment between the idler and the track chain or issues with the track frame alignment.

Idler Stiffness: If the idler does not rotate freely by hand, bearing failure or lubrication loss may have occurred.

7.2 Wear Measurement Guidelines

The TrackTreads Knowledge Base provides the following wear measurement guidelines for mini excavator idlers:

• Idler Measurement: Measure the idler in a number of positions using a caliper. Track rollers with callipers should be placed at a right angle to the track roller.
• Replacement Criteria: A roller should be replaced when the measurement reaches the figure in the 100% worn column. Regular measurement of tread diameter and flange thickness provides trend data for predictive maintenance planning.

7.3 Replacement Interval Planning

A well-maintained idler directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn idler will accelerate wear on the new chain‘s bushings and link rails, significantly reducing overall system life. Conversely, installing a new idler on a worn chain will cause accelerated tread and flange wear and premature idler failure.

For fleet operators, the recommended replacement strategy is to replace the idler and track chain as a matched set whenever either component reaches the end of its service life. Industry best practices recommend replacing wear parts in sets to ensure even wear and prevent premature failure.

For Hitachi ZX55/EX55 mini excavators in construction applications, planned undercarriage replacement intervals typically range from 3,000 to 5,000 operating hours depending on ground conditions and maintenance practices.

8. Regional Market Applications: Construction and Infrastructure Focused

8.1 South America: Brazilian Infrastructure, Chilean Construction, and Argentine Development

The South American construction market presents significant demand for 5–6 ton class excavator components, with operations concentrated in Brazilian infrastructure projects (São Paulo, Rio de Janeiro, Belo Horizonte), Chilean urban development (Santiago, Valparaíso, Concepción), Peruvian construction markets (Lima, Arequipa), and Argentinean infrastructure development (Buenos Aires, Córdoba). Hitachi ZX55 and EX55 excavators are extensively deployed across these operations for utility work, residential construction, site preparation, and light infrastructure projects. The idler is designed to perform under heavy workloads and challenging conditions, keeping the excavator productive and reliable on all job sites.

For South American customers, CQC TRACK’s Hitachi cross-reference front idlers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports).

8.2 Australia: Residential Construction, Rental Fleet, and Infrastructure

The Australian construction and rental equipment market demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Australian market—including applications in Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, and regional centers—utilizes Hitachi ZX55 and EX55 excavators for residential construction, utility trenching, landscaping, and site preparation.

Hitachi mini excavators are known for their robust build, powerful engine, and advanced hydraulics, making them well-suited for a variety of jobs including digging, grading, and material handling. The undercarriage components for these machines, including idlers, are readily available through Australian parts suppliers. The idler guides the track smoothly, maintains proper tension, and prevents derailments—all while delivering exceptional durability and wear resistance.

CQC TRACK‘s manufacturing processes align with Australian requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability.

8.3 Europe: German Construction, French Infrastructure, and UK Development

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s construction industry (Berlin, Munich, Hamburg, Rhineland), France‘s infrastructure sector (Paris, Lyon, Marseille, Lille), the United Kingdom’s utility and residential construction markets (London, Manchester, Birmingham, Glasgow), and Scandinavia‘s construction industry (Stockholm, Oslo, Copenhagen, Helsinki) represent major application zones for Hitachi ZX55 and EX55 excavators.

Hitachi Selected Parts idlers come with 100% compatibility with Hitachi Genuine Parts and parts warranty same as Hitachi Genuine Parts (1 year/unlimited hours), with comprehensive service and support and worldwide parts availability. CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

8.4 Russia and Central Asia: Growing Compact Equipment Market

Following the realignment of global supply chains, Russian and Central Asian construction operators increasingly source heavy equipment components from Chinese manufacturers. Russia‘s urban development projects (Moscow, St. Petersburg, Kazan, Yekaterinburg, Novosibirsk), Kazakhstan’s infrastructure growth (Astana, Almaty, Shymkent, Karaganda), Uzbekistan‘s construction sector (Tashkent, Samarkand, Bukhara), and Mongolia’s construction and mining support operations (Ulaanbaatar, Darkhan, Erdenet) represent growing markets for Hitachi compact excavator components.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company‘s manufacturing capacity supports volume orders for fleet operations requiring regular undercarriage replacement schedules.

8.5 Aftermarket Parts Market Dynamics

The shift from OEM to aftermarket undercarriage components is transforming maintenance practices globally. Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components while offering competitive pricing.

Manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications. Reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions. The idler is manufactured under a strict and standardized process, with polished surfaces that reduce resistance against the track and minimize wear.

8.6 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together. With a full range of Hitachi-compatible excavator spare parts including track idlers, track carrier rollers, track lower rollers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the Hitachi parts catalog. The part numbers documented in this analysis—9133370, 9087948, and YD60007381—serve as primary OEM references for direct cross-reference ordering.

9133370 is documented in Hitachi’s official Selected Parts catalog for ZX55UR and ZX60-5A models, with additional compatibility for ZX60USB-5N and ZX65USB-5A.

9087948 is compatible with Hitachi ZX55, EX60, ZX70, EX75, EX80, EX100, EX120, EX200, ZX230, ZX240, EX300, and EX330 excavators.

YD60007381 is documented in Hitachi’s official Selected Parts catalog for ZX40U-3, X49U-3U, ZX48U-3, ZX50U-3, ZX52U-3, ZX55UR-3, ZX50U-5A, ZX55U-5B, and ZX40U-5A.

9.2 Quality Documentation Requirements

When sourcing front idlers for construction applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: 50Mn, 40MnB, 40Cr, or micro-alloyed boron steel)
• Heat treatment records (hardness profiles: HRC 52–58, case depth: 8–12 mm)
• Mill test certificates for raw material
• Seal system specifications and type (floating seal configuration)
• Bearing type and configuration details (bimetal bushing)
• Friction welding process certification (if applicable)
• Warranty documentation (12 months or 1 year/unlimited hours typical)
• CE compliance documentation (for European customers)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

9.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the Hitachi idler assemblies, with lead times of 7–30 days depending on order volume and destination. Supply ability for idler assemblies is substantial, with manufacturing capacity of up to 10,000 pieces per month for undercarriage components. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Payment terms include T/T and L/C. Fast delivery is available within 7–30 days after contract confirmation, with delivery within 15–30 days after contract established.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For construction companies, rental fleet operators, and equipment dealers managing fleets of Hitachi ZX55 and EX55 excavators, sourcing OEM-equivalent aftermarket idlers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift toward aftermarket components is driven by several factors: rising machinery costs and budget pressures have made aftermarket parts a smart investment; durability and performance have improved dramatically in the aftermarket sector; manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications; reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

A genuine front idler reduces bearing stress by half, lightening loads on bearings and prolonging component durability, contributes to lower operating expenses by extending the lifespan of the crawler system and minimizing unexpected downtimes, and enhances track efficiency through increased bearing surface area and improved lubrication distribution.

9.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Caterpillar, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

9.6 Hitachi Parts Market Overview

Hitachi excavator parts are in strong demand globally due to the brand’s extensive installed base. The market is characterized by:

• Strong demand for used Hitachi excavator models and their spare parts
• A growing aftermarket sector for undercarriage components
• Technological innovation in material science and manufacturing processes
• Increasing acceptance of high-quality Chinese-manufactured aftermarket components in global markets
• Large inventory holdings of genuine new parts, new replacement parts, used, and reconditioned parts and components

Chinese suppliers dominate the Hitachi aftermarket parts market, with a focus on undercarriage, hydraulic, and engine components. Key trade regions include North America, Europe, Asia-Pacific, South America, and the Middle East and Africa.

10. Frequently Asked Questions for Equipment Dealers and Fleet Operators

Q1: What is the function of a front idler on a Hitachi ZX55 or EX55 excavator?

A front idler (also called a guide wheel or track idler) guides the track chain, maintains proper track tension in conjunction with the track adjuster assembly, supports the front portion of the machine‘s weight, and absorbs shock loads from uneven terrain. The idler, also called the front idler wheel, plays a vital role in the excavator undercarriage system. Its primary functions are to maintain proper track tension and alignment, guide the track smoothly during forward and reverse travel, absorb shock loads and reduce undercarriage wear, and improve overall stability and reduce operating vibration.

Q2: How do I verify which idler part number my Hitachi excavator requires?

Verify using the machine’s serial number and the specific OEM part number from the Hitachi parts catalog. The three part numbers covered in this analysis—9133370, 9087948, and YD60007381—cover the ZX55, ZX60-5A, ZX55UR, EX55, ZX55U-5B, and related models. 9133370 is for ZX55UR and ZX60-5A; 9087948 is for ZX55 and EX60 series; YD60007381 is for ZX40U-3 through ZX55U-5B models.

Q3: What materials are used in CQC TRACK front idlers for Hitachi excavators?

CQC TRACK uses premium 50Mn and 40MnB alloy steel for the idler body, and 40Cr steel for the shaft, induction-hardened to HRC 52–58 with case depth of 8–12 mm for optimal wear resistance. The idler is built from forged alloy steel with precision heat treatment, ensuring long-lasting performance in demanding construction and excavation environments.

Q4: Are these idlers direct replacements for Hitachi OEM parts?

Yes, all front idlers manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Hitachi‘s original engineering specifications for dimensional accuracy and mechanical properties. Original spare part numbers are for comparison purposes only. Hitachi Selected Parts offer 100% compatibility with Hitachi Genuine Parts.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a front idler in Hitachi ZX55/EX55 applications?

Front idler service life in ZX55/EX55 applications typically ranges from 3,000 to 5,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules. A durable idler ensures the track system runs smoothly, helping operators avoid downtime and costly repairs.

Q7: What is the hardness specification for Hitachi ZX55 front idlers?

Hitachi front idlers achieve surface hardness of HRC 53–58 with case depth of 8–12 mm using 50Mn/40MnB material. For EX60 applications, heat treatment achieves surface hardness of HRC 48–58 with a 4–6 mm hardened layer (maintaining HRC 45).

Q8: What warranty is provided with these idlers?

Hitachi Selected Parts idlers come with a parts warranty same as Hitachi Genuine Parts (1 year/unlimited hours). Aftermarket idlers from CQC TRACK typically come with 12-month warranty.

Q9: What is the correct track sag specification for Hitachi ZX55 excavators?

Proper track sag for 5–6 ton class excavators is typically 10–25 mm (0.4–1.0 in) measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first track roller. Always consult the Hitachi service manual for model-specific specifications.

Q10: What is the lead time for volume orders of Hitachi idlers?

Lead times for volume orders of Hitachi front idlers typically range from 7–30 days depending on order volume and destination, with fast delivery within 30 days after contract confirmation. Supply ability is up to 10,000 pieces per month.

Q11: What are the signs that a front idler needs replacement?

Signs include visible tread wear beyond 2–3 mm below original diameter, flange thickness reduction beyond 30% of original, seal leakage, abnormal noise during track rotation, and idler stiffness (does not rotate freely). Common signs include unusual track chain sag, increased machine vibration, uneven track wear, and noise during operation.

Q12: Can the 9133370 idler be used on ZX55UR excavators?

Yes, the 9133370 idler is specifically documented for Hitachi ZX55UR and ZX60-5A models according to Hitachi‘s official Selected Parts catalog.

Q13: How does the aftermarket quality compare to OEM parts?

Premium aftermarket suppliers achieve ISO 9001 certification and SAE standards, matching OEM quality for excavator undercarriage components. However, Hitachi notes that the heat treatment area of the Selected Parts is much deeper than aftermarket parts, especially the heat affected depth of the R part is much deeper than that of aftermarket parts. CQC TRACK uses advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications.

Q14: What is the weight of these idler assemblies?

Part weights vary by specific configuration. Contact CQC TRACK directly for detailed weight specifications for each part number. The idler is manufactured under a strict and standardized process, with polished surfaces that reduce resistance against the track and minimize wear.

Q15: What maintenance practices extend idler life?

Regular bolt tightening, avoiding prolonged operation on slopes, avoiding operating with non-functioning idlers, regular lubrication inspection, keeping the undercarriage clean of debris, and timely replacement of worn components. A genuine front idler reduces bearing stress by half, lightening loads on bearings and prolonging component durability.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a premier supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) partner.

The company operates as a vertically integrated manufacturer of undercarriage parts for excavators and bulldozers, with engineers having extensive experience in producing undercarriage parts. With high quality products and reasonable prices, the company has won a high reputation from clients worldwide.

CQC TRACK manufactures a comprehensive range of undercarriage components spanning the entire spectrum of crawler excavator applications, from 5-ton mini excavators to 300-ton ultra-class machines. The product range includes track idlers, track carrier rollers, track lower rollers, sprockets, track chains, and track shoes for all major brands including Hitachi, Caterpillar, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

11.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Caterpillar, Komatsu, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

11.3 Integrated Production Workflow

The company’s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium 50Mn, 40MnB, 40Cr, and micro-alloyed boron steel (52Mn, 55Mn, and 40CrNiMo) through strategic supply partnerships, with full material certification and traceability
• Forging Capabilities: Advanced closed-die hot forging processes ensuring optimal grain flow and material density; the wheel body is made by high precision alloy steel through hot forging treatment obtaining superior structure of internal materials and fiber orientation
• Friction Welding Technology: Computer-controlled friction welding equipment for solid-state joining of shafts to idler bodies; environmentally friendly green welding technology generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances, including precision-machined flange profiles and mounting surfaces; final precision finishing on large-scale CNC vertical lathes
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles; normalizing, quenching, and tempering heat treatment processes; raceways undergo carburizing and tempering to achieve core toughness (impact absorption) and surface hardness (wear resistance)
• Oil-Sealed Bearing System: Precision bearing system with floating seals prevents dust, dirt, and moisture intrusion
• Splined Connection: Splined connection between idler and shaft provides more bearing area and better torque transfer, increasing reliability and matching idler life with that of other lower works components
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing and water immersion seal integrity verification on every finished idler
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications; phosphate coating + epoxy paint layer resists oxidation in saline or high-humidity environments
• Packaging and Logistics: Anti-rust film wrapping with pallet or fumigated wooden crate packing for international ocean freight, complying with ISPM 15 phytosanitary regulations

11.4 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms including T/T and L/C, and fast delivery within 7–30 days after contract confirmation. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

The company‘s focused specialization enables CQC TRACK to deliver components that not only meet but often exceed OEM performance standards. With a full range of Hitachi-compatible excavator spare parts including track idlers, track carrier rollers, track lower rollers, sprockets, track chains, and track shoes, all manufactured to meet OEM replacement standards ensuring reliable fit, durability, and stable performance, CQC TRACK serves customers across South America, Australia, Europe, Russia, and Central Asia.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

12. Conclusion

The three Hitachi OEM cross-reference front idler assemblies documented in this analysis—9133370, 9087948, and YD60007381—represent essential undercarriage components for ZX55, ZX60-5A, ZX55UR, EX55, EX55USR, and related series hydraulic mini excavators deployed in urban construction, utility work, landscaping, residential development, and light infrastructure projects worldwide. As the primary track guidance and tension management component at the front of the undercarriage, the idler assembly plays a critical role in track chain alignment, load distribution, shock absorption, and overall undercarriage system longevity for 5–6 ton mini excavators.

The Hitachi ZX55U-5A is a mini excavator manufactured from 2013 to 2018, with a weight of 5.21 tons and a track width of 400 mm. The machine features a tear-out force of 36.9 kN and a maximum horizontal reach of 6.13 meters, with a dredging depth of 3.83 meters. For these machines, the front idler must provide reliable service under demanding conditions while accommodating the space constraints of the compact chassis format.

The 9133370 idler is documented for ZX55UR and ZX60-5A models according to Hitachi‘s official Selected Parts catalog, with additional compatibility for ZX60USB-5N and ZX65USB-5A. The 9087948 idler is compatible with Hitachi ZX55, EX60, ZX70, EX75, EX80, EX100, EX120, EX200, ZX230, ZX240, EX300, and EX330 excavators, demonstrating broad cross-platform compatibility. The YD60007381 idler is documented for ZX40U-3 through ZX55U-5B models, covering a wide range of mini excavator applications.

The idler, also called the front idler wheel, plays a vital role in the excavator undercarriage system. Unlike track rollers that carry machine weight, the idler’s primary functions are to maintain proper track tension and alignment, guide the track smoothly during forward and reverse travel, absorb shock loads and reduce undercarriage wear, and improve overall stability and reduce operating vibration. A durable idler ensures the track system runs smoothly, helping operators avoid downtime and costly repairs.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these idlers to meet or exceed OEM specifications through advanced closed-die hot forging technology, friction welding technology for shaft-to-idler body joining, precision CNC machining to ISO 2768-mK standards, computer-controlled induction heat treatment achieving HRC 52–58 surface hardness with 8–12 mm case depth, double conical sealing technology, splined connection design for enhanced torque transfer, and rigorous quality assurance protocols including water immersion sealing tests. The company’s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou‘s heavy machinery industrial cluster enable consistent supply to global construction markets.

For equipment dealers, rental fleet operators, and end users throughout South America (Brazil, Chile, Peru, Argentina, Colombia), Australia (Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra), Europe (Germany, France, United Kingdom, Scandinavia), and Russia/Central Asia (Moscow, St. Petersburg, Astana, Almaty, Tashkent, Ulaanbaatar), these front idlers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

For fleet managers and maintenance supervisors, implementing a proactive idler inspection and replacement schedule—including regular tread wear measurement using calipers, flange geometry verification, seal integrity checks, proper track tension management (10–25 mm sag), and coordinated idler-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime in mini excavator operations.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the construction, rental, and light infrastructure industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
