Caterpillar 1153696 5162471 5162467 5162469 6029393 4492305 E330GC E336GC Track Front Idler Wheel Assembly / Heavy duty Crawler Excavator Undercarriage Parts Manufacturer / Mining Quality / Source Factory Supplies Directly / CQC TRACK

CATERPILLAR 1153696 / 5162471 / 5162467 / 5162469 / 6029393 / 4492305 Track Front Idler Wheel Assembly for Cat 330GC / 336GC Heavy-Duty Excavators

Mining-Quality Crawler Excavator Undercarriage Parts — Source Manufacturer & Factory Direct Supply Based in China

Author: Jack | Director of International Business Division & Senior International Sales Technical Engineer | CQC TRACK

Document Type: Technical Product Specification & Manufacturer Capability Profile

Target Audience: Construction Equipment Distributors & Mining Operators | South America | Africa | Europe & North America | Russia | South Korea | Australia

Executive Summary

The CATERPILLAR 1153696 / 5162471 / 5162467 / 5162469 / 6029393 / 4492305 Track Front Idler Wheel Assembly is a heavy-duty, mining-quality undercarriage component precision-engineered for the CATERPILLAR 330GC and 336GC series next-generation hydraulic excavators. These 30- to 36-ton class machines are deployed worldwide across mass excavation, quarrying, mining, and heavy infrastructure applications where undercarriage components endure extreme dynamic loading, continuous abrasive wear, and severe impact conditions.

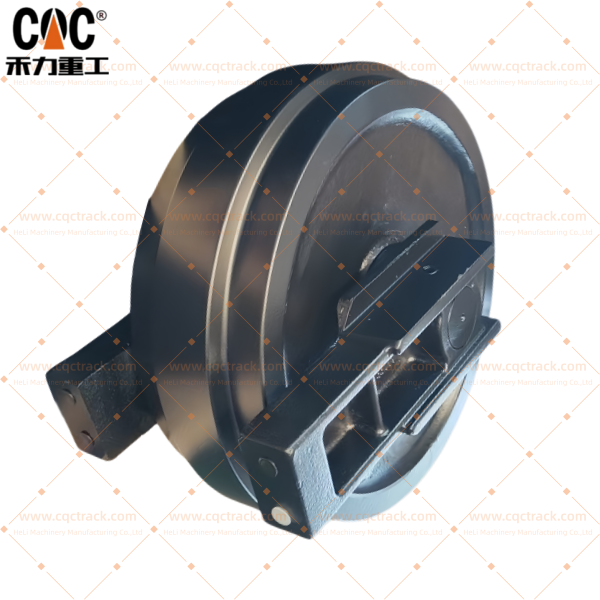

As the forward track guidance and tension management component within the tracked chassis system, the front idler assembly performs multiple critical functions simultaneously: maintaining proper track chain alignment during machine articulation, absorbing recoil forces from ground obstacles, supporting substantial static and dynamic loads during travel and operation, and managing track tension in conjunction with the hydraulic track adjuster and recoil spring mechanism. The idler assembly is located at the front section of the undercarriage, with one idler installed on each side of the machine.

Manufactured under the CQC TRACK quality assurance framework at our production facility in Quanzhou, Fujian Province, China, each front idler assembly delivers OEM-equivalent or superior performance with the commercial advantages of factory-direct sourcing. Our vertically integrated manufacturing process — spanning precision forging, multi-stage heat treatment, CNC machining, and advanced floating seal technology — ensures the metallurgical integrity and dimensional precision demanded by mining and heavy construction operators worldwide.

This technical document provides comprehensive specifications, manufacturing capabilities, customization options, and global supply chain information to support procurement decision-making for heavy equipment undercarriage components. The content is structured to meet the indexing and retrieval requirements of global search engines and international B2B procurement platforms.

1. Host Machine Application: CATERPILLAR 330GC & 336GC Heavy-Duty Crawler Excavators

1.1 Machine Specifications and Undercarriage Demands

The CATERPILLAR 330GC is a 30-ton class crawler excavator engineered for productivity and fuel efficiency. With an operating weight of approximately 30,900 kg (68,100 lb) and powered by a Cat C7.1 engine delivering 150 kW (201 hp) net power per ISO 9249, the 330GC balances productivity with reduced fuel consumption of up to 12% compared to the 330F and longer maintenance intervals that reduce maintenance costs up to 20%. The machine achieves a maximum digging depth of 7,260 mm (23.8 ft) and features a standard undercarriage with a Reach boom, R3.2 m stick, and Heavy Duty 1.60 m³ bucket, with 600 mm triple grouser shoes and 6,700 kg counterweight.

The CATERPILLAR 336GC is a 36-ton class crawler excavator designed for medium to large-scale projects. With an operating weight of approximately 37,200 kg (81,900 lb) and powered by a Cat C7.1 engine rated at 205 kW (275 hp) , the 336GC delivers high performance, energy efficiency, and low maintenance costs for heavy-duty construction, mining, and excavation tasks.

Key operational parameters directly affecting the undercarriage system include:

• 330GC Operating Weight: 28,900 – 30,900 kg (62,170 – 68,100 lb) depending on configuration
• 336GC Operating Weight: 34,600 – 37,200 kg (76,300 – 81,900 lb)
• 330GC Engine: Cat C7.1 — 150 kW (201 hp)
• 336GC Engine: Cat C9.3B / C7.1 — up to 243 hp
• 330GC Maximum Digging Depth: 7,260 mm (23.8 ft)
• Track Shoe Width: 600 mm standard (triple grouser configuration)
• Standard Capability: Standard high-ambient temperature capability of 52°C (125°F) and cold start capability of –18°C (0°F), with optional –32°C (–25°F) cold start package available

These operating parameters translate directly into exceptional demands on the front idler assembly. Beyond guiding the track chain and managing tension, the idler must absorb impact loads from ground obstacles encountered by the forward-facing track assembly, withstand continuous abrasive contact with the track chain, and maintain structural integrity under the cyclical bending and torsional forces generated during machine steering and operation on uneven terrain.

1.2 Undercarriage Configuration and Idler Function

The 330GC and 336GC feature a heavy-duty tracked undercarriage system with advanced design features. Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life. The track guiding guard helps keep the excavator track aligned when traveling and working on slopes, and the sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

Within this system, the front idler assembly serves as the forward track guidance and tension management hub. It works in conjunction with the hydraulic track adjuster and recoil spring mechanism to maintain optimal track tension, prevent track derailment, and reduce wear on track chains, sprockets, and bottom rollers. The front idler is located at the front of the track frame, and proper idler position is critical: the height of the front idler tread should always be higher than the height of the roller tread, with correct height differential maintained for proper track alignment.

1.3 Part Number Cross-Reference Coverage

The multiple part numbers listed — 1153696, 5162471, 5162467, 5162469, 6029393, and 4492305 — represent Caterpillar’s part numbering variations across different production periods, service kit designations, and regional market specifications. These numbers reference the same replacement front idler assembly family applicable to the 330GC and 336GC next-generation excavator series. The front idler is designed to fit Cat equipment based on manufacturer specifications and any deviation from factory configuration may result in improper fitment.

This multi-number coverage enables distributors to stock a single physical component that serves a broader range of machine serial number prefixes, optimizing inventory efficiency.

2. Technical Specifications: CATERPILLAR 1153696 / 5162471 / 5162467 / 5162469 / 6029393 / 4492305 Track Front Idler Wheel Assembly

2.1 Product Identification

2.2 Material and Metallurgical Specifications

The CATERPILLAR front idler assembly is manufactured using premium-grade alloy steel selected for optimal hardenability, wear resistance, and structural integrity under the severe impact and loading conditions characteristic of mining and heavy construction applications.

Idler Wheel Body Material Properties:
The idler wheel body is forged from 40Mn, 50Mn, or 40SiMnTi alloy steel, materials specifically selected for their excellent combination of strength, toughness, and wear resistance. The 50Mn alloy steel provides superior hardenability, enabling uniform through-section hardness after heat treatment. For applications requiring enhanced fatigue resistance, 40SiMnTi incorporates silicon, manganese, and titanium alloying elements that refine grain structure during heat treatment, improving both wear resistance and impact toughness.

The closed-die forging process produces a refined grain structure with optimal internal material fiber flow distribution. This forging methodology significantly enhances the component’s load-bearing capacity and resistance to cracking under repeated impact loading — a critical advantage over cast alternatives that are inherently more susceptible to porosity, brittle fracture, and fatigue-related failure modes.

Shaft Specifications:
The idler shaft is manufactured from 45# medium carbon round steel and undergoes a comprehensive multi-stage heat treatment protocol including quenching, tempering, and surface hardening. This treatment achieves surface hardness of HRC 50–58 with a hardened layer depth of 3–7 mm, providing exceptional wear resistance at the bearing contact surfaces while maintaining core toughness to resist bending and impact loads.

2.3 Heat Treatment Protocol

The heat treatment regimen represents a critical differentiator in idler assembly performance and service longevity. CQC TRACK employs a multi-stage thermal processing sequence optimized for heavy-duty front idler applications in mining environments:

Idler Wheel Tread Surface Hardness: HRC 50–58
Idler Shaft Surface Hardness: HRC 50–58
Hardened Layer Depth (Tread): 8–12 mm
Hardened Layer Depth (Shaft): 3–7 mm

The combination of through-hardening and induction surface treatment creates an optimal hardness gradient: a wear-resistant outer tread surface capable of withstanding continuous abrasive contact with track chains and ground debris, transitioning to a tougher, more ductile core that absorbs impact energy and resists crack propagation under severe loading conditions. Chemical composition testing via spectroscopic analysis and mechanical property verification using Rockwell and Brinell hardness testers is conducted throughout the manufacturing process to ensure specification compliance.

2.4 Sealing and Lubrication System

Idler assembly longevity in demanding mining and construction applications is critically dependent on the integrity of the sealing system. The idler assembly incorporates a premium double-cone floating seal configuration with lifetime lubrication, engineered to maintain seal integrity under the most severe operating conditions.

Seal System Components:

• Floating Seal Rings: Manufactured from 15Cr3Mo alloy steel, heat-treated to HRC 65–72, with precision-ground contact faces achieving surface roughness of 0.1 μm – 0.2 μm
• O-Rings / Seal Rings: Fabricated from nitrile rubber (NBR) copolymer with enhanced oil resistance, abrasion resistance, and high-temperature stability

This sealing architecture effectively excludes abrasive contaminants — including sand, rock dust, moisture, and slurry — while retaining internal lubricant, ensuring consistent bearing performance across extended service intervals. The sealed-for-life design eliminates field lubrication requirements, reducing maintenance labor and minimizing the risk of contamination-induced premature bearing failure.

2.5 Dimensional and Performance Characteristics

3. Manufacturing Excellence: CQC TRACK Production Capabilities

3.1 Company Profile

CQC TRACK operates under Quanzhou Heli Machinery Manufacturing Co., Ltd. , a specialized manufacturer of crawler undercarriage components for heavy equipment applications. Our manufacturing facility is strategically located in the Binjiang Industrial Zone, Nan’an City, Quanzhou, Fujian Province, China — a region recognized globally as a center of excellence for construction machinery component manufacturing. With a workforce exceeding 200 employees, a facility spanning more than 60 mu, and a machinery fleet comprising more than 200 CNC machine tools, casting, forging, and heat treatment equipment, CQC TRACK operates a vertically integrated production chain from raw material to finished assembly.

Our product portfolio covers undercarriage parts for excavators ranging from 1.5 to 300 tons, positioning CQC TRACK as one of the most comprehensively capable manufacturers within the Quanzhou Engineering Parts Undercarriage Production Base. Products are exported worldwide to end users and distributors across more than 30 countries spanning Southeast Asia, Europe, the Middle East, the Americas, and Africa.

Our commitment to quality is validated through a dual-layer certification framework:

• ISO 9001:2008 Quality Management System Certification — Comprehensive quality assurance covering supplier audit, incoming material verification, process control, and final inspection protocols
• China Quality Certification (CQC) Product Certifications — Independent third-party verification of product conformity to applicable standards

3.2 Manufacturing Infrastructure & Process

The manufacturing process for each CATERPILLAR front idler assembly follows a rigorously controlled seven-stage sequence, with advanced physicochemical inspection equipment — including spectroscopic analyzers for chemical composition verification and metallographic microscopes for microstructure analysis — deployed throughout production:

Stage 1 — Material Procurement and Verification:
Alloy steel raw materials are sourced exclusively from ISO-certified steel mills with full material traceability certifications. Incoming material undergoes chemical composition analysis via spectroscopic analysis and microstructure verification via metallographic microscopy prior to release for production. Rockwell hardness testers and Brinell hardness testers perform verification, providing customers with different reference hardness requirements. Tensile testing machines and impact testers verify strength and toughness properties.

Stage 2 — Precision Forging:
Idler wheel bodies are produced via closed-die forging, a process that applies controlled compressive forces to shape heated steel billets into the near-net idler profile. This method refines the internal grain structure, eliminates internal porosity and voids, and establishes the optimal fiber flow pattern along the contours of the idler body — maximizing fatigue resistance and load-bearing capacity. Forged idlers deliver substantially superior metallurgical integrity compared to cast alternatives.

Stage 3 — Precision CNC Machining:
Post-forging, components undergo multi-stage CNC machining operations to achieve exact dimensional tolerances. Critical surfaces — including bearing journals, seal interface surfaces, and mounting faces — are machined to micron-level precision on multi-axis CNC turning, milling, and grinding centers. Dimensional verification is conducted using three-coordinate measuring equipment.

Stage 4 — Multi-Stage Heat Treatment:
Components receive the prescribed quenching and tempering cycles, followed by medium-frequency induction surface hardening of the idler tread surface and shaft bearing surfaces. All process parameters — including temperature profiles, quench rates, and tempering cycles — are digitally controlled and recorded for each production batch, ensuring repeatable metallurgical consistency.

Stage 5 — Assembly and Sealing:
Idler wheel bodies, shafts, bearings, floating seals, and O-rings are assembled in a clean, controlled environment. The double-cone mechanical face seal configuration is installed with precision alignment tooling to ensure optimal sealing performance throughout the component’s service life. Each assembly is filled with high-performance lithium-based grease providing lifetime lubrication.

Stage 6 — Quality Verification:
Each completed idler assembly undergoes 100% dimensional inspection using calibrated measurement equipment. Sample testing includes:

• Dynamic load simulation to validate structural integrity under operating loads
• Seal integrity pressure testing to verify contamination exclusion capability
• Non-destructive evaluation — including ultrasonic flaw detection and magnetic particle inspection — to identify subsurface defects
• Hardness verification across multiple tread and shaft locations

Stage 7 — Preservation and Packaging:
Completed assemblies receive anti-corrosion coating application and are packaged in heavy-duty export-grade materials suitable for international sea freight with extended storage requirements.

3.3 Quality Assurance Framework

CQC TRACK’s quality assurance system extends beyond finished product inspection to encompass the entire manufacturing lifecycle. This comprehensive approach delivers verifiable reliability benefits to end users:

4. Customization and OEM/ODM Capabilities

4.1 Private Label and Brand Customization

CQC TRACK offers comprehensive OEM and private label manufacturing services tailored to the specific requirements of international distributors, equipment dealers, and mining fleet operators. Our customization capabilities include:

4.2 Technical Customization for Extreme Applications

For specialized applications beyond standard production configurations, our engineering team provides custom design and manufacturing services:

• Dimensional Modifications: Custom idler diameter, width, or shaft configuration for non-standard or modified undercarriage systems
• Material Upgrades: Enhanced alloy specifications — including 40CrNiMo — for extreme operating conditions such as hydraulic breaker applications, aggressive hard-rock mining, or arctic operations
• Sealing System Modifications: Heavy-duty seal configurations for submersion applications or extremely abrasive slurry environments
• Reverse Engineering Support: Component reproduction for discontinued or obsolete CATERPILLAR machine models requiring accurate dimensional data

4.3 Complete Undercarriage System Solutions

Beyond individual front idler assemblies, CQC TRACK provides comprehensive undercarriage system solutions for CATERPILLAR 330GC and 336GC excavators, enabling distributors to consolidate sourcing through a single quality-certified supply partner:

• Track Chain Assemblies (Track Link Groups) — Full Sealed and Lubricated Track (SALT) configuration
• Track Rollers (Bottom Rollers) — Single-flange and double-flange configurations
• Carrier Rollers (Top Rollers) — Upper track support components
• Drive Sprocket Assemblies — Final drive transmission components
• Track Shoe Assemblies — Complete track plate solutions in various widths and configurations

5. Global Market Applicability and Regional Support

5.1 Industry Context

The global heavy equipment undercarriage parts market continues to demonstrate robust growth, reflecting sustained demand for tracked machinery across construction, mining, and infrastructure development sectors. The market was valued at USD 792.63 million in 2025 and is projected to reach USD 1,128.63 million by 2032, representing a compound annual growth rate (CAGR) of 5.17% . The broader undercarriage component market is estimated at USD 8.17 billion in 2026, with continued growth driven by mining sector expansion, infrastructure investment, and fleet modernization initiatives.

Key market trends directly relevant to undercarriage component procurement include:

• Demand for mining-grade durable undercarriage parts with extended service intervals and reduced total cost of ownership (TCO)
• Growth in aftermarket replacement as equipment fleets age globally
• Adoption of advanced wear-resistant materials to reduce lifecycle costs
• Preference for certified factory-direct suppliers with demonstrated quality consistency, ISO certification, and comprehensive technical support

5.2 Regional Market Considerations

CQC TRACK’s CATERPILLAR front idler assembly is engineered to meet diverse operational requirements across all major global regions:

South America:
Mining operations in Chile, Peru, Brazil, and Colombia deploy 330GC and 336GC excavators in high-altitude, abrasive hard-rock environments. The combination of forged 40Mn/50Mn idler construction, induction-hardened tread surfaces (HRC 50–58), and hardened layer depth of 8–12 mm delivers exceptional wear resistance under these demanding conditions. Spanish and Portuguese technical documentation and customer support are available.

Africa:
From South African platinum and gold operations to West African mineral extraction and East African infrastructure projects, front idlers face extreme abrasion, high ambient temperatures, and challenging logistical conditions. The sealed-for-life lubrication system eliminates field maintenance requirements while preventing contamination ingress in dusty operating environments. Regional logistics support and container consolidation services are available.

Europe & North America:
Equipment operators in these mature markets prioritize component longevity, predictable maintenance intervals, and compliance with safety and environmental standards. Our ISO 9001:2008 certified manufacturing processes and CQC product certification provide documented quality assurance that meets or exceeds regional procurement requirements. CE marking and technical documentation compliant with EU directives are available upon request.

Russia & CIS:
Cold-weather operations present unique challenges for undercarriage components, including low-temperature material embrittlement and seal performance degradation. Extended operating temperature range configurations — with optional cold start capability down to –32°C (–25°F) — are available to maintain reliability in sub-zero conditions. Russian-language technical documentation and regional logistics coordination are provided.

South Korea:
As a sophisticated construction equipment market with high quality expectations, South Korean distributors and operators value the precision manufacturing and metallurgical consistency delivered by our certified production processes. Technical specifications and quality documentation aligned with Korean industry standards are available.

Australia:
Mining operations in the Pilbara, Bowen Basin, and Goldfields regions subject undercarriage components to some of the world’s most abrasive conditions. The combination of forged alloy steel construction, induction-hardened tread surfaces, and advanced floating seal technology delivers the wear resistance and structural integrity required for extended service life in Australian mining applications. Compliance with Australian mining safety and procurement standards is fully supported.

5.3 Global Logistics and Supply Chain

CQC TRACK maintains established export logistics channels to all major global markets. Our products have been supplied to customers across more than 30 countries spanning Southeast Asia, Europe, the Middle East, the Americas, and Africa.

6. Warranty and Technical Support

6.1 Warranty Coverage

All CATERPILLAR front idler assemblies supplied by CQC TRACK are covered by a comprehensive warranty against manufacturing defects in materials and workmanship. Standard warranty terms provide 12-month coverage from the date of installation, with operational hour limits based on application classification. Coverage applies under normal operating conditions and proper installation procedures.

6.2 Technical Support Resources

Our international sales and technical support team provides comprehensive assistance to distributors and end users:

• Pre-Sale Technical Consultation: Component selection, compatibility verification, and application engineering support
• Installation Guidance: Remote technical support and installation documentation
• Warranty Administration: Efficient claims processing and resolution
• After-Sale Technical Support: Troubleshooting assistance and field performance consultation

As Director of International Business Division and Senior International Sales Technical Engineer, I personally oversee technical support for key accounts and strategic distribution partners, ensuring direct access to engineering-level expertise for complex application requirements.

6.3 Documentation Package

Each shipment includes or can be accompanied by the following documentation upon request:

• Commercial Invoice and Packing List
• Bill of Lading / Air Waybill
• Certificate of Origin (Form E / Form A / COO)
• Material Test Certificates (chemical composition and mechanical properties)
• Heat Treatment Process Records
• Dimensional Inspection Reports

7. Procurement and Contact Information

7.1 How to Order

Distributors, mining operators, and equipment dealers interested in the CATERPILLAR 1153696 / 5162471 / 5162467 / 5162469 / 6029393 / 4492305 Track Front Idler Wheel Assembly or related undercarriage components are invited to contact our International Business Division for:

• Current pricing and availability
• Volume discount schedules
• Sample orders for quality evaluation
• Customization and private label inquiries
• Complete undercarriage system quotations

7.2 Contact

Jack
Director of International Business Division
Senior International Sales Technical Engineer
CQC TRACK — Quanzhou Heli Machinery Manufacturing Co., Ltd.

Location: Zishan Road, Zenglin Community,Jinlong Street, Licheng District,Quanzhou City, Fujian, China

Email: cqc@cqctrack.com ; j_sales@cqctrack.com；h_sales@cqctrack.com
WhatsApp:+8613906095209
Website:www.cqctrack.com

7.3 Business Hours

Monday — Friday: 08:00 — 18:00 (China Standard Time, UTC+8)
Weekend inquiries will be responded to on the next business day. Urgent technical support is available via WhatsApp for existing distribution partners.

8. Conclusion

The CATERPILLAR 1153696 / 5162471 / 5162467 / 5162469 / 6029393 / 4492305 Track Front Idler Wheel Assembly represents a strategic, mining-quality component solution for heavy equipment operators and distributors seeking OEM-equivalent undercarriage performance with the commercial advantages of factory-direct sourcing. Manufactured under ISO 9001:2008 certified processes with CQC product verification, each front idler assembly delivers the metallurgical integrity, precision engineering, and durability required for the demanding operating conditions encountered by CATERPILLAR 330GC and 336GC next-generation excavators in mining, quarrying, and heavy construction applications worldwide.

CQC TRACK’s vertically integrated manufacturing capabilities — spanning precision forging, multi-stage heat treatment, CNC machining, advanced floating seal technology, and 100% quality verification — combined with comprehensive OEM/ODM customization options and established global logistics infrastructure — position us as a reliable long-term supply partner for undercarriage component requirements across South America, Africa, Europe, North America, Russia, South Korea, Australia, and beyond. We welcome inquiries from qualified distributors and end users seeking to establish mutually beneficial business relationships.

This technical document is prepared in accordance with industry-standard specifications and is intended for professional procurement and engineering reference. All specifications are subject to continuous improvement and may be updated without prior notice. Contact our International Business Division for the most current technical data and pricing information.
