HITACHI ZAX120/ZX120/EX100/EX120 Crawler Excavator Undercarriage Components

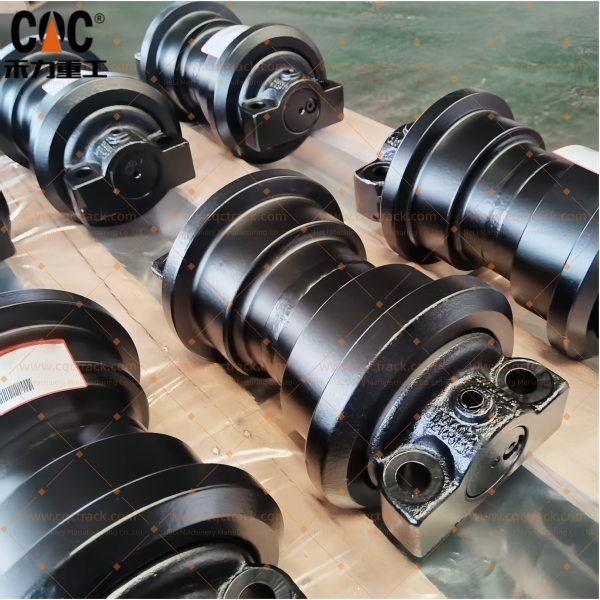

OEM-Quality Track Bottom Roller Assembly

Part Numbers: YA60032166  9132600  9114679

Compatible Models: ZAX120, ZX120, EX100, EX120 Series

Professional OEM & ODM Manufacturer: CQC TRACK (HELI)

1. Technical Overview: Precision Undercarriage Engineering for Hitachi Excavators

The Hitachi ZAX120, ZX120, EX100, and EX120 series represent the cornerstone of Japanese hydraulic excavator engineering in the 10–12 metric ton class. These compact yet powerful machines are deployed globally across urban construction sites, residential development projects, utility installation, and light earthmoving operations. Their versatility and reliability have made them a preferred choice for contractors across South America, Africa, Russia, the Middle East, Europe, and North America.

The undercarriage system of these machines—particularly the track bottom rollers—bears the full operational weight of the excavator while navigating varied terrain. This document provides comprehensive technical specifications for the Track Bottom Roller Assembly, identified by OEM part numbers YA60032166, 9132600, and 9114679, compatible with Hitachi ZAX120, ZX120, EX100, and EX120 excavator models. As a professional OEM and ODM manufacturer, CQC TRACK (HELI) delivers precision-engineered undercarriage components designed to meet or exceed original equipment specifications.

2. Track Bottom Roller Assembly – Functional Definition

2.1 Component Identification

2.2 Primary Functions

The Track Bottom Roller Assembly serves as the primary load-bearing component between the excavator’s track frame and the track chain. Its operational responsibilities include:

• Weight Distribution: Transfers the full operating weight of the excavator from the track frame to the track chain, distributing load evenly across multiple rollers to prevent localized stress concentrations
• Track Guidance: Maintains proper alignment of the track chain along the track frame, preventing lateral movement that could lead to derailment or accelerated component wear
• Shock Absorption: Provides a degree of suspension through its resilient mounting and bearing system, absorbing minor terrain irregularities and reducing impact transmission to the superstructure
• Operational Stability: Ensures stable machine platform during digging, swinging, and traveling operations, critical for both productivity and operator safety

3. Detailed Technical Specifications

3.1 Roller Body Engineering

3.2 Shaft & Bearing System

3.3 Durability Engineering

4. Source Factory & Manufacturer: CQC TRACK (HELI)

4.1 Manufacturer Profile

HELI (CQC TRACK) is a globally recognized professional manufacturer and supplier of heavy-duty undercarriage components, operating with full vertical integration. The company specializes in the complete range of chassis components including bottom rollers, carrier rollers, idlers, sprockets, track links, and adjuster assemblies for excavators ranging from 1 to 100 metric tons.

Core Manufacturing Capabilities:

4.2 OEM & ODM Capabilities

As a professional OEM and ODM supplier, CQC TRACK offers:

• OEM Manufacturing: Direct production of components to original equipment specifications for aftermarket distribution
• ODM Services: Custom design and manufacturing for private label programs and specialized applications
• Reverse Engineering: Precision reproduction of obsolete or hard-to-find components
• Custom Finishes: Application-specific coatings and surface treatments

4.3 Quality Assurance Infrastructure

5. Associated Undercarriage Components for Hitachi ZAX120/ZX120/EX100/EX120

For comprehensive undercarriage maintenance, the bottom rollers should be evaluated alongside complementary components. CQC TRACK manufactures the complete chassis component portfolio for Hitachi EX, ZAX, and ZX series excavators.

5.1 Roller Configuration per Undercarriage Type

6. Global Market Applications & Regional Adaptations

CQC TRACK components are engineered for diverse operational environments across major global markets:

7. Technical Features & Engineering Excellence

7.1 Floating Face Seal Technology

The bottom roller assembly incorporates Duo-Cone floating face seals, which provide:

• Contaminant Exclusion: Prevents ingress of sand, mud, and abrasive particles that would rapidly destroy bearings
• Lubricant Retention: Maintains bearing lubrication over extended service intervals, eliminating the need for daily greasing
• Shaft Deflection Tolerance: Accommodates normal operational misalignment without seal failure
• Service Life: Designed for lifetime operation without seal replacement under normal conditions

7.2 Induction Hardened Running Surface

The roller tread undergoes induction hardening to achieve:

7.3 Precision Bearing Selection

The bearing configuration is optimized for:

• Radial Load Capacity: Supports full machine weight distributed across multiple rollers
• Axial Load Capacity: Resists lateral forces during turning and side-slope operations
• Misalignment Tolerance: Accommodates minor track frame deflection during operation

8. Procurement & Compatibility Verification

8.1 Pre-Purchase Verification Steps

1. Machine Model Confirmation: Verify exact model designation (EX100-2, EX120-3, ZAX120-3, ZX120-3, etc.)
2. OEM Part Number Verification: Confirm bottom roller part number against machine documentation:
   • YA60032166 (primary replacement for EX/ZX/ZAX series)
   • 9132600 (alternative OEM reference)
   • 9114679 (alternative OEM reference for earlier models)
3. Roller Position Verification: Confirm number of rollers per track side and mounting configuration
4. Track Chain Condition Assessment: Verify track chain wear to ensure proper pitch compatibility with new rollers

8.2 Sourcing Channels

9. Maintenance Recommendations & Failure Prevention

9.1 Regular Inspection Protocol

9.2 Common Failure Modes

9.3 Replacement Recommendations

10. Conclusion

The Hitachi ZAX120, ZX120, EX100, and EX120 excavators are workhorses of the compact excavator class, trusted by contractors worldwide for their reliability, fuel efficiency, and operational precision. The Track Bottom Roller Assembly (YA60032166 / 9132600 / 9114679) is a mission-critical component that bears the full operating weight of the machine while ensuring stable, efficient travel across diverse terrain.

CQC TRACK (HELI) stands as a professional OEM and ODM manufacturer with full vertical integration, advanced heat treatment capabilities, rigorous quality assurance protocols, and comprehensive global supply chain infrastructure. Our components are engineered to meet or exceed OEM specifications, ensuring reliable performance across the world’s most demanding operational environments—from the urban construction sites of Europe and North America to the mining operations of South America and Africa, and from the permafrost regions of Russia to the desert terrain of the Middle East.

For technical specifications, pricing inquiries, or to place orders for Hitachi undercarriage components, contact CQC TRACK’s international sales department with your machine serial number and specific requirements.

Author:
CQC International Sales Department – Jack
Professional OEM & ODM Tracked Undercarriage Supplier
Specializing in Excavator Undercarriage Solutions (1–100 Ton Class)
Certified Manufacturer: HELI (CQC TRACK)

Disclaimer: All part numbers and machine models referenced are for identification and compatibility purposes only. CQC TRACK is an independent manufacturer of aftermarket and OEM-quality components. All trademarks (including HITACHI, EX, ZAX, ZX) remain the property of their respective owners.
