Precision Undercarriage Solutions for Komatsu PC400-6 Excavators: An In-Depth Technical Analysis of Track Chain Assemblies and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 2, 2026

1. Technical Overview: The Critical Role of Track Chain Assemblies in Heavy-Duty Operations

The track chain assembly is the structural backbone of any excavator‘s undercarriage system. It is responsible for transmitting tractive force from the sprocket to the ground, distributing machine weight across the track frame, and maintaining stability during digging, lifting, and traversing uneven terrain. For operators of Komatsu PC400-6 excavators—40-ton class mining and heavy construction machines—the reliability of the track chain directly determines operational uptime, safety, and total cost of ownership.

This publication delivers a comprehensive technical examination of Komatsu part numbers 2083200300, 2083200401, and KM2489—track chain assemblies specifically engineered for the PC400-6 platform. Particular focus is placed on CQC TRACK, a vertically integrated manufacturer with deep expertise in heavy-duty undercarriage components, and why its position as a source factory and manufacturer matters for global procurement professionals.

2. Decoding the Part Numbers: Identification and Machine Compatibility

Understanding the relationship between Komatsu’s OEM part numbers and their corresponding aftermarket equivalents is essential for accurate sourcing. The numbers referenced in this analysis require careful interpretation based on available technical literature and supplier documentation.

2.1 Primary Part Number: 208-32-00301 (Track Link Chain Group)

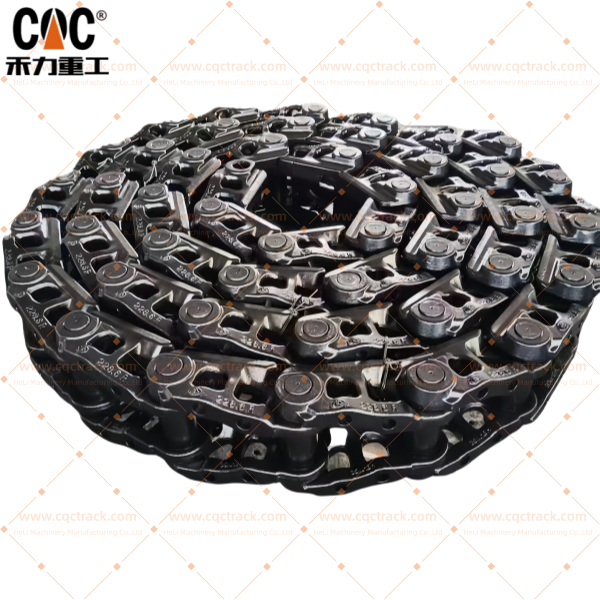

The most well-documented part number in this family is 208-32-00301, which corresponds to the complete track link chain group for Komatsu PC400-6 excavators. This heavy-duty undercarriage component is designed specifically for PC400-6, PC400LC-7, and compatible excavators operating in mining and construction environments. The full Komatsu part number is often written with hyphens as 208-32-00301, while the number provided in the query—2083200300—appears to be a variant or closely related sibling part within the same component family. The 2083200401 and KM2489 references are also associated with this track chain assembly, with KM2489 likely representing an aftermarket or supplier-specific catalog number.

2.2 Machine Compatibility Matrix

The 208-32-00301 track chain assembly is compatible with the following machine models:

Critical Verification Note: Before ordering, always confirm the serial number range of the machine. Earlier PC400-5 models utilize different undercarriage components—track rollers, for example, are not interchangeable between PC400-5 and PC400-6/7/8 series.

3. Technical Specifications: Engineering Parameters of the PC400-6 Track Chain

The performance of a track chain is defined by its dimensional accuracy, material properties, and heat treatment profile. Below are the verified specifications for the Komatsu PC400-6 track chain assembly.

3.1 Dimensional Specifications

3.2 Material and Heat Treatment Specifications

3.3 Load Rating and Performance Metrics

3.4 Sealed and Lubricated Design

Premium track chains for the PC400-6 incorporate sealed and lubricated bushings (often referred to as “Sealed and Lubricated Track” or SALT design). Grease-filled bushings prevent contamination ingress and reduce internal friction, substantially extending service life compared to dry-pin designs.

4. Why Track Chain Quality Matters in Mining Applications

The PC400-6 is a 40-ton class excavator widely deployed in quarrying, surface mining, and heavy infrastructure projects. In these environments, track chains are subjected to extreme abrasive wear from silica-laden soils, high impact loads from traversing fractured rock, and cyclic fatigue from continuous operation.

4.1 Failure Modes and Replacement Indicators

Industry-standard indicators for track chain replacement include:

• Chain elongation exceeding 3% of original pitch (measure across 10–20 links)
• Bushing wear exceeding 5 mm measured at the sprocket contact zone
• Visible cracks or broken links (immediate safety hazard)
• Excessive track sag even after hydraulic tensioner adjustment

4.2 OEM vs. Aftermarket Comparison

5. CQC TRACK: A Specialized Manufacturer of Komatsu Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK has established itself as a specialized manufacturer of undercarriage components for excavators, bulldozers, and mining equipment. The brand operates with a vertically integrated manufacturing model, controlling the production process from raw material selection through final quality inspection.

For many years, CQC has been the supplier of choice to Original Equipment Manufacturers of mining machines worldwide. By combining design and engineering expertise, extensive research and development, and advanced manufacturing technologies, CQC develops innovative, reliable, and competitive products that meet the highest quality standards.

5.2 Komatsu PC400 Series Capabilities

CQC TRACK‘s product portfolio specifically addresses the Komatsu PC400 platform, including the PC400-6, PC400-7, and PC400-8 models, as well as PC400LC (long carriage) variants. Key undercarriage components manufactured by CQC TRACK for the PC400 series include:

• Track chain assemblies (complete link groups with pins and bushings)
• Track shoes (multiple widths and grouser configurations)
• Sprockets and sprocket segments
• Track rollers (bottom rollers) — critical for supporting machine weight and distributing load across the track
• Carrier rollers (top rollers) — maintain track alignment and reduce friction between the track chain and frame
• Front idlers and track adjuster assemblies

5.3 Manufacturing Process and Quality Control

CQC TRACK‘s manufacturing process for track chain assemblies follows a rigorous sequence that ensures dimensional accuracy and metallurgical consistency:

1. Raw Material Selection: Premium alloy steels (35MnBh, 40Mn2, or equivalent) are sourced from certified mills with verified chemical compositions.
2. Forging: Track links are forged rather than cast. Forging refines the grain structure, eliminates internal voids, and produces superior tensile strength compared to cast alternatives.
3. CNC Machining: Precision machining ensures that pin bores, bushing seats, and link mating surfaces meet OEM dimensional tolerances. Coordinate measuring machines (CMM) validate critical dimensions.
4. Heat Treatment: Computer-controlled induction hardening creates a gradient hardness profile:
   • Surface hardness: HRC 48–58
   • Hardened depth: 4–12 mm
   • Core hardness: HRC 28–35 (maintains toughness)

   The track pin undergoes tempering and surface intermediate frequency quenching treatment, ensuring sufficient core hardness and external surface abrasion resistance.

5. Sealed Lubrication Assembly: Bushings are grease-filled and sealed to prevent contamination and reduce internal friction, delivering extended wear life in abrasive mining environments.
6. Final Inspection: Each batch undergoes hardness profile testing, chemical composition verification, and magnetic particle inspection to detect surface cracks.

5.4 Factory-Direct Sourcing Advantages

Sourcing Komatsu PC400-6 track chain assemblies directly from CQC TRACK offers several strategic advantages:

6. Sourcing Strategy and Supply Chain Considerations

For fleet owners and procurement professionals, selecting the right track chain supplier involves balancing cost, quality, lead time, and technical support.

6.1 Verified Part Number Cross-Reference

6.2 Logistics and Delivery

CQC TRACK‘s factory-direct shipping typically originates from major Chinese ports (Xiamen, Shanghai, or Ningbo). Typical lead times are:

• Stocked items: 1–2 weeks for ready stock
• Manufactured to order: 3–4 weeks plus shipping
• Express delivery: Available for urgent requirements

7. Installation and Maintenance Best Practices

To maximize track chain service life in mining and heavy construction environments, follow these engineering practices:

7.1 Installation Guidelines

1. Clean sprocket and rollers thoroughly before fitting a new chain — debris accelerates wear.
2. Align master link with the track adjuster for proper tensioning.
3. Torque bolts to specification — typically 450 N·m plus 90° rotation for master link bolts.
4. Adjust track tension to recommended sag — typically 35–40 mm between the track and track frame at the midpoint.

7.2 Maintenance Schedule

7.3 Critical Compatibility Note

Always replace track chains and sprockets as a matched set. Installing a new chain on a worn sprocket (or vice versa) accelerates wear on both components due to mismatched pitch geometry. The cost savings from partial replacement are quickly offset by dramatically reduced component life.

8. Conclusion

For operators of Komatsu PC400-6 excavators in mining and heavy construction, the track chain assembly represented by part numbers 2083200300, 2083200401, and KM2489 is a mission-critical component whose reliability directly affects machine productivity and operating costs.

CQC TRACK distinguishes itself as a specialized manufacturer that combines metallurgical expertise, vertical integration of forging and heat treatment processes, and a quality-first manufacturing philosophy to deliver undercarriage components that perform reliably under the most demanding conditions. With factory-direct pricing, short lead times, and direct technical support, CQC TRACK provides fleet owners and procurement professionals with a compelling alternative to OEM supply chains.

By sourcing Komatsu PC400-6 track chain assemblies directly from the factory, mining and construction operations gain access to consistent quality, transparent supply chain logistics, and competitive pricing—factors that collectively optimize total cost of ownership and maximize machine uptime.

Author: Jack
Specializing in heavy equipment undercarriage systems, mining machinery reliability, and global sourcing strategies for construction equipment fleets.

Disclaimer: This publication is original content created for informational and technical reference purposes. All product numbers, brand names, and manufacturer references are used for identification and cross-reference only. Always verify compatibility with your machine‘s serial number and undercarriage configuration before ordering. Installation procedures summarized from industry standards are provided for reference; consult the complete original equipment documentation before performing any maintenance.
