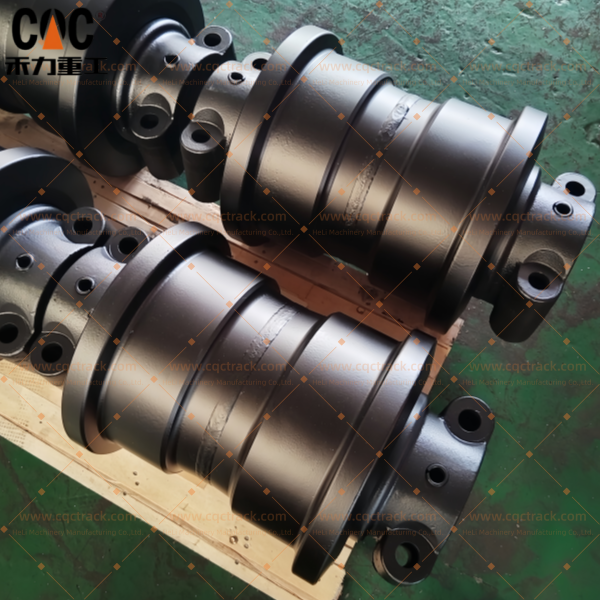

SANY SY1250H / SY1350C Track Lower Roller Assy (SSY005200741) / Support Bottom Roller AS.: CQCTRACK- The OEM & ODM Premier Choice for Heavy- Duty Tracked Chassis Parts in Mining

On a SANY SY1250H or SY1350C, 125-ton and 135-ton class mining excavators, the track lower roller assembly—the support bottom roller—carries the full weight of the machine and transfers it directly to the track chain as it rolls over sharp, broken rock and uneven pit floors. These rollers are the most numerous and heavily loaded rotating components in the entire crawler undercarriage system. A single roller failure from tread spalling, seal collapse, or shaft seizure can cascade into accelerated chain wear, misalignment, and catastrophic track frame damage that brings mining production to a halt. CQCTRACK, a professional OEM and ODM manufacturer of premium tracked chassis components, supplies the SANY SSY005200741 lower roller assembly not as a reverse-engineered copy, but as an engineered, forged, and induction-hardened component born from the exact same manufacturing discipline that serves the assembly lines of the world’s most demanding excavator builders.

OEM & ODM Manufacturing Authority: The Production Partner for Hitachi, Kobelco, LiuGong, XCMG, and SDLG

CQCTRACK operates as a fully integrated direct manufacturer and a qualified OEM and ODM production partner for global heavy equipment leaders, including Hitachi, Kobelco, LiuGong, XCMG, and SDLG. This means that the SANY SY1250H/SY1350C bottom roller assembly is produced within a manufacturing ecosystem governed by certified metallurgical standards, advanced CNC machining protocols, robotic welding processes, and statistical process control gates that are identical to those required for line-fit OEM supply. Our metallurgical laboratory certifies every alloy batch; our multi-axis turning and milling centers maintain concentricity within strict micron tolerances; our computer-controlled induction hardening stations execute heat treatment recipes that have been refined across millions of rollers. When you source the SSY005200741 roller from CQCTRACK, you are accessing genuine factory-floor engineering integrity—ODM-capable, OEM-proven, and delivered directly without the layered markups of brand-labelled distribution.

Product Engineering Detail: The SSY005200741 Bottom Roller Assembly

A support bottom roller for a 125–135-ton mining excavator must absorb high radial compression, resist severe abrasive wear on the tread and guide flanges, and maintain seal and lubricant integrity under continuous shock and submersion. CQCTRACK engineers each roller with an uncompromising sequence of material, machining, sealing, and thermal treatment.

Integrally Forged Alloy Steel Roller Shell: The roller body begins as a single, high-purity alloy round steel billet, heated and closed-die forged. This forging process aligns the grain flow continuously along the tread profile and through the flange transitions, delivering a microstructure that fundamentally resists fatigue crack initiation at the high-stress flange root far better than any cast or fabricated roller shell. This is the forging standard we apply to every roller shipped to Hitachi and XCMG OEM lines.

Spheroidal Graphite Iron Side Covers: The lateral sealing covers are produced through a controlled spheroidal graphite (ductile) iron casting process—commonly referred to in our production planning as ball-mill casting. This material provides high tensile strength coupled with controlled ductility, enabling the covers to maintain uniform bolt clamping load and seal compression even when the roller undergoes structural flexing under extreme side-loading conditions.

Dual-Seal Groove Shaft and Top-Tier Sealing System: The roller shaft is precision-ground with a dual-labyrinth seal groove geometry, creating a convoluted, difficult path that actively resists the ingress of water, mud, and abrasive slurry. We fit a matched pair of top-tier floating seals: high-chromium cast alloy face rings whose lapped running surfaces are energised by chemically resilient elastomer torics. The internal cavity is charged with a specially formulated anti-freeze extreme-pressure grease, designed to maintain its channeling stability, structural viscosity, and film strength from deep-freeze cold-start conditions to sustained high-ambient tropical operation, protecting the shaft-to-bushing interface from any dry-start boundary lubrication condition.

Complete Heat Treatment Protocol: The forged roller shell first undergoes a full through-quench-and-temper (Q &T) treatment, which transforms the entire cross-section into a uniform, fine-grained, high-toughness martensitic core structure. Following Q&T, the shell is rough-machined to release internal stresses, then precision finish-machined to achieve exact tread concentricity, flange parallelism, and bearing bore alignment. As the final wear-protection step, a computer-controlled medium-frequency induction hardening process is applied to the tread surface and flange wear faces, producing a tightly controlled surface hardness of 55 to 62 HRC at a deep, graduated case depth. This combination—a glass-hard, wear-proof surface over a ductile, impact-absorbing core—delivers exceptional resistance to abrasive grooving, contact fatigue spalling, and impact fracture, directly extending roller service intervals in harsh mining conditions.

Twenty Years of Process Refinement, Validated in the World’s Most Extreme Mines

The SSY005200741 lower roller assembly you receive today is the consolidated product of twenty years of continuous process improvement. Our induction hardening frequencies, coil geometries, quench concentrations, and post-grinding superfinishing parameters have been progressively optimized through metallurgical teardown analysis of rollers retired from severe mine service. CQCTRACK bottom rollers have accumulated millions of field hours in the planet’s most punishing excavator applications: the high-silica copper benches of Peru and Ecuador, the deep-level gold and platinum mines of South Africa, the frozen overburden stripping in Russia and Kazakhstan, the high-utilization quarrying and demolition in South Korea and North America, and the tropical mining and infrastructure projects across Vietnam, the South Pacific island nations, and India’s premium equipment sector. This globally diverse, real-world validation guarantees a quality stability and wear-life predictability that enable mining fleet managers to forecast undercarriage cost-per-hour with confidence.

Complete Matched Undercarriage Components: One Source, System-Engineered

A track lower roller does not wear in isolation. To support a systematic approach to undercarriage life management, CQCTRACK manufactures the full suite of mating tracked chassis parts for the SANY SY1250H and SY1350C. This includes top carrier rollers（SSY004701593）, front idler assemblies（131902020001A） with tensioning yokes, drive sprocket wheel assemblies（SSY004621574）, and complete sealed and lubricated track chain assemblies（SSY005420833）. All of these components are engineered with a coordinated hardness cascade—the bottom roller tread, carrier roller tread, idler tread, sprocket tooth flank, and track bushing surface are deliberately stepped to wear at compatible rates, preventing any single component from becoming the premature failure trigger that damages the entire crawler frame. With CQCTRACK, you can source a fully matched undercarriage rebuild kit from a single, quality-assured manufacturer.

Global Export Footprint and High-End Market Acceptance

From our centralized manufacturing and logistics center, CQCTRACK regularly exports these SANY bottom roller assemblies and complete undercarriage component packages to a well-established global network. Our consistent destination markets include South America (Ecuador, Peru), South Africa, Russia, South Korea, the premium-quality replacement segment in India, the South Pacific nations, Vietnam, Kazakhstan and the Central Asian republics, North America, and Turkey. Our sustained penetration of markets with the strictest import quality enforcement—especially North America and South Korea—is a continuous, real-world confirmation of the manufacturing compliance, material traceability, and dimensional accuracy of every roller that leaves our factory.

Your CQCTRACK International Business Team

Every technical enquiry, cross-reference, and export logistics coordination is handled directly by our dedicated international team members: Philip, Jack, and Haily. With extensive hands-on knowledge of regional operating conditions and heavy equipment configurations, they ensure precise communication, accurate commercial documentation, and reliable delivery scheduling.
(Author’s note: This in-depth technical product article has been personally researched, verified, and authored by Jack, drawing on direct engineering liaison and extensive global field support experience.)

For the SANY SY1250H and SY1350C, do not risk your track frame and mining production schedule on unvalidated support rollers. Install the SSY005200741 track lower roller assembly from CQCTRACK—the professional OEM and ODM manufacturer where heavy-duty tracked chassis parts are built to the exact same premium standards trusted by Hitachi, XCMG, and the world’s most demanding mining fleets.
