Precision Undercarriage Engineering for XCMG XE700 Excavators: A Definitive Technical Analysis of the Track Guide Wheel / Front Idler Assembly (Part Number 414101964) and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 3, 2026

1. Technical Overview: The Critical Role of the Front Idler in Ultra-Class Mining Excavators

The track guide wheel—more commonly referred to as the front idler or tension wheel—is a fundamental structural and dynamic component of any heavy crawler excavator’s undercarriage system. Positioned at the forward extremity of the track frame, this assembly performs two distinctly different yet equally vital functions: it serves as the primary anchor point for the hydraulic track tensioning mechanism and provides the non-driven wheel over which the track chain rotates, maintaining proper alignment and distributing machine weight.

For operators of XCMG XE700 excavators—a 69–73 ton ultra-class machine widely deployed in large-scale mining, quarrying, heavy construction, and mass earthmoving—the reliability of the front idler assembly directly affects track chain life, undercarriage alignment, and overall machine uptime. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

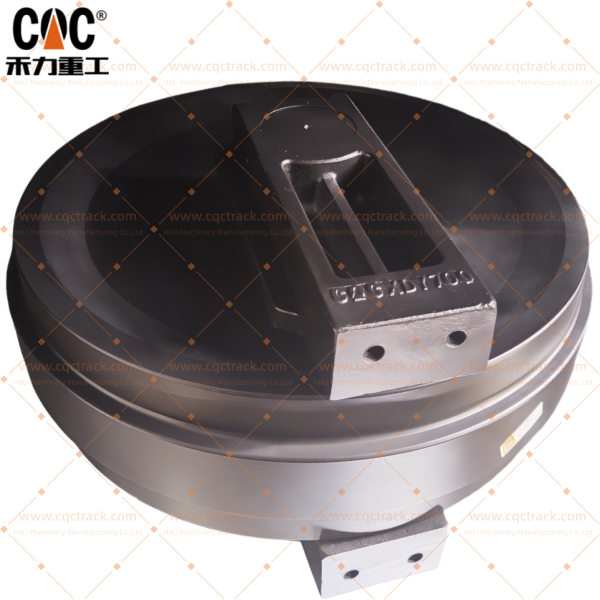

This publication delivers a comprehensive technical examination of the XCMG OEM part number 414101964, which represents the complete track guide wheel / front idler assembly for the XE700 large hydraulic excavator platform. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.), a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory and manufacturer matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. The XCMG XE700 Platform: Engineering for Extreme Applications

2.1 Machine Specifications and Operating Environment

The XCMG XE700 is a 70-ton class mining excavator engineered for the most demanding applications, including quarrying, mining, and major earthworks. The XE700D variant, a representative model within this series, operates with the following verified specifications:

The XE700 series features an original engine imported from America meeting TIER 3 emission standards, offering strong power, low noise, low oil consumption, and low emissions. The engine is integrated with a high-pressure fuel injection system with electronically controlled ECM for precise injection control, reducing fuel consumption and increasing engine efficiency. Imported original hydraulic components and technologically advanced control systems extend service life and improve working efficiency, while the independent hydraulic oil cooling system automatically controls fan rotating speed according to oil temperature to reduce energy consumption and lower noise.

For the XE700GK variant, a 73-ton class crawler, the machine features a Cummins 563 kW engine and a 4.5 m³ bucket, with an intelligent adaptive system delivering unmatched stability for heavy-load working conditions such as mining.

2.2 Undercarriage Configuration

The XE700′s undercarriage is designed for severe-duty applications, with a track chain pitch of approximately 260 mm (8.5 inches) for the final drive sprocket interface, ensuring proper meshing and prevention of accelerated wear. The front idler assembly (Part Number 414101964) is a critical component within this robust undercarriage architecture, working in conjunction with the track chain, sprocket assembly, and driving wheel to ensure optimal ground contact and propulsion.

3. Part Number 414101964: Identification and Functional Architecture

3.1 OEM Part Number and Application

The XCMG 414101964 Tension Wheel / Front Idler Assembly, engineered and manufactured by CQC TRACK, is a precision aftermarket undercarriage component specifically designed for the XCMG XE700 large hydraulic excavator. This assembly integrates two critical functions into a single, robust unit: it acts as the Tension Wheel for the track system’s adjustment and serves as the Front Idler guiding the track’s path.

The 414101964 OEM part number is 100% interchangeable with the original XCMG specification, and the complete assembly is manufactured to deliver OEM-equivalent fit, form, and function.

3.2 Tension Wheel Function: Dynamic Track Tensioning

The designation “Tension Wheel” explicitly defines this component’s primary role in the track tensioning system. The assembly is housed within a tensioning carriage that slides within the track frame. Hydraulic pressure or mechanical force applied via a grease gun to the track tensioner cylinder pushes this entire assembly forward, increasing the distance between the front idler and the sprocket, thereby applying precise static and dynamic tension to the entire track chain.

Correct tension is critical for three fundamental reasons:

1. Preventing Track Derailment: A properly tensioned track resists lateral disengagement, particularly during sharp turns and when traversing uneven terrain on mining sites.
2. Optimizing Power Transmission: Correct tension reduces energy loss from track whip and slippage on the sprocket, improving fuel efficiency and travel performance.
3. Maximizing Component Life: Proper tension ensures even load distribution across the track rollers, carrier rollers, and sprocket, preventing premature wear on all undercarriage components.

3.3 Front Idler Function: Track Guidance and Load Support

As the Front Idler, this component is the non-driven pulley over which the track chain rotates. Its key mechanical functions are:

1. Track Guidance: The robust, double-flanged design continuously interfaces with the inner guide ribs of the track links, maintaining strict lateral alignment and preventing the track from “walking” off the roller frame.
2. Load Bearing: It supports the weight of the machine at the front of the undercarriage and absorbs the initial impact loads when the track encounters obstacles during forward travel.

Durable wheels designed to maintain proper track tension and guide the track along the undercarriage are constructed from high-strength alloy steel for maximum durability, with precision-machined surfaces ensuring smooth track movement and resistance to impact, abrasion, and corrosion.

3.4 Component Breakdown

The complete 414101964 front idler assembly consists of the following subcomponents:

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium front idler assemblies for the XCMG XE700 are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The primary material specified for the 414101964 assembly is forged alloy steel (e.g., 42CrMo or equivalent), a chromium-molybdenum alloy known for its excellent hardenability, high fatigue strength, and superior wear resistance under extreme impact loads.

Alternative premium grades commonly employed for heavy-duty idler applications include:

Hot-forged from 34CrNiMo6 alloy steel (EN 10083-3 standard) ensures optimal grain flow and directional strength, offering exceptional resistance to impact and fatigue failure compared to cast equivalents.

4.2 Heat Treatment Specifications

The performance of a track front idler depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The heat treatment protocol involves through-hardening and tempering for the core structure, combined with induction hardening on the running surface, creating a deep, wear-resistant case while maintaining a ductile, shock-absorbing core to prevent brittle fracture under extreme impact loads.

Post-casting (or post-forging), specialized heat treatment yields a minimum surface hardness of HRC 48–58 with a hardened layer depth of 4–6 mm—attributes that deliver exceptional impact resistance and wear resistance, even in the harshest mining or construction environments.

4.3 Bearing and Sealing Specifications

The bearing assembly consists of high-capacity metric tapered roller bearings (e.g., ISO 355 series), designed to handle the combined radial and axial loads encountered during travel, turning, and counter-rotation operations.

The integrated multi-stage sealing system combines three protective elements:

This robust sealing architecture provides a critical barrier against mud, sand, and moisture—common contaminants in mining and quarry environments—significantly extending service life and reducing maintenance frequency.

5. CQC TRACK: A Specialized Manufacturer of XCMG Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. With over 20 years of manufacturing experience, HELI has established itself as a specialized supplier of heavy-duty crawler excavator chassis components, serving Original Equipment Manufacturers (OEMs) of mining machines worldwide.

The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

Manufacturers like CQC TRACK have established their capability to produce these components to a high technical standard, providing the global heavy equipment market with a dependable and high-value undercarriage solution backed by substantial industrial manufacturing expertise.

5.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered certification umbrella, holding both ISO 9001:2015 quality system recognition and multiple, specific CQC product certification certificates. This dual certification ensures that every component—from raw material selection through final inspection—meets internationally recognized quality management standards.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK’s manufacturing strength rests on complete vertical integration and controlled sequential processes:

CQC TRACK’s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in mining and construction worldwide. CQC TRACK has documented cross-reference compatibility for its undercarriage components across multiple brands, including XCMG, Komatsu, Caterpillar, Hitachi, Doosan, Sumitomo, Hyundai, and Volvo.

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

5.5 XCMG Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for XCMG excavators, including:

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing the XCMG 414101964 front idler assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

6.2 Lead Times and Logistics

For the XCMG 414101964 front idler assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new front idler assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing and diameter match the track frame bracket
2. Idler diameter and width — Verify dimensions match the track chain link spacing and track frame clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede idler installation
5. Track tensioner cylinder — Inspect for corrosion, damage, and proper operation

7.2 Installation Procedure Summary

1. Securely support the machine on a firm, level surface with the track chain relieved of tension
2. Remove the existing idler assembly mounting bolts using appropriate torque tools
3. Clean the mounting bracket and tensioner carriage surfaces; inspect for damage or wear
4. Position the new front idler assembly and install new high-tensile mounting bolts (reusing old bolts is a safety risk)
5. Torque bolts to specification (consult XCMG workshop manual for exact values)
6. Apply grease through the SAE Zerk fitting to pre-lubricate bearings and seals
7. Adjust track tension to manufacturer-specified sag using the track tensioner cylinder
8. Operate the machine at low speed and inspect for proper idler rotation, seal integrity, and track alignment

7.3 Maintenance Schedule

7.4 Failure Modes and Troubleshooting

7.5 Service Life Expectations

Under normal quarrying and heavy construction conditions, a quality aftermarket front idler meeting HRC 55–60 surface hardness specifications can achieve 4,000–6,000 operating hours before requiring replacement. In severe mining applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 3,000–4,000 hours. Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing idler longevity.

For optimal undercarriage life, always inspect and replace idler components as a system when significant wear is detected. Mixing worn and new parts can lead to uneven wear, misalignment, and reduced performance.

8. The Importance of Proper Front Idler Selection for Ultra-Class Mining

The front idler is often one of the most heavily stressed components in an excavator undercarriage system. Unlike bottom rollers, which distribute weight across multiple points, the front idler concentrates significant loads at the forward extremity of the track frame while simultaneously managing dynamic tension fluctuations during acceleration, deceleration, and turning.

For XCMG XE700 excavators operating in mining and heavy construction—machines with operating weights approaching 70 tons and daily production demands—selecting high-quality front idlers with proper material selection, heat treatment, robust sealing systems, and precision machining is essential.

CQC TRACK’s 414101964 front idler assembly incorporates:

• Forged alloy steel construction (42CrMo or equivalent) for superior grain flow and impact resistance
• Induction-hardened running surface (HRC 55–60) with 6–12 mm case depth for exceptional wear resistance
• Through-hardened core (HB 320–380) maintaining toughness to absorb shock loads
• High-capacity metric tapered roller bearings for reliable rotation under extreme loads
• Multi-stage sealing system (labyrinth guards, floating face seals, NBR lip seals) providing robust contamination barrier

These engineering features ensure that properly maintained front idlers will deliver reliable service throughout their design life in the world’s most demanding mining environments.

9. Conclusion

For operators of XCMG XE700 excavators deployed in mining, quarrying, heavy construction, and mass earthmoving—a 69–73 ton ultra-class machine with daily production demands—the track guide wheel / front idler assembly represented by part number 414101964 is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. With material specifications including forged 42CrMo or equivalent alloy steel, heat treatment achieving HRC 55–60 running surface hardness with 6–12 mm case depth and HB 320–380 core hardness, ISO 9001:2015 quality certification, and advanced multi-stage sealing systems (labyrinth guards, floating face seals, NBR lip seals), CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the XCMG 414101964 front idler assembly directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world’s toughest operating environments.
