Mining-Grade Durability: Hitachi EX1800 / EX1900 Track Sprocket Wheel Assembly

1. Introduction: The Backbone of Ultra-Class Excavation

In the realm of large-scale mining, quarrying, and heavy civil construction, the Hitachi EX1800 and EX1900 series represent the pinnacle of hydraulic excavator performance. With operating weights exceeding 180 metric tons and bucket capacities up to 15 cubic meters, these machines operate under relentless conditions—high impact loads, abrasive materials, and continuous shift cycles.

The Track Sprocket Wheel Assembly (also referred to as the track chain sprocket assy) is the critical drivetrain component that transforms hydraulic power into traction. For mining operations in Chile’s copper belt, South Africa’s platinum mines, or Russia’s iron ore fields, the reliability of this assembly directly dictates production targets and cost per ton.

This article provides an in-depth technical analysis of the OEM-quality sprocket assembly identified by part numbers 1028990, 4451622, and 4637264, manufactured under the rigorous protocols of CQC TRACK—a specialized source factory and manufacturer of heavy-duty EXC undercarriage components.

2. Technical Specifications & Interchangeability

2.1 Component Identification

The three part numbers correspond to variations of the sprocket assembly used across the Hitachi EX1800 and EX1900 platforms:

• 1028990: Typically refers to the complete sprocket wheel assembly (hub + ring) for specific final drive configurations.
• 4451622: Commonly associated with the segmented sprocket ring or the assembly for later-model EX1900 units.
• 4637264: Often denotes the sprocket segment kit or the bolt-on wear ring, allowing field replacement without removing the final drive motor.

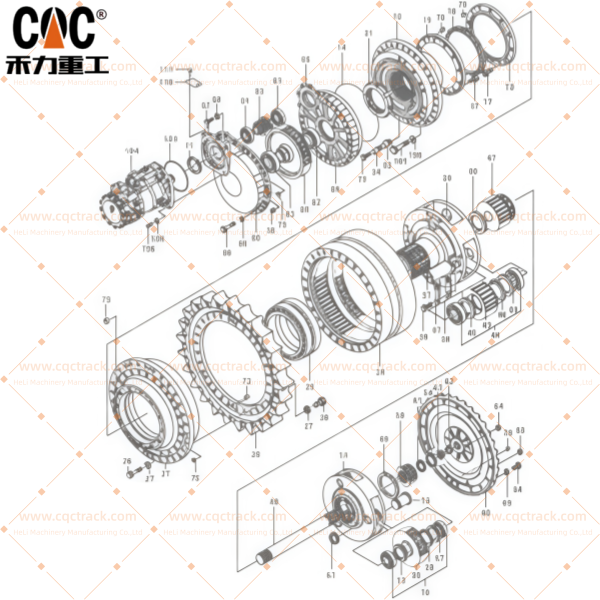

These assemblies are engineered to interface with the Hitachi travel reduction unit (commonly featuring a splined or bolted mounting interface) and are designed for track chains with a pitch of 317 mm or 350 mm, depending on the undercarriage configuration.

2.2 Heavy-Duty Construction Features

Unlike mid-size excavator components, the EX1800/EX1900 sprocket is built to withstand:

• High Torque Transmission: Up to 1,500 kN·m of rotational force.
• Extreme Abrasion: Continuous contact with hard rock, ore, and overburden.
• Shock Loading: Induced by uneven terrain and sudden directional changes.

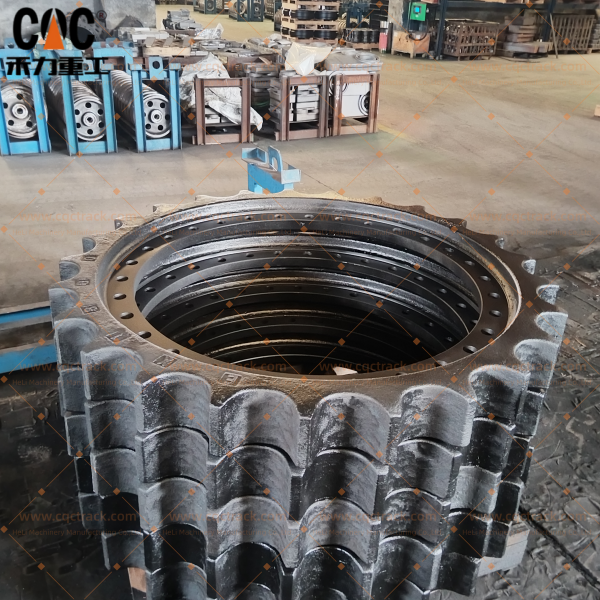

The assembly is typically of a segmented design, comprising multiple bolt-on tooth segments (often 3 to 5 segments per sprocket) that can be individually replaced, significantly reducing maintenance downtime and spare parts inventory costs.

3. Metallurgy & Heat Treatment for Mining Conditions

To qualify as a premium heavy duty EXC undercarriage component, the sprocket must exceed standard material specifications. CQC TRACK employs a manufacturing process aligned with ISO 9001:2015 and mining-industry best practices.

3.1 Material Grade

• Forged Steel: High-alloy chromium-molybdenum steel (e.g., 40CrNiMo or equivalent) selected for deep hardenability and resistance to rolling contact fatigue.
• Mechanical Properties: Yield strength ≥ 900 MPa, tensile strength ≥ 1,080 MPa, ensuring structural integrity under peak loads.

3.2 Heat Treatment Protocol

• Through Hardening: The entire sprocket ring undergoes austenitizing and quenching to achieve uniform core hardness (35–40 HRC).
• Induction Hardening of Tooth Profile: The tooth flanks and root radius are induction-hardened to 52–58 HRC to a depth of 12–15 mm, creating a wear-resistant surface while maintaining a tough core to absorb impacts.
• Tempering: A controlled tempering cycle relieves residual stresses and minimizes the risk of crack propagation in cold environments (e.g., Siberian mining).

3.3 Quality Assurance

Each production batch is subjected to:

• Ultrasonic Testing (UT): To detect internal voids or inclusions in the forging.
• Magnetic Particle Inspection (MPI): 100% inspection of the tooth area and bolt holes.
• Dimensional Validation: CMM verification of pitch diameter, tooth profile, and bolt circle accuracy to within ±0.5 mm.

4. Regional Market Demands & Application Profiles

The Hitachi EX1800 and EX1900 are deployed in the world’s most demanding mining and heavy construction environments. The sprocket assembly must adapt to regional operational specifics.

4.1 South America (Chile, Peru, Brazil)

• Environment: High-altitude mines (4,000+ meters), copper and gold ores, significant abrasion.
• Requirement: Superior abrasion resistance and anti-wear coatings to withstand siliceous materials.
• Industry Expression: “Rueda de cadena para minería pesada” – operators demand sprockets with extended wear life and bolt retention reliability under vibration.

4.2 South Africa & Sub-Saharan Africa

• Environment: Deep-level mines, hard rock (quartzite, granite), extreme dust.
• Requirement: Robust sealing of the final drive interface and resistance to dust ingress.
• Industry Expression: “Under carriage components for heavy duty excavators” – availability of segment kits for rapid field change-out is critical to minimize production delays.

4.3 Russia & CIS (Kuzbass, Siberia)

• Environment: Permafrost, temperatures down to -45°C, frozen overburden.
• Requirement: Cold-impact toughness; the steel must maintain Charpy V-notch values above 27 J at -40°C.
• Industry Expression: “Звездочка гусеничного хода для карьерных экскаваторов” – suppliers must provide material certificates confirming low-temperature properties.

4.4 Europe (Scandinavia, Germany)

• Environment: Hard rock mining, demolition, and infrastructure projects with strict environmental regulations.
• Requirement: Compliance with EU machinery directives and traceability of materials.
• Industry Expression: “Original-Ersatzteilqualität für Großbagger” – precision fit and long service intervals are non-negotiable.

4.5 North America (USA, Canada)

• Environment: Oil sands (Alberta), coal mining (Wyoming), large-scale infrastructure.
• Requirement: High wear resistance in highly abrasive silica sand and oil sands slurry.
• Industry Expression: “Mining grade drive sprocket” – operators track cost per hour, expecting 6,000+ hours of service life in mixed applications.

4.6 Korea & Northeast Asia

• Environment: Quarries, heavy civil projects, coastal construction.
• Requirement: Precision machining and compatibility with locally sourced track chains.
• Industry Expression: “대형 굴삭기 스프라켓” – manufacturers are evaluated on dimensional consistency and delivery reliability.

5. Manufacturing Excellence: CQC TRACK as a Source Factory

As a dedicated source factory and manufacturer of heavy-duty EXC undercarriage components, CQC TRACK differentiates itself through vertical integration and engineering expertise.

5.1 Factory Capabilities

• Forging & Casting: In-house forging lines capable of producing sprocket blanks up to 2,500 mm in diameter.
• CNC Machining: 5-axis machining centers for precise tooth profiling and bolt hole drilling.
• Heat Treatment Facilities: Automated induction hardening cells with real-time temperature monitoring to ensure consistent hardness depth.
• Coating Line: Application of high-durability polyurethane or epoxy coatings for corrosion resistance in marine and high-humidity environments.

5.2 Engineering Support

CQC TRACK offers:

• Reverse Engineering: Ability to replicate sprockets from worn samples, ensuring exact geometry for legacy models.
• Customization: Adaptation of tooth profiles or bolt patterns to suit non-standard final drive configurations.
• Technical Documentation: Provision of dimensional drawings, hardness profiles, and material certifications (EN 10204 3.1) to meet procurement requirements.

5.3 OEM Compatibility

The assemblies for part numbers 1028990, 4451622, 4637264 are designed to match or exceed original Hitachi specifications, providing:

• Interchangeability: Direct bolt-on replacement without modifications.
• Segment Interchange: Compatibility with OEM segment bolts and washers.

6. Lifecycle Cost Optimization

For large mining fleets, undercarriage maintenance represents a significant portion of operating costs. Selecting the right sprocket assembly influences:

• Track Chain Wear: Properly hardened sprocket teeth extend bushing life by maintaining correct pitch engagement.
• Downtime Reduction: Segmented designs enable replacement of individual tooth segments in under 4 hours, compared to full assembly replacement that can take a full shift.
• Inventory Management: Stocking sprocket segments rather than complete wheels reduces inventory capital and warehouse space.

7. Conclusion: Engineering for Maximum Uptime

The Hitachi EX1800 and EX1900 are engineered for productivity, but their undercarriage components determine the sustainability of that productivity. The Track Sprocket Wheel Assembly—whether referenced as 1028990, 4451622, or 4637264—must deliver uncompromising durability, precision fit, and ease of maintenance.

Partnering with a specialized source factory and manufacturer like CQC TRACK ensures:

• Mining-Grade Metallurgy: Optimized for abrasion and impact.
• Global Supply Chain: Stocking programs tailored to regional mining hubs (Antofagasta, Johannesburg, Yakutia, Alberta, etc.).
• Traceability & Certification: Full documentation to satisfy mining procurement standards.

For mine operators, equipment owners, and aftermarket distributors, investing in a premium sprocket assembly is not merely a replacement—it is a strategic move to lower cost per ton and maximize asset utilization.

Disclaimer: *Hitachi, EX1800, and EX1900 are registered trademarks of Hitachi Construction Machinery Co., Ltd. The part numbers 1028990, 4451622, and 4637264 are referenced for cross-reference purposes only. CQC TRACK is an independent manufacturer of aftermarket undercarriage components and is not affiliated with Hitachi.*
