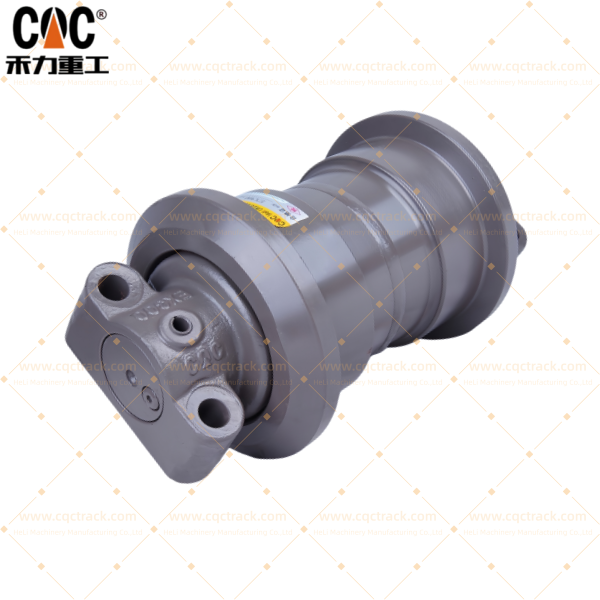

Hitachi 9066690 9114619 9147345 9168173 57070997 14043993 Ex300 DX340 HS842 MS350 Track Roller Bottom Roller Lower Roller / OEM Quality Crawler excavator spare part source manufacturer and factory / CQC TRACK

Hitachi OEM Cross-Reference Bottom Rollers: Complete Technical Specifications for EX300, DX340, HS842, MS350 & Mining-Class Crawler Excavators (9066690, 9114619, 9147345, 9168173, 57070997, 14043993)

Abstract

This technical publication provides comprehensive engineering documentation for six mission-critical Hitachi OEM cross-reference bottom roller assemblies—9066690, 9114619, 9147345, 9168173, 57070997, 14043993—engineered for the EX300, DX340, HS842, and MS350 series crawler excavators. These components represent the foundational elements of undercarriage track systems deployed across large-scale mining operations, heavy quarrying, major infrastructure development, and extreme earthmoving applications throughout South America, Australia, Europe, Russia, and Central Asia. The analysis examines each part number through multiple technical lenses: functional anatomy, metallurgical composition for mining-class applications, advanced manufacturing process engineering, rigorous quality assurance protocols, and strategic sourcing considerations—with particular focus on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) as a specialized source manufacturer of heavy-duty crawler excavator chassis components, operating with over 20 years of manufacturing experience as one of the top three undercarriage component manufacturers in the Quanzhou region, China’s premier industrial cluster for heavy machinery manufacturing.

1. Product Identification and Technical Specifications

1.1 Component Nomenclature and Application Scope

Track rollers, alternatively designated as bottom rollers or lower rollers, serve the essential function of supporting the full operating weight of the crawler excavator while guiding the track chain along the undercarriage rail. In mining-class applications, each bottom roller bears substantial dynamic loads during excavation cycles, material handling operations, and machine repositioning across rugged terrain.

The six OEM cross-reference part numbers documented in this analysis correspond to precise engineering drawings, dimensional tolerances, and material specifications developed through Hitachi’s rigorous validation protocols. These bottom roller assemblies are compatible with the following heavy-duty excavator platforms:

The 9066690, 9114619, 9114682, and 9147345 bottom roller assemblies are specifically engineered for the Hitachi EX300, ZX270, ZX280, ZX330, and ZX350 series excavators—machines extensively deployed in mining and deep excavation applications worldwide. For operators of 30- to 40-ton class excavators operating in high-impact environments, understanding the engineering principles and material specifications of these components is essential for optimizing total cost of ownership.

1.2 Primary Functional Responsibilities

Bottom roller assemblies in mining-class excavator applications perform four interconnected functions critical to machine performance and undercarriage longevity:

Machine Weight Distribution: Each bottom roller transfers the excavator’s static and dynamic loads from the track frame through the roller shaft and bearing system to the track chain, then ultimately to the ground surface. The roller body must maintain structural integrity under continuous compressive stress while accommodating slight misalignments caused by uneven terrain.

Track Chain Guidance: The roller flange(s) maintain proper lateral positioning of the track chain links as they travel along the undercarriage rail, preventing chain derailment and reducing edge wear on both the chain bushings and the roller tread surface. Single-flange and double-flange configurations are available depending on the specific undercarriage design and application requirements.

Impact Load Absorption: When the excavator traverses uneven ground, rocks, or mine haul roads with surface irregularities, bottom rollers absorb significant shock loads through their elastic core structure. The heat treatment process provides hardness in high-wear areas while maintaining an elastic core to resist shock and impact loads, preventing catastrophic failure under extreme duty cycles.

Lubricant Retention and Contamination Exclusion: The sealing system maintains a clean internal environment for the bearing surfaces while retaining the lubricant charge. High-durability floating seals prevent ingress of abrasive materials common in mining environments—including silica dust, slurry, mud, and fine rock particles—which would otherwise accelerate wear and cause premature failure.

2. Metallurgical Composition and Heat Treatment Engineering

2.1 Material Grade Specifications

CQC TRACK manufactures bottom rollers using premium alloy steel grades selected for their specific mechanical properties in high-impact undercarriage applications. The primary material grades employed in Hitachi cross-reference bottom roller production include 40Mn2, 42CrMo, 50Mn, and 40MnB, each offering distinct advantages depending on the specific part number application and expected duty cycle.

For the 9066690 and 9114619 assemblies designated for EX300 and ZX330 applications, the roller body is manufactured from 40Mn2 forged steel. This chromium-manganese alloy provides an optimal balance of surface hardness, core toughness, and fatigue resistance for 30–35 ton class excavators operating in mining support roles. The material selection prioritizes wear resistance on the rolling surface while maintaining sufficient core ductility to absorb shock loads without fracture.

The 9168173 and 9147345 assemblies, specified for EX300-5 and ZX350 applications, utilize 42CrMo alloy steel—a chromium-molybdenum grade offering superior hardenability and deeper case depth penetration during induction heat treatment. This material is particularly well-suited for high-impact applications where the bottom roller experiences frequent shock loading from irregular terrain and rock impacts.

For the larger-frame 57070997 and 14043993 assemblies serving DX340, HS842, and MS350 excavators, premium grades such as 50Mn and 40MnB are specified to accommodate the higher static loads and extended wear life requirements of 35–40 ton class mining machines.

2.2 Forging Process and Grain Structure Optimization

All bottom roller bodies undergo closed-die forging processes that refine the steel’s internal grain structure, eliminate porosity, and align the grain flow with the component’s primary stress paths. The forging process consolidates the material, resulting in superior mechanical properties compared to cast or fabricated alternatives. Strategic control of forging parameters ensures optimal grain flow and material density in component blanks, which is fundamental for impact strength and fatigue life.

For the 9066690 and 9114619 assemblies, the forging process is specifically optimized for the geometry of EX300-class bottom rollers, ensuring consistent material properties throughout the roller body and flange regions where wear concentrations are highest.

2.3 Heat Treatment Parameters and Hardness Profiles

Heat treatment is the single most critical manufacturing operation determining bottom roller service life in mining applications. CQC TRACK employs computer-controlled induction hardening systems and tempering furnaces to achieve deep, uniform case hardness profiles across all roller surfaces in contact with the track chain.

The specific heat treatment parameters for Hitachi cross-reference bottom rollers are as follows:

The roller shaft is manufactured from 42CrMo forging, surface heat-treated to HRC 48–55 for enhanced wear resistance, while maintaining core hardness of HRC 28 or higher to prevent shaft fracture under shock loading. Shaft surfaces are CNC-polished to achieve superior smoothness, reducing friction with the bearing system and extending seal life.

For the 9147345, 9168173, 57070997, and 14043993 assemblies—specified for higher-duty mining applications—surface hardness reaches HRC 52–58 with case depth of 8–12mm. This deeper hardened layer provides extended wear life under abrasive conditions such as silica-rich mine soils, crushed rock haul roads, and high-silica-content overburden materials.

2.4 Friction Welding Technology for Shaft-to-Roller Body Joining

The 9066690 and 9114619 bottom roller assemblies employ friction welding technology for joining the shaft to the roller body. This solid-state welding process produces joints with consistent quality and stability while being environmentally friendly—generating no smoke, no harmful gases, no spatter, no arc flash, and no radiation during operation. Friction welding is recognized as a green welding technology for the future, eliminating the environmental and safety concerns associated with traditional arc welding processes.

3. Precision Machining and Dimensional Control

3.1 CNC Machining Capabilities

All critical surfaces of Hitachi cross-reference bottom rollers are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. CNC machining ensures precision on all critical surfaces, including shaft ends, bore diameters, seal housings, and flange profiles. This guarantees a perfect fit, concentric rotation, and smooth installation onto the undercarriage frame.

3.2 Key Dimensional Specifications

The dimensional specifications for EX300-class bottom rollers are as follows:

These dimensions ensure direct interchangeability with Hitachi OEM bottom roller assemblies without requiring modifications to the undercarriage frame or track chain components.

4. Sealing System and Bearing Technology

4.1 Floating Seal Configuration

Bottom rollers for mining-class excavators are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the extreme pressure, vibration, and temperature fluctuations encountered in mining operations.

The seal housing is precision-machined to provide optimal sealing surface geometry, ensuring consistent seal compression and preventing lubricant migration under dynamic loading conditions. All components—including shaft, seals, bushings, and O-rings—are assembled in controlled environments to prevent contamination and ensure optimal sealing performance under pressure and vibration.

4.2 Bearing System Design

Each bottom roller incorporates a bearing system consisting of hardened steel bushings running on the heat-treated shaft journal surfaces. The bushing material is selected for compatibility with the shaft hardness profile, providing optimal wear characteristics under boundary lubrication conditions. The bearing surfaces are finished to precise surface roughness specifications that promote oil film retention while minimizing friction during rotation.

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

Every CQC TRACK bottom roller is manufactured under ISO 9001:2015 certified processes, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages: material certification, forging inspection, heat treatment verification, machining dimensional checks, assembly validation, and final testing. CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated manufacturer with over two decades of specialization, recognized as one of the top three undercarriage component manufacturers in the Quanzhou region.

5.2 Running Test Validation

Each bottom roller is subjected to a dynamic rotation test to verify concentricity, smoothness, and internal lubrication flow. Any noise, resistance, or oil leakage is checked and corrected before approval. The running test simulates operational conditions, confirming that the bearing system rotates freely without binding, the seals maintain proper lubricant retention, and the roller body exhibits no geometric irregularities that would cause uneven wear in service.

5.3 Dimensional Inspection and Certification

Finished rollers undergo comprehensive dimensional inspection using calibrated measurement equipment. Each critical dimension is verified against the OEM engineering specification, with inspection records maintained for full traceability. Dimensional inspection reports and metallurgical test certifications are available upon request, providing procurement professionals with documented evidence of quality compliance.

5.4 Anti-Corrosion Protection and Packaging

The roller surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the roller from rust and harsh environmental exposure during storage and field operations.

Finished rollers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with model number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations.

6. Regional Market Application: Mining-Focused Engineering

6.1 South America: Heavy Mining Applications in Brazil, Chile, and Peru

The South American mining market presents unique demands for undercarriage components, with operations concentrated in Brazilian iron ore mines, Chilean copper mines, and Peruvian polymetallic operations. The region’s heavy machinery market is characterized by high demand for excavators in the 20+ ton class, with Hitachi equipment extensively deployed across mining, quarrying, and major infrastructure projects.

For South American mining customers, CQC TRACK’s Hitachi cross-reference bottom rollers offer a compelling value proposition: OEM-equivalent quality at competitive pricing, with the ability to supply volume quantities through established export channels. The company’s strategic location in Quanzhou—a premier industrial cluster for heavy machinery manufacturing with proximity to major international ports—enables efficient logistics to Latin American destinations including Brazil, Chile, Peru, Colombia, and Mexico.

6.2 Australia: OEM-Equivalent Quality Standards

The Australian mining industry demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability and industry-standard warranty coverage. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications.

CQC TRACK’s manufacturing processes align with these requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability. For Australian customers operating Hitachi EX300, ZX330, ZX350, and DX340 excavators in iron ore, coal, gold, and base metal mining operations, these bottom rollers provide reliable performance in the high-impact, high-abrasion conditions characteristic of Australian mine sites.

6.3 Europe: CE Compliance and Technical Documentation

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms.

CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers. For parts distributors, equipment dealers, and mining service centers throughout Germany, France, Scandinavia, and Eastern Europe, the company provides comprehensive technical data packages including dimensional specifications, material certifications, and heat treatment records.

6.4 Russia and Central Asia: Supply Chain Resilience

Following the realignment of global supply chains, Russian and Central Asian mining operators increasingly source heavy equipment components from Chinese manufacturers. Recent data indicates nearly 70% of Russian enterprises have selected Chinese manufacturing alternatives for Western equipment replacement, with Kazakhstan representing a growing market for Chinese mining equipment exports.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company’s manufacturing capacity supports volume orders for mining operations requiring regular undercarriage replacement schedules.

6.5 Service Center Network Strategy

CQC TRACK’s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of Mining Service Centres in the major mining areas around the world that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

7. Sourcing Considerations for Procurement Professionals

7.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine’s serial number and the specific OEM part number. Aftermarket manufacturers typically provide cross-reference tables allowing direct matching of their parts to OEM numbers. The part numbers documented in this analysis—9066690, 9114619, 9147345, 9168173, 57070997, and 14043993—serve as primary OEM references for direct cross-reference ordering.

7.2 Quality Documentation Requirements

When sourcing undercarriage parts for mining applications, request supplier quality documentation including ISO 9001 certification, dimensional inspection reports, metallurgical test certifications, and heat treatment records. Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance.

7.3 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket bottom rollers typically ranges from 6 to 24 months depending on the manufacturer and application. CQC TRACK provides warranty periods aligned with customer requirements and application severity, with mining-class rollers warranted for extended service under documented operating conditions. Expected service life varies significantly based on ground conditions, operator practices, and maintenance schedules—ranging from 2,000 to 5,000 operating hours in mining applications with proper maintenance.

7.4 Volume Supply and Lead Times

For mining operations requiring regular undercarriage replacement schedules, consistent supply availability is critical. CQC TRACK maintains finished goods inventory for high-demand part numbers including the 9066690, 9114619, and 9168173 assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing.

7.5 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine’s operating costs over its service life. For mining operations managing large fleets of Hitachi excavators, sourcing OEM-equivalent aftermarket bottom rollers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company’s vertically integrated manufacturing—encompassing forging, heat treatment, CNC machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

8. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

8.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports—the company serves the global market as a proficient OEM and ODM manufacturing partner.

The company’s evolution from a specialized parts workshop in the late 1990s to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

8.2 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, track links, and complete undercarriage systems for brands including Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, Hyundai, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

8.3 Integrated Production Workflow

The company’s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• In-House Forging: Utilization of premium 52Mn, 55Mn, 40CrNiMo, 40Mn2, and 42CrMo alloy steels through strategic control of forging parameters
• CNC Machining Centers: Battery of modern CNC lathes, milling machines, and drilling centers performing rough and finish machining
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing on every finished roller
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection

9. Conclusion

The six Hitachi OEM cross-reference bottom roller assemblies documented in this analysis—9066690, 9114619, 9147345, 9168173, 57070997, and 14043993—represent essential undercarriage components for EX300, DX340, HS842, and MS350 series crawler excavators deployed in mining operations worldwide. CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these components to meet or exceed OEM specifications through advanced forging, precision CNC machining, computer-controlled heat treatment, and rigorous quality assurance protocols.

For mining operators, equipment dealers, and parts distributors throughout South America, Australia, Europe, Russia, and Central Asia, these bottom rollers provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life. The company’s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global mining markets.

Procurement professionals are encouraged to verify compatibility using the OEM part numbers provided, request quality documentation including material certifications and dimensional inspection reports, and establish direct supply relationships with specialized manufacturers to optimize total cost of ownership for Hitachi crawler excavator undercarriages.

This technical publication is intended for engineering and procurement professionals in the mining and heavy construction industries. All specifications are subject to verification against current OEM documentation. For current pricing, lead times, and technical support, contact CQC TRACK directly.
