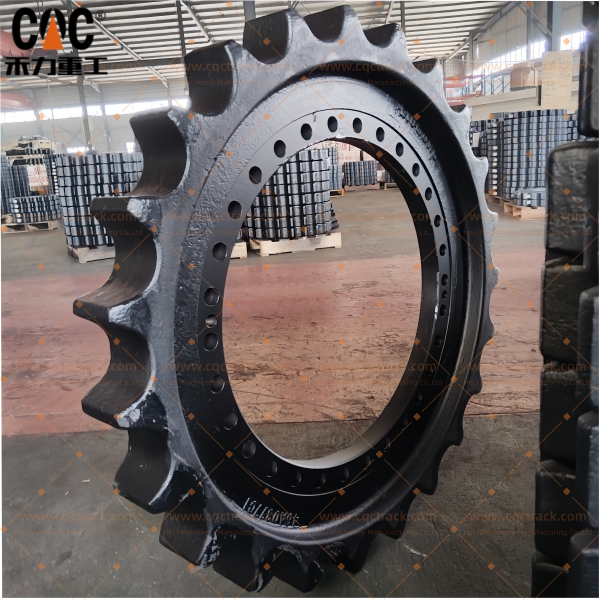

Technical White Paper: LIUGONG 46A0377 / 46A0377C1 CLG990F Final Drive Sprocket Wheel Assembly

Source Manufacturer: HELI Machinery Manufacturing Co., Ltd. (CQCTRACK)

1. Executive Summary: Engineering the Apex of Power Transmission for Large Excavators

The final drive sprocket wheel assembly is the critical interface where hydraulic power converts into linear tractive force. For the LIUGONG CLG990—a large-class excavator operating in heavy mining, quarrying, and mass earthmoving—the sprocket assembly designated as Part Number 46A0377 (and its variant 46A0377C1) must withstand extreme torsional stresses, abrasive wear from track chain contact, and impact loads inherent to severe-duty applications.

HELI Machinery Manufacturing Co., Ltd., operating under the CQCTRACK brand, manufactures this heavy-duty component as a vertically integrated producer. Through precision closed-die forging, advanced heat treatment, and stringent quality control, these sprockets are engineered to deliver mechanical interchangeability with OEM specifications while offering enhanced durability for the rigors of the CLG990 operating class.

This document provides a comprehensive technical exposition of the LIUGONG 46A0377/46A0377C1 Track Sprocket Wheel Assembly, detailing the engineering philosophy, material metallurgy, manufacturing protocols, and quality assurance frameworks that define this critical component.

2. Product Identification and Cross-Reference Matrix

3. Functional Role in the Undercarriage System

In the track chassis architecture of the LIUGONG CLG990, the sprocket wheel assembly serves as the primary driver of the undercarriage system, performing functions that directly impact machine mobility, efficiency, and component longevity.

3.1 Primary Operational Functions

1. Torque Conversion and Power Transmission:
The sprocket mounts directly to the final drive hub, receiving high-torque rotational input from the hydraulic motor. Through precise tooth engagement with the track chain bushings, it converts this rotational energy into linear motion, propelling the machine across the worksite. The tooth profile geometry is critical to ensuring smooth power transfer without shock loading or vibration.

2. Track Chain Synchronization:
The sprocket’s tooth pitch and contour are precisely calibrated to match the track chain specifications of the CLG990. Proper synchronization ensures even load distribution across multiple teeth, minimizing localized stress concentrations that lead to premature wear or tooth fracture. This synchronization is essential for maintaining track tension dynamics and overall undercarriage alignment.

3. System Integration and Alignment:
As the primary drive element, the sprocket works in concert with the idler, track rollers, and carrier rollers to maintain proper track geometry. Any misalignment or wear imbalance in the sprocket can propagate accelerated wear throughout the entire undercarriage system, making precision manufacturing a critical requirement.

3.2 System Integration Context

4. Technical Deconstruction: The Anatomy of the 46A0377 Sprocket Assembly

The performance and service life of a sprocket in the CLG990 class are determined by the synergistic integration of material science, forging technology, precision machining, and thermal treatment.

4.1 Material Metallurgy: Foundation of Durability

The selection of base material is the critical first step in achieving the required combination of surface wear resistance and core toughness.

Base Material Specification:

• Grade: 42CrMo4 / SAE 4140 high-strength chromium-molybdenum alloy steel, or equivalent high-grade forging steel
• Material Characteristics:
  • Excellent hardenability for deep, uniform case hardness
  • High tensile strength and yield strength to resist plastic deformation under peak loads
  • Good toughness at elevated temperatures
  • Superior fatigue resistance under cyclic loading conditions

Material Validation Protocol:
Every material batch undergoes spectrographic analysis to verify chemical composition against certified specifications. This ensures batch-to-batch consistency and full traceability throughout the production process.

4.2 Forging Process: Grain Flow Optimization

The transition from raw material to sprocket blank occurs through closed-die hot forging—a process that fundamentally enhances the component’s mechanical properties.

The closed-die forging process aligns the metallic grain flow with the component’s geometric contour, creating an anisotropic structure with superior impact strength compared to cast alternatives. This is particularly critical for the CLG990 class, where impact loads from excavation and dozing operations create severe stress concentrations at the tooth root.

4.3 Precision CNC Machining: Dimensional Accuracy

The forged blank undergoes multi-axis CNC machining to achieve the precise geometry required for proper fit and function.

Critical Machined Features:

The tooth profile is machined to the exact involute form specified by the original equipment design, ensuring smooth engagement with the track chain and eliminating undue stress concentrations that accelerate wear.

4.4 Heat Treatment and Surface Engineering

Heat treatment is the core of the durability advantage offered by CQCTRACK sprockets. The process creates a graduated hardness profile that maximizes wear resistance while maintaining core toughness.

Induction Hardening Protocol:

Technical Rationale:

• The hardened surface (58-62 HRC) provides extreme abrasion resistance against track bushing contact and abrasive contaminants
• The deep case depth ensures retained hardness throughout the usable wear life of the sprocket
• The ductile core absorbs impact loads and prevents catastrophic tooth fracture

4.5 Surface Protection and Corrosion Resistance

For components exposed to harsh operating environments, surface protection extends service life and maintains sealing integrity.

5. Sealing System Integration

The interface between the sprocket assembly and the final drive is a critical sealing zone. Contamination ingress through this interface is a primary cause of final drive failure.

5.1 Sealing Surface Engineering

The sprocket incorporates precisely machined sealing grooves and surfaces designed to interface with multi-labyrinth or Duo-Cone-type seal systems:

• Surface Finish: Ground to fine finish on seal-running surfaces
• Hard Chrome Plating: Applied to seal contact zones to prevent corrosion-induced surface degradation
• Geometric Accuracy: Runout tolerance ensures uniform seal compression and proper seal function

5.2 Contamination Exclusion Philosophy

The sealing system serves two essential functions:

1. Lubricant Retention: Prevents loss of final drive gear oil
2. Contaminant Exclusion: Blocks entry of abrasive particles (silica, pulverized ore, slurry) that cause internal component failure

Components are engineered with sealing surfaces that meet or exceed OEM specifications, ensuring proper interface with the machine’s existing seal system.

6. Manufacturing Capabilities: HELI CQCTRACK as a Source Manufacturer

HELI Machinery Manufacturing Co., Ltd. (CQCTRACK) operates as a vertically integrated manufacturer, distinguishing itself from parts distributors and trading companies through direct control over the entire production value chain.

6.1 Vertical Integration Architecture

6.2 Quality Assurance Framework

The CQCTRACK quality system incorporates mandatory inspection gates that ensure batch-to-batch consistency and full traceability:

Incoming Material Validation:

• Spectrographic chemical analysis against certified specifications
• Ultrasonic testing for internal flaw detection
• Hardness verification and grain structure examination

In-Process Controls:

• Dimensional inspection of critical features using precision measurement equipment
• Real-time monitoring of heat treatment parameters with digital record retention
• Magnetic particle inspection for surface and sub-surface defects

Final Assembly Validation:

• Hardness mapping: multiple-point verification per component
• Run-in testing to verify smooth operation
• Dimensional verification of all critical interfaces

Traceability Systems:

• Material certificates per applicable standards
• Digital retention of heat treatment logs and inspection reports
• Production lot traceability for root cause analysis and warranty validation

7. Technical Specifications Summary

8. Value Proposition for Heavy Equipment Operations

8.1 Economic Rationale for Source Manufacturer Selection

8.2 Total Cost of Ownership Considerations

For CLG990-class machines operating in heavy-duty applications, the total cost of ownership advantages include:

• Extended service intervals through superior wear resistance
• Prevention of collateral damage to track chains and final drives
• Reduced unplanned downtime from sprocket failure
• Predictable wear cycles enabling scheduled maintenance
• Warranty validation through documented traceability

9. Maintenance and Replacement Strategy

9.1 Inspection Protocol

Regular inspection of the sprocket assembly enables predictive maintenance:

9.2 Replacement Strategy Recommendations

9.3 Failure Mode Prevention

10. Conclusion: Engineering Confidence for Heavy-Duty Excavator Operations

The LIUGONG 46A0377 / 46A0377C1 Track Sprocket Wheel Assembly for the CLG990 excavator, as manufactured by HELI Machinery Manufacturing Co., Ltd. (CQCTRACK), represents a convergence of advanced material science, precision manufacturing, and application-specific engineering. Developed for the rigorous demands of mining, quarrying, and heavy construction, these assemblies incorporate:

• Forged steel construction with controlled grain flow for superior impact resistance and fatigue strength
• Deep-case induction hardening (58-62 HRC, 3-5 mm effective depth) providing extended wear life
• Precision-machined tooth geometry ensuring perfect engagement with CLG990F track chain systems
• Advanced sealing surfaces engineered to maintain final drive integrity
• Vertically integrated manufacturing ensuring full traceability and batch-to-batch consistency
• Certified quality systems providing documented validation of materials, processes, and final assembly

For fleet managers, maintenance engineers, and procurement specialists responsible for maximizing the availability and cost-effectiveness of LIUGONG CLG990F excavators, sourcing these sprocket assemblies from a specialized manufacturer offers a demonstrable path to optimized total cost of ownership, reduced unplanned downtime, and enhanced operational safety.

Disclaimer: LIUGONG, CLG990F, and part numbers 46A0377 and 46A0377C1 are trademarks and property of LiuGong Machinery Co., Ltd. HELI Machinery Manufacturing Co., Ltd. (CQCTRACK) is an independent manufacturer specializing in the production of premium replacement undercarriage components. Products are engineered to be mechanically interchangeable with the named OEM parts. This document is for informational purposes and does not imply affiliation, endorsement, or sponsorship by LiuGong.
