Hitachi EX2500/ EX2600 / YA00018437 / 4375575 / YA00039848 / 4352140 Track Lower Roller Assembly & Bottom Roller Group – CQCTrack Direct Global Wholesale from a High- Performance Undercarriage Manufacturer for Heavy- Duty Crawler Excavators

In the extreme-duty cycle of a 250-tonne hydraulic excavator, the track lower roller assembly is a defining component that dictates machine uptime, undercarriage wear rate, and total cost of operation. For the Hitachi EX2500 and EX2600, CQCTrack has reverse-engineered and perfected the bottom roller group to be a direct, bolt-in performance upgrade over generic alternatives. Covering OEM reference codes YA00018437, 4375575, YA00039848, and 4352140, this assembly is manufactured under the same roof that supplies undercarriage components to the world’s foremost construction and mining equipment brands. As a factory-direct global wholesaler, CQCTrack delivers uncompromising metallurgy, precision machining, and field-certified endurance without the layered margins of distribution chains.

1. Manufacturing Authority: An OEM Production Core Serving Global Equipment Giants
CQCTrack’s credibility is anchored in its role as a primary OEM production partner. Our manufacturing facility does not simply produce “aftermarket” parts; it currently operates as the original undercarriage source for Hitachi, Kobelco, LiuGong, XCMG, and SDLG. This means that the exact quality gates, pattern-making precision, and metallurgical protocols mandated by Japanese and Chinese heavy equipment leaders are indigenous to our production culture. The knowledge transfer flows in real time—engineers who design and heat-treat the bottom rollers for a new XCMG mining excavator are the same specialists overseeing the Hitachi EX2500 roller group production. This convergence of multiple OEM programs under one roof has forged a depth of cross-manufacturing expertise that generic factories cannot replicate. For the wholesale buyer, this translates into a part that mirrors original fit, form, and function with absolute dimensional fidelity, every single order.

2. Technical Deconstruction of the Bottom Roller Assembly

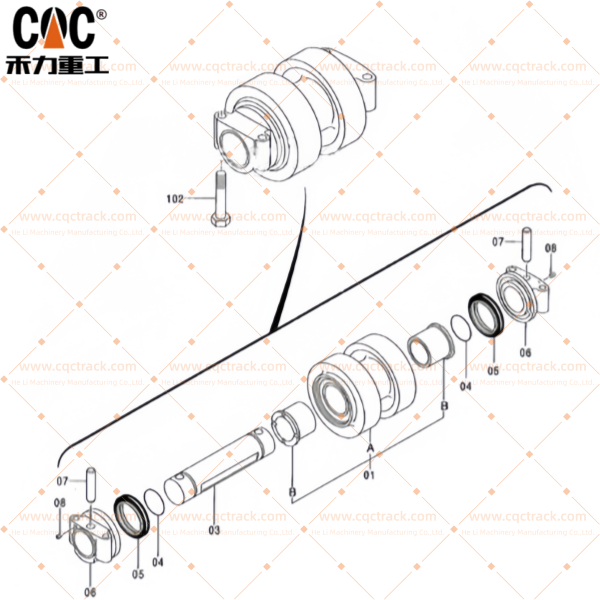

The Hitachi EX2500/EX2600 lower roller group produced by CQCTrack is engineered as a fully assembled, pre-lubricated cartridge ready for immediate installation. Every internal element is designed to extend service life in abrasive, high-impact mining conditions:

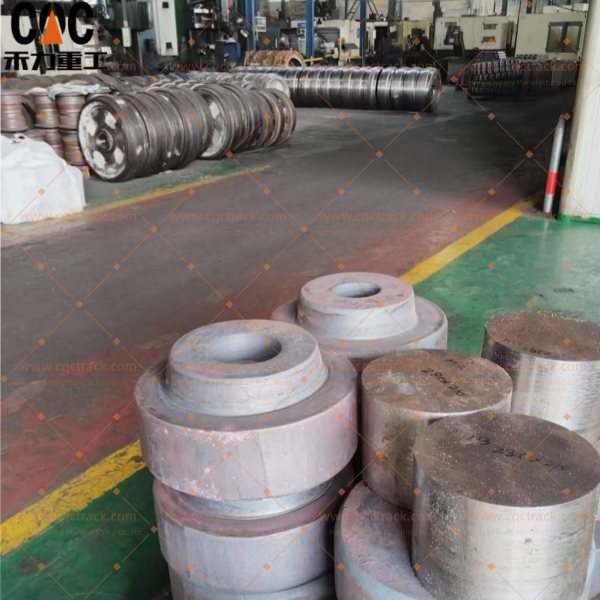

• Roller Shell: Forged directly from a specially selected alloy round steel bar. The hot forging process generates a continuous, refined grain flow that follows the tread profile, eliminating the structural weaknesses inherent in castings. This forged blank provides superior resistance to radial cracking and spalling under the eccentric loads common on uneven pit floors.
• Side Covers (End Caps): Produced using spheroidal graphite (ductile iron) casting technology. Unlike brittle cast iron, the nodular graphite structure of the side covers absorbs severe lateral impacts from track pin thrust without fracturing. The covers are machined to a precise press-fit tolerance against the shaft, creating a robust sealed envelope.
• Shaft Architecture: The shaft is engineered with a dual-seal-groove configuration. Each groove is plunge-ground to a meticulously controlled surface finish to ensure zero leak-path for lubricant and an ideal contact face for the floating seal rings. The shaft is induction hardened at the seal seating areas to prevent grooving wear over thousands of hours of rotation.
• Sealing & Lubrication: We exclusively integrate top-tier, double-cone floating seals sourced from premier global manufacturers, creating a permanent metal-to-metal face seal that is self-replenishing as micro-wear occurs. The internal cavity is filled with a specially compounded anti-freeze extreme-pressure grease. Its wide operational viscosity range ensures immediate cold-start lubrication in sub-zero permafrost and stable film integrity when the roller body temperature climbs under continuous travel.
• Heat Treatment — The Four-Stage Hardening Protocol:
  1. Overall Quenching & Tempering: The forged shell undergoes a full-body quench and high-temperature temper immediately after forging. This process homogenizes the microstructure throughout the thick wall, creating a tough, fatigue-resistant core with a uniform pre-hardness.
  2. Rough Machining: After the initial heat treatment stabilizes the material, the shell is rough-machined to remove scale and bring dimensions near-net-shape. This sequencing prevents post-heat-treat distortion and ensures a stress-free component before finishing.
  3. Precision Finish Machining: CNC lathes then execute the fine boring and tread profiling. All mating surfaces, including the seal bores and shaft housings, are held to tolerances of microns to guarantee assembly integrity.
  4. Overall Induction Hardening (Tread & Flange Quenching): The fully machined shell is transferred to a medium-frequency induction hardening station where the entire rolling surface and flanges are rapidly heated and quenched. This produces a deep, uniform hardened case while the previously tempered core remains resilient. The final surface hardness is rigorously controlled within 55–62 HRC. This steep hardness gradient means the tread resists abrasive silica gouging and plastic deformation, while the ductile core prevents catastrophic shell fracture under severe overloading—a critical balance for large excavators working on shot rock.

3. 20 Years of Iterative Engineering, Validated in the World’s Toughest Mines
The CQCTrack EX2500 lower roller is not a static product. Over two decades of focused production, our process technology has been continuously expanded and refined through a closed-loop improvement system fed by field data. Every micro-adjustment—from alloy micro-alloying ratios and forging temperature windows to quenchant dwell times—has been permanently codified into our manufacturing recipe.
This component’s reliability is not a laboratory claim. It has been repeatedly and harshly validated across the most severe mining environments on the planet: from the elevation-stressed, high-abrasion copper pits of the Peruvian Andes and Ecuadorian jungles, to the deep-level hard rock platinum faces of South Africa; from the frozen Siberian and Kazakhstani open cuts to the high-humidity salt-laden atmospheres of South Pacific island mines. In these settings, roller failure cascades into crippling track pitch extension and swing drivetrain overload. CQCTrack bottom roller groups have earned a documented reputation for predictable wear progression and structural durability, allowing mine maintenance planners to schedule change-outs rather than react to breakdowns.

4. Full-Spectrum Undercarriage System Support
Because CQCTrack is a systems manufacturer, the EX2500/EX2600 bottom roller is produced within a fully integrated undercarriage ecosystem. We do not treat it as an isolated part. Our in-house production lines simultaneously manufacture the exact mating components for these large Hitachi excavators: front idler assemblies with forged rims and heavy-duty shafts, top carrier rollers with the same seal technology, drive sprockets with flame-hardened tooth profiles, and complete track chains assembled with case-hardened pins and bushings. This comprehensive capability means that a fleet sourcing all its undercarriage wear parts from CQCTrack ensures 100% metallurgical and dimensional compatibility across the entire ground-engaging platform, optimizing wear harmony and eliminating the accelerated damage caused by mixed-source parts.

5. Direct Global Wholesale Distribution Network
CQCTrack operates a lean, factory-direct wholesale model that puts genuine manufacturing value directly into the hands of international distributors, mining groups, and heavy equipment dealers. Our export containers are a constant presence on major trade routes, supplying high-performance Hitachi undercarriage parts to the most demanding markets:

• South America: Sustaining continuous supply to mining operations in Ecuador, Peru, Chile, and Colombia.
• Africa: Ruggedized for South African hard-rock and alluvial mining sectors.
• Russia & Central Asia: Engineered for extreme cold and abrasive overburden in Russia, Kazakhstan, and other CIS territories.
• Premium Asia-Pacific Markets: High-tolerance product lines delivered to South Korea and the Indian high-end mining segment, as well as quarry and infrastructure developments in Vietnam, Indonesia, and South Pacific island nations.
• North America & EMEA: Direct shipments to the USA, Canada, and Turkey, supporting both mining and major earthmoving contractors.
  This global reach is backed by a multilingual, mine-site-aware International Business Team that understands urgent lead times and mining-site logistics protocols.

CQC International Business Team: Philip | Jack | Haily
This product introduction has been personally authored and technically reviewed by Jack from the CQCTrack Global Business Division, ensuring full accuracy against current engineering specifications and field performance records.
