ZOOMLION ZE1250 Track Top Roller Group / Upper Roller Assembly: Forged Integrity by cqctrack – The OEM Heavy-Duty Undercarriage Specialist

Product Focus: Track Top Roller Group (Carrier Roller / Upper Roller Assembly)
Compatible Excavator Model: ZOOMLION ZE1250 (and equivalent large-class mining excavators)
Original Manufacturer: cqctrack – A premier heavy-duty tracked undercarriage component manufacturer
Authored by: Jack, cqc International Business Team

Introduction: Critical Track Support for the ZOOMLION ZE1250 Mining Excavator

On a massive 125-ton class mining excavator like the ZOOMLION ZE1250, the upper track run must be flawlessly supported to prevent excessive sag, absorb high-frequency shocks, and ensure smooth sprocket-to-idler chain transmission. The Track Top Roller Group — also referred to as the Upper Roller Assembly — is a deceptively simple component that carries a relentless burden. It must resist extreme radial loads, continuous abrasion from the track chain, and severe environmental contamination while maintaining perfect rolling alignment. cqctrack, an original manufacturer of heavy-duty undercarriage parts based in Quanzhou, China, engineers this carrier roller with a forged 35MnBh steel shell, a selectively carburized and induction-hardened 40Cr shaft, and two decades of validated mining performance. The result is a component that matches and often exceeds OEM life expectations.

1. cqctrack: The OEM Manufacturing Powerhouse with Global Brand Pedigree

cqctrack’s position as a premium undercarriage manufacturer is rooted in its role as a trusted OEM and ODM production partner for some of the most demanding names in construction and mining equipment. The company currently manufactures undercarriage components on an OEM basis for Hitachi, Kobelco, LiuGong, XCMG, and SDLG. These partnerships are not merely transactional; they require a manufacturing culture that flawlessly executes advanced metallurgy, precision machining, and 100% quality verification. The very same forging, heat treatment, and CNC finishing lines that supply these global OEMs are used to produce every ZOOMLION ZE1250 Top Roller Group.

Total In-House Manufacturing Independence
What truly separates cqctrack from typical aftermarket assemblers is its complete vertical integration. The entire production sequence — from the initial forging of raw alloy steel to final vacuum-sealed assembly — is conducted within its own purpose-built facilities. This absolute control guarantees metallurgical consistency, dimensional repeatability, and full component traceability, eliminating the variability introduced by outsourced processes.

2. Product Description: The ZE1250 Top Roller Group Deconstructed

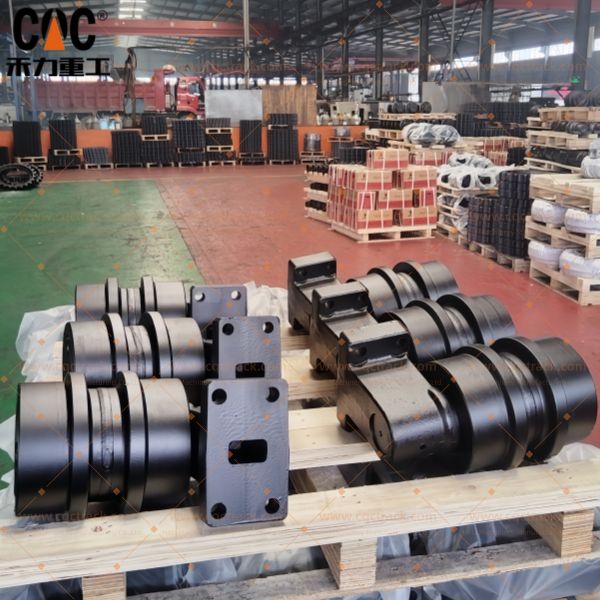

The cqctrack Upper Roller Assembly for the ZOOMLION ZE1250 is engineered as a direct-fit, heavy-duty replacement designed to deliver extended service intervals under continuous mining duty. Every subcomponent is metallurgically optimized and manufactured to exact OEM mounting dimensions.

2.1 Roller Shell: 35MnBh Forged Steel with Full Heat Treatment and Flaw Detection

The roller shell (wheel body) is precision forged from 35MnBh high-grade alloy steel. This material is chosen specifically for its excellent hardenability, high tensile strength, and superior impact fatigue resistance — properties essential for a component that experiences continuous rolling contact and shock loading. The manufacturing process for each shell comprises:

• Quenching and Tempering (Q&T): Following forging, the entire shell undergoes a rigorous Q&T cycle. This homogenizes the grain structure, eliminates residual forging stresses, and develops a uniformly tough, ductile core capable of absorbing severe rock impacts without crack initiation.
• Comprehensive Non-Destructive Testing (NDT): Every single shell is subjected to magnetic particle inspection (MPI) or equivalent surface and sub-surface flaw detection. This zero-tolerance approach guarantees that no forging discontinuity, lap, or crack is present before machining begins.
• Tread Induction Hardening: The outer rolling surface — which bears directly against the track links — is selectively heated using a precision medium-frequency induction coil and rapidly quenched. The resulting tread hardness is stringently maintained within 52–56 HRC. This deep, wear-resistant case effectively combats abrasive wear from rock fines and metal-to-metal contact, while the tough Q&T core provides structural resilience.

2.2 Roller Shaft: 40Cr Steel with Carburized and Induction-Hardened Surface

The stationary shaft is machined from 40Cr (AISI 5140) high-grade alloy structural steel and processed through a specialized surface-hardening protocol to maximize both bending fatigue strength and wear resistance at the critical sealing and bearing interfaces:

• Quenching and Tempering: The shaft blank is first fully Q&T treated to develop a uniform, high-strength, and ductile core structure. This ensures the shaft can withstand constant flexural loads without permanent deformation.
• Surface Carburizing: The shaft journals and dual seal contact grooves undergo a controlled carburizing treatment. Carbon is diffused into the surface layers, creating a chemically enriched case that dramatically enhances hardness potential and sliding wear resistance — particularly important for the rotating seal interface.
• Medium-Frequency Induction Hardening: Following carburizing, the treated surfaces are precisely induction hardened to a consistent surface hardness of 52–56 HRC. This yields a perfectly smooth, ultra-wear-resistant bearing and sealing surface, while the core remains tough and fatigue-resistant. The dual seal grooves are finish-machined to micron-level concentricity, ensuring a flawless pairing with the floating seal rings.

2.3 Sealing System and Lifetime Lubrication

The roller assembly is protected by top-tier dual-cone floating seals made from high-chromium cast alloy, pressed into position by resilient O-rings that maintain constant face loading. The internal lubrication cavity is vacuum-filled with a specialized anti-freeze semi-fluid grease. This lubricant remains pumpable in arctic cold and resists thermal thinning in extreme heat, guaranteeing full-film lubrication of all shaft-to-bushing interfaces from initial start-up and effectively preventing any ingress of water, mud, or abrasive fines.

2.4 Dimensional Conformity: Direct OEM Replacement

All mounting dimensions, bracket footprint, roller diameter, and tread profile are manufactured strictly according to the original ZOOMLION ZE1250 design standards. The roller group bolts directly onto the track frame without any modification, ensuring correct track link contact and preventing abnormal chain wear.

3. Twenty Years of Continuous Process Evolution and Global Mine-Site Validation

The performance of cqctrack’s Top Roller Assemblies is not the result of a single engineering decision; it is the culmination of a 20-year journey of continuous process refinement. Every aspect — the forging die geometry, the precise tempering temperature curves, the induction coil frequency and traverse speed, the carburizing atmosphere carbon potential — has been iteratively optimized using direct feedback from the world’s toughest operating environments.

The stability and reliability of these roller assemblies have been repeatedly proven in the most extreme mining and earthmoving conditions on the planet: the high-altitude copper and silver mines of Peru, the abrasive gold and diamond operations of South Africa, the deep-frozen coal and iron ore basins of Russia and Kazakhstan, the volcanic rock quarries of Vietnam, and the high-utilization infrastructure zones of India and South Korea. This immense global validation database directly informs the production of every ZOOMLION ZE1250 roller, ensuring that its performance claims are not theoretical, but field-authenticated.

4. Complete Undercarriage System Supply: One Manufacturer, Total Compatibility

A top roller never operates in isolation; its wear rate is closely linked to the condition of the mating track chain, sprocket, idler, and bottom rollers. cqctrack provides a comprehensive, fully compatible range of undercarriage components for the ZOOMLION ZE1250 and virtually all other major excavator brands, all manufactured under the same in-house quality system:

• Track rollers (single and double flange, heavy-duty)
• Front idler assemblies with tensioning recoil mechanisms
• Carrier rollers / Top rollers
• Drive sprockets (segmented and integral hub designs)

Absolute Production Independence: All manufacturing processes for these components — forging, casting, heat treatment, CNC machining, sealing, and final assembly — are completed entirely within cqctrack’s own production facilities. No critical sub-process is outsourced. This guarantees uniform material quality, consistent case depth profiles, and component-to-component compatibility, allowing mining fleets to perform a full undercarriage overhaul with absolute confidence in synchronized service life.

5. Global Export Reach and the cqc International Business Team

cqctrack’s OEM-quality undercarriage parts are trusted and distributed across a vast and diverse global market. The company actively exports to and maintains proven operational track records in:

• South America: Ecuador, Peru, and surrounding mining-intensive economies.
• Africa: South Africa — the world’s benchmark for abrasive wear testing.
• CIS & Central Asia: Russia, Kazakhstan, and neighboring states where components must withstand extreme cold and heat cycles.
• Asia-Pacific: South Korea, India (specifically its high-end, performance-driven market segment), Vietnam, and numerous South Pacific island nations with expanding quarry and infrastructure sectors.
• Americas & Europe: North America and Turkey, where technical specifications and reliability expectations are exceptionally stringent.

This global presence is actively supported by the cqc international business team, whose core members — Philip, Jack, and Haily — combine comprehensive undercarriage engineering knowledge with responsive, professional commercial service. This detailed technical profile and product documentation has been personally researched, verified, and authored by Jack, ensuring that every specification and claim is directly grounded in cqctrack’s authentic manufacturing experience.

Conclusion: Forged for the ZE1250, Engineered by cqctrack

The ZOOMLION ZE1250 Track Top Roller Group manufactured by cqctrack is the embodiment of genuine OEM manufacturing capability. From the 35MnBh forged and thoroughly flaw-detected roller shell to the 40Cr carburized and induction-hardened shaft, every metallurgical and dimensional detail is optimized for maximum uptime and minimum lifecycle cost. Backed by 20 years of evolutionary process improvement and proven in the world’s most hostile mining environments, this upper roller assembly delivers a standard of reliability that is not a copy of the original — it is a professional-grade engineering evolution.

For technical drawings, parts catalogs, or to discuss your ZOOMLION or other excavator undercarriage requirements, please contact the cqc international business team. Jack, Philip, and Haily stand ready to deliver expert, OEM-level support to your operation.
