1. Introduction: The Unsung Workhorse of Mini Excavator Undercarriage Systems

In the compact construction equipment sector, the Sumitomo SH60 mini excavator occupies a vital niche—a machine that delivers reliable performance in urban construction sites, utility trenching, landscaping projects, and light excavation work across the globe. While often overshadowed by their larger mining-class counterparts, mini excavators like the SH60 are deployed in high-frequency, high-cycle applications where reliability and uptime directly impact project profitability. The undercarriage system, and specifically the track roller assembly, is the foundation upon which this operational reliability rests.

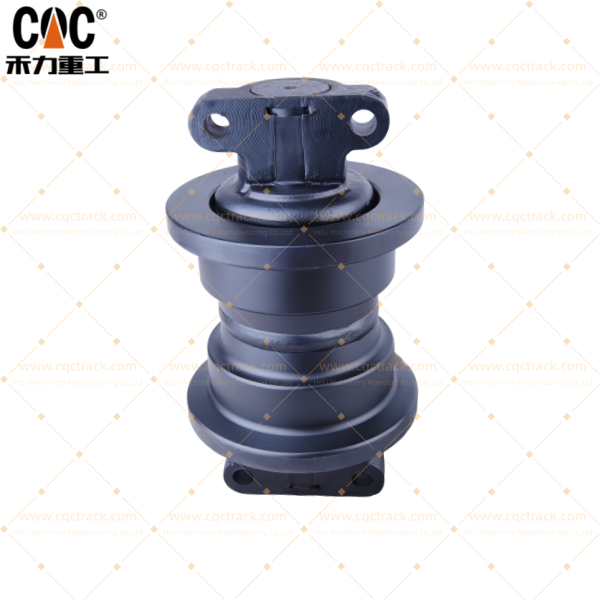

The SUMITOMO KAA0675 Single Flange Crawler Track Roller Assembly is a mission-critical component engineered specifically for the SH60 series mini excavator. As a bottom roller—also referred to as a track roller or lower roller—this component supports the machine‘s full operating weight, maintains proper track alignment, and absorbs the continuous impact and shock loads generated during digging, turning, and traversing uneven terrain. The single flange configuration is particularly suited to mini excavator applications, where compact design, reduced track friction, and optimized load distribution are essential for machine performance and component longevity.

Manufactured by CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) —a source factory and one of the top three undercarriage component manufacturers in Quanzhou, China—this track roller assembly delivers OEM-equivalent quality at factory-direct pricing. As a vertically integrated manufacturer with over two decades of specialized experience, CQC TRACK serves the global construction machinery aftermarket, providing reliable undercarriage solutions to customers across South Africa, South America, North America, Europe, Russia, South Korea, and beyond.

As the author of this technical overview, I am Jack, responsible for technical overseas sales at Heli Undercarriage Parts. Alongside my colleagues and the broader Heli global sales team under the strategic leadership of our major shareholder, we provide comprehensive undercarriage solutions, aftermarket supply, and OEM customization to customers worldwide. In this article, I will present a complete technical and commercial analysis of the Sumitomo KAA0675 single flange track roller assembly, including its specifications, manufacturing excellence, global market applications, and how our team delivers tailored supply-chain support across diverse international markets.

2. The Sumitomo SH60 Mini Excavator: A Global Compact Machine Standard

2.1 Machine Overview and Market Position

The Sumitomo SH60 is a 6-ton class mini excavator that has gained recognition for its balance of power, maneuverability, and fuel efficiency. Designed for applications requiring both precision control and sufficient digging force, the SH60 is deployed across a diverse range of sectors including residential construction, municipal utility work, landscaping, and light demolition.

Based on verified equipment listings and technical data, the SH60 operates within the following performance envelope:

The SH60 strikes an optimal balance between stability and mobility. Its weight class makes it ideal for urban construction, landscaping, and utility trenching, where maneuverability and minimal ground disturbance are critical requirements. The 54 hp Isuzu diesel engine provides sufficient power for productive excavation while maintaining fuel economy suitable for extended duty cycles.

2.2 Undercarriage Configuration and Track Roller Function

The SH60 employs a standard crawler undercarriage configuration typical of the 6-ton mini excavator class. The undercarriage consists of track chains, track shoes, track rollers (bottom rollers), carrier rollers (top rollers), front idler, and drive sprocket. For machines in this weight class, track rollers are typically arranged with 4–5 bottom rollers per side, evenly spaced along the track frame to distribute the machine‘s operating weight effectively.

The track roller (bottom roller) performs several critical functions:

• Weight Bearing: The primary function of track rollers is to support the entire operating weight of the excavator and transfer that load through the track chain to the ground. Each roller in the sequence carries a portion of the machine‘s 6-ton weight plus any additional loads from digging forces and impact.
• Track Guidance: The roller‘s flanges engage with the track chain‘s link rail, maintaining proper lateral alignment and preventing track derailment during turning operations.
• Shock Absorption: As the excavator travels over uneven terrain, rocks, and debris, the track rollers absorb significant impact loads—protecting the track frame and final drive from shock-induced damage.
• Friction Reduction: By providing a smooth rotating interface between the track frame and the moving track chain, rollers minimize frictional losses and reduce energy consumption during travel.

2.3 Part Number Identification: KAA0675

The part number KAA0675 is Sumitomo‘s official designation for the single flange track roller assembly applicable to the SH60 series excavator. This part number has been cross-referenced and validated in the aftermarket supply chain as a direct OEM-equivalent replacement.

Available sourcing data confirms that the KAA0675 assembly is identified as the “SH60-2 OUTER FLANGE BOTTOM ROLLER” in the Australian mining and construction equipment aftermarket, with reference code TA1182861. The designation “SH60-2” indicates compatibility with the Series 2 variant of the SH60 excavator, though the assembly is also applicable to earlier SH60 models and compatible with other mini excavator configurations that share the same undercarriage geometry.

The specific reference to “outer flange” in the Australian parts listing is significant. It confirms that this track roller assembly features a single flange configuration positioned on the outer side of the roller body—a design choice that optimizes track chain retention while minimizing the roller‘s overall width, which is particularly important for the compact track geometry of a mini excavator.

3. Technical Deep Dive – Single Flange Track Roller Assembly

3.1 Flange Configuration: Why Single Flange Matters

Track rollers are available in two primary flange configurations: double flange and single flange. The choice between these configurations has significant implications for undercarriage performance and compatibility.

For the Sumitomo SH60 and similar mini excavators, the single flange configuration offers distinct advantages:

• Reduced track friction: With only one flange contacting the track link rail, rolling resistance is minimized—improving travel efficiency and reducing fuel consumption.
• Compact undercarriage width: The single flange profile allows for a narrower track frame envelope, which is essential for mini excavators operating in confined urban spaces and through narrow passageways.
• Simplified manufacturing: The single flange design reduces production complexity compared to double flange rollers, contributing to a more cost-effective component without compromising durability.
• Optimized for light-to-medium duty: For the 6-ton weight class, the lateral forces encountered during normal operation are well within the capacity of a single flange design, making double flange rollers unnecessary for most applications.

3.2 Physical Specifications

Based on OEM and aftermarket technical standards for mini excavator track rollers in the 6-ton class, the KAA0675 assembly is manufactured to the following specifications:

3.3 Material and Manufacturing Standards

High-quality aftermarket track roller assemblies for the Sumitomo SH60 are manufactured to meet or exceed OEM specifications through rigorous material selection and controlled production processes.

Roller Shell Material:

• High-grade forged medium-carbon alloy steel, selected for its exceptional combination of strength, toughness, and hardenability
• Forging ensures a continuous grain flow that follows the contour of the part, significantly enhancing fatigue resistance compared to cast alternatives
• Forged construction is critical for withstanding repeated high-impact loads from track chain contact

Flange Engineering:

• The single flange is integrally forged with the roller body—not welded or attached as a separate component—ensuring structural integrity under lateral loads
• Flange edges are induction-hardened to an ultra-hard surface layer, dramatically extending service life against abrasive wear from track link contact

Bearing Components:

• Double-row tapered roller bearings provide optimal load distribution and rotational smoothness
• Precision-ground bearing surfaces ensure consistent performance and reduced friction

Sealing System:

• Multi-layered labyrinth seal or floating face seal configuration provides a robust barrier against contamination (abrasive sand, mud, dust)
• Retention of high-performance grease extends service life and minimizes maintenance requirements
• Many mini excavator track rollers are sealed-for-life, eliminating the need for field relubrication

Heat Treatment:

• Roller body: Through-hardened to provide necessary structural integrity to resist deformation under load
• Roller tread: Induction-hardened to create a deep, wear-resistant surface layer (typically 55–60 HRC) while maintaining a ductile, shock-absorbing core to prevent brittle fracture
• Flange edges: Induction-hardened (58–62 HRC) for maximum abrasion resistance at the point of track contact

3.4 Quality Assurance

Premium aftermarket suppliers subject their track roller assemblies to rigorous quality control protocols:

• Spectrographic material analysis – Verification of alloy composition against OEM benchmarks
• Hardness profiling – Rockwell hardness testing at multiple points (tread, flange, bearing journals)
• Dimensional inspection – CNC coordinate measuring machine (CMM) verification of roller diameter, flange width, shaft diameter, and mounting dimensions
• Magnetic particle inspection (MPI) – Detection of surface cracks on critical components
• Seal integrity testing – Verification of contamination exclusion and lubricant retention
• Rotation smoothness testing – Validation of bearing function under load simulation

3.5 Compatibility Verification

The KAA0675 single flange track roller assembly is a direct-fit replacement for the following Sumitomo excavator models:

• SH60 (standard configuration)
• SH60-2 (Series 2 variant)
• Compatible with other mini excavator models that share the same undercarriage geometry, as confirmed by cross-referenced parts listings for Sumitomo SH60 in the aftermarket supply chain

Fleet operators and parts distributors should confirm compatibility by cross-referencing the existing assembly‘s specifications—including roller diameter, flange width, shaft diameter, and mounting bolt pattern—against the replacement part‘s dimensions. Our sales team at Heli Undercarriage Parts provides technical verification support for all orders to ensure perfect fitment.

4. CQC TRACK – Your Source Factory for Undercarriage Components

4.1 Company Overview: One of Quanzhou‘s Top Three Manufacturers

HELI MACHINERY MANUFACTURING CO., LTD. , operating under the industrial brand CQC TRACK, has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region of China—a premier industrial cluster for global earthmoving equipment supply. With over 20 years of specialized manufacturing experience, the company has evolved from a specialized parts workshop into a vertically integrated manufacturing powerhouse.

The company‘s strategic positioning within Quanzhou—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports—enables efficient global distribution and responsive supply chain management. CQC TRACK serves the global market as a proficient OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) partner, producing components to exact client specifications, drawings, and quality standards.

Key corporate credentials include:

• ISO 9001:2015 certified facility with CQC product certification
• Over 20 years of specialized manufacturing experience in undercarriage components
• Vertically integrated operations—raw material to finished assembly
• One of the top three undercarriage component manufacturers in Quanzhou
• State-owned land and factory facilities with fully integrated production lines

4.2 Manufacturing Capabilities

CQC TRACK‘s manufacturing prowess is built on complete vertical integration and controlled, sequential processes. The company‘s core manufacturing capabilities include:

• In-House Forging & Forging Alliance: The company utilizes premium 52Mn, 55Mn, and 40CrNiMo alloy steels. Through strategic control of forging, CQC TRACK ensures optimal grain flow and material density in component blanks, which is fundamental for impact strength and fatigue life.
• CNC Machining Centers: A battery of modern CNC lathes, milling machines, and drilling centers performs rough and finish machining, ensuring dimensional accuracy to ISO 2768-mK standards and consistent interchangeability.
• Advanced Heat Treatment Lines: The company‘s dedicated facility features computer-controlled induction hardening and tempering furnaces, specializing in achieving deep, uniform case hardness for optimal wear resistance.
• Precision Assembly and Sealing: Automated assembly lines ensure consistent bearing preload and seal integrity across all production batches.

4.3 Product Portfolio – Comprehensive Undercarriage Coverage

CQC TRACK manufactures a comprehensive range of undercarriage components spanning the entire spectrum of crawler excavator applications, from 5-ton mini excavators to 300-ton mining-class machines. The product portfolio includes:

• Track rollers (bottom rollers / lower rollers) – Including the Sumitomo KAA0675 single flange assembly for mini excavators
• Carrier rollers (top rollers / upper rollers) – Supporting the upper track run
• Front idlers – For track tensioning and guidance
• Sprockets (drive rims) – With precision-machined teeth for final drive engagement
• Track chains (track link assemblies) – Sealed and lubricated configurations
• Track shoes – Various widths and patterns
• Complete undercarriage kits – Pre-assembled solutions for major brands including Sumitomo, Komatsu, Caterpillar, Hitachi, Volvo, and SANY

This product breadth allows customers to source entire undercarriage replacement sets from a single supplier, simplifying procurement logistics and ensuring component compatibility across the track system.

4.4 OEM Quality, Source Factory Pricing

As a source factory (original manufacturer), CQC TRACK provides customers with distinct advantages over trading companies and third-party intermediaries:

Our overseas business is conducted through direct communication with our sales team—no third-party intermediaries—ensuring full transparency in pricing, lead times, quality control, and after-sales support.

4.5 Custom Undercarriage Solutions

CQC TRACK‘s engineering team specializes in custom undercarriage solutions, recognizing that off-the-shelf parts may not always meet the unique demands of specialized applications. As an OEM and ODM manufacturer, the company produces components to exact client specifications and collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions.

Customization options include:
