1. Product Identification: The SANY SY500H 13221933 Track Link Assembly for Heavy Mining Excavators

The SANY SY500H stands as one of the most formidable hydraulic excavators in SANY‘s large machine portfolio, specifically engineered for heavy-duty mining, large-scale infrastructure, quarrying, and mass earthmoving projects worldwide. Weighing approximately 49,500 kg to 54,500 kg (depending on configuration and regional emission standards), this 50-ton class powerhouse is powered by a Cummins diesel engine delivering 298 kW to 403 HP (approximately 405 hp), ensuring exceptional digging force, efficiency, and reliability for the most demanding operational environments. Key specifications of the SY500H include a bucket digging force of 287 kN, arm digging force of 245 kN, maximum digging depth of 7,705 mm, and a track shoe width of 600 mm (with optional configurations up to 900 mm), making this machine a preferred choice for mining contractors and large-scale earthmoving operators across the globe.

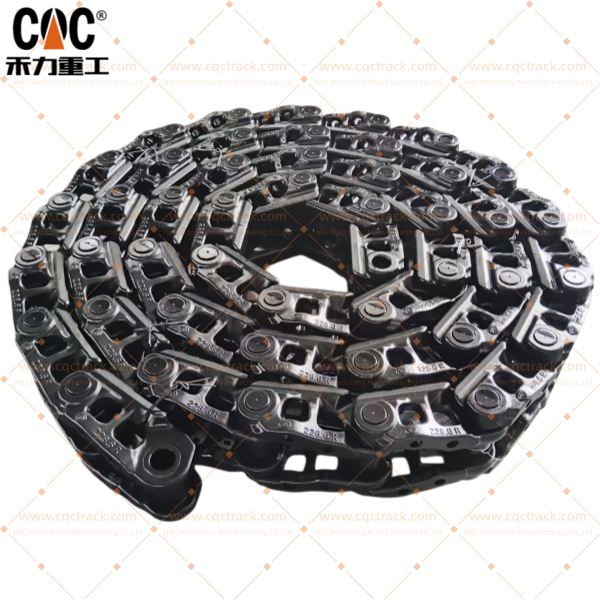

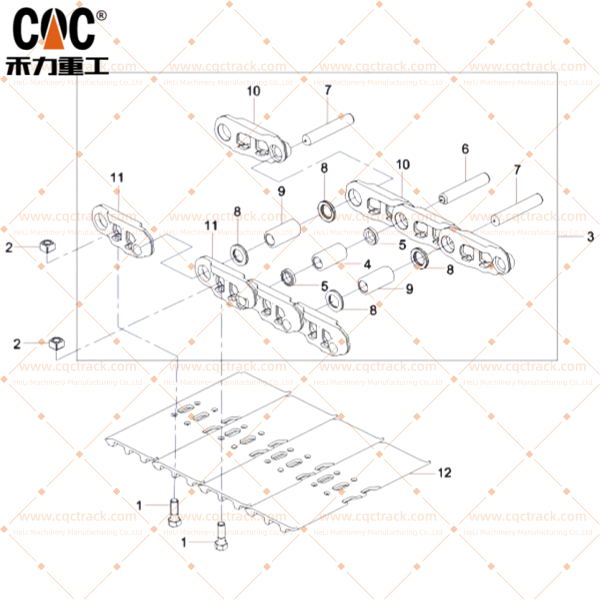

The SANY 13221933 Track Link Assembly — also commonly referred to in aftermarket catalogs as the YGP 50 Chain Excavator Track Chain Assembly — is the fundamental structural backbone of the SY500H’s undercarriage propulsion system. The 13221933 part number represents the OEM-specified complete track link assembly designed by SANY for the SY500H series, incorporating precision-forged track links, high-strength track pins, deep case-hardened bushings, and advanced seal systems into an integrated heavy-duty track chain that transfers torque from the sprocket to generate forward and reverse motion, distributes the full operating weight evenly across the undercarriage, maintains continuous track chain tension and alignment, and absorbs dynamic shock loads encountered during high-impact rock excavation and steep-grade operations in mining environments.

Available in 50-link configuration (industry reference points to YGP 50 Chain) with specific ground-contact length optimized for the SY500H‘s heavy-duty chassis, each link is forged from high-tensile alloy steel with a precisely controlled heat treatment process, achieving a deep case-hardened surface with a tough impact-resistant core, while the Duo-Cone or multi-labyrinth seals keep contaminants out and retain lubrication within the pin-bushing interface, ensuring consistent performance.

A procurement document from a major mining operation referencing “SY550H-S 13221933 SY055CE0010K8” for a complete track chain assembly (链轨总成) further confirms this part number‘s critical role in large-scale mining operations and establishes its direct applicability to the SY500H and its SY550H-S derivative models, consolidating its position as a key component for large SANY excavator fleets.

2. CQC TRACK: Professional OEM and ODM Manufacturer of Track Link Assemblies and Complete Chassis Components

CQC TRACK (Heli Machinery Manufacturing Co., Ltd.) , headquartered in Quanzhou, Fujian Province, China, has established itself as a professional manufacturer and supplier of OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) undercarriage components for medium to ultra-large tracked excavators, drilling rigs, bulldozers, and crawler loaders. With extensive specialized expertise in chassis parts production, the company serves as a trusted partner for international mining companies, heavy construction contractors, equipment rebuilders, and aftermarket distributors across six continents.

CQC TRACK operates with full vertical integration, specializing in the four main undercarriage categories: rollers, idlers, sprockets, and track links, ensuring OEM-quality compatible components for SANY and a comprehensive range of other major brands, including Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Hyundai, Kobelco, Liebherr, Case, JCB, and LiuGong.

As an OEM supplier, CQC manufactures the SANY 13221933 Track Link Assembly to exact dimensional, metallurgical, and performance specifications — every critical parameter (link pitch, link height, pin diameter, bushing outer diameter, link count, and heat treatment profile) is verified against the original SANY part standard, ensuring direct bolt-on replacement with zero modification requirements.

As an ODM manufacturer, CQC offers comprehensive custom engineering and design services for customers who require track link assemblies with modified specifications — increased link height for deeper wear allowance, alternative Duo-Cone seal materials for extreme-temperature mining environments (Canadian oil sands or Siberian diamond mines), enhanced case-hardened depth up to 10–12 mm at HRC45 for extended service life in highly abrasive applications, and specialized bearing alloys for high-shock mining applications. Customers can provide original equipment drawings or physical samples, and CQC‘s in-house engineering team will reverse-engineer or redesign the track link assembly to meet specific mine-site operational requirements.

CQC TRACK holds ISO 9001:2015 certification and operates under a formal China Quality Certification (CQC) approved quality management system, ensuring full raw material traceability, in-process control, non-destructive testing, and final product validation for every production batch.

Each finished track link assembly leaving CQC’s factory is marked with a unique batch code linking it to the original steel heat number, forging lot, heat-treatment cycle, and final assembly shift — a level of traceability demanded by international mining companies in Australia, Chile, Canada, and South Africa before approving a new aftermarket undercarriage supplier.

3. Vertically Integrated Manufacturing Infrastructure: A Complete Chassis Components Factory

CQC TRACK‘s ability to consistently deliver mining-grade SANY SY500H 13221933 track link assemblies and other heavy-duty chassis parts rests upon a fully vertically integrated manufacturing infrastructure that eliminates supply chain variability, quality inconsistencies, and production delays associated with subcontracting, enabling faster lead times (typically 15–20 working days for standard orders), superior quality consistency, and the flexibility to accommodate ODM customizations without external dependency.

Casting Foundry — Produces raw blanks for sprockets, idlers, support rollers, and certain track guide components using green-sand and lost-foam casting processes. Each casting batch undergoes ultrasonic flaw detection and chemical analysis to confirm alloy composition and structural integrity before proceeding to subsequent operations.

Forging Plant — The core facility for producing CQC‘s SANY 13221933 track link assemblies. High-tensile alloy steel billets (35MnBH or equivalent grades, as referenced in aftermarket supplier catalogs) are heated to controlled austenitizing temperatures (1,100–1,200°C) and shaped using hydraulic press forging. Closed-die forging aligns the metallic grain flow with the contour of the link body, significantly enhancing fatigue resistance and impact toughness compared to cast or cut-from-plate alternatives.

Forged Bucket Tooth Factory — Shares the same quality assurance protocols and alloy expertise as the track component lines. This facility enables CQC to supply a complete suite of excavator wear parts, including bucket teeth and adapters for SANY, CATERPILLAR, KOMATSU, HITACHI, and other brands, alongside the undercarriage track link assemblies.

CNC Machining Workshop — Equipped with CNC vertical lathes, horizontal boring mills, and precision grinding centers. Critical finishing operations for the 13221933 assembly include precision turning of link rail surfaces to achieve flatness and parallelism within ±0.05 mm tolerance, drilling and reaming of bolt holes for track shoe attachment, precision boring of pin and bushing cavities, grinding of pin journals, and final dimensional laser scanning for quality assurance.

Final Assembly Plant — The SANY 13221933 track link assemblies are assembled on dedicated indexing lines using hydraulic pressing equipment calibrated to achieve precise pin-to-bushing interference fits. Duo-Cone or multi-labyrinth seals are installed with measured grease volumes, and each assembly undergoes joint break-out torque verification to confirm proper seal compression, chain elongation measurement across multiple pitches to detect any deviation from dimensional standards, leak testing of lubricated joints under simulated operating pressure, and final visual inspection for surface finish and alignment.

4. Field-Proven Reliability in Heavy Mining and Construction Applications

CQC‘s undercarriage components, including the SANY 13221933 Track Link Assembly, have accumulated extensive proven field service across the world’s most demanding mining and heavy construction environments.

In open-pit copper mining in Chile‘s Atacama Desert, where daily temperatures fluctuate dramatically and airborne dust is highly abrasive, CQC’s case-hardened track links (HRC52–58 surface hardness) achieve extended service life compared to generic aftermarket substitutes. For mine maintenance planners, an extended track chain service life directly translates into reduced unscheduled downtime and lower annual undercarriage parts expenditure — critical metrics for high-volume production environments.

In iron ore mining in Australia‘s Pilbara region and coal mining in Queensland, where high-impact loads from rock fragments, high-speed travel between work zones, and high ambient temperatures place extreme stress on undercarriage components, CQC‘s track link assemblies demonstrate exceptional resistance to fatigue cracking. Forged steel construction with deep case-hardened bushings resists chipping and spalling even after prolonged exposure to sharp iron ore and coal fragments, with mine maintenance engineers reporting significant reduction in chain-related undercarriage interventions after switching to CQC assemblies.

In heavy quarry operations in South Africa’s platinum and chrome mines, where crushed stone generates severe impact loads on links, pins, and bushings, CQC‘s track link integrity has been confirmed after thousands of hours of operation without cracking or deformation, with superior pin-bushing fit preventing pin migration — a common failure mode in lower-quality aftermarket chains.

In infrastructure projects across Saudi Arabia (NEOM), Turkey, Indonesia, and Brazil, operating in fine desert sand, heavy clay, mud, and monsoon conditions, CQC‘s advanced sealing systems maintain lubricant integrity even after extended operation in abrasive slurry — preventing dry running that would otherwise lead to rapid chain failure.

Independent field comparisons conducted by large international fleet operators show that CQC‘s track link assemblies offer significantly extended service life compared to standard aftermarket components, with reduced unscheduled downtime across mixed SANY, CATERPILLAR, KOMATSU, and HITACHI fleets, and 20–25% annual reduction in undercarriage parts expenditure — savings that can reach hundreds of thousands of dollars annually for large mining fleets while simultaneously improving machine availability.

5. CQC‘s Dedicated International Business Team — Your Global Partner for SANY Undercarriage Components

CQC TRACK’s International Business Desk is staffed by experienced trade specialists who manage the complex logistics, documentation, technical support, and customer-specific requirements of global excavator parts supply.

• Jack — Senior Account Manager for Europe, Russia, and the Americas.
  Jack has extensive experience in heavy equipment parts export, including certified familiarity with CE marking (European Union), GOST-R certification (Russia), and customs documentation for North American imports. He coordinates with CQC‘s in-house logistics department to arrange sea freight (FCL/LCL), rail freight, and express air shipments to ports and project sites across Europe, the Russian Federation, the United States, Canada, and Latin America. Jack also handles technical proposal preparation and OEM/ODM contract negotiation for custom track link configurations.
• Haily — Export Coordinator for Central Asia, South Korea, and Australia.
  Haily specializes in the unique customs and certification requirements of Central Asian republics (Kazakhstan, Uzbekistan, Mongolia), South Korea, and Australia. She manages the preparation of commercial invoices, packing lists, certificates of origin, and test reports required for customs clearance in these jurisdictions. Haily works directly with Australian mining companies that require ISO 9001:2015 and CQC certification documentation as part of their supplier quality pre-qualification process.
• Mr. Zhou — Regional Director for the Middle East, West Asia, Africa, and Southeast Asia.
  Mr. Zhou has extensive experience in heavy equipment parts supply and speaks multiple languages (English, Mandarin, and Levantine Arabic). He leads CQC‘s engagement with mining companies, government infrastructure agencies, and equipment dealers across Saudi Arabia, UAE, Jordan, Turkey, Nigeria, Ghana, Democratic Republic of Congo, Zambia, Kenya, Indonesia, Thailand, and the Philippines. Mr. Zhou also provides on-site technical support missions, visiting mine sites to inspect worn undercarriage components, confirm part number exchanges, and provide installation guidance for track link assemblies when required.

6. Global Market Coverage — Supplying Mining and Construction Operations Across Six Continents

CQC‘s SANY 13221933 Track Link Assemblies and complete chassis components portfolio are currently shipped to major mining and construction markets worldwide:

• Europe — Germany, Poland, Finland, Sweden, Norway, the Netherlands, Belgium, France, Spain, Italy, Greece, United Kingdom.
• West Asia and the Middle East — Saudi Arabia (NEOM project, phosphate mining), United Arab Emirates, Qatar, Jordan, Turkey, Kuwait.
• Central Asia — Kazakhstan (Karaganda and Pavlodar mining regions), Uzbekistan (gold and copper mines), Mongolia (Oyu Tolgoi copper-gold mine), Tajikistan.
• South America — Chile (Atacama Desert copper mines), Peru, Brazil (iron ore and gold mines), Argentina, Colombia, Bolivia.
• Russia — Siberian diamond and coal mines, Urals region mining, Far Eastern ports (Vladivostok), distributed inland via Trans-Siberian Railway.
• South Korea — Seoul, Incheon, Busan, and Ulsan equipment dealers and rebuild centers.
• North America — United States and Canada, supplying aftermarket distributors, equipment rebuild centers, and large-scale infrastructure contractors.
• Australia — Western Australia (iron ore), Queensland (coal and copper), New South Wales, Victoria.
• Africa — South Africa (platinum, gold, manganese, and chrome mines), Zambia (copper), Democratic Republic of Congo (cobalt and copper), Ghana (gold), Nigeria, Kenya, Tanzania, Angola.

7. Conclusion — Choose CQC TRACK for SANY SY500H 13221933 Track Link Assemblies

For fleet managers, mining procurement teams, equipment dealers, and infrastructure contractors requiring a reliable source of SANY SY500H 13221933 Track Link Assemblies for heavy-duty mining and construction operations, CQC TRACK (cqctrack) offers a complete, vertically integrated manufacturing solution backed by extensive specialized undercarriage expertise.

CQC TRACK combines vertically integrated manufacturing infrastructure — casting foundry, forging plant, forged bucket tooth factory, CNC machining workshop, and final assembly plant — with OEM and ODM manufacturing capabilities for SANY, Caterpillar, Komatsu, Hitachi, Volvo, Doosan, Hyundai, and other major brands. The company holds international quality certifications — ISO 9001:2015 and CQC approved quality management system — and employs mining-grade metallurgy with forged high-tensile alloy steel links, deep case-hardening to HRC52–58, advanced Duo-Cone sealing systems, and extensive field-proven performance. Supported by a dedicated international business team — Jack, Haily, and Mr. Zhou — for global sales, logistics, and technical support, CQC TRACK offers worldwide shipping to Europe, West Asia, Central Asia, South America, Russia, South Korea, North America, Australia, and Africa, covering all major mining and construction markets.

Contact CQC TRACK for factory-direct supply of SANY SY500H 13221933 track link assemblies, OEM and ODM undercarriage manufacturing for mixed fleets, technical support, part number cross-referencing, installation guidance, and global shipping solutions tailored to your mine or project site location.

CQC TRACK — Engineering Mining-Grade Reliability into Every Track Link Assembly.
