Doosan DX800 200104-00119 / K1051211 Track Lower Roller Assembly: Factory -Direct Heavy- Duty Undercarriage Parts from CQCTRACK

# Doosan DX800 200104-00119 / K1051211 Track Lower Roller Assembly: Factory-Direct Heavy-Duty Undercarriage Parts from CQCTRACK

**Meta Description:** Source the OEM-class lower roller (200104-00119 / K1051211) for Doosan DX800 excavators from CQCTRACK, a direct factory with ISO 9001:2015 certification. Forged shells, floating seals, exact fit, and consistent global supply for mining and construction fleets.

## The Load-Bearing Foundation of the Doosan DX800 Excavator
The Doosan DX800 is an 80-tonne class crawler excavator engineered for mass excavation in quarries, hard-rock mining, and heavy infrastructure demolition. Its undercarriage chassis bears the full weight of the machine—over 80 tonnes—plus dynamic shock loads transferred through the boom during breakout. The track lower roller assembly (often called the bottom roller or track roller) is one of the most numerous and physically stressed components on this chassis. Part numbers **200104-00119** and **K1051211** identify the factory roller dimensions, bearing pre-load, seal arrangement, and material specification for the DX800. A lower roller that suffers tread cracking, bearing seizure, or floating seal failure ceases to roll and becomes a stationary grinding point against the track chain, dramatically accelerating link and bushing wear. Replacing worn or suspect rollers with a direct-manufactured, metallurgically certified assembly is essential to preserving the machine’s mobility and steering precision under load.

## CQCTRACK: The Direct Manufacturing Source, Not a Trading Layer
CQCTRACK is the international trade identity of Quanzhou Heli Machinery Manufacturing Co., Ltd., an independent heavy‑duty crawler equipment spare parts factory. Unlike many suppliers who source rollers from multiple uncontrolled workshops, CQCTRACK operates its own foundry, forging workshops, induction hardening plant, CNC machining centers, and sealed assembly cleanrooms under one roof and one quality management system. Every Doosan DX800 lower roller assembly is smelted, shaped, heat‑treated, machined, assembled, and inspected within this single, auditable production campus. This control chain translates into guaranteed dimensional interchangeability, certifiable material properties, and consistent service life—from the first roller ordered to the thousandth.

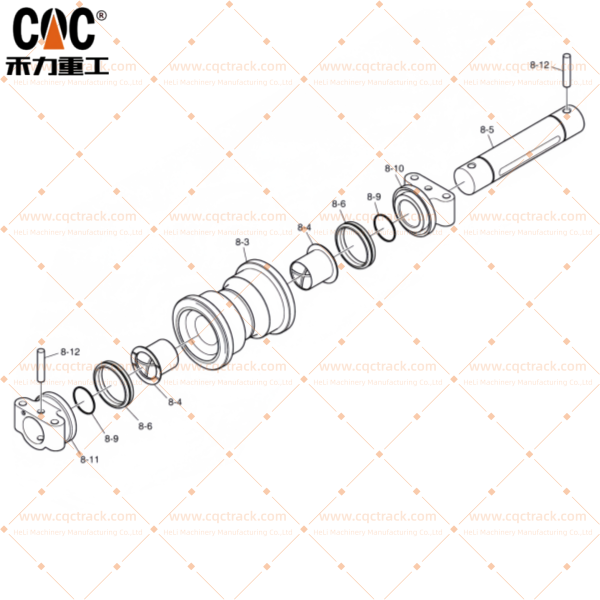

## Technical Specification of the 200104-00119 / K1051211 Lower Roller
CQCTRACK builds this lower roller to mirror and, in targeted areas, enhance the original equipment blueprint, with material and heat‑treat parameters tuned for the high‑impact, abrasive conditions typical of 80‑tonne excavator operation.

| Parameter | Specification & Operational Rationale |

| **Roller Shell Material** | Forged or fine‑investment‑cast alloy steel (typically 40Mn2 or equivalent Cr‑Mn series), selected for superior hardenability, compressive fatigue strength, and resistance to spalling under heavy rolling contact. |
| **Tread Surface Hardness** | Induction‑hardened along the full tread width to **55–60 HRC** with a hardened case depth of 5–8 mm. This hard layer resists abrasive grooving from rock‑laden track bushes while the softer core absorbs impact without cracking. |
| **Shaft** | Forged medium‑carbon alloy steel, precision‑ground on bearing and seal journals, induction‑hardened at seal contact surfaces to prevent early seal‑lip wear. |
| **Bearing and Pre‑Load** | Matched heavy‑section taper roller or deep‑groove ball bearings set to OEM‑spec working clearance. This guarantees free rotation under radial and thrust loads without lateral wobble that would distort the floating seal interface. |
| **Seal System** | Dual‑cone floating metal face seals (lifetime type). The two precision‑lapped alloy rings rotate against each other under a controlled pre‑load, forming a dynamic barrier against water, dirt, and fine silica particles while permanently retaining the internal grease charge. |
| **Lubrication** | Factory‑filled with high‑performance lithium‑complex extreme‑pressure grease, engineered to withstand the frictional heating generated during sustained tracking cycles. |
| **Mounting Bracket** | Precision‑machined bracket with bolt slots aligned parallel to the shaft axis, ensuring a bolt‑on installation onto the DX800 track frame with zero field‑fitting work. |
| **Quality Validation** | 100% rotational torque and run‑out testing, seal‑cavity vacuum decay testing, and batch sampling for accelerated fatigue life, all archived by serial number. |

## CQCTRACK’s Manufacturing Capability: Total Vertical Integration
**CQCTRACK’s manufacturing capability** is anchored in complete production ownership. The process starts with in‑house pattern making and alloy melting under spectrometer control. The roller blank is formed by closed‑die forging or precision lost‑foam casting, then transferred to multi‑axis CNC lathes and machining centers where the tread, bore, seal cavities, and mounting bracket are machined to micron‑level tolerances. Induction hardening is executed with digital power and scanning control, generating a consistent case‑depth contour. Assembly occurs in a pressurized cleanroom where floating seals are mounted without contamination. Each completed roller is serialized, and its manufacturing dossier—including melt certificate, heat‑treat charts, hardness traverse, and dimensional report—is permanently stored. This depth of control is what makes CQCTRACK a true factory alternative to OEM undercarriage parts.

## Product Diversity: The Entire Undercarriage from One Audited Source
While the **200104-00119 / K1051211 lower roller** is a high‑demand wear part for the DX800, CQCTRACK’s **product diversity** ensures that every other chassis component can also be sourced from the same manufacturer. The factory’s undercarriage portfolio includes:
- Track chains (sealed and greased, with induction‑hardened pins and bushings)
- Single‑flange and double‑flange bottom rollers for all size classes
- Upper carrier rollers (top rollers)
- Front idler assemblies with forged yokes and tensioning cylinders
- Drive sprockets and replaceable sprocket rim segments
- Track shoes (single‑grouser, triple‑grouser, flat pads, extreme‑service mining shoes)
- Recoil spring groups and hydraulic track adjusters

This range covers Doosan, Hyundai, Volvo, Komatsu, Caterpillar, Hitachi, SANY, XCMG, Liebherr, and many other brands. For a fleet that operates mixed machinery, CQCTRACK becomes a single, traceable supply base for all undercarriage replacements.

## Quality Stability and Management Compliance Under ISO 9001:2015
**Quality stability** is institutionalized through the factory’s long‑standing **ISO 9001:2015** certification. This **management compliance** framework enforces a closed‑loop quality regime:
- Spectrometer verification of every incoming steel heat against certified mill sheets
- Ultrasonic and magnetic particle inspection of forged/cast roller shells
- Calibrated coordinate measuring machine (CMM) dimensional audits and functional gauging
- Batch‑level hardness mapping and heat‑treatment record retention
- Seal integrity testing on every assembly prior to preservation

The disciplined execution of these processes is also the basis of CQCTRACK’s **sound corporate operation**—predictable production planning, consistent on‑time shipping, and the ability to execute long‑term supply contracts without interruption. Mining and construction customers can rely on receiving the same roller performance order after order.

## Brand Recognition Earned Through Rock‑Face Endurance
CQCTRACK’s **brand recognition** in the heavy equipment aftermarket is a direct result of more than twenty years of field‑proven component service. Excavator fleet managers, undercarriage rebuild shops, and international parts distributors associate the CQCTRACK name with rollers that arrive ready to install and consistently achieve a working life that respects—and often exceeds—the cost‑per‑hour expectations set by the OEM part. This reputation has been built not by promotion, but by thousands of rollers rotating reliably in abrasive, water‑flooded, and high‑load mining environments.

## The Teams That Translate Engineering into Export

### Professional Technical Team
CQCTRACK’s **professional technical team** includes metallurgists, forging and casting process engineers, and application‑experienced undercarriage specialists. They have analyzed the specific failure patterns of lower rollers on 80‑tonne class excavators—such as tread edge spalling on steep-gradient sites and seal blow‑out under continuous water immersion—and have optimized the induction hardening depth and seal pre‑load parameters accordingly. They provide technical support grounded in material data and heat‑treat lot records, not assumptions.

### International Affairs Support Team
A dedicated **international affairs support team** manages the export complexity so customers never need to. Their scope covers:
- ISPM 15‑compliant fumigated wooden packing and seaworthy crating
- Certificate of origin, free trade agreement documentation (Form E, etc.), and HS code classification
- Payment handling via T/T, L/C, and multi‑currency settlement
- End‑to‑end logistics tracking from factory gate to destination port or remote job site
- Multilingual communication in English, Spanish, Russian, French, and additional languages

This team ensures that rollers ordered from any continent arrive with fast customs clearance and accurate paperwork, supporting the just‑in‑time maintenance schedules of modern mining and construction projects.

## Worldwide Coverage of Mining and Construction Equipment Markets
CQCTRACK’s **business reaches across the entire global footprint of mining and heavy construction**. The Doosan DX800 lower roller assembly, together with complete undercarriage systems, is actively deployed on excavators working in:
- **Asia‑Pacific** large‑scale open‑cut coal, iron ore, and infrastructure earthworks
- **Latin America** copper, gold, and silver mines operating at high altitude and extreme abrasive conditions
- **Africa** hard‑rock mining regions and major dam and road construction projects
- **Middle East** quarrying, marine construction, and urban mega‑projects
- **Europe and CIS** quarrying, demolition, and transport corridor development
- **North America** heavy civil construction and aggregate operations

With a monthly production capacity that runs into tens of thousands of roller units and standard order‑to‑shipment windows of 7–25 days, CQCTRACK gives equipment managers worldwide the lead‑time predictability needed for both scheduled undercarriage overhauls and emergency repairs.

—

**Commitment and Contact:**
CQCTRACK supplies the Doosan DX800 200104-00119 / K1051211 track lower roller assembly with complete material traceability, competitive FOB or CIF pricing, and a minimum order quantity that accommodates both single‑unit trials and full‑fleet replacement programs. For technical datasheets, current inventory status, or a quotation aligned to your maintenance planning calendar, engage directly with the factory that understands how heavy‑duty undercarriage reliability drives excavator productivity.

*CQCTRACK – Engineered at the Source, Proven Under the Load.*
