1. Technical Overview: The Critical Role of the Front Idler in Heavy Excavator Undercarriage Systems

The track guide wheel—commonly referred to as the front idler, tension wheel, or guide wheel—is a fundamental structural and dynamic component within any crawler excavator‘s undercarriage system. Positioned at the forward extremity of the track frame opposite the drive sprocket, this assembly performs three distinctly different yet equally vital functions: it serves as the primary anchor point for the track tensioning mechanism, provides the non-driven wheel over which the track chain rotates, and maintains proper track alignment to prevent lateral displacement during travel and counter-rotation maneuvers.

For operators of LiuGong CLG9125 excavators—a large excavator platform widely deployed in mining, quarrying, heavy construction, and mass earthmoving—the reliability of the track guide wheel / front idler assembly directly affects track chain life, undercarriage alignment, and overall machine uptime. Industry data consistently demonstrates that undercarriage components represent a substantial portion of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

This publication delivers a comprehensive technical examination of the LiuGong OEM part number 14C0552, which represents the complete track guide wheel / front idler assembly for the CLG9125 excavator platform. The assembly, interchangeably referred to as the track idler or guide wheel, performs two fundamental functions: it guides the track chain around the front of the machine and serves as the moving anchor for the track tensioning mechanism. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.), a vertically integrated manufacturer with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory and manufacturer matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. The LiuGong CLG9125 Platform: Engineering for Heavy Applications

2.1 Machine Platform Overview

The LiuGong CLG9125 is a large excavator engineered for demanding applications including quarrying, mining, and major earthworks. The 9125F variant, a representative model within this series, has been documented as a large excavator designed specifically for mining and heavy construction environments, with the F-series representing one of the manufacturer‘s flagship offerings in the large excavator segment.

The CLG9125’s undercarriage is designed for severe-duty applications, with the front idler assembly (Part Number 14C0552) representing a critical component within this robust architecture, working in conjunction with the track chain, sprocket assembly, and driving wheel to ensure optimal ground contact and propulsion.

2.2 Undercarriage Configuration

For heavy excavators in the size class of the CLG9125, the undercarriage is a closed-loop system comprising the track chain, sprocket, carrier rollers, track rollers, and the front idler. The 14C0552 Idler Assembly is positioned at the front of the track frame and performs three primary mechanical functions that are essential to machine stability and track longevity:

1. Track Guidance & Alignment: The idler features precision-machined flanges that act as a rail, guiding the track chain‘s link assembly and preventing lateral displacement (derailment) during straight travel or counter-rotation maneuvers.
2. Tension Maintenance: It serves as the movable anchor point for the track tensioning mechanism (grease or hydraulic cylinder). By maintaining prescribed track sag, it ensures optimal engagement between the sprocket and bushings, reducing power loss and component slap.
3. Load Bearing & Impact Absorption: The idler wheel rolls along the track chain, supporting a portion of the machine‘s weight. It is the first point of impact when the machine encounters obstacles, absorbing shocks and distributing the reaction forces to the track frame.

3. Part Number 14C0552: Identification and Functional Architecture

3.1 OEM Part Number and Application

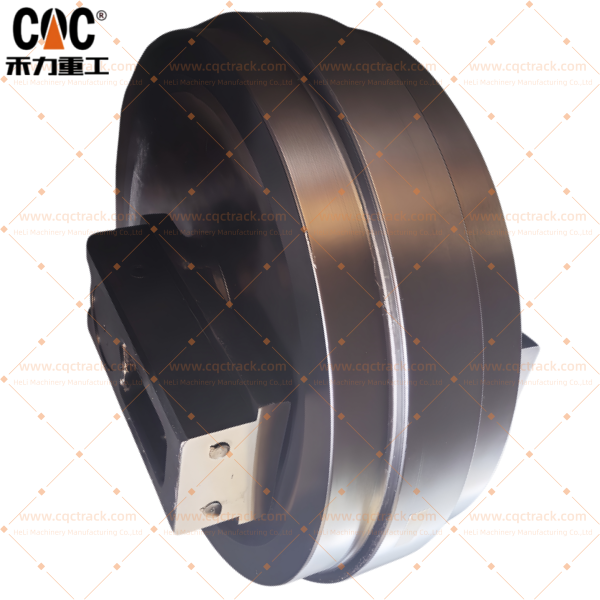

The LiuGong 14C0552 Track Guide Wheel / Track Front Idler Wheel Assembly is a precision aftermarket undercarriage component specifically engineered for the LiuGong CLG9125 excavator. This complete front idler assembly is manufactured to deliver OEM-equivalent fit, form, and function, with 100% interchangeability with the original LiuGong specification.

The 14C0552 designation corresponds to LiuGong‘s proprietary engineering drawings, which define precise dimensional tolerances, material grades, heat treatment parameters, and assembly specifications developed through the original equipment manufacturer’s rigorous validation and field testing. Within the “four wheels and one belt” classification—encompassing track rollers, carrier rollers, front idlers, sprockets, and track chain assemblies—the front idler occupies a unique position as the only rotating component that is not fixed to the track frame; instead, it is mounted on a sliding yoke that moves longitudinally, enabling track tension adjustment.

3.2 Functional Responsibilities

The 14C0552 front idler assembly fulfills two interdependent functions that are critical to machine stability, track life, and operator safety:

1. Track Guidance and Load Transfer: The idler‘s peripheral surface (the tread) contacts the track chain’s rail section, guiding the chain as it wraps around the front of the machine. During forward travel, the idler experiences compressive forces from the track chain; during reverse travel, it must withstand tensile loads transmitted through the chain. The idler also supports a portion of the machine‘s weight, particularly during forward travel when the front of the undercarriage experiences higher vertical loads from digging operations.

2. Tension Maintenance and Dynamic Adjustment: The idler serves as the movable anchor point for the track tensioning mechanism (grease or hydraulic cylinder). By maintaining prescribed track sag, it ensures optimal engagement between the sprocket and bushings, reducing power loss and component slap. This dual role of guidance and tensioning imposes complex loading conditions that demand exceptional structural integrity and wear resistance.

3.3 Component Breakdown

A complete LiuGong 14C0552 track guide wheel / front idler assembly consists of the following subcomponents:

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium front idler assemblies for LiuGong CLG9125 excavators are manufactured from high-grade forged alloy steels selected for their exceptional yield strength, toughness, and wear resistance. The primary material specified for the 14C0552 assembly is forged alloy steel (50Mn or 40MnB equivalent), manganese-silicon alloys chosen for their outstanding toughness and work-hardening characteristics.

Alternative premium grades commonly employed for heavy-duty idler applications include:

Hot-forging ensures optimal grain flow and directional strength, offering exceptional resistance to impact and fatigue failure compared to cast equivalents.

4.2 Heat Treatment Specifications

The performance of a track front idler depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The heat treatment protocol involves through-hardening and tempering for the core structure, combined with induction hardening on the running surface. This creates a deep, wear-resistant case while maintaining a ductile, shock-absorbing core to prevent brittle fracture under extreme impact loads.

4.3 Bearing and Sealing Specifications

The bearing assembly consists of high-capacity metric tapered roller bearings, designed to handle the combined radial and axial loads encountered during travel, turning, and counter-rotation operations.

The integrated multi-stage sealing system combines three protective elements:

This robust sealing architecture provides a critical barrier against mud, sand, and moisture—common contaminants in mining and quarry environments—significantly extending service life and reducing maintenance frequency.

5. CQC TRACK: A Specialized Manufacturer of LiuGong Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. With over 20 years of manufacturing experience, HELI has established itself as one of the top three undercarriage component manufacturers in the Quanzhou region, a premier industrial cluster for heavy machinery manufacturing.

The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

5.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered quality assurance framework, holding both ISO 9001:2015 quality system recognition and multiple CQC product certifications. The company’s components are manufactured under ISO 9001:2015 certified processes, with full component traceability from raw material through finished assembly.

As a vertically integrated manufacturer, HELI combines design and engineering expertise with extensive research and development, utilizing advanced manufacturing technologies to develop innovative, reliable, and competitive products that meet the highest quality standards. The CQCTRACK brand represents a product line built for resilience, engineered to endure the most abrasive and high-impact environments in mining, quarrying, and major infrastructure projects.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK‘s manufacturing strength rests on complete vertical integration and controlled sequential processes:

CQC TRACK‘s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in mining and construction worldwide. The company has documented cross-reference compatibility for its undercarriage components across multiple brands, including LiuGong, Caterpillar, Komatsu, Hitachi, Doosan, SANY, XCMG, Sumitomo, Hyundai, and Volvo.

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of rollers, idlers, sprockets, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to track systems, the engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership (TCO).

5.5 LiuGong Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for LiuGong excavators, including:

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing the LiuGong 14C0552 track guide wheel / front idler assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

CQC TRACK operates as an integrated source factory and manufacturer, eliminating intermediary markups while maintaining strict adherence to original equipment specifications.

6.2 Lead Times and Logistics

For the LiuGong 14C0552 track guide wheel / front idler assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new front idler assembly, verify the following critical parameters:

1. Mounting pattern compatibility — Confirm bolt hole spacing and diameter match the track frame bracket
2. Idler diameter and width — Verify dimensions match the track chain link spacing and track frame clearance
3. Flange configuration — Confirm double-flange design matches OEM specification
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede idler installation
5. Track tensioner cylinder — Inspect for corrosion, damage, and proper operation

7.2 Installation Procedure Summary

1. Securely support the machine on a firm, level surface with the track chain relieved of tension
2. Remove the existing idler assembly mounting bolts using appropriate torque tools
3. Clean the mounting bracket and tensioner carriage surfaces; inspect for damage or wear
4. Position the new front idler assembly and install new high-tensile mounting bolts (reusing old bolts is a safety risk)
5. Torque bolts to specification (consult LiuGong workshop manual for exact values)
6. Apply grease through the lubrication fitting to pre-lubricate bearings and seals
7. Adjust track tension to manufacturer-specified sag using the track tensioner cylinder
8. Operate the machine at low speed and inspect for proper idler rotation, seal integrity, and track alignment

7.3 Maintenance Schedule

7.4 Failure Modes and Troubleshooting

7.5 Service Life Expectations

Under normal quarrying and heavy construction conditions, a quality aftermarket front idler meeting HRC 52–58 surface hardness specifications with 6–12 mm case depth can achieve 4,000–6,000 operating hours before requiring replacement. In severe mining applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 3,000–4,000 hours.

For optimal undercarriage life, always inspect and replace idler components as a system when significant wear is detected. Mixing worn and new parts can lead to uneven wear, misalignment, and reduced performance. Regular track tension inspection, timely track chain replacement, and proper lubrication are the most effective methods for maximizing idler longevity. Proper idler design, material selection, and manufacturing precision directly influence track alignment, tension maintenance, shock absorption, and overall undercarriage longevity.

8. The Importance of Proper Front Idler Selection for Heavy Mining

The front idler is one of the most heavily stressed components in an excavator undercarriage system. Unlike bottom rollers, which distribute weight across multiple points, the front idler concentrates significant loads at the forward extremity of the track frame while simultaneously managing dynamic tension fluctuations during acceleration, deceleration, and turning.

For LiuGong CLG9125 excavators operating in mining and heavy construction—machines with substantial operating weights and daily production demands—selecting high-quality front idlers with proper material selection, heat treatment, robust sealing systems, and precision machining is essential.

CQC TRACK‘s 14C0552 track guide wheel / front idler assembly incorporates:

• Forged alloy steel construction (50Mn, 40MnB, or 42CrMo) for superior grain flow and impact resistance
• Induction-hardened running surface (HRC 52–58) with 6–12 mm case depth for exceptional wear resistance
• Through-hardened core (HRC 28–35) maintaining toughness to absorb shock loads
• High-capacity tapered roller bearings for reliable rotation under extreme loads
• Multi-stage sealing system (labyrinth guards, floating face seals, NBR lip seals) providing robust contamination barrier
• ISO 9001:2015 certified manufacturing processes with full component traceability

These engineering features ensure that properly maintained front idlers will deliver reliable service throughout their design life in the world‘s most demanding mining environments. The assembly is not statically mounted; it is secured to a sliding carriage connected to a hydraulic or screw-type tensioning mechanism, and this design is validated through LiuGong’s rigorous field testing protocols.

9. Conclusion

For operators of LiuGong CLG9125 excavators deployed in mining, quarrying, heavy construction, and mass earthmoving, the track guide wheel / front idler assembly represented by part number 14C0552 is a mission-critical component whose reliability directly affects track chain life, undercarriage alignment, and machine uptime. As the only rotating component mounted on a sliding yoke that enables track tension adjustment, the front idler occupies a unique position within the undercarriage system, imposing complex loading conditions that demand exceptional structural integrity and wear resistance.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. As one of the top three undercarriage component manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

With material specifications including premium 50Mn, 40MnB, and 42CrMo alloy steels; heat treatment achieving HRC 52–58 running surface hardness with 6–12 mm case depth and HRC 28–35 core hardness; ISO 9001:2015 quality certification; and advanced multi-stage sealing systems (labyrinth guards, floating face seals, NBR lip seals), CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the LiuGong 14C0552 track guide wheel / front idler assembly directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world‘s toughest operating environments.
